Imported schema smil20-language.xsd
Namespace http://www.w3.org/2001/SMIL20/Language
Properties
attribute form default: unqualified
element form default: qualified

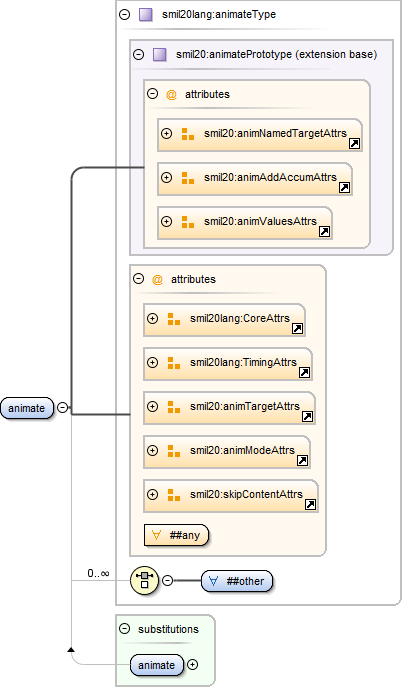

Element smil20lang:animate
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagram index32.tmp#id4009 index32.tmp#id4012 index32.tmp#id4015 index32.tmp#id4008 index42.tmp#id4021 index42.tmp#id4028 index32.tmp#id4064 index32.tmp#id4066 index32.tmp#id4068 index42.tmp#id4007 index32.tmp#id4005
Type smil20lang:animateType
Type hierarchy
Properties
content: complex
Substitution Group
Model ANY element from ANY namespace OTHER than 'http://www.w3.org/2001/SMIL20/Language'
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace
accumulate restriction of string none optional
additive restriction of string replace optional
alt string optional
attributeName string required
attributeType restriction of string auto optional
begin string optional
by string optional
calcMode restriction of string linear optional
class string optional
dur string optional
end string optional
fill smil20:fillTimingAttrsType default optional
fillDefault smil20:fillDefaultType inherit optional
from string optional
id ID optional
longdesc anyURI optional
max string optional
min string optional
repeat nonNegativeInteger optional
repeatCount smil20:nonNegativeDecimalType optional
repeatDur string optional
restart smil20:restartTimingType default optional
restartDefault smil20:restartDefaultType inherit optional
skip-content boolean true optional
syncBehavior smil20:syncBehaviorType default optional
syncBehaviorDefault smil20:syncBehaviorDefaultType inherit optional
syncTolerance string optional
syncToleranceDefault string inherit optional
targetElement IDREF optional
to string optional
values string optional
xml:lang union of(xs:language, restriction of xs:string) optional

lang (as an attribute name)

denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.

Notes

Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.

See BCP 47 at http://www.rfc-editor.org/rfc/bcp/bcp47.txt and the IANA language subtag registry at http://www.iana.org/assignments/language-subtag-registry for further information.

The union allows for the 'un-declaration' of xml:lang with the empty string.

Source

<element name="animate" type="smil20lang:animateType"/>

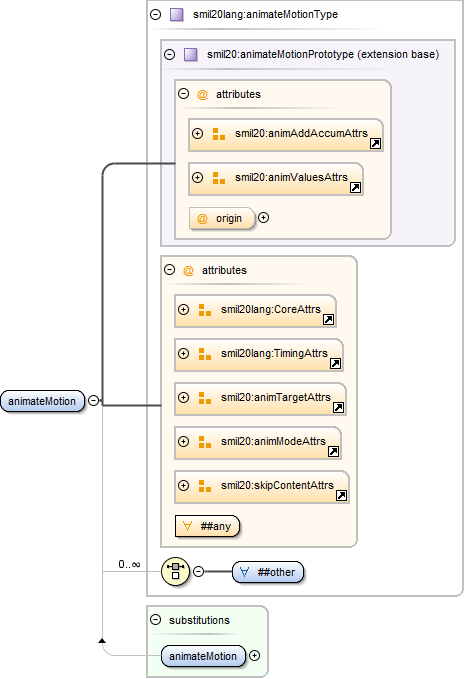

Element smil20lang:animateMotion
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagram index32.tmp#id4012 index32.tmp#id4015 index32.tmp#id4074 index32.tmp#id4073 index42.tmp#id4021 index42.tmp#id4028 index32.tmp#id4064 index32.tmp#id4066 index32.tmp#id4068 index42.tmp#id4072 index32.tmp#id4070
Type smil20lang:animateMotionType
Type hierarchy
Properties
content: complex
Substitution Group
Model ANY element from ANY namespace OTHER than 'http://www.w3.org/2001/SMIL20/Language'
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace
accumulate restriction of string none optional
additive restriction of string replace optional
alt string optional
begin string optional
by string optional
calcMode restriction of string linear optional
class string optional
dur string optional
end string optional
fill smil20:fillTimingAttrsType default optional
fillDefault smil20:fillDefaultType inherit optional
from string optional
id ID optional
longdesc anyURI optional
max string optional
min string optional
origin string optional
repeat nonNegativeInteger optional
repeatCount smil20:nonNegativeDecimalType optional
repeatDur string optional
restart smil20:restartTimingType default optional
restartDefault smil20:restartDefaultType inherit optional
skip-content boolean true optional
syncBehavior smil20:syncBehaviorType default optional
syncBehaviorDefault smil20:syncBehaviorDefaultType inherit optional
syncTolerance string optional
syncToleranceDefault string inherit optional
targetElement IDREF optional
to string optional
values string optional
xml:lang union of(xs:language, restriction of xs:string) optional

lang (as an attribute name)

denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.

Notes

Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.

See BCP 47 at http://www.rfc-editor.org/rfc/bcp/bcp47.txt and the IANA language subtag registry at http://www.iana.org/assignments/language-subtag-registry for further information.

The union allows for the 'un-declaration' of xml:lang with the empty string.

Source

<element name="animateMotion" type="smil20lang:animateMotionType"/>

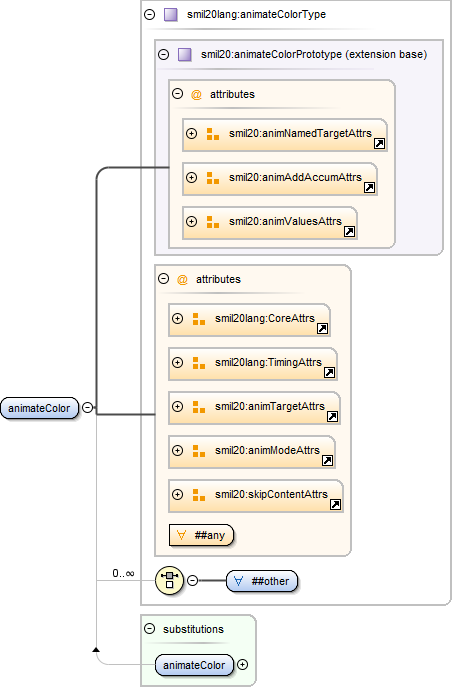

Element smil20lang:animateColor
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagram index32.tmp#id4009 index32.tmp#id4012 index32.tmp#id4015 index32.tmp#id4078 index42.tmp#id4021 index42.tmp#id4028 index32.tmp#id4064 index32.tmp#id4066 index32.tmp#id4068 index42.tmp#id4077 index32.tmp#id4075
Type smil20lang:animateColorType
Type hierarchy
Properties
content: complex
Substitution Group
Model ANY element from ANY namespace OTHER than 'http://www.w3.org/2001/SMIL20/Language'
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace
accumulate restriction of string none optional
additive restriction of string replace optional
alt string optional
attributeName string required
attributeType restriction of string auto optional
begin string optional
by string optional
calcMode restriction of string linear optional
class string optional
dur string optional
end string optional
fill smil20:fillTimingAttrsType default optional
fillDefault smil20:fillDefaultType inherit optional
from string optional
id ID optional
longdesc anyURI optional
max string optional
min string optional
repeat nonNegativeInteger optional
repeatCount smil20:nonNegativeDecimalType optional
repeatDur string optional
restart smil20:restartTimingType default optional
restartDefault smil20:restartDefaultType inherit optional
skip-content boolean true optional
syncBehavior smil20:syncBehaviorType default optional
syncBehaviorDefault smil20:syncBehaviorDefaultType inherit optional
syncTolerance string optional
syncToleranceDefault string inherit optional
targetElement IDREF optional
to string optional
values string optional
xml:lang union of(xs:language, restriction of xs:string) optional

lang (as an attribute name)

denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.

Notes

Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.

See BCP 47 at http://www.rfc-editor.org/rfc/bcp/bcp47.txt and the IANA language subtag registry at http://www.iana.org/assignments/language-subtag-registry for further information.

The union allows for the 'un-declaration' of xml:lang with the empty string.

Source

<element name="animateColor" type="smil20lang:animateColorType"/>

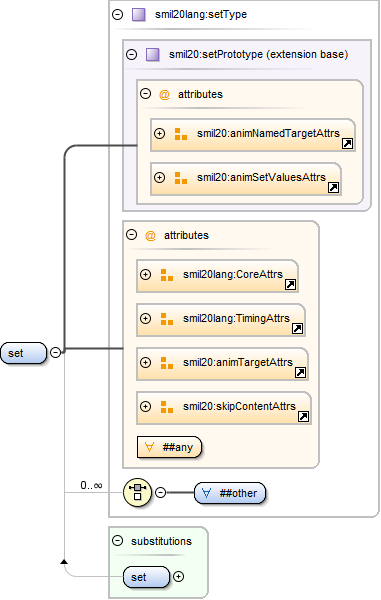

Element smil20lang:set
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagram index32.tmp#id4009 index32.tmp#id4016 index32.tmp#id4082 index42.tmp#id4021 index42.tmp#id4028 index32.tmp#id4064 index32.tmp#id4068 index42.tmp#id4081 index32.tmp#id4079
Type smil20lang:setType
Type hierarchy
Properties
content: complex
Substitution Group
Model ANY element from ANY namespace OTHER than 'http://www.w3.org/2001/SMIL20/Language'
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace
alt string optional
attributeName string required
attributeType restriction of string auto optional
begin string optional
class string optional
dur string optional
end string optional
fill smil20:fillTimingAttrsType default optional
fillDefault smil20:fillDefaultType inherit optional
id ID optional
longdesc anyURI optional
max string optional
min string optional
repeat nonNegativeInteger optional
repeatCount smil20:nonNegativeDecimalType optional
repeatDur string optional
restart smil20:restartTimingType default optional
restartDefault smil20:restartDefaultType inherit optional
skip-content boolean true optional
syncBehavior smil20:syncBehaviorType default optional
syncBehaviorDefault smil20:syncBehaviorDefaultType inherit optional
syncTolerance string optional
syncToleranceDefault string inherit optional
targetElement IDREF optional
to string optional
xml:lang union of(xs:language, restriction of xs:string) optional

lang (as an attribute name)

denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.

Notes

Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.

See BCP 47 at http://www.rfc-editor.org/rfc/bcp/bcp47.txt and the IANA language subtag registry at http://www.iana.org/assignments/language-subtag-registry for further information.

The union allows for the 'un-declaration' of xml:lang with the empty string.

Source

<element name="set" type="smil20lang:setType"/>

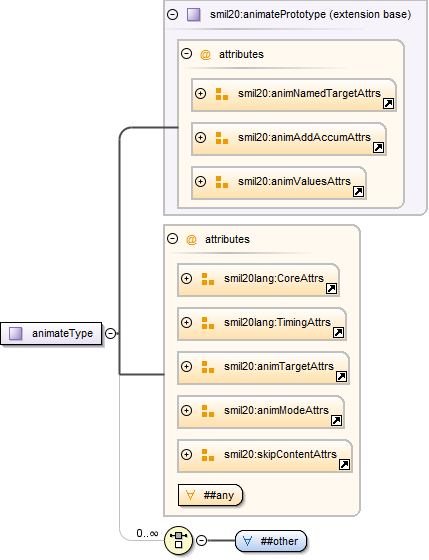

Complex Type smil20lang:animateType
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagram index32.tmp#id4009 index32.tmp#id4012 index32.tmp#id4015 index32.tmp#id4008 index42.tmp#id4021 index42.tmp#id4028 index32.tmp#id4064 index32.tmp#id4066 index32.tmp#id4068
Type extension of smil20:animatePrototype
Type hierarchy
Used by
Model ANY element from ANY namespace OTHER than 'http://www.w3.org/2001/SMIL20/Language'
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace
accumulate restriction of string none optional
additive restriction of string replace optional
alt string optional
attributeName string required
attributeType restriction of string auto optional
begin string optional
by string optional
calcMode restriction of string linear optional
class string optional
dur string optional
end string optional
fill smil20:fillTimingAttrsType default optional
fillDefault smil20:fillDefaultType inherit optional
from string optional
id ID optional
longdesc anyURI optional
max string optional
min string optional
repeat nonNegativeInteger optional
repeatCount smil20:nonNegativeDecimalType optional
repeatDur string optional
restart smil20:restartTimingType default optional
restartDefault smil20:restartDefaultType inherit optional
skip-content boolean true optional
syncBehavior smil20:syncBehaviorType default optional
syncBehaviorDefault smil20:syncBehaviorDefaultType inherit optional
syncTolerance string optional
syncToleranceDefault string inherit optional
targetElement IDREF optional
to string optional
values string optional
xml:lang union of(xs:language, restriction of xs:string) optional

lang (as an attribute name)

denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.

Notes

Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.

See BCP 47 at http://www.rfc-editor.org/rfc/bcp/bcp47.txt and the IANA language subtag registry at http://www.iana.org/assignments/language-subtag-registry for further information.

The union allows for the 'un-declaration' of xml:lang with the empty string.

Source

<complexType name="animateType">
  <complexContent>
    <extension base="smil20:animatePrototype">
      <choice minOccurs="0" maxOccurs="unbounded">
        <any namespace="##other" processContents="lax"/>
      </choice>
      <attributeGroup ref="smil20lang:CoreAttrs"/>
      <attributeGroup ref="smil20lang:TimingAttrs"/>
      <attributeGroup ref="smil20:animTargetAttrs"/>
      <attributeGroup ref="smil20:animModeAttrs"/>
      <attributeGroup ref="smil20:skipContentAttrs"/>
      <anyAttribute namespace="##any" processContents="strict"/>
    </extension>
  </complexContent>
</complexType>

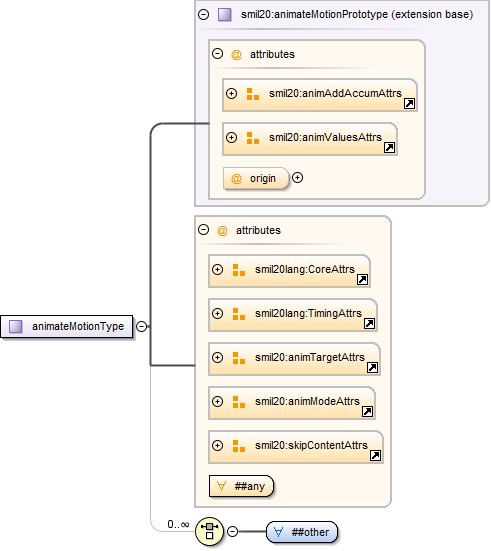

Complex Type smil20lang:animateMotionType
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagram index32.tmp#id4012 index32.tmp#id4015 index32.tmp#id4074 index32.tmp#id4073 index42.tmp#id4021 index42.tmp#id4028 index32.tmp#id4064 index32.tmp#id4066 index32.tmp#id4068
Type extension of smil20:animateMotionPrototype
Type hierarchy
Used by
Model ANY element from ANY namespace OTHER than 'http://www.w3.org/2001/SMIL20/Language'
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace
accumulate restriction of string none optional
additive restriction of string replace optional
alt string optional
begin string optional
by string optional
calcMode restriction of string linear optional
class string optional
dur string optional
end string optional
fill smil20:fillTimingAttrsType default optional
fillDefault smil20:fillDefaultType inherit optional
from string optional
id ID optional
longdesc anyURI optional
max string optional
min string optional
origin string optional
repeat nonNegativeInteger optional
repeatCount smil20:nonNegativeDecimalType optional
repeatDur string optional
restart smil20:restartTimingType default optional
restartDefault smil20:restartDefaultType inherit optional
skip-content boolean true optional
syncBehavior smil20:syncBehaviorType default optional
syncBehaviorDefault smil20:syncBehaviorDefaultType inherit optional
syncTolerance string optional
syncToleranceDefault string inherit optional
targetElement IDREF optional
to string optional
values string optional
xml:lang union of(xs:language, restriction of xs:string) optional

lang (as an attribute name)

denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.

Notes

Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.

See BCP 47 at http://www.rfc-editor.org/rfc/bcp/bcp47.txt and the IANA language subtag registry at http://www.iana.org/assignments/language-subtag-registry for further information.

The union allows for the 'un-declaration' of xml:lang with the empty string.

Source

<complexType name="animateMotionType">
  <complexContent>
    <extension base="smil20:animateMotionPrototype">
      <choice minOccurs="0" maxOccurs="unbounded">
        <any namespace="##other" processContents="lax"/>
      </choice>
      <attributeGroup ref="smil20lang:CoreAttrs"/>
      <attributeGroup ref="smil20lang:TimingAttrs"/>
      <attributeGroup ref="smil20:animTargetAttrs"/>
      <attributeGroup ref="smil20:animModeAttrs"/>
      <attributeGroup ref="smil20:skipContentAttrs"/>
      <anyAttribute namespace="##any" processContents="strict"/>
    </extension>
  </complexContent>
</complexType>
Complex Type smil20lang:animateColorType
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagram index32.tmp#id4009 index32.tmp#id4012 index32.tmp#id4015 index32.tmp#id4078 index42.tmp#id4021 index42.tmp#id4028 index32.tmp#id4064 index32.tmp#id4066 index32.tmp#id4068
Type extension of smil20:animateColorPrototype
Type hierarchy
Used by
Model ANY element from ANY namespace OTHER than 'http://www.w3.org/2001/SMIL20/Language'
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace
accumulate restriction of string none optional
additive restriction of string replace optional
alt string optional
attributeName string required
attributeType restriction of string auto optional
begin string optional
by string optional
calcMode restriction of string linear optional
class string optional
dur string optional
end string optional
fill smil20:fillTimingAttrsType default optional
fillDefault smil20:fillDefaultType inherit optional
from string optional
id ID optional
longdesc anyURI optional
max string optional
min string optional
repeat nonNegativeInteger optional
repeatCount smil20:nonNegativeDecimalType optional
repeatDur string optional
restart smil20:restartTimingType default optional
restartDefault smil20:restartDefaultType inherit optional
skip-content boolean true optional
syncBehavior smil20:syncBehaviorType default optional
syncBehaviorDefault smil20:syncBehaviorDefaultType inherit optional
syncTolerance string optional
syncToleranceDefault string inherit optional
targetElement IDREF optional
to string optional
values string optional
xml:lang union of(xs:language, restriction of xs:string) optional

lang (as an attribute name)

denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.

Notes

Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.

See BCP 47 at http://www.rfc-editor.org/rfc/bcp/bcp47.txt and the IANA language subtag registry at http://www.iana.org/assignments/language-subtag-registry for further information.

The union allows for the 'un-declaration' of xml:lang with the empty string.

Source

<complexType name="animateColorType">
  <complexContent>
    <extension base="smil20:animateColorPrototype">
      <choice minOccurs="0" maxOccurs="unbounded">
        <any namespace="##other" processContents="lax"/>
      </choice>
      <attributeGroup ref="smil20lang:CoreAttrs"/>
      <attributeGroup ref="smil20lang:TimingAttrs"/>
      <attributeGroup ref="smil20:animTargetAttrs"/>
      <attributeGroup ref="smil20:animModeAttrs"/>
      <attributeGroup ref="smil20:skipContentAttrs"/>
      <anyAttribute namespace="##any" processContents="strict"/>
    </extension>
  </complexContent>
</complexType>
Complex Type smil20lang:setType
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagram index32.tmp#id4009 index32.tmp#id4016 index32.tmp#id4082 index42.tmp#id4021 index42.tmp#id4028 index32.tmp#id4064 index32.tmp#id4068
Type extension of smil20:setPrototype
Type hierarchy
Used by
Model ANY element from ANY namespace OTHER than 'http://www.w3.org/2001/SMIL20/Language'
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace
alt string optional
attributeName string required
attributeType restriction of string auto optional
begin string optional
class string optional
dur string optional
end string optional
fill smil20:fillTimingAttrsType default optional
fillDefault smil20:fillDefaultType inherit optional
id ID optional
longdesc anyURI optional
max string optional
min string optional
repeat nonNegativeInteger optional
repeatCount smil20:nonNegativeDecimalType optional
repeatDur string optional
restart smil20:restartTimingType default optional
restartDefault smil20:restartDefaultType inherit optional
skip-content boolean true optional
syncBehavior smil20:syncBehaviorType default optional
syncBehaviorDefault smil20:syncBehaviorDefaultType inherit optional
syncTolerance string optional
syncToleranceDefault string inherit optional
targetElement IDREF optional
to string optional
xml:lang union of(xs:language, restriction of xs:string) optional

lang (as an attribute name)

denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.

Notes

Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.

See BCP 47 at http://www.rfc-editor.org/rfc/bcp/bcp47.txt and the IANA language subtag registry at http://www.iana.org/assignments/language-subtag-registry for further information.

The union allows for the 'un-declaration' of xml:lang with the empty string.

Source

<complexType name="setType">
  <complexContent>
    <extension base="smil20:setPrototype">
      <choice minOccurs="0" maxOccurs="unbounded">
        <any namespace="##other" processContents="lax"/>
      </choice>
      <attributeGroup ref="smil20lang:CoreAttrs"/>
      <attributeGroup ref="smil20lang:TimingAttrs"/>
      <attributeGroup ref="smil20:animTargetAttrs"/>
      <attributeGroup ref="smil20:skipContentAttrs"/>
      <anyAttribute namespace="##any" processContents="strict"/>
    </extension>
  </complexContent>
</complexType>

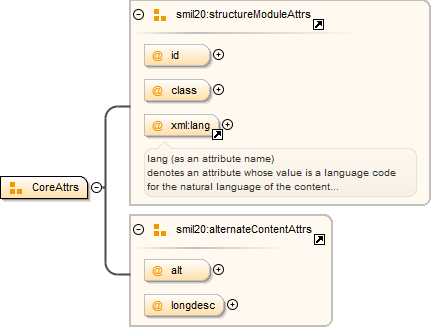

Attribute Group smil20lang:CoreAttrs
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagram index32.tmp#id4023 index32.tmp#id4024 index64.tmp#id3322 index32.tmp#id4022 index32.tmp#id4026 index32.tmp#id4027 index32.tmp#id4025
Used by
Attributes
QName Type Fixed Default Use Annotation
alt string optional
class string optional
id ID optional
longdesc anyURI optional
xml:lang union of(xs:language, restriction of xs:string) optional

lang (as an attribute name)

denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.

Notes

Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.

See BCP 47 at http://www.rfc-editor.org/rfc/bcp/bcp47.txt and the IANA language subtag registry at http://www.iana.org/assignments/language-subtag-registry for further information.

The union allows for the 'un-declaration' of xml:lang with the empty string.

Source

<attributeGroup name="CoreAttrs">
  <attributeGroup ref="smil20:structureModuleAttrs"/>
  <attributeGroup ref="smil20:alternateContentAttrs"/>
</attributeGroup>

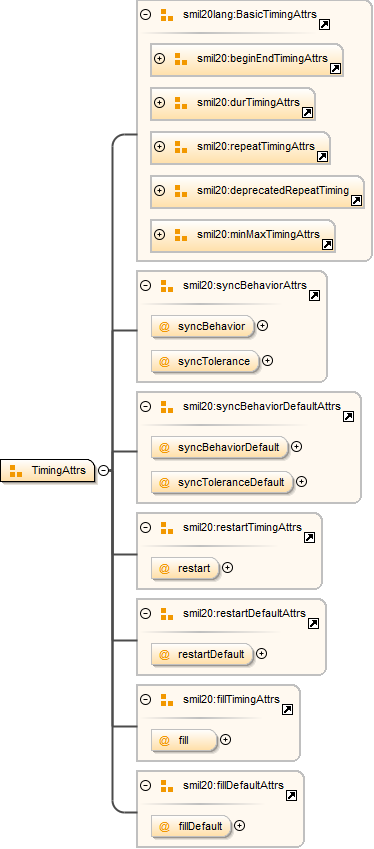

Attribute Group smil20lang:TimingAttrs
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagram index32.tmp#id4030 index32.tmp#id4033 index32.tmp#id4035 index32.tmp#id4039 index32.tmp#id4041 index42.tmp#id4029 index32.tmp#id4045 index32.tmp#id4047 index32.tmp#id4044 index32.tmp#id4049 index32.tmp#id4051 index32.tmp#id4048 index32.tmp#id4053 index32.tmp#id4052 index32.tmp#id4056 index32.tmp#id4055 index32.tmp#id4059 index32.tmp#id4058 index32.tmp#id4062 index32.tmp#id4061
Used by
Attributes
QName Type Fixed Default Use Annotation
begin string optional
dur string optional
end string optional
fill smil20:fillTimingAttrsType default optional
fillDefault smil20:fillDefaultType inherit optional
max string optional
min string optional
repeat nonNegativeInteger optional
repeatCount smil20:nonNegativeDecimalType optional
repeatDur string optional
restart smil20:restartTimingType default optional
restartDefault smil20:restartDefaultType inherit optional
syncBehavior smil20:syncBehaviorType default optional
syncBehaviorDefault smil20:syncBehaviorDefaultType inherit optional
syncTolerance string optional
syncToleranceDefault string inherit optional
Source

<attributeGroup name="TimingAttrs">
  <attributeGroup ref="smil20lang:BasicTimingAttrs"/>
  <attributeGroup ref="smil20:syncBehaviorAttrs"/>
  <attributeGroup ref="smil20:syncBehaviorDefaultAttrs"/>
  <attributeGroup ref="smil20:restartTimingAttrs"/>
  <attributeGroup ref="smil20:restartDefaultAttrs"/>
  <attributeGroup ref="smil20:fillTimingAttrs"/>
  <attributeGroup ref="smil20:fillDefaultAttrs"/>
</attributeGroup>

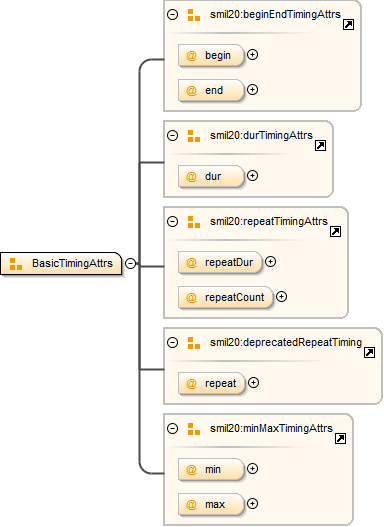

Attribute Group smil20lang:BasicTimingAttrs
Namespace http://www.w3.org/2001/SMIL20/Language
Diagram
Diagram index32.tmp#id4031 index32.tmp#id4032 index32.tmp#id4030 index32.tmp#id4034 index32.tmp#id4033 index32.tmp#id4036 index32.tmp#id4037 index32.tmp#id4035 index32.tmp#id4040 index32.tmp#id4039 index32.tmp#id4042 index32.tmp#id4043 index32.tmp#id4041
Used by
Attribute Group smil20lang:TimingAttrs
Attributes
QName Type Fixed Default Use Annotation
begin string optional
dur string optional
end string optional
max string optional
min string optional
repeat nonNegativeInteger optional
repeatCount smil20:nonNegativeDecimalType optional
repeatDur string optional
Source

<attributeGroup name="BasicTimingAttrs">
  <attributeGroup ref="smil20:beginEndTimingAttrs"/>
  <attributeGroup ref="smil20:durTimingAttrs"/>
  <attributeGroup ref="smil20:repeatTimingAttrs"/>
  <attributeGroup ref="smil20:deprecatedRepeatTiming"/>
  <attributeGroup ref="smil20:minMaxTimingAttrs"/>
</attributeGroup>
XML Schema documentation generated by ® XML Editor.
