Included schema observation.xsd
Namespace http://standardit.tapio.fi/schemas/forestData/envelope
Annotations
Observation schema for GML 3.1 GML is an OGC Standard. Copyright (c) 2001,2005,2010 Open Geospatial Consortium. To obtain additional rights of use, visit http://www.opengeospatial.org/legal/ .
Properties
attribute form default: unqualified
element form default: qualified
version: 3.1.1.2

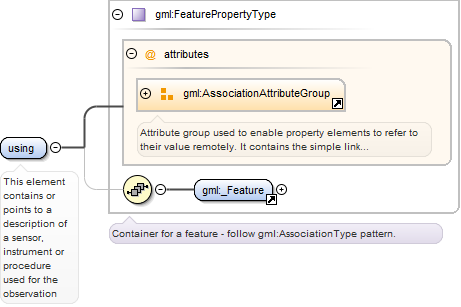

Element gml:using
Namespace http://www.opengis.net/gml
Annotations
This element contains or points to a description of a sensor, instrument or procedure used for the observation
Diagram
Diagram index3.tmp#id232 index49.tmp#id3107 index49.tmp#id3106
Type gml:FeaturePropertyType
Properties
content: complex
Used by
Model gml:_Feature
Children gml:_Feature
Instance

<gml:using xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">
  <gml:_Feature gml:id="">{1,1}</gml:_Feature>
</gml:using>
Attributes
QName Type Fixed Default Use Annotation
gml:remoteSchema anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="using" type="gml:FeaturePropertyType">
  <annotation>
    <documentation>This element contains or points to a description of a sensor, instrument or procedure used for the observation</documentation>
  </annotation>
</element>

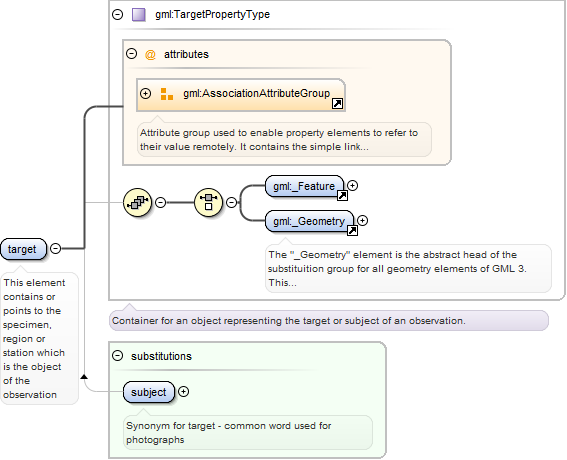

Element gml:target
Namespace http://www.opengis.net/gml
Annotations
This element contains or points to the specimen, region or station which is the object of the observation
Diagram
Diagram index3.tmp#id232 index49.tmp#id3107 index6.tmp#id298 index77.tmp#id3980 index77.tmp#id3979
Type gml:TargetPropertyType
Properties
content: complex
Substitution Group
Used by
Model (gml:_Feature | gml:_Geometry)
Children gml:_Feature, gml:_Geometry
Instance

<gml:target xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">
  <gml:_Feature gml:id="">{1,1}</gml:_Feature>
  <gml:_Geometry axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:_Geometry>
</gml:target>
Attributes
QName Type Fixed Default Use Annotation
gml:remoteSchema anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="target" type="gml:TargetPropertyType">
  <annotation>
    <documentation>This element contains or points to the specimen, region or station which is the object of the observation</documentation>
  </annotation>
</element>

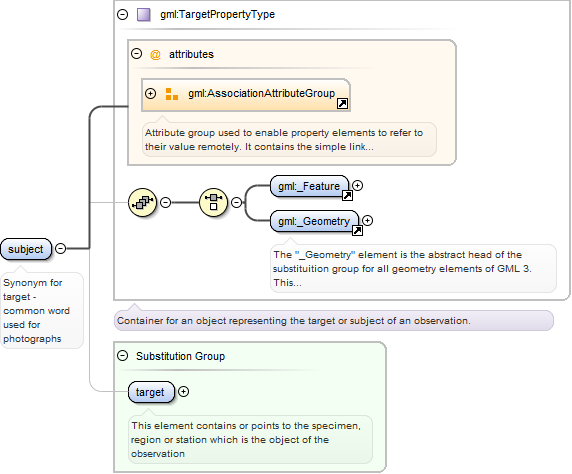

Element gml:subject
Namespace http://www.opengis.net/gml
Annotations
Synonym for target - common word used for photographs
Diagram
Diagram index3.tmp#id232 index49.tmp#id3107 index6.tmp#id298 index77.tmp#id3980 index77.tmp#id3978
Type gml:TargetPropertyType
Properties
content: complex
Substitution Group Affiliation
Model (gml:_Feature | gml:_Geometry)
Children gml:_Feature, gml:_Geometry
Instance

<gml:subject xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">
  <gml:_Feature gml:id="">{1,1}</gml:_Feature>
  <gml:_Geometry axisLabels="" gid="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:_Geometry>
</gml:subject>
Attributes
QName Type Fixed Default Use Annotation
gml:remoteSchema anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="subject" type="gml:TargetPropertyType" substitutionGroup="gml:target">
  <annotation>
    <documentation>Synonym for target - common word used for photographs</documentation>
  </annotation>
</element>

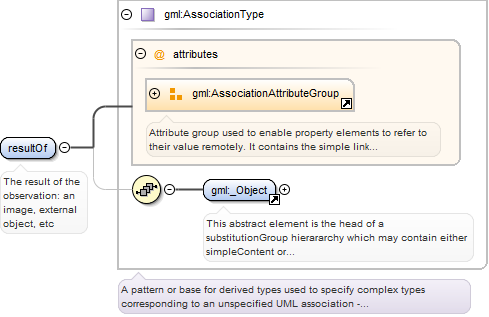

Element gml:resultOf
Namespace http://www.opengis.net/gml
Annotations
The result of the observation: an image, external object, etc
Diagram
Diagram index3.tmp#id232 index3.tmp#id3259 index3.tmp#id3277
Type gml:AssociationType
Properties
content: complex
Used by
Model gml:_Object
Children gml:_Object
Instance

<gml:resultOf xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">
  <gml:_Object>{1,1}</gml:_Object>
</gml:resultOf>
Attributes
QName Type Fixed Default Use Annotation
gml:remoteSchema anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<element name="resultOf" type="gml:AssociationType">
  <annotation>
    <documentation>The result of the observation: an image, external object, etc</documentation>
  </annotation>
</element>

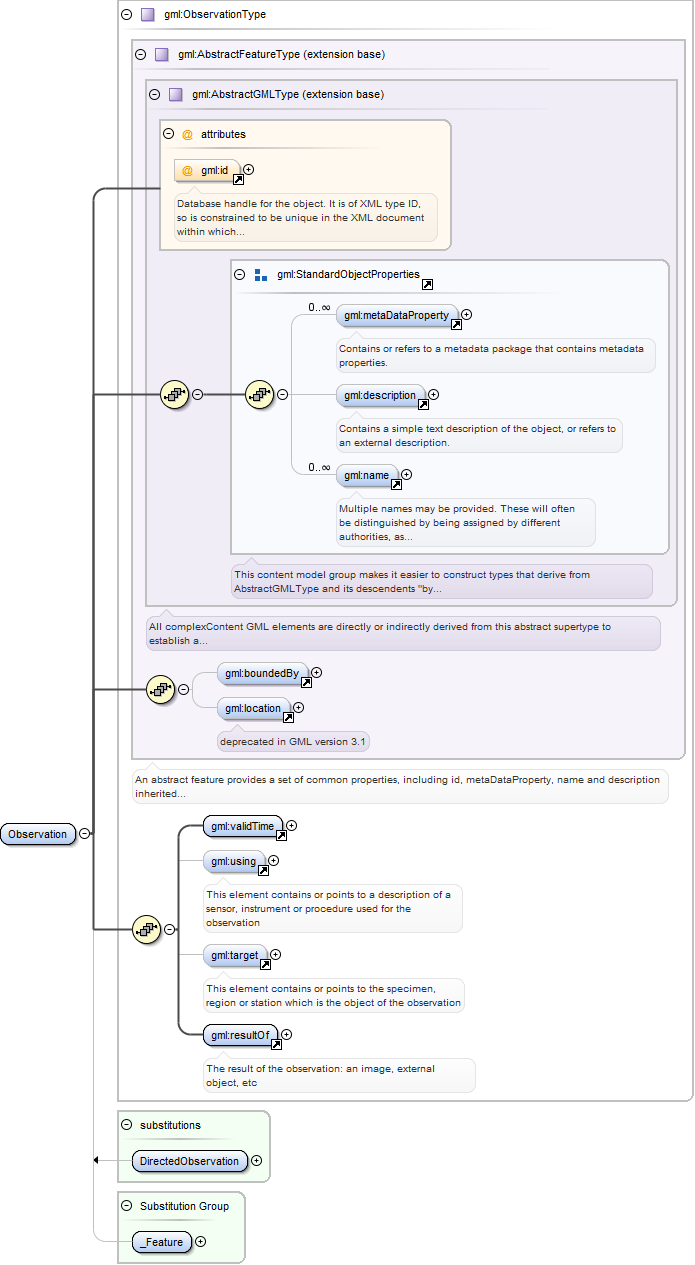

Element gml:Observation
Namespace http://www.opengis.net/gml
Diagram
Diagram index3.tmp#id264 index3.tmp#id230 index3.tmp#id250 index3.tmp#id252 index3.tmp#id229 index3.tmp#id228 index49.tmp#id3095 index49.tmp#id3049 index49.tmp#id3094 index9.tmp#id3035 index77.tmp#id3977 index77.tmp#id3978 index77.tmp#id3981 index77.tmp#id3982 index77.tmp#id3116 index49.tmp#id3107
Type gml:ObservationType
Type hierarchy
Properties
content: complex
Substitution Group
Substitution Group Affiliation
Model gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , gml:validTime , gml:using{0,1} , gml:target{0,1} , gml:resultOf
Children gml:boundedBy, gml:description, gml:location, gml:metaDataProperty, gml:name, gml:resultOf, gml:target, gml:using, gml:validTime
Instance

<gml:Observation gml:id="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:Observation>
Attributes
QName Type Fixed Default Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
Source

<element name="Observation" type="gml:ObservationType" substitutionGroup="gml:_Feature"/>

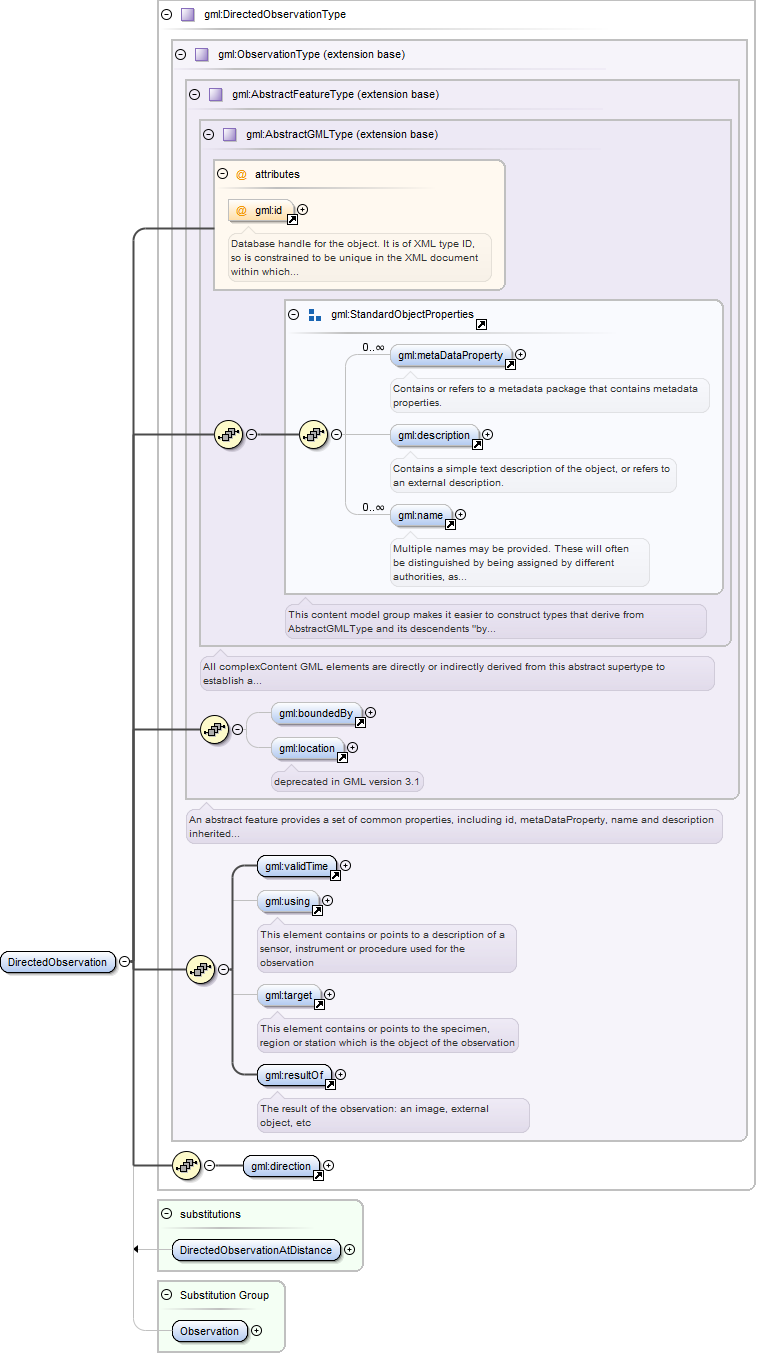

Element gml:DirectedObservation
Namespace http://www.opengis.net/gml
Diagram
Diagram index3.tmp#id264 index3.tmp#id230 index3.tmp#id250 index3.tmp#id252 index3.tmp#id229 index3.tmp#id228 index49.tmp#id3095 index49.tmp#id3049 index49.tmp#id3094 index9.tmp#id3035 index77.tmp#id3977 index77.tmp#id3978 index77.tmp#id3981 index77.tmp#id3982 index55.tmp#id3362 index77.tmp#id3983 index77.tmp#id3117 index77.tmp#id3115
Type gml:DirectedObservationType
Type hierarchy
Properties
content: complex
Substitution Group
Substitution Group Affiliation
Model gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , gml:validTime , gml:using{0,1} , gml:target{0,1} , gml:resultOf , gml:direction
Children gml:boundedBy, gml:description, gml:direction, gml:location, gml:metaDataProperty, gml:name, gml:resultOf, gml:target, gml:using, gml:validTime
Instance

<gml:DirectedObservation gml:id="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:DirectedObservation>
Attributes
QName Type Fixed Default Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
Source

<element name="DirectedObservation" type="gml:DirectedObservationType" substitutionGroup="gml:Observation"/>

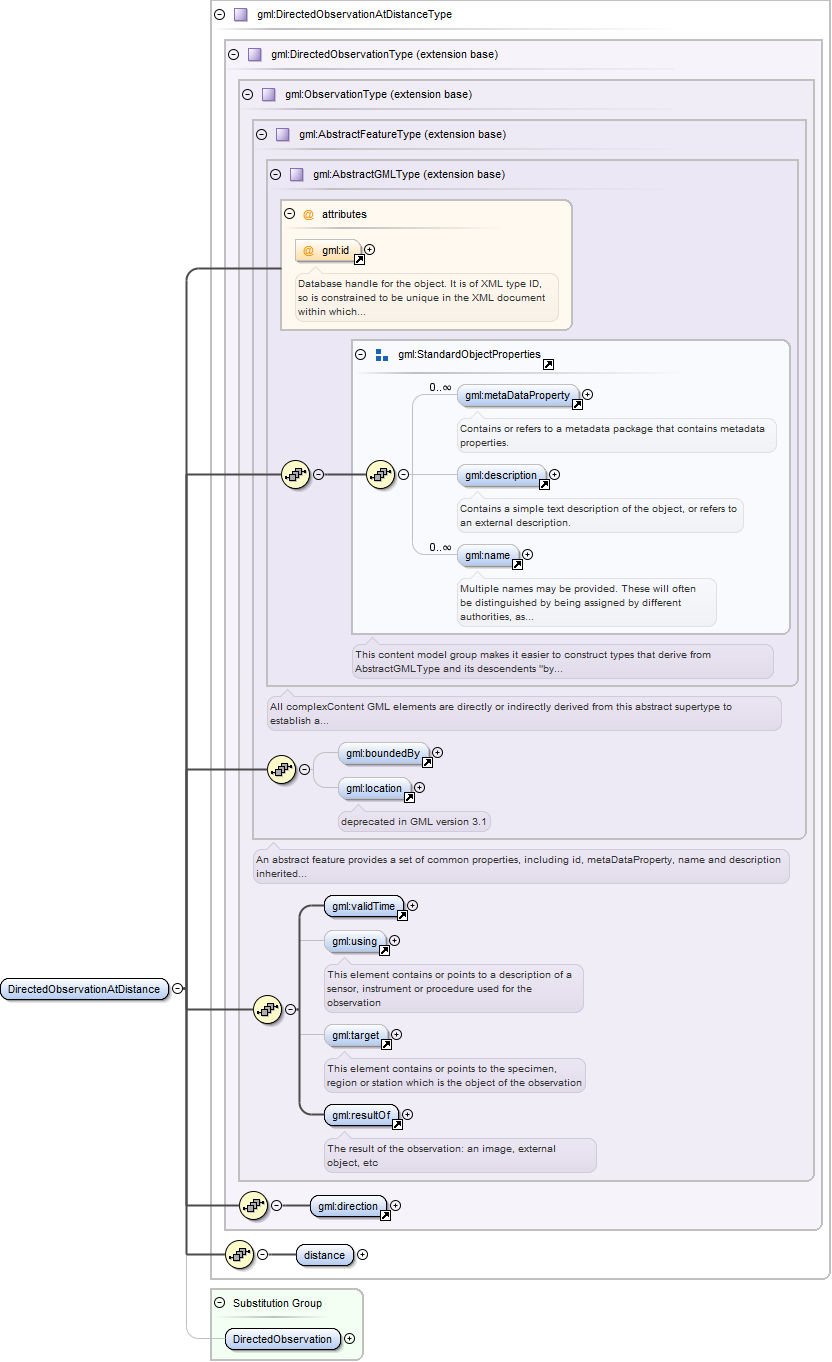

Element gml:DirectedObservationAtDistance
Namespace http://www.opengis.net/gml
Diagram
Diagram index3.tmp#id264 index3.tmp#id230 index3.tmp#id250 index3.tmp#id252 index3.tmp#id229 index3.tmp#id228 index49.tmp#id3095 index49.tmp#id3049 index49.tmp#id3094 index9.tmp#id3035 index77.tmp#id3977 index77.tmp#id3978 index77.tmp#id3981 index77.tmp#id3982 index55.tmp#id3362 index77.tmp#id3983 index77.tmp#id3985 index77.tmp#id3984 index77.tmp#id3116
Type gml:DirectedObservationAtDistanceType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , gml:validTime , gml:using{0,1} , gml:target{0,1} , gml:resultOf , gml:direction , gml:distance
Children gml:boundedBy, gml:description, gml:direction, gml:distance, gml:location, gml:metaDataProperty, gml:name, gml:resultOf, gml:target, gml:using, gml:validTime
Instance

<gml:DirectedObservationAtDistance gml:id="">
  <gml:metaDataProperty about="" xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:metaDataProperty>
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:DirectedObservationAtDistance>
Attributes
QName Type Fixed Default Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
Source

<element name="DirectedObservationAtDistance" type="gml:DirectedObservationAtDistanceType" substitutionGroup="gml:DirectedObservation"/>

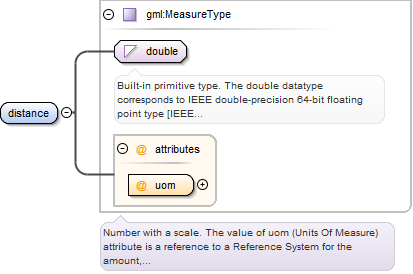

Element gml:DirectedObservationAtDistanceType / gml:distance
Namespace http://www.opengis.net/gml
Diagram
Diagram index18.tmp#id3072 index18.tmp#id3071
Type gml:MeasureType
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
uom anyURI required
Source

<element name="distance" type="gml:MeasureType"/>

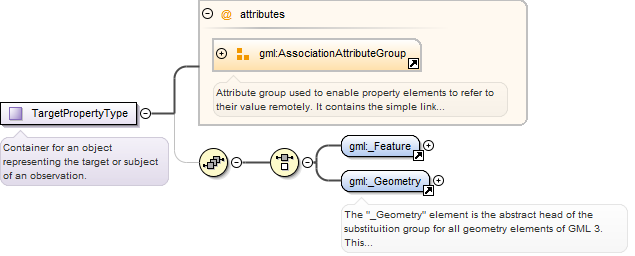

Complex Type gml:TargetPropertyType
Namespace http://www.opengis.net/gml
Annotations
Container for an object representing the target or subject of an observation.
Diagram
Diagram index3.tmp#id232 index49.tmp#id3107 index6.tmp#id298
Used by
Model (gml:_Feature | gml:_Geometry)
Children gml:_Feature, gml:_Geometry
Attributes
QName Type Fixed Default Use Annotation
gml:remoteSchema anyURI optional
Reference to an XML Schema fragment that specifies the content model of the propertys value. This is in conformance with the XML Schema Section 4.14 Referencing Schemas from Elsewhere.
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<complexType name="TargetPropertyType">
  <annotation>
    <documentation>Container for an object representing the target or subject of an observation.</documentation>
  </annotation>
  <sequence minOccurs="0">
    <choice>
      <element ref="gml:_Feature"/>
      <element ref="gml:_Geometry"/>
    </choice>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>

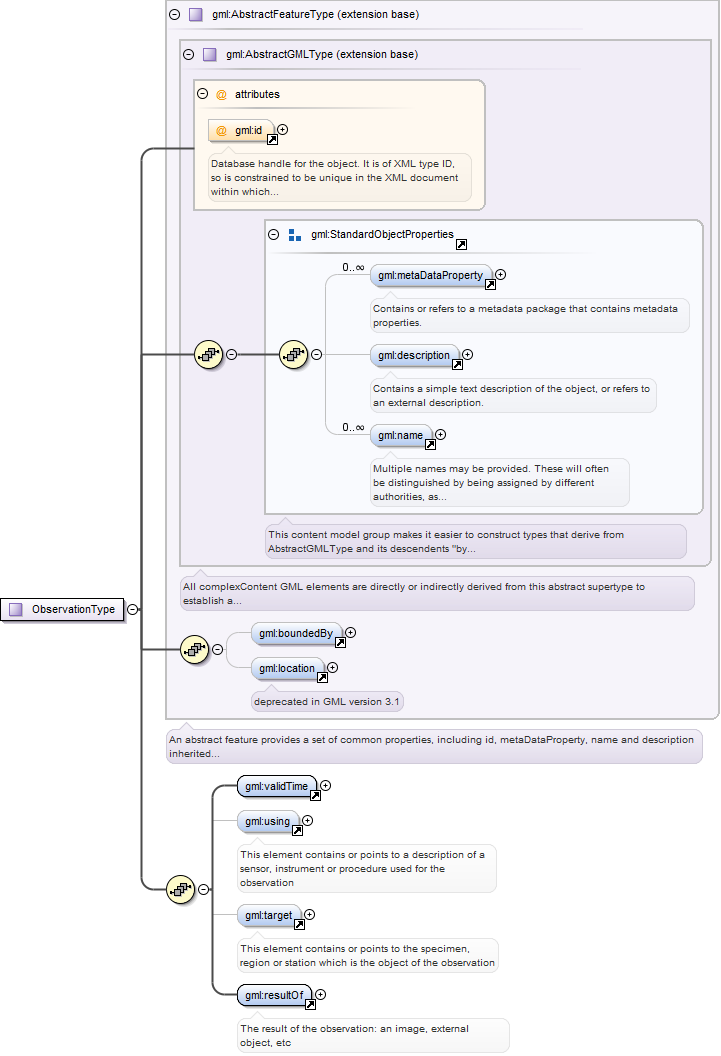

Complex Type gml:ObservationType
Namespace http://www.opengis.net/gml
Diagram
Diagram index3.tmp#id264 index3.tmp#id230 index3.tmp#id250 index3.tmp#id252 index3.tmp#id229 index3.tmp#id228 index49.tmp#id3095 index49.tmp#id3049 index49.tmp#id3094 index9.tmp#id3035 index77.tmp#id3977 index77.tmp#id3978 index77.tmp#id3981
Type extension of gml:AbstractFeatureType
Type hierarchy
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , gml:validTime , gml:using{0,1} , gml:target{0,1} , gml:resultOf
Children gml:boundedBy, gml:description, gml:location, gml:metaDataProperty, gml:name, gml:resultOf, gml:target, gml:using, gml:validTime
Attributes
QName Type Fixed Default Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
Source

<complexType name="ObservationType">
  <complexContent>
    <extension base="gml:AbstractFeatureType">
      <sequence>
        <element ref="gml:validTime"/>
        <element ref="gml:using" minOccurs="0"/>
        <element ref="gml:target" minOccurs="0"/>
        <element ref="gml:resultOf"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>

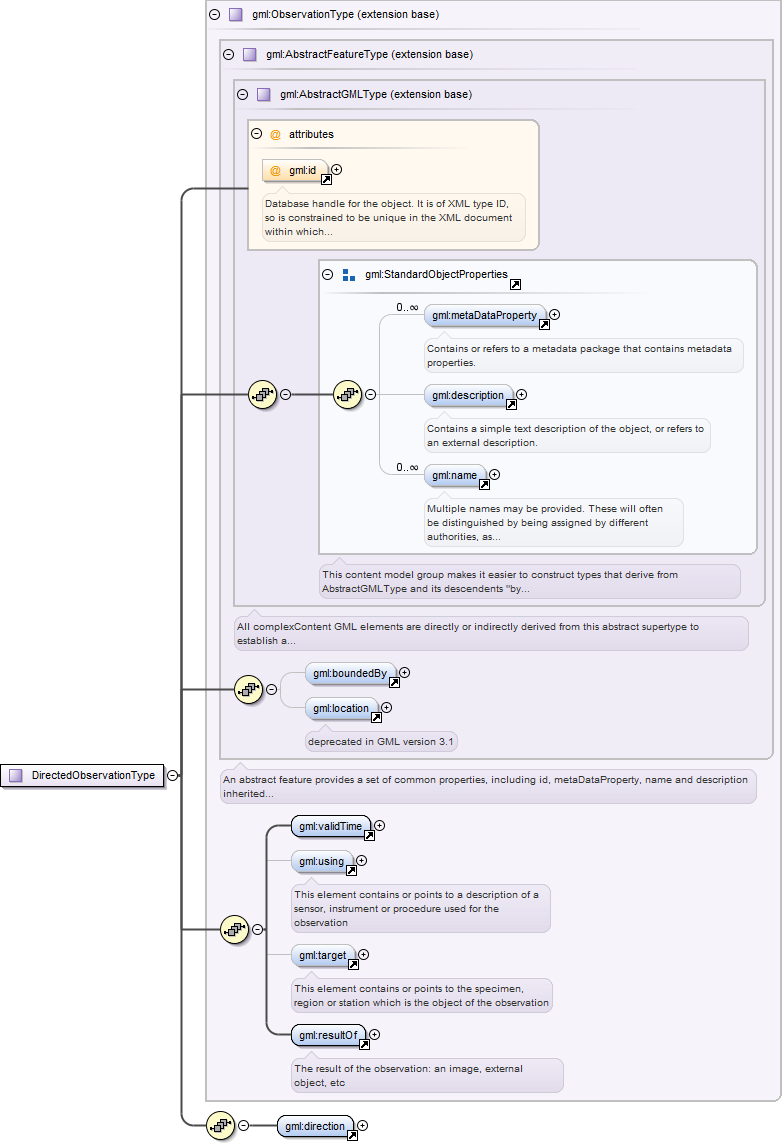

Complex Type gml:DirectedObservationType
Namespace http://www.opengis.net/gml
Diagram
Diagram index3.tmp#id264 index3.tmp#id230 index3.tmp#id250 index3.tmp#id252 index3.tmp#id229 index3.tmp#id228 index49.tmp#id3095 index49.tmp#id3049 index49.tmp#id3094 index9.tmp#id3035 index77.tmp#id3977 index77.tmp#id3978 index77.tmp#id3981 index77.tmp#id3982 index55.tmp#id3362
Type extension of gml:ObservationType
Type hierarchy
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , gml:validTime , gml:using{0,1} , gml:target{0,1} , gml:resultOf , gml:direction
Children gml:boundedBy, gml:description, gml:direction, gml:location, gml:metaDataProperty, gml:name, gml:resultOf, gml:target, gml:using, gml:validTime
Attributes
QName Type Fixed Default Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
Source

<complexType name="DirectedObservationType">
  <complexContent>
    <extension base="gml:ObservationType">
      <sequence>
        <element ref="gml:direction"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>

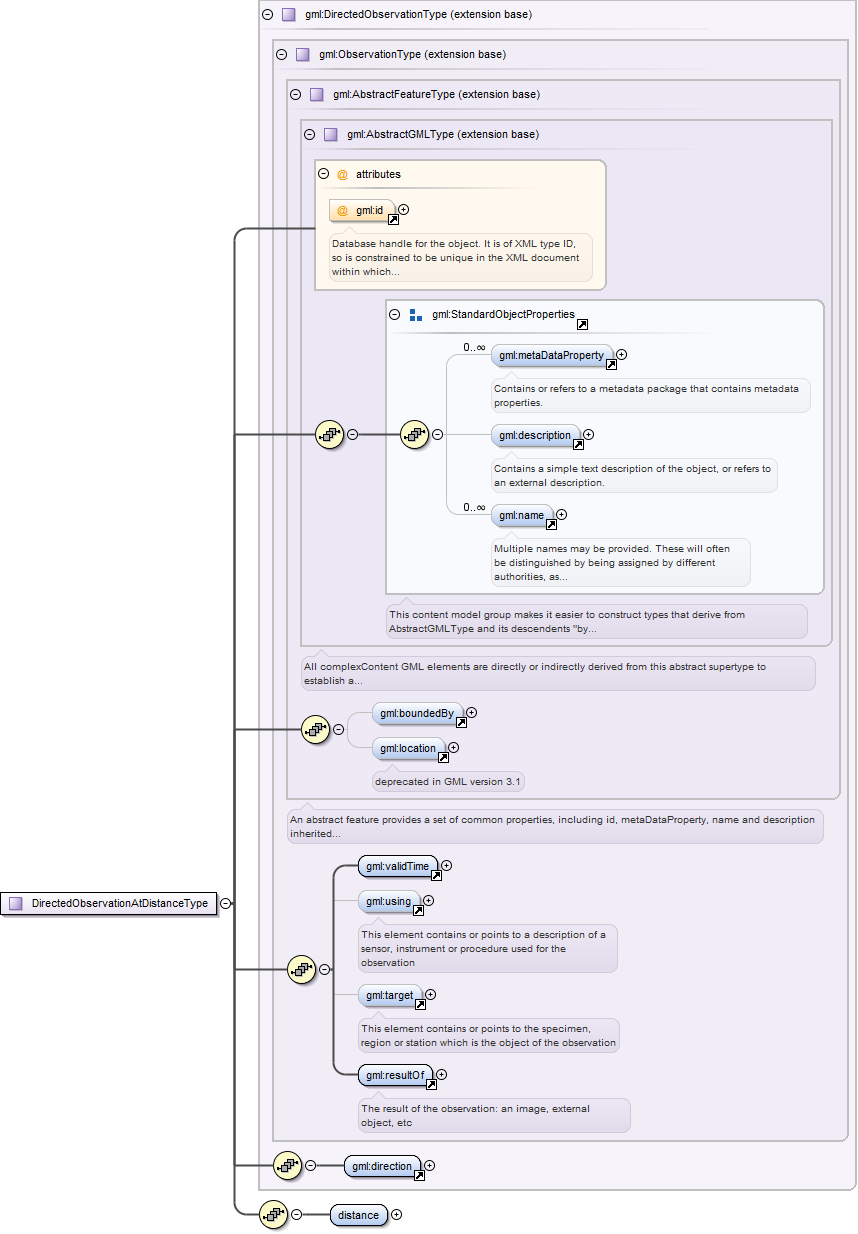

Complex Type gml:DirectedObservationAtDistanceType
Namespace http://www.opengis.net/gml
Diagram
Diagram index3.tmp#id264 index3.tmp#id230 index3.tmp#id250 index3.tmp#id252 index3.tmp#id229 index3.tmp#id228 index49.tmp#id3095 index49.tmp#id3049 index49.tmp#id3094 index9.tmp#id3035 index77.tmp#id3977 index77.tmp#id3978 index77.tmp#id3981 index77.tmp#id3982 index55.tmp#id3362 index77.tmp#id3983 index77.tmp#id3985
Type extension of gml:DirectedObservationType
Type hierarchy
Used by
Model gml:metaDataProperty* , gml:description{0,1} , gml:name* , gml:boundedBy{0,1} , gml:location{0,1} , gml:validTime , gml:using{0,1} , gml:target{0,1} , gml:resultOf , gml:direction , gml:distance
Children gml:boundedBy, gml:description, gml:direction, gml:distance, gml:location, gml:metaDataProperty, gml:name, gml:resultOf, gml:target, gml:using, gml:validTime
Attributes
QName Type Fixed Default Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
Source

<complexType name="DirectedObservationAtDistanceType">
  <complexContent>
    <extension base="gml:DirectedObservationType">
      <sequence>
        <element name="distance" type="gml:MeasureType"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
