Imported schema Stand.xsd
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Properties
attribute form default: unqualified
element form default: qualified
version: V17.02
Element Stands
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Metsikkökuviot
Diagram
Diagram index55.tmp#id3176 index55.tmp#id3175
Type StandsType1
Properties
content: complex
Used by
Complex Type ParcelType
Model Stand+
Children Stand
Instance

<Stands>
  <Stand id="" parcelId="" realEstateId="">{1,unbounded}</Stand>
</Stands>
Source

<xs:element name="Stands" type="StandsType1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Metsikkökuviot</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>
Element Stand
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Metsikkökuvio
Diagram
Diagram index55.tmp#id3219 index55.tmp#id3220 index55.tmp#id3221 index55.tmp#id3178 index45.tmp#id535 index20.tmp#id761 index20.tmp#id3117 index55.tmp#id3216 index55.tmp#id3177
Type StandType1
Properties
content: complex
Used by
Complex Type StandsType1
Model StandBasicData , TreeStandData{0,1} , Operations{0,1} , PlannedOperationChains{0,1} , SpecialFeatures{0,1}
Children Operations, PlannedOperationChains, SpecialFeatures, StandBasicData, TreeStandData
Instance

<Stand id="" parcelId="" realEstateId="">
  <StandBasicData>{1,1}</StandBasicData>
  <TreeStandData>{0,1}</TreeStandData>
  <Operations>{0,1}</Operations>
  <PlannedOperationChains>{0,1}</PlannedOperationChains>
  <SpecialFeatures>{0,1}</SpecialFeatures>
</Stand>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Kuvio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Stand can be identified using string id.
parcelId xs:string optional
Viiteavain palstaan.Foreign key to parcel.
realEstateId xs:string optional
Viiteavain kiinteistöön.Foreign key to real estate.
Source

<xs:element name="Stand" type="StandType1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Metsikkökuvio</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>
Element StandBasicData
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Diagram
Diagram index1.tmp#id545 index1.tmp#id547 index54.tmp#id3181 index54.tmp#id3182 index54.tmp#id3185 index54.tmp#id3186 index54.tmp#id3188 index54.tmp#id3189 index54.tmp#id3190 index54.tmp#id3191 index54.tmp#id3192 index54.tmp#id3187 index54.tmp#id3193 index54.tmp#id3194 index54.tmp#id3196 index54.tmp#id3197 index54.tmp#id3198 index54.tmp#id3195 index54.tmp#id3199 index54.tmp#id3201 index54.tmp#id3202 index54.tmp#id3205 index54.tmp#id3206 index54.tmp#id3204 index54.tmp#id3207 index54.tmp#id3203 index54.tmp#id3200 index54.tmp#id3211 index54.tmp#id3212 index1.tmp#id434 index54.tmp#id3213 index54.tmp#id3180 index54.tmp#id3214 index54.tmp#id3215 index49.tmp#id444 index49.tmp#id528 index55.tmp#id3179
Type StandBasicDataWithGeometryType
Type hierarchy
Properties
content: complex
Used by
Complex Type StandType1
Model ChangeState{0,1} , ChangeTime{0,1} , CompleteState{0,1} , Identifiers{0,1} , StandNumber , StandNumberExtension{0,1} , MainGroup , SubGroup{0,1} , FertilityClass{0,1} , SoilType{0,1} , DrainageState{0,1} , DitchingYear{0,1} , ThinningYear{0,1} , DevelopmentClass{0,1} , StandQuality{0,1} , MainTreeSpecies{0,1} , Accessibility{0,1} , CuttingRestriction{0,1} , CuttingRestrictionEnds{0,1} , ((SilvicultureRestriction , SilvicultureRestrictionEnds{0,1}) | SilvicultureRestrictions{0,1}) , StandBasicDataDate , StandInfo{0,1} , DataSource{0,1} , GrowthPlaceDataSource{0,1} , Area , AreaDecrease{0,1} , (PolygonGeometry | MultiPolygonGeometry)
Children Accessibility, Area, AreaDecrease, ChangeState, ChangeTime, CompleteState, CuttingRestriction, CuttingRestrictionEnds, DataSource, DevelopmentClass, DitchingYear, DrainageState, FertilityClass, GrowthPlaceDataSource, Identifiers, MainGroup, MainTreeSpecies, MultiPolygonGeometry, PolygonGeometry, SilvicultureRestriction, SilvicultureRestrictionEnds, SilvicultureRestrictions, SoilType, StandBasicDataDate, StandInfo, StandNumber, StandNumberExtension, StandQuality, SubGroup, ThinningYear
Instance

<StandBasicData>
  <ChangeState>{0,1}</ChangeState>
  <ChangeTime>{0,1}</ChangeTime>
  <CompleteState>{0,1}</CompleteState>
  <Identifiers>{0,1}</Identifiers>
  <StandNumber>{1,1}</StandNumber>
  <StandNumberExtension>{0,1}</StandNumberExtension>
  <DitchingYear>{0,1}</DitchingYear>
  <ThinningYear>{0,1}</ThinningYear>
  <Accessibility>{0,1}</Accessibility>
  <StandBasicDataDate>{1,1}</StandBasicDataDate>
  <StandInfo infoProviderOrganizationName="" infoProviderRole="">{0,1}</StandInfo>
  <DataSource>{0,1}</DataSource>
  <GrowthPlaceDataSource>{0,1}</GrowthPlaceDataSource>
</StandBasicData>
Source

<xs:element name="StandBasicData" type="StandBasicDataWithGeometryType"/>
Element SpecialFeatures
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Metsikkökuvion erityispiirteet.
Diagram
Diagram index55.tmp#id3218 index55.tmp#id3217
Type SpecialFeaturesType
Properties
content: complex
Used by
Complex Type StandType1
Model SpecialFeature+
Children SpecialFeature
Instance

<SpecialFeatures>
  <SpecialFeature id="" infoProviderOrganizationName="" infoProviderRole="">{1,unbounded}</SpecialFeature>
</SpecialFeatures>
Source

<xs:element name="SpecialFeatures" type="SpecialFeaturesType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Metsikkökuvion erityispiirteet.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>

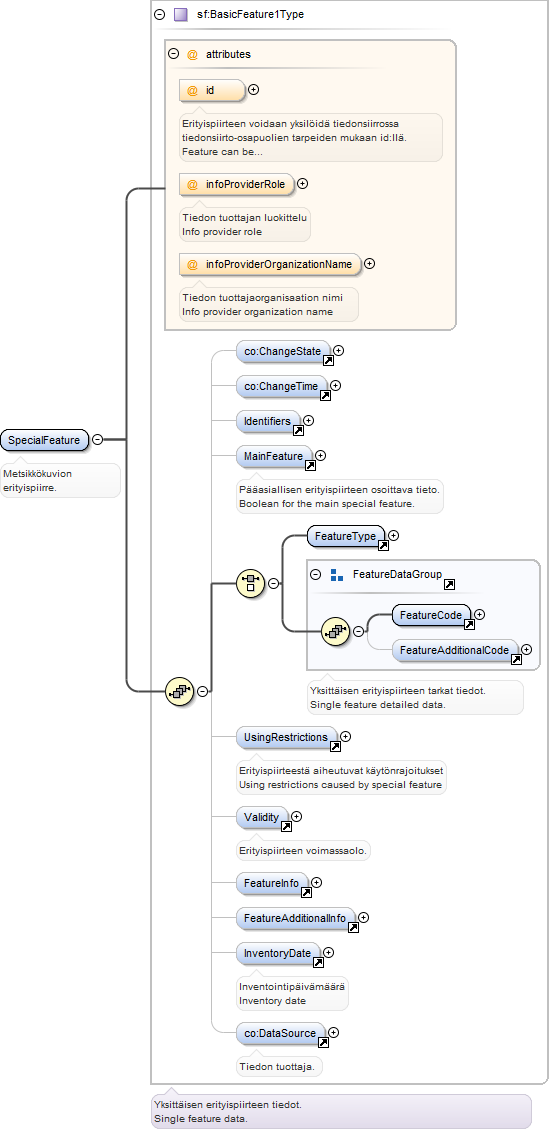

Element SpecialFeature
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Metsikkökuvion erityispiirre.
Diagram
Diagram index58.tmp#id1536 index58.tmp#id1537 index58.tmp#id1538 index1.tmp#id545 index1.tmp#id547 index58.tmp#id883 index58.tmp#id1523 index58.tmp#id893 index58.tmp#id896 index58.tmp#id900 index58.tmp#id895 index58.tmp#id1526 index58.tmp#id902 index58.tmp#id911 index58.tmp#id913 index58.tmp#id1524 index1.tmp#id434 index58.tmp#id1535
Type BasicFeature1Type
Properties
content: complex
Used by
Complex Type SpecialFeaturesType
Model ChangeState{0,1} , ChangeTime{0,1} , Identifiers{0,1} , MainFeature{0,1} , (FeatureType | (FeatureCode , FeatureAdditionalCode{0,1})) , UsingRestrictions{0,1} , Validity{0,1} , FeatureInfo{0,1} , FeatureAdditionalInfo{0,1} , InventoryDate{0,1} , DataSource{0,1}
Children ChangeState, ChangeTime, DataSource, FeatureAdditionalCode, FeatureAdditionalInfo, FeatureCode, FeatureInfo, FeatureType, Identifiers, InventoryDate, MainFeature, UsingRestrictions, Validity
Instance

<SpecialFeature id="" infoProviderOrganizationName="" infoProviderRole="">
  <ChangeState>{0,1}</ChangeState>
  <ChangeTime>{0,1}</ChangeTime>
  <Identifiers>{0,1}</Identifiers>
  <MainFeature>{0,1}</MainFeature>
  <UsingRestrictions>{0,1}</UsingRestrictions>
  <Validity>{0,1}</Validity>
  <FeatureInfo>{0,1}</FeatureInfo>
  <FeatureAdditionalInfo>{0,1}</FeatureAdditionalInfo>
  <InventoryDate>{0,1}</InventoryDate>
  <DataSource>{0,1}</DataSource>
</SpecialFeature>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Erityispiirteen voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Feature can be identified using string id.
infoProviderOrganizationName OrganizationNameType optional
Tiedon tuottajaorganisaation nimiInfo provider organization name
infoProviderRole InfoProviderRoleType optional
Tiedon tuottajan luokitteluInfo provider role
Source

<xs:element name="SpecialFeature" type="sf:BasicFeature1Type">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Metsikkökuvion erityispiirre.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>
Complex Type StandsType1
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Kuvioiden tiedot.
Stands data.
Diagram
Diagram index55.tmp#id3176
Used by
Element Stands
Model Stand+
Children Stand
Source

<xs:complexType name="StandsType1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvioiden tiedot.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stands data.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="Stand" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Complex Type StandType1
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Yksittäisen kuvion tiedot.
Single stand data.
Diagram
Diagram index55.tmp#id3219 index55.tmp#id3220 index55.tmp#id3221 index55.tmp#id3178 index45.tmp#id535 index20.tmp#id761 index20.tmp#id3117 index55.tmp#id3216
Used by
Element Stand
Model StandBasicData , TreeStandData{0,1} , Operations{0,1} , PlannedOperationChains{0,1} , SpecialFeatures{0,1}
Children Operations, PlannedOperationChains, SpecialFeatures, StandBasicData, TreeStandData
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Kuvio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Stand can be identified using string id.
parcelId xs:string optional
Viiteavain palstaan.Foreign key to parcel.
realEstateId xs:string optional
Viiteavain kiinteistöön.Foreign key to real estate.
Source

<xs:complexType name="StandType1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Yksittäisen kuvion tiedot.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Single stand data.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="StandBasicData" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Metsikkökuvion perustiedot.</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en"/>
      </xs:annotation>
    </xs:element>
    <xs:element ref="ts:TreeStandData" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="op:Operations" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="op:PlannedOperationChains" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="SpecialFeatures" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
  <xs:attribute name="id" type="xs:string">
    <xs:annotation>
      <xs:documentation xml:lang="fi">Kuvio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.</xs:documentation>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en">Stand can be identified using string id.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="realEstateId" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation xml:lang="fi">Viiteavain kiinteistöön.</xs:documentation>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en">Foreign key to real estate.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="parcelId" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation xml:lang="fi">Viiteavain palstaan.</xs:documentation>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en">Foreign key to parcel.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
Complex Type StandBasicDataWithGeometryType
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Kuvion perustiedot paikkatietoineen.
Stand basic data with geometry data.
Diagram
Diagram index1.tmp#id545 index1.tmp#id547 index54.tmp#id3181 index54.tmp#id3182 index54.tmp#id3185 index54.tmp#id3186 index54.tmp#id3188 index54.tmp#id3189 index54.tmp#id3190 index54.tmp#id3191 index54.tmp#id3192 index54.tmp#id3187 index54.tmp#id3193 index54.tmp#id3194 index54.tmp#id3196 index54.tmp#id3197 index54.tmp#id3198 index54.tmp#id3195 index54.tmp#id3199 index54.tmp#id3201 index54.tmp#id3202 index54.tmp#id3205 index54.tmp#id3206 index54.tmp#id3204 index54.tmp#id3207 index54.tmp#id3203 index54.tmp#id3200 index54.tmp#id3211 index54.tmp#id3212 index1.tmp#id434 index54.tmp#id3213 index54.tmp#id3180 index54.tmp#id3214 index54.tmp#id3215 index49.tmp#id444 index49.tmp#id528
Type extension of StandBasicDataType
Type hierarchy
Used by
Element StandBasicData
Model ChangeState{0,1} , ChangeTime{0,1} , CompleteState{0,1} , Identifiers{0,1} , StandNumber , StandNumberExtension{0,1} , MainGroup , SubGroup{0,1} , FertilityClass{0,1} , SoilType{0,1} , DrainageState{0,1} , DitchingYear{0,1} , ThinningYear{0,1} , DevelopmentClass{0,1} , StandQuality{0,1} , MainTreeSpecies{0,1} , Accessibility{0,1} , CuttingRestriction{0,1} , CuttingRestrictionEnds{0,1} , ((SilvicultureRestriction , SilvicultureRestrictionEnds{0,1}) | SilvicultureRestrictions{0,1}) , StandBasicDataDate , StandInfo{0,1} , DataSource{0,1} , GrowthPlaceDataSource{0,1} , Area , AreaDecrease{0,1} , (PolygonGeometry | MultiPolygonGeometry)
Children Accessibility, Area, AreaDecrease, ChangeState, ChangeTime, CompleteState, CuttingRestriction, CuttingRestrictionEnds, DataSource, DevelopmentClass, DitchingYear, DrainageState, FertilityClass, GrowthPlaceDataSource, Identifiers, MainGroup, MainTreeSpecies, MultiPolygonGeometry, PolygonGeometry, SilvicultureRestriction, SilvicultureRestrictionEnds, SilvicultureRestrictions, SoilType, StandBasicDataDate, StandInfo, StandNumber, StandNumberExtension, StandQuality, SubGroup, ThinningYear
Source

<xs:complexType name="StandBasicDataWithGeometryType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvion perustiedot paikkatietoineen.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stand basic data with geometry data.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="StandBasicDataType">
      <xs:sequence>
        <xs:element ref="Area" minOccurs="1" maxOccurs="1"/>
        <xs:element ref="AreaDecrease" minOccurs="0" maxOccurs="1"/>
        <xs:choice>
          <xs:element ref="gdt:PolygonGeometry"/>
          <xs:element ref="gdt:MultiPolygonGeometry"/>
        </xs:choice>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type SpecialFeaturesType
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Kuvion erityispiirteet (mm. monimuotoisuustiedot)
Special features (e.g. diversity data) of stand.
Diagram
Diagram index55.tmp#id3218
Used by
Element SpecialFeatures
Model SpecialFeature+
Children SpecialFeature
Source

<xs:complexType name="SpecialFeaturesType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvion erityispiirteet (mm. monimuotoisuustiedot)</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Special features (e.g. diversity data) of stand.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="SpecialFeature" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Attribute StandType1 / @id
Namespace No namespace
Annotations
Kuvio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.
Stand can be identified using string id.
Type xs:string
Properties
content: simple
Used by
Complex Type StandType1
Source

<xs:attribute name="id" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stand can be identified using string id.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute StandType1 / @realEstateId
Namespace No namespace
Annotations
Viiteavain kiinteistöön.
Foreign key to real estate.
Type xs:string
Properties
use: optional
Used by
Complex Type StandType1
Source

<xs:attribute name="realEstateId" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Viiteavain kiinteistöön.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Foreign key to real estate.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute StandType1 / @parcelId
Namespace No namespace
Annotations
Viiteavain palstaan.
Foreign key to parcel.
Type xs:string
Properties
use: optional
Used by
Complex Type StandType1
Source

<xs:attribute name="parcelId" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Viiteavain palstaan.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Foreign key to parcel.</xs:documentation>
  </xs:annotation>
</xs:attribute>
XML Schema documentation generated by ® XML Editor.
