Showing:

Annotations
Attributes
Diagrams
Instances
Properties
Source
Used by
Imported schema RealEstate.xsd
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Annotations
Kiinteistö.
Properties
attribute form default: unqualified
element form default: qualified
version: V17.02
Element RealEstates
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index65.tmp#id3163 index65.tmp#id3162
Type RealEstatesType
Properties
content: complex
Model RealEstate+
Children RealEstate
Instance

<RealEstates>
  <RealEstate id="">{1,unbounded}</RealEstate>
</RealEstates>
Source

<xs:element name="RealEstates" type="RealEstatesType"/>
Element RealEstate
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index26.tmp#id233 index26.tmp#id211 index26.tmp#id214 index26.tmp#id217 index26.tmp#id219 index26.tmp#id221 index26.tmp#id223 index26.tmp#id213 index26.tmp#id225 index26.tmp#id227 index26.tmp#id229 index26.tmp#id231 index26.tmp#id232 index26.tmp#id210 index65.tmp#id3165 index26.tmp#id3168 index65.tmp#id3164
Type RealEstateType
Type hierarchy
Properties
content: complex
Used by
Complex Type RealEstatesType
Model (RegisterUnitId | (MunicipalityNumber , MunicipalityName{0,1} , AreaNumber , GroupNumber , UnitNumber)) , UnseparetedParcelTypeChar{0,1} , UnseparetedParcelNumber{0,1} , RealEstateName , LocationMunicipalityNumber{0,1} , LocationMunicipalityName{0,1} , RealEstateOwners{0,1} , Parcels{0,1}
Children AreaNumber, GroupNumber, LocationMunicipalityName, LocationMunicipalityNumber, MunicipalityName, MunicipalityNumber, Parcels, RealEstateName, RealEstateOwners, RegisterUnitId, UnitNumber, UnseparetedParcelNumber, UnseparetedParcelTypeChar
Instance

<RealEstate id="">
  <RegisterUnitId>{1,1}</RegisterUnitId>
  <UnseparetedParcelTypeChar>{0,1}</UnseparetedParcelTypeChar>
  <UnseparetedParcelNumber>{0,1}</UnseparetedParcelNumber>
  <RealEstateName>{1,1}</RealEstateName>
  <LocationMunicipalityNumber>{0,1}</LocationMunicipalityNumber>
  <LocationMunicipalityName>{0,1}</LocationMunicipalityName>
</RealEstate>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Kiinteistö voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Real estate can be identified using string id.
Source

<xs:element name="RealEstate" type="RealEstateType"/>
Element RealEstateOwners
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Annotations
Kiinteistön omistajat.
Diagram
Diagram index65.tmp#id3167 index65.tmp#id3166
Type RealEstateOwnersType
Properties
content: complex
Used by
Model RealEstateOwner+
Children RealEstateOwner
Instance

<RealEstateOwners>
  <RealEstateOwner id="" language="">{1,unbounded}</RealEstateOwner>
</RealEstateOwners>
Source

<xs:element name="RealEstateOwners" type="RealEstateOwnersType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kiinteistön omistajat.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>
Element RealEstateOwner
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index12.tmp#id137 index12.tmp#id138 index12.tmp#id88 index12.tmp#id90 index12.tmp#id87 index12.tmp#id95 index12.tmp#id98 index12.tmp#id94 index12.tmp#id101 index12.tmp#id104 index12.tmp#id93 index12.tmp#id107 index12.tmp#id92 index12.tmp#id110 index12.tmp#id112 index12.tmp#id115 index12.tmp#id118 index12.tmp#id120 index12.tmp#id122 index12.tmp#id124 index12.tmp#id109 index12.tmp#id127 index12.tmp#id130 index12.tmp#id132 index12.tmp#id126 index12.tmp#id134 index12.tmp#id86
Type ContactInformationType
Properties
content: complex
Used by
Complex Type RealEstateOwnersType
Model (BusinessId | PersonId) , ((((FirstName , LastName) | WholeName) , PersonOrganizationName{0,1}) | OrganizationName) , Address , PostalCode , PostOffice , StateCode{0,1} , StateText{0,1} , CountryCode{0,1} , CountryText{0,1} , PhoneNumber{0,1} , MobilePhoneNumber{0,1} , TelefaxNumber{0,1} , EmailAddress{0,1}
Children Address, BusinessId, CountryCode, CountryText, EmailAddress, FirstName, LastName, MobilePhoneNumber, OrganizationName, PersonId, PersonOrganizationName, PhoneNumber, PostOffice, PostalCode, StateCode, StateText, TelefaxNumber, WholeName
Instance

<RealEstateOwner id="" language="">
  <BusinessId>{1,1}</BusinessId>
  <PersonId>{1,1}</PersonId>
  <EmailAddress>{0,1}</EmailAddress>
</RealEstateOwner>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Henkilö/organisaatio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Person/organization can be identified using string id.
language ISO639char2LanguageType optional
Henkilön/organisaation kieli kielikoodina.Person's/organization's language as a language code.
Source

<xs:element name="RealEstateOwner" type="ci:ContactInformationType"/>
Element BaseRealEstates
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index26.tmp#id3225 index26.tmp#id3224
Type BaseRealEstatesType
Properties
content: complex
Model BaseRealEstate+
Children BaseRealEstate
Instance

<BaseRealEstates>
  <BaseRealEstate id="">{1,unbounded}</BaseRealEstate>
</BaseRealEstates>
Source

<xs:element name="BaseRealEstates" type="BaseRealEstatesType"/>
Element RealEstatesWithOwnersInformationType / RealEstates
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index26.tmp#id3225 index26.tmp#id3224
Type BaseRealEstatesType
Properties
content: complex
minOccurs: 1
maxOccurs: 1
Model BaseRealEstate+
Children BaseRealEstate
Instance

<RealEstates>
  <BaseRealEstate id="">{1,unbounded}</BaseRealEstate>
</RealEstates>
Source

<xs:element name="RealEstates" type="BaseRealEstatesType" minOccurs="1" maxOccurs="1"/>
Element RealEstatesWithOwnersInformationType2 / RealEstates
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index26.tmp#id3231 index26.tmp#id3230
Type BaseRealEstatesType2
Properties
content: complex
minOccurs: 1
maxOccurs: 1
Model RealEstate+
Children RealEstate
Instance

<RealEstates>
  <RealEstate id="">{1,unbounded}</RealEstate>
</RealEstates>
Source

<xs:element name="RealEstates" type="BaseRealEstatesType2" minOccurs="1" maxOccurs="1"/>

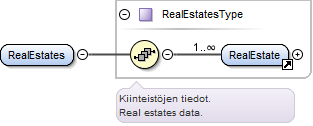

Complex Type RealEstatesType
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Annotations
Kiinteistöjen tiedot.
Real estates data.
Diagram
Diagram index65.tmp#id3163
Used by
Element RealEstates
Model RealEstate+
Children RealEstate
Source

<xs:complexType name="RealEstatesType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kiinteistöjen tiedot.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Real estates data.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="RealEstate" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Complex Type RealEstateType
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index26.tmp#id233 index26.tmp#id211 index26.tmp#id214 index26.tmp#id217 index26.tmp#id219 index26.tmp#id221 index26.tmp#id223 index26.tmp#id213 index26.tmp#id225 index26.tmp#id227 index26.tmp#id229 index26.tmp#id231 index26.tmp#id232 index26.tmp#id210 index65.tmp#id3165 index26.tmp#id3168
Type extension of BaseRealEstateType
Type hierarchy
Used by
Element RealEstate
Model (RegisterUnitId | (MunicipalityNumber , MunicipalityName{0,1} , AreaNumber , GroupNumber , UnitNumber)) , UnseparetedParcelTypeChar{0,1} , UnseparetedParcelNumber{0,1} , RealEstateName , LocationMunicipalityNumber{0,1} , LocationMunicipalityName{0,1} , RealEstateOwners{0,1} , Parcels{0,1}
Children AreaNumber, GroupNumber, LocationMunicipalityName, LocationMunicipalityNumber, MunicipalityName, MunicipalityNumber, Parcels, RealEstateName, RealEstateOwners, RegisterUnitId, UnitNumber, UnseparetedParcelNumber, UnseparetedParcelTypeChar
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Kiinteistö voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Real estate can be identified using string id.
Source

<xs:complexType name="RealEstateType">
  <xs:complexContent>
    <xs:extension base="BaseRealEstateType">
      <xs:sequence>
        <xs:element ref="RealEstateOwners" minOccurs="0" maxOccurs="1"/>
        <xs:element ref="Parcels" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type RealEstateOwnersType
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Annotations
Kiinteistöjen omistajien tiedot.
RealEstates Owners Information
Diagram
Diagram index65.tmp#id3167
Used by
Model RealEstateOwner+
Children RealEstateOwner
Source

<xs:complexType name="RealEstateOwnersType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kiinteistöjen omistajien tiedot.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">RealEstates Owners Information</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="RealEstateOwner" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Complex Type RealEstatesWithOwnersInformationType
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Annotations
Kiinteistö- ja omistajainformaatio.
RealEstates and Owners Information
Diagram
Diagram index65.tmp#id3165 index65.tmp#id3227
Model RealEstateOwners , RealEstates
Children RealEstateOwners, RealEstates
Source

<xs:complexType name="RealEstatesWithOwnersInformationType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kiinteistö- ja omistajainformaatio.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">RealEstates and Owners Information</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="RealEstateOwners" minOccurs="1" maxOccurs="1"/>
    <xs:element name="RealEstates" type="BaseRealEstatesType" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
Complex Type RealEstatesWithOwnersInformationType2
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Annotations
Kiinteistö- ja omistajainformaatio. Kaikki omistajalistassa olevat toimijat ovat kaikkien kiinteistölistan kiinteistöjen omistajia.
RealEstates and Owners Information. Every actor in the Owners Information list is an owner of every estate in the RealEstates list.
Diagram
Diagram index65.tmp#id3165 index65.tmp#id3229
Model RealEstateOwners , RealEstates
Children RealEstateOwners, RealEstates
Source

<xs:complexType name="RealEstatesWithOwnersInformationType2">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kiinteistö- ja omistajainformaatio. Kaikki omistajalistassa olevat toimijat ovat kaikkien kiinteistölistan kiinteistöjen omistajia.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">RealEstates and Owners Information. Every actor in the Owners Information list is an owner of every estate in the RealEstates list.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="RealEstateOwners" minOccurs="1" maxOccurs="1"/>
    <xs:element name="RealEstates" type="BaseRealEstatesType2" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
