Showing:

Annotations
Attributes
Diagrams
Instances
Properties
Source
Used by
Imported schema RealEstate.xsd
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Annotations
Kiinteistö.
Properties
attribute form default: unqualified
element form default: qualified
version: V17.02

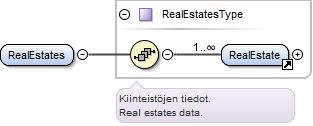

Element RealEstates
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index43.tmp#id3212 index43.tmp#id3211
Type RealEstatesType
Properties
content: complex
Model RealEstate+
Children RealEstate
Instance

<RealEstates>
  <RealEstate id="">{1,unbounded}</RealEstate>
</RealEstates>
Source

<xs:element name="RealEstates" type="RealEstatesType"/>

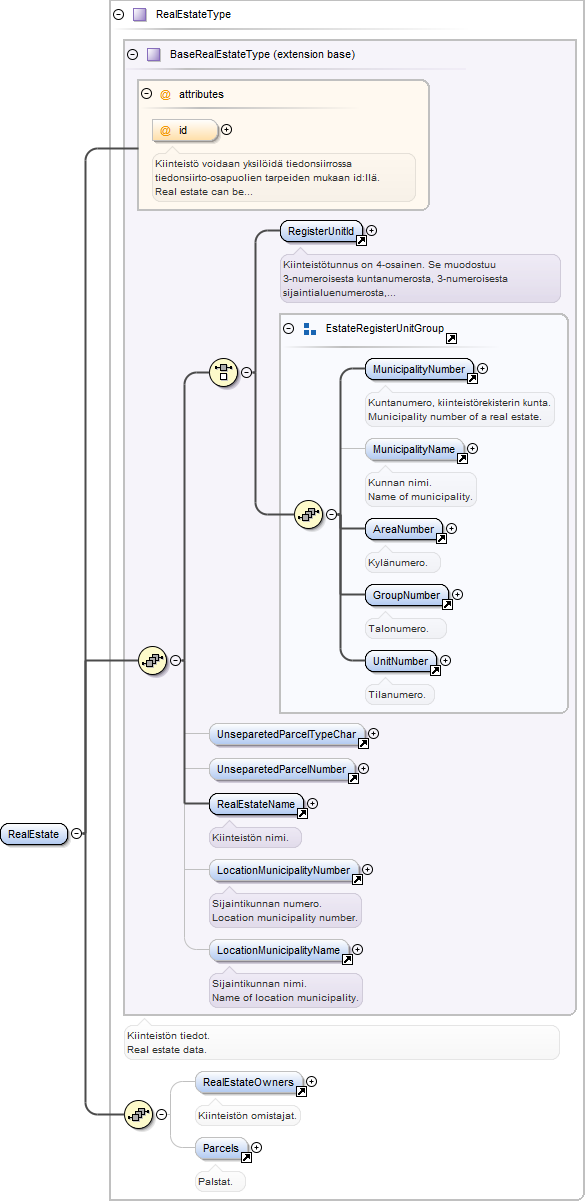

Element RealEstate
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index21.tmp#id233 index21.tmp#id211 index21.tmp#id214 index21.tmp#id217 index21.tmp#id219 index21.tmp#id221 index21.tmp#id223 index21.tmp#id213 index21.tmp#id225 index21.tmp#id227 index21.tmp#id229 index21.tmp#id231 index21.tmp#id232 index21.tmp#id210 index43.tmp#id3214 index21.tmp#id3217 index43.tmp#id3213
Type RealEstateType
Type hierarchy
Properties
content: complex
Used by
Complex Type RealEstatesType
Model (RegisterUnitId | (MunicipalityNumber , MunicipalityName{0,1} , AreaNumber , GroupNumber , UnitNumber)) , UnseparetedParcelTypeChar{0,1} , UnseparetedParcelNumber{0,1} , RealEstateName , LocationMunicipalityNumber{0,1} , LocationMunicipalityName{0,1} , RealEstateOwners{0,1} , Parcels{0,1}
Children AreaNumber, GroupNumber, LocationMunicipalityName, LocationMunicipalityNumber, MunicipalityName, MunicipalityNumber, Parcels, RealEstateName, RealEstateOwners, RegisterUnitId, UnitNumber, UnseparetedParcelNumber, UnseparetedParcelTypeChar
Instance

<RealEstate id="">
  <RegisterUnitId>{1,1}</RegisterUnitId>
  <UnseparetedParcelTypeChar>{0,1}</UnseparetedParcelTypeChar>
  <UnseparetedParcelNumber>{0,1}</UnseparetedParcelNumber>
  <RealEstateName>{1,1}</RealEstateName>
  <LocationMunicipalityNumber>{0,1}</LocationMunicipalityNumber>
  <LocationMunicipalityName>{0,1}</LocationMunicipalityName>
</RealEstate>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Kiinteistö voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Real estate can be identified using string id.
Source

<xs:element name="RealEstate" type="RealEstateType"/>

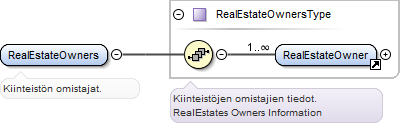

Element RealEstateOwners
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Annotations
Kiinteistön omistajat.
Diagram
Diagram index43.tmp#id3216 index43.tmp#id3215
Type RealEstateOwnersType
Properties
content: complex
Used by
Model RealEstateOwner+
Children RealEstateOwner
Instance

<RealEstateOwners>
  <RealEstateOwner id="" language="">{1,unbounded}</RealEstateOwner>
</RealEstateOwners>
Source

<xs:element name="RealEstateOwners" type="RealEstateOwnersType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kiinteistön omistajat.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>

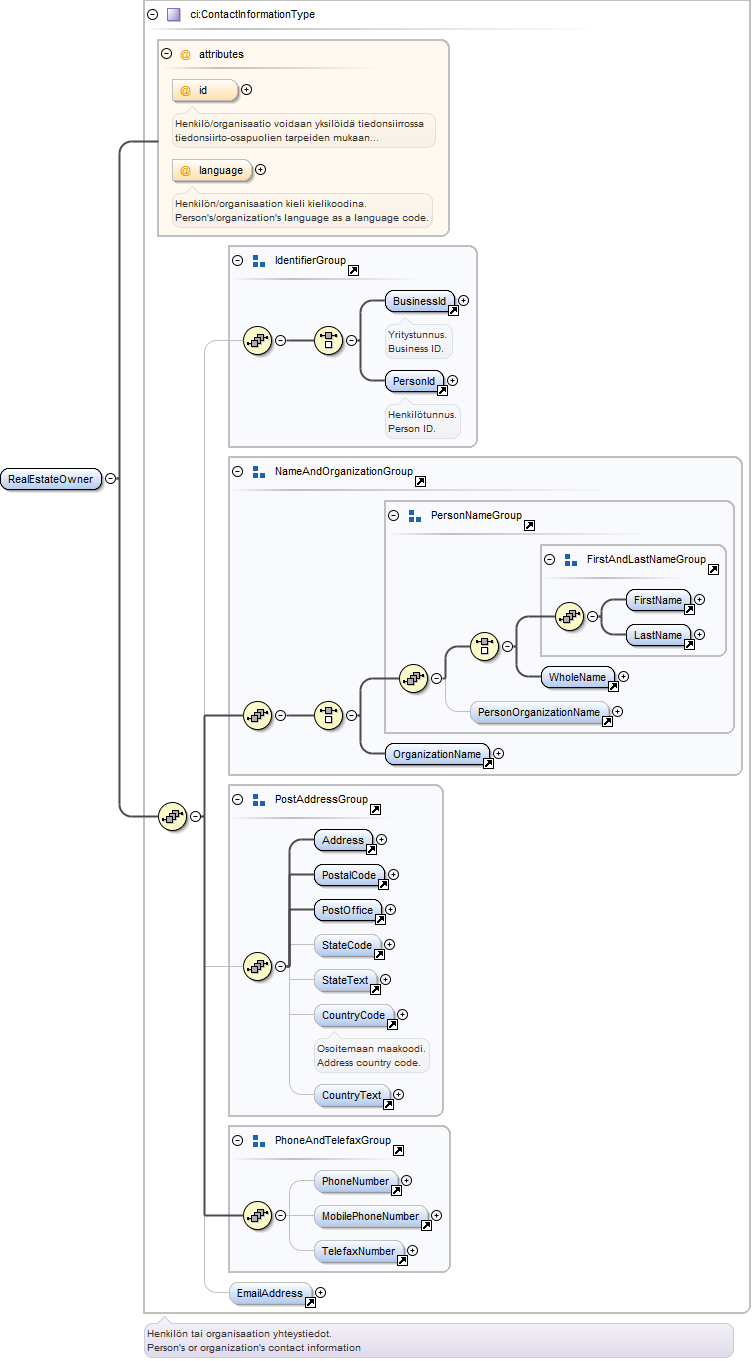

Element RealEstateOwner
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index31.tmp#id137 index31.tmp#id138 index31.tmp#id88 index31.tmp#id90 index31.tmp#id87 index31.tmp#id95 index31.tmp#id98 index31.tmp#id94 index31.tmp#id101 index31.tmp#id104 index31.tmp#id93 index31.tmp#id107 index31.tmp#id92 index31.tmp#id110 index31.tmp#id112 index31.tmp#id115 index31.tmp#id118 index31.tmp#id120 index31.tmp#id122 index31.tmp#id124 index31.tmp#id109 index31.tmp#id127 index31.tmp#id130 index31.tmp#id132 index31.tmp#id126 index31.tmp#id134 index31.tmp#id86
Type ContactInformationType
Properties
content: complex
Used by
Complex Type RealEstateOwnersType
Model (BusinessId | PersonId) , ((((FirstName , LastName) | WholeName) , PersonOrganizationName{0,1}) | OrganizationName) , Address , PostalCode , PostOffice , StateCode{0,1} , StateText{0,1} , CountryCode{0,1} , CountryText{0,1} , PhoneNumber{0,1} , MobilePhoneNumber{0,1} , TelefaxNumber{0,1} , EmailAddress{0,1}
Children Address, BusinessId, CountryCode, CountryText, EmailAddress, FirstName, LastName, MobilePhoneNumber, OrganizationName, PersonId, PersonOrganizationName, PhoneNumber, PostOffice, PostalCode, StateCode, StateText, TelefaxNumber, WholeName
Instance

<RealEstateOwner id="" language="">
  <BusinessId>{1,1}</BusinessId>
  <PersonId>{1,1}</PersonId>
  <EmailAddress>{0,1}</EmailAddress>
</RealEstateOwner>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Henkilö/organisaatio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Person/organization can be identified using string id.
language ISO639char2LanguageType optional
Henkilön/organisaation kieli kielikoodina.Person's/organization's language as a language code.
Source

<xs:element name="RealEstateOwner" type="ci:ContactInformationType"/>

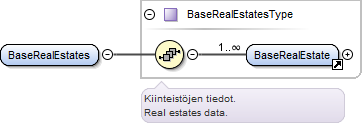

Element BaseRealEstates
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index21.tmp#id3274 index21.tmp#id3273
Type BaseRealEstatesType
Properties
content: complex
Model BaseRealEstate+
Children BaseRealEstate
Instance

<BaseRealEstates>
  <BaseRealEstate id="">{1,unbounded}</BaseRealEstate>
</BaseRealEstates>
Source

<xs:element name="BaseRealEstates" type="BaseRealEstatesType"/>

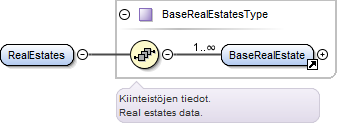

Element RealEstatesWithOwnersInformationType / RealEstates
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index21.tmp#id3274 index21.tmp#id3273
Type BaseRealEstatesType
Properties
content: complex
minOccurs: 1
maxOccurs: 1
Model BaseRealEstate+
Children BaseRealEstate
Instance

<RealEstates>
  <BaseRealEstate id="">{1,unbounded}</BaseRealEstate>
</RealEstates>
Source

<xs:element name="RealEstates" type="BaseRealEstatesType" minOccurs="1" maxOccurs="1"/>

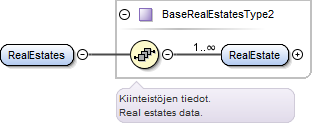

Element RealEstatesWithOwnersInformationType2 / RealEstates
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index21.tmp#id3280 index21.tmp#id3279
Type BaseRealEstatesType2
Properties
content: complex
minOccurs: 1
maxOccurs: 1
Model RealEstate+
Children RealEstate
Instance

<RealEstates>
  <RealEstate id="">{1,unbounded}</RealEstate>
</RealEstates>
Source

<xs:element name="RealEstates" type="BaseRealEstatesType2" minOccurs="1" maxOccurs="1"/>
Complex Type RealEstatesType
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Annotations
Kiinteistöjen tiedot.
Real estates data.
Diagram
Diagram index43.tmp#id3212
Used by
Element RealEstates
Model RealEstate+
Children RealEstate
Source

<xs:complexType name="RealEstatesType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kiinteistöjen tiedot.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Real estates data.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="RealEstate" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

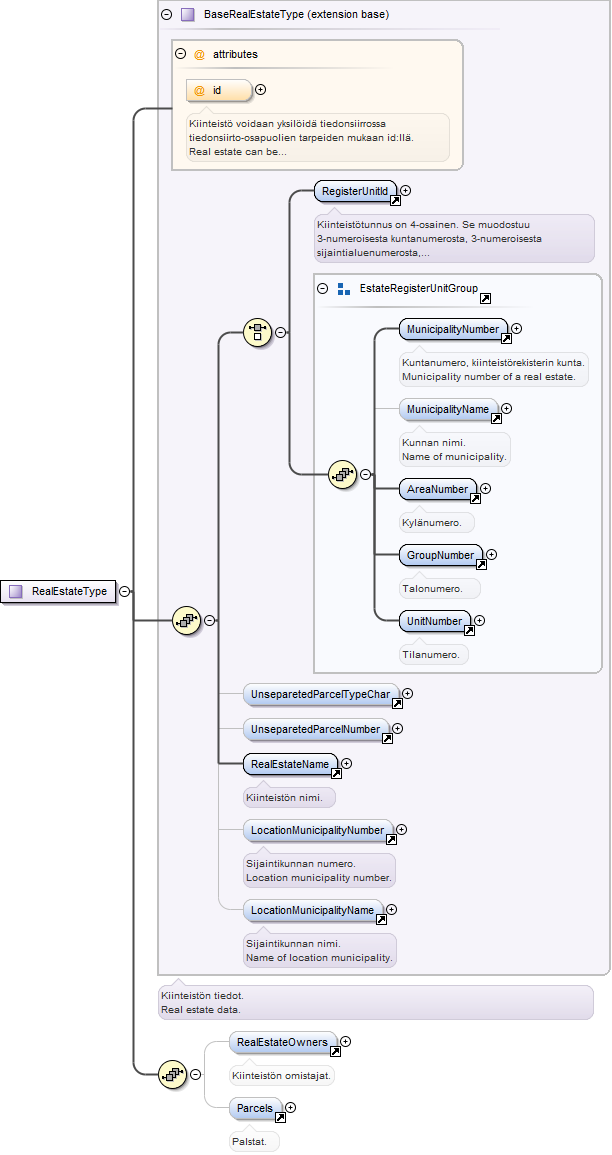

Complex Type RealEstateType
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index21.tmp#id233 index21.tmp#id211 index21.tmp#id214 index21.tmp#id217 index21.tmp#id219 index21.tmp#id221 index21.tmp#id223 index21.tmp#id213 index21.tmp#id225 index21.tmp#id227 index21.tmp#id229 index21.tmp#id231 index21.tmp#id232 index21.tmp#id210 index43.tmp#id3214 index21.tmp#id3217
Type extension of BaseRealEstateType
Type hierarchy
Used by
Element RealEstate
Model (RegisterUnitId | (MunicipalityNumber , MunicipalityName{0,1} , AreaNumber , GroupNumber , UnitNumber)) , UnseparetedParcelTypeChar{0,1} , UnseparetedParcelNumber{0,1} , RealEstateName , LocationMunicipalityNumber{0,1} , LocationMunicipalityName{0,1} , RealEstateOwners{0,1} , Parcels{0,1}
Children AreaNumber, GroupNumber, LocationMunicipalityName, LocationMunicipalityNumber, MunicipalityName, MunicipalityNumber, Parcels, RealEstateName, RealEstateOwners, RegisterUnitId, UnitNumber, UnseparetedParcelNumber, UnseparetedParcelTypeChar
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Kiinteistö voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Real estate can be identified using string id.
Source

<xs:complexType name="RealEstateType">
  <xs:complexContent>
    <xs:extension base="BaseRealEstateType">
      <xs:sequence>
        <xs:element ref="RealEstateOwners" minOccurs="0" maxOccurs="1"/>
        <xs:element ref="Parcels" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type RealEstateOwnersType
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Annotations
Kiinteistöjen omistajien tiedot.
RealEstates Owners Information
Diagram
Diagram index43.tmp#id3216
Used by
Model RealEstateOwner+
Children RealEstateOwner
Source

<xs:complexType name="RealEstateOwnersType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kiinteistöjen omistajien tiedot.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">RealEstates Owners Information</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="RealEstateOwner" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

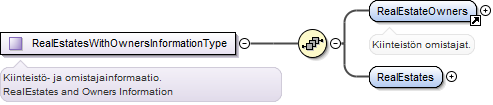

Complex Type RealEstatesWithOwnersInformationType
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Annotations
Kiinteistö- ja omistajainformaatio.
RealEstates and Owners Information
Diagram
Diagram index43.tmp#id3214 index43.tmp#id3276
Model RealEstateOwners , RealEstates
Children RealEstateOwners, RealEstates
Source

<xs:complexType name="RealEstatesWithOwnersInformationType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kiinteistö- ja omistajainformaatio.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">RealEstates and Owners Information</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="RealEstateOwners" minOccurs="1" maxOccurs="1"/>
    <xs:element name="RealEstates" type="BaseRealEstatesType" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>

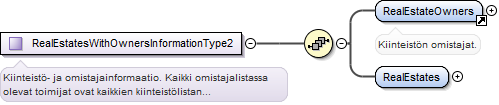

Complex Type RealEstatesWithOwnersInformationType2
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Annotations
Kiinteistö- ja omistajainformaatio. Kaikki omistajalistassa olevat toimijat ovat kaikkien kiinteistölistan kiinteistöjen omistajia.
RealEstates and Owners Information. Every actor in the Owners Information list is an owner of every estate in the RealEstates list.
Diagram
Diagram index43.tmp#id3214 index43.tmp#id3278
Model RealEstateOwners , RealEstates
Children RealEstateOwners, RealEstates
Source

<xs:complexType name="RealEstatesWithOwnersInformationType2">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kiinteistö- ja omistajainformaatio. Kaikki omistajalistassa olevat toimijat ovat kaikkien kiinteistölistan kiinteistöjen omistajia.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">RealEstates and Owners Information. Every actor in the Owners Information list is an owner of every estate in the RealEstates list.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="RealEstateOwners" minOccurs="1" maxOccurs="1"/>
    <xs:element name="RealEstates" type="BaseRealEstatesType2" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
