Imported schema StemDistributionStratum_20100831.xsd
Namespace http://standardit.tapio.fi/schemas/forestData/stemDistributionStratum/2010/08/31
Properties
attribute form default: unqualified
element form default: qualified
version: 1.1

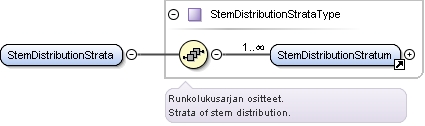

Element StemDistributionStrata
Namespace http://standardit.tapio.fi/schemas/forestData/stemDistributionStratum/2010/08/31
Diagram
Diagram index19.tmp#id631 index19.tmp#id630
Type StemDistributionStrataType
Properties
content: complex
Used by
Complex Type TreeStandDataDateType
Model StemDistributionStratum+
Children StemDistributionStratum
Instance

<StemDistributionStrata>
  <StemDistributionStratum id="">{1,unbounded}</StemDistributionStratum>
</StemDistributionStrata>
Source

<xs:element name="StemDistributionStrata" type="StemDistributionStrataType"/>

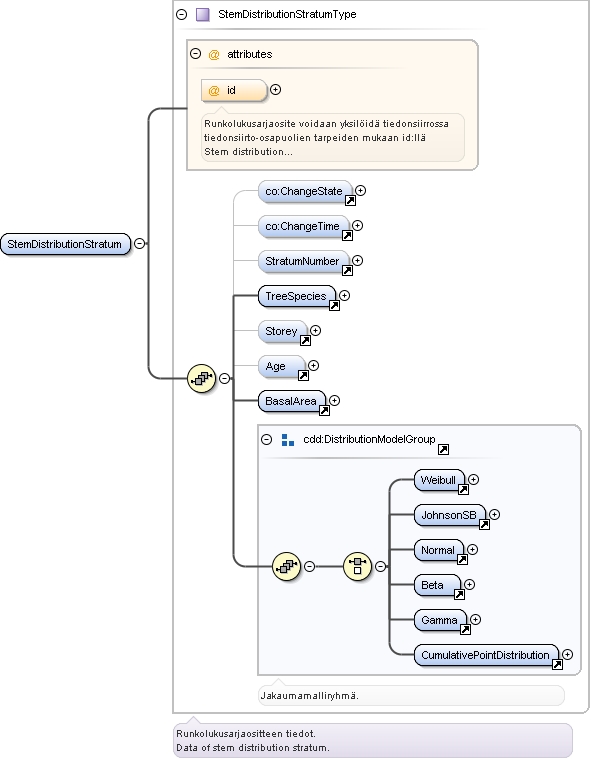

Element StemDistributionStratum
Namespace http://standardit.tapio.fi/schemas/forestData/stemDistributionStratum/2010/08/31
Diagram
Diagram index19.tmp#id643 index7.tmp#id401 index7.tmp#id402 index19.tmp#id633 index19.tmp#id635 index19.tmp#id637 index19.tmp#id639 index19.tmp#id641 index12.tmp#id204 index12.tmp#id212 index12.tmp#id218 index12.tmp#id224 index12.tmp#id234 index12.tmp#id236 index12.tmp#id203 index19.tmp#id632
Type StemDistributionStratumType
Properties
content: complex
Used by
Model ChangeState{0,1} , ChangeTime{0,1} , StratumNumber{0,1} , TreeSpecies , Storey{0,1} , Age{0,1} , BasalArea , (Weibull | JohnsonSB | Normal | Beta | Gamma | CumulativePointDistribution)
Children Age, BasalArea, Beta, ChangeState, ChangeTime, CumulativePointDistribution, Gamma, JohnsonSB, Normal, Storey, StratumNumber, TreeSpecies, Weibull
Instance

<StemDistributionStratum id="">
  <ChangeState>{0,1}</ChangeState>
  <ChangeTime>{0,1}</ChangeTime>
  <StratumNumber>{0,1}</StratumNumber>
  <TreeSpecies>{1,1}</TreeSpecies>
  <Storey>{0,1}</Storey>
  <Age>{0,1}</Age>
  <BasalArea>{1,1}</BasalArea>
</StemDistributionStratum>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Runkolukusarjaosite voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä

Stem distribution stratum can be identified using string id.
Source

<xs:element name="StemDistributionStratum" type="StemDistributionStratumType"/>
Element StratumNumber
Namespace http://standardit.tapio.fi/schemas/forestData/stemDistributionStratum/2010/08/31
Diagram
Diagram index19.tmp#id634
Type StratumNumberType
Properties
content: simple
Facets
pattern [0-9]{1}
Used by
Source

<xs:element name="StratumNumber" type="StratumNumberType"/>
Element TreeSpecies
Namespace http://standardit.tapio.fi/schemas/forestData/stemDistributionStratum/2010/08/31
Diagram
Diagram index19.tmp#id636
Type TreeSpeciesType
Type hierarchy
Properties
content: simple
Facets
enumeration 1
Mänty
enumeration 2
Kuusi
enumeration 3
Rauduskoivu
enumeration 4
Hieskoivu
enumeration 5
Haapa
enumeration 6
Harmaaleppä
enumeration 7
Tervaleppä
enumeration 8
Muu havupuu
enumeration 9
Muu lehtipuu
enumeration 10
Douglaskuusi
enumeration 11
Kataja
enumeration 12
Kontortamänty
enumeration 13
Kynäjalava
enumeration 14
Lehtikuusi
enumeration 15
Metsälehmus
enumeration 16
Mustakuusi
enumeration 17
Paju
enumeration 18
Pihlaja
enumeration 19
Pihta
enumeration 20
Raita
enumeration 21
Saarni
enumeration 22
Sembramänty
enumeration 23
Serbiankuusi
enumeration 24
Tammi
enumeration 25
Tuomi
enumeration 26
Vaahtera
enumeration 27
Visakoivu
enumeration 28
Vuorijalava
enumeration 29
Lehtipuu
enumeration 30
Havupuu
Used by
Source

<xs:element name="TreeSpecies" type="TreeSpeciesType"/>
Element Storey
Namespace http://standardit.tapio.fi/schemas/forestData/stemDistributionStratum/2010/08/31
Diagram
Diagram index19.tmp#id638
Type StoreyType
Type hierarchy
Properties
content: simple
Facets
enumeration 1
Vallitseva jakso
enumeration 2
Alempi jakso
enumeration 3
Ylempi jakso
enumeration 4
Säästöpuusto
enumeration 5
Kaukokartoitus
enumeration 6
Poistettava puusto
Used by
Source

<xs:element name="Storey" type="StoreyType"/>
Element Age
Namespace http://standardit.tapio.fi/schemas/forestData/stemDistributionStratum/2010/08/31
Diagram
Diagram index19.tmp#id640
Type AgeType
Type hierarchy
Properties
content: simple
Facets
pattern [0-9]{1,3}
Used by
Source

<xs:element name="Age" type="AgeType"/>
Element BasalArea
Namespace http://standardit.tapio.fi/schemas/forestData/stemDistributionStratum/2010/08/31
Diagram
Diagram index19.tmp#id642
Type BasalAreaType
Type hierarchy
Properties
content: simple
Used by
Source

<xs:element name="BasalArea" type="BasalAreaType"/>
Complex Type StemDistributionStrataType
Namespace http://standardit.tapio.fi/schemas/forestData/stemDistributionStratum/2010/08/31
Annotations

Runkolukusarjan ositteet.

Strata of stem distribution.
Diagram
Diagram index19.tmp#id631
Used by
Model StemDistributionStratum+
Children StemDistributionStratum
Source

<xs:complexType name="StemDistributionStrataType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Runkolukusarjan ositteet.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Strata of stem distribution.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="StemDistributionStratum" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

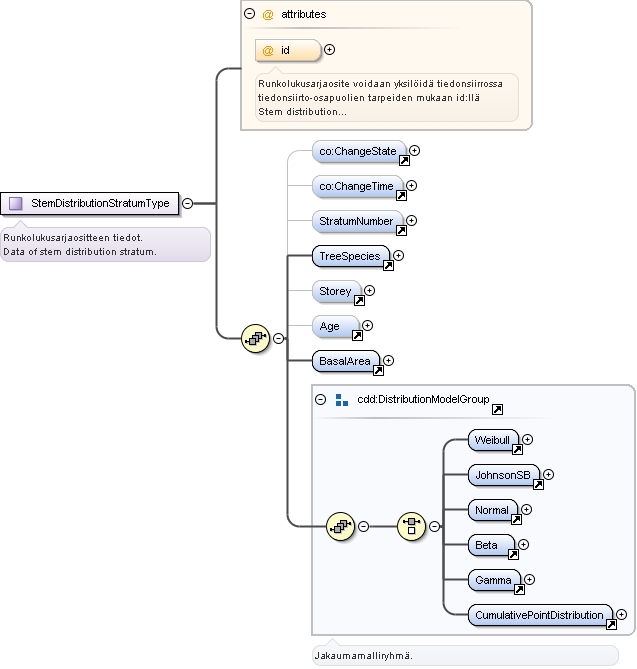

Complex Type StemDistributionStratumType
Namespace http://standardit.tapio.fi/schemas/forestData/stemDistributionStratum/2010/08/31
Annotations

Runkolukusarjaositteen tiedot.

Data of stem distribution stratum.
Diagram
Diagram index19.tmp#id643 index7.tmp#id401 index7.tmp#id402 index19.tmp#id633 index19.tmp#id635 index19.tmp#id637 index19.tmp#id639 index19.tmp#id641 index12.tmp#id204 index12.tmp#id212 index12.tmp#id218 index12.tmp#id224 index12.tmp#id234 index12.tmp#id236 index12.tmp#id203
Used by
Model ChangeState{0,1} , ChangeTime{0,1} , StratumNumber{0,1} , TreeSpecies , Storey{0,1} , Age{0,1} , BasalArea , (Weibull | JohnsonSB | Normal | Beta | Gamma | CumulativePointDistribution)
Children Age, BasalArea, Beta, ChangeState, ChangeTime, CumulativePointDistribution, Gamma, JohnsonSB, Normal, Storey, StratumNumber, TreeSpecies, Weibull
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Runkolukusarjaosite voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä

Stem distribution stratum can be identified using string id.
Source

<xs:complexType name="StemDistributionStratumType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Runkolukusarjaositteen tiedot.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Data of stem distribution stratum.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="co:ChangeState" minOccurs="0"/>
    <xs:element ref="co:ChangeTime" minOccurs="0"/>
    <xs:element ref="StratumNumber" minOccurs="0"/>
    <xs:element ref="TreeSpecies"/>
    <xs:element ref="Storey" minOccurs="0"/>
    <xs:element ref="Age" minOccurs="0"/>
    <xs:element ref="BasalArea"/>
    <xs:group ref="cdd:DistributionModelGroup"/>
  </xs:sequence>
  <xs:attribute name="id" type="xs:string">
    <xs:annotation>
      <xs:documentation xml:lang="fi">Runkolukusarjaosite voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä</xs:documentation>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en">Stem distribution stratum can be identified using string id.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
Simple Type StratumNumberType
Namespace http://standardit.tapio.fi/schemas/forestData/stemDistributionStratum/2010/08/31
Annotations

Ositteen numero.

Number (identifier) of stratum.
Diagram
Diagram
Type restriction of xs:string
Facets
pattern [0-9]{1}
Used by
Element StratumNumber
Source

<xs:simpleType name="StratumNumberType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Ositteen numero.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Number (identifier) of stratum.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="[0-9]{1}"/>
  </xs:restriction>
</xs:simpleType>
Simple Type TreeSpeciesType
Namespace http://standardit.tapio.fi/schemas/forestData/stemDistributionStratum/2010/08/31
Annotations

Puulajikoodi.

Code of tree species.
Diagram
Diagram index7.tmp#id104
Type TreeSpeciesType
Type hierarchy
Facets
enumeration 1
Mänty
enumeration 2
Kuusi
enumeration 3
Rauduskoivu
enumeration 4
Hieskoivu
enumeration 5
Haapa
enumeration 6
Harmaaleppä
enumeration 7
Tervaleppä
enumeration 8
Muu havupuu
enumeration 9
Muu lehtipuu
enumeration 10
Douglaskuusi
enumeration 11
Kataja
enumeration 12
Kontortamänty
enumeration 13
Kynäjalava
enumeration 14
Lehtikuusi
enumeration 15
Metsälehmus
enumeration 16
Mustakuusi
enumeration 17
Paju
enumeration 18
Pihlaja
enumeration 19
Pihta
enumeration 20
Raita
enumeration 21
Saarni
enumeration 22
Sembramänty
enumeration 23
Serbiankuusi
enumeration 24
Tammi
enumeration 25
Tuomi
enumeration 26
Vaahtera
enumeration 27
Visakoivu
enumeration 28
Vuorijalava
enumeration 29
Lehtipuu
enumeration 30
Havupuu
Used by
Element TreeSpecies
Source

<xs:simpleType name="TreeSpeciesType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Puulajikoodi.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Code of tree species.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="co:TreeSpeciesType"/>
</xs:simpleType>
Simple Type StoreyType
Namespace http://standardit.tapio.fi/schemas/forestData/stemDistributionStratum/2010/08/31
Annotations

Ositteen jakso.

Storey of stratum.
Diagram
Diagram index7.tmp#id108
Type StoreyType
Type hierarchy
Facets
enumeration 1
Vallitseva jakso
enumeration 2
Alempi jakso
enumeration 3
Ylempi jakso
enumeration 4
Säästöpuusto
enumeration 5
Kaukokartoitus
enumeration 6
Poistettava puusto
Used by
Element Storey
Source

<xs:simpleType name="StoreyType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Ositteen jakso.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Storey of stratum.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="co:StoreyType"/>
</xs:simpleType>
Simple Type AgeType
Namespace http://standardit.tapio.fi/schemas/forestData/stemDistributionStratum/2010/08/31
Annotations

Ositteen ikä, v.

Age of stratum, year.
Diagram
Diagram index7.tmp#id110
Type AgeType
Type hierarchy
Facets
pattern [0-9]{1,3}
Used by
Element Age
Source

<xs:simpleType name="AgeType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Ositteen ikä, v.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Age of stratum, year.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="co:AgeType"/>
</xs:simpleType>
Simple Type BasalAreaType
Namespace http://standardit.tapio.fi/schemas/forestData/stemDistributionStratum/2010/08/31
Annotations

Ositteen pohjapinta-ala, m2/ha.

Basal area, m2/ha.
Diagram
Diagram index7.tmp#id413
Type BasalAreaType
Type hierarchy
Used by
Element BasalArea
Source

<xs:simpleType name="BasalAreaType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Ositteen pohjapinta-ala, m2/ha.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Basal area, m2/ha.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="co:BasalAreaType"/>
</xs:simpleType>
Attribute StemDistributionStratumType / @id
Namespace No namespace
Annotations

Runkolukusarjaosite voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä

Stem distribution stratum can be identified using string id.
Type xs:string
Properties
content: simple
Used by
Source

<xs:attribute name="id" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Runkolukusarjaosite voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stem distribution stratum can be identified using string id.</xs:documentation>
  </xs:annotation>
</xs:attribute>
XML Schema documentation generated by ® XML Editor.
