Imported schema VirtaHelpGeometry.xsd
Namespace http://standardit.tapio.fi/schemas/virta/helpgeometry
Properties
attribute form default: qualified
element form default: qualified
version: 1.0

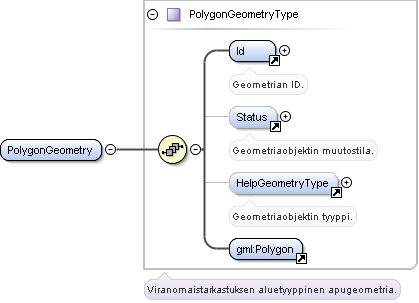

Element PolygonGeometry
Namespace http://standardit.tapio.fi/schemas/virta/helpgeometry
Diagram
Diagram index1.tmp#id287 index1.tmp#id288 index1.tmp#id289 index1.tmp#id286
Type PolygonGeometryType
Properties
content: complex
Used by
Complex Type HelpGeometriesType
Model Id , Status{0,1} , HelpGeometryType{0,1} , Polygon
Children HelpGeometryType, Id, Polygon, Status
Instance

<PolygonGeometry>
  <Id>{1,1}</Id>
  <Status>{0,1}</Status>
  <HelpGeometryType>{0,1}</HelpGeometryType>
  <Polygon>{1,1}</Polygon>
</PolygonGeometry>
Source

<xs:element name="PolygonGeometry" type="PolygonGeometryType"/>
Element Id
Namespace http://standardit.tapio.fi/schemas/virta/helpgeometry
Annotations

Geometrian ID.
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Source

<xs:element name="Id" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Geometrian ID.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>
Element Status
Namespace http://standardit.tapio.fi/schemas/virta/helpgeometry
Annotations

Geometriaobjektin muutostila.
Diagram
Diagram index9.tmp#id30
Type ChangeStateType
Properties
content: simple
Facets
enumeration 0
Ei muutoksia
enumeration 1
Poistettu
enumeration 2
Lisätty
enumeration 3
Päivitetty
enumeration 10
Ei saa muokata
Used by
Source

<xs:element name="Status" type="co:ChangeStateType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Geometriaobjektin muutostila.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>
Element HelpGeometryType
Namespace http://standardit.tapio.fi/schemas/virta/helpgeometry
Annotations

Geometriaobjektin tyyppi.
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Source

<xs:element name="HelpGeometryType" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Geometriaobjektin tyyppi.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>

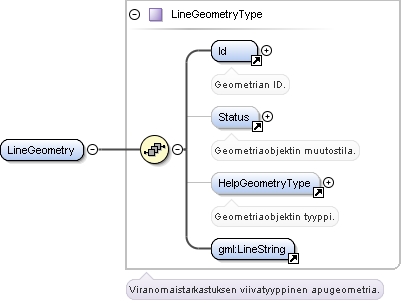

Element LineGeometry
Namespace http://standardit.tapio.fi/schemas/virta/helpgeometry
Diagram
Diagram index1.tmp#id287 index1.tmp#id288 index1.tmp#id289 index1.tmp#id291
Type LineGeometryType
Properties
content: complex
Used by
Complex Type HelpGeometriesType
Model Id , Status{0,1} , HelpGeometryType{0,1} , LineString
Children HelpGeometryType, Id, LineString, Status
Instance

<LineGeometry>
  <Id>{1,1}</Id>
  <Status>{0,1}</Status>
  <HelpGeometryType>{0,1}</HelpGeometryType>
  <LineString>{1,1}</LineString>
</LineGeometry>
Source

<xs:element name="LineGeometry" type="LineGeometryType"/>

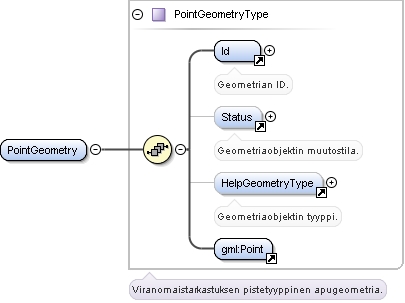

Element PointGeometry
Namespace http://standardit.tapio.fi/schemas/virta/helpgeometry
Diagram
Diagram index1.tmp#id287 index1.tmp#id288 index1.tmp#id289 index1.tmp#id294
Type PointGeometryType
Properties
content: complex
Used by
Complex Type HelpGeometriesType
Model Id , Status{0,1} , HelpGeometryType{0,1} , Point
Children HelpGeometryType, Id, Point, Status
Instance

<PointGeometry>
  <Id>{1,1}</Id>
  <Status>{0,1}</Status>
  <HelpGeometryType>{0,1}</HelpGeometryType>
  <Point>{1,1}</Point>
</PointGeometry>
Source

<xs:element name="PointGeometry" type="PointGeometryType"/>

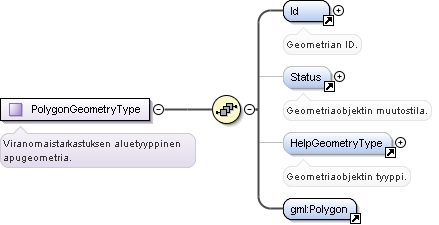

Complex Type PolygonGeometryType
Namespace http://standardit.tapio.fi/schemas/virta/helpgeometry
Annotations

Viranomaistarkastuksen aluetyyppinen apugeometria.
Diagram
Diagram index1.tmp#id287 index1.tmp#id288 index1.tmp#id289
Used by
Element PolygonGeometry
Model Id , Status{0,1} , HelpGeometryType{0,1} , Polygon
Children HelpGeometryType, Id, Polygon, Status
Source

<xs:complexType name="PolygonGeometryType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Viranomaistarkastuksen aluetyyppinen apugeometria.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="Id" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="Status" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="HelpGeometryType" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="gml:Polygon" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>

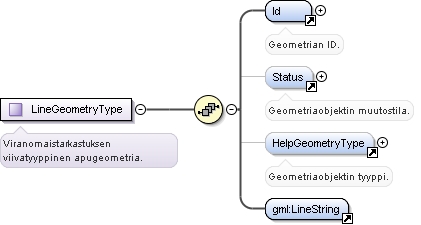

Complex Type LineGeometryType
Namespace http://standardit.tapio.fi/schemas/virta/helpgeometry
Annotations

Viranomaistarkastuksen viivatyyppinen apugeometria.
Diagram
Diagram index1.tmp#id287 index1.tmp#id288 index1.tmp#id289
Used by
Element LineGeometry
Model Id , Status{0,1} , HelpGeometryType{0,1} , LineString
Children HelpGeometryType, Id, LineString, Status
Source

<xs:complexType name="LineGeometryType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Viranomaistarkastuksen viivatyyppinen apugeometria.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="Id" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="Status" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="HelpGeometryType" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="gml:LineString" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>

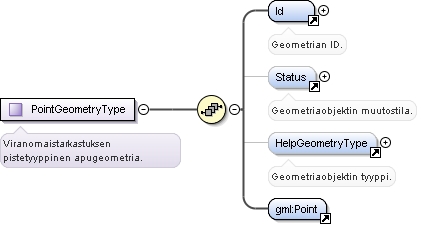

Complex Type PointGeometryType
Namespace http://standardit.tapio.fi/schemas/virta/helpgeometry
Annotations

Viranomaistarkastuksen pistetyyppinen apugeometria.
Diagram
Diagram index1.tmp#id287 index1.tmp#id288 index1.tmp#id289
Used by
Element PointGeometry
Model Id , Status{0,1} , HelpGeometryType{0,1} , Point
Children HelpGeometryType, Id, Point, Status
Source

<xs:complexType name="PointGeometryType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Viranomaistarkastuksen pistetyyppinen apugeometria.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="Id" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="Status" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="HelpGeometryType" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="gml:Point" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
