| Namespace |
http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlCutting |
|

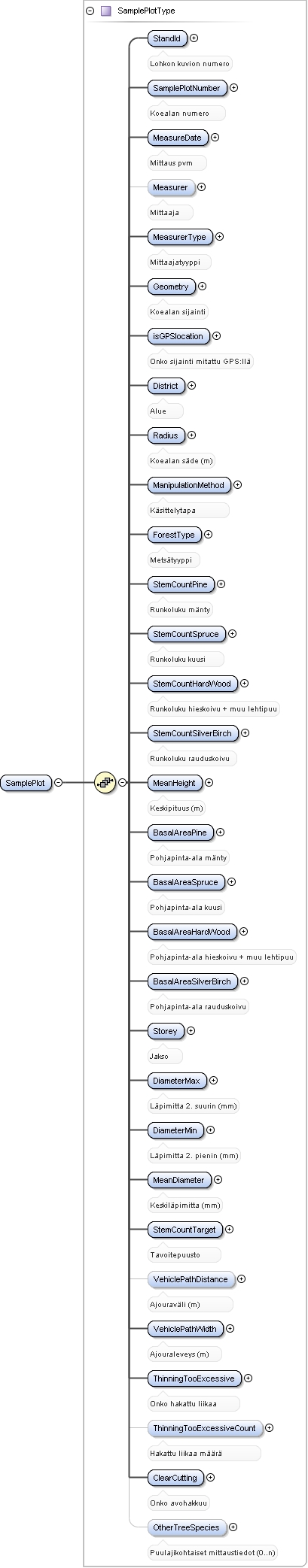

Diagram
|
|
| Type |
SamplePlotType |
|
Properties
|
| content:
|
complex |
| minOccurs:
|
1 |
| maxOccurs:
|
unbounded |
|
| Model |
StandId , SamplePlotNumber , MeasureDate , Measurer{0,1} , MeasurerType , Geometry , isGPSlocation , District , Radius , ManipulationMethod , ForestType , StemCountPine , StemCountSpruce , StemCountHardWood , StemCountSilverBirch , MeanHeight , BasalAreaPine , BasalAreaSpruce , BasalAreaHardWood , BasalAreaSilverBirch , Storey , DiameterMax , DiameterMin , MeanDiameter , StemCountTarget , VehiclePathDistance{0,1} , VehiclePathWidth , ThinningTooExcessive , ThinningTooExcessiveCount{0,1} , ClearCutting , OtherTreeSpecies{0,1} |
| Children |
BasalAreaHardWood, BasalAreaPine, BasalAreaSilverBirch, BasalAreaSpruce, ClearCutting, DiameterMax, DiameterMin, District, ForestType, Geometry, ManipulationMethod, MeanDiameter, MeanHeight, MeasureDate, Measurer, MeasurerType, OtherTreeSpecies, Radius, SamplePlotNumber, StandId, StemCountHardWood, StemCountPine, StemCountSilverBirch, StemCountSpruce, StemCountTarget, Storey, ThinningTooExcessive, ThinningTooExcessiveCount, VehiclePathDistance, VehiclePathWidth, isGPSlocation |
|
Instance
|
<SamplePlot>
<StandId>{1,1}</StandId>
<SamplePlotNumber>{1,1}</SamplePlotNumber>
<MeasureDate>{1,1}</MeasureDate>
<Measurer>{0,1}</Measurer>
<MeasurerType>{1,1}</MeasurerType>
<Geometry dimension="" location="">{1,1}</Geometry>
<isGPSlocation>{1,1}</isGPSlocation>
<District>{1,1}</District>
<Radius>{1,1}</Radius>
<ManipulationMethod>{1,1}</ManipulationMethod>
<ForestType>{1,1}</ForestType>
<StemCountPine>{1,1}</StemCountPine>
<StemCountSpruce>{1,1}</StemCountSpruce>
<StemCountHardWood>{1,1}</StemCountHardWood>
<StemCountSilverBirch>{1,1}</StemCountSilverBirch>
<MeanHeight>{1,1}</MeanHeight>
<BasalAreaPine>{1,1}</BasalAreaPine>
<BasalAreaSpruce>{1,1}</BasalAreaSpruce>
<BasalAreaHardWood>{1,1}</BasalAreaHardWood>
<BasalAreaSilverBirch>{1,1}</BasalAreaSilverBirch>
<Storey>{1,1}</Storey>
<DiameterMax>{1,1}</DiameterMax>
<DiameterMin>{1,1}</DiameterMin>
<MeanDiameter>{1,1}</MeanDiameter>
<StemCountTarget>{1,1}</StemCountTarget>
<VehiclePathDistance>{0,1}</VehiclePathDistance>
<VehiclePathWidth>{1,1}</VehiclePathWidth>
<ThinningTooExcessive>{1,1}</ThinningTooExcessive>
<ThinningTooExcessiveCount>{0,1}</ThinningTooExcessiveCount>
<ClearCutting>{1,1}</ClearCutting>
<OtherTreeSpecies>{0,1}</OtherTreeSpecies>
</SamplePlot> |
|
|
Source
|
<xs:element name="SamplePlot" type="SamplePlotType" minOccurs="1" maxOccurs="unbounded"/> |
|
|
|
