Showing:

Annotations
Attributes
Diagrams
Instances
Properties
Source
Used by
Imported schema Stand.xsd
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Properties
attribute form default: unqualified
element form default: qualified
version: 1.0
Element Stands
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Diagram
Diagram index29.tmp#id1173 index29.tmp#id1172
Type StandsType1
Properties
content: complex
Used by
Model Stand+
Children Stand
Instance

<Stands>
  <Stand id="" parcelId="" realEstateId="">{1,unbounded}</Stand>
</Stands>
Source

<xs:element name="Stands" type="StandsType1"/>

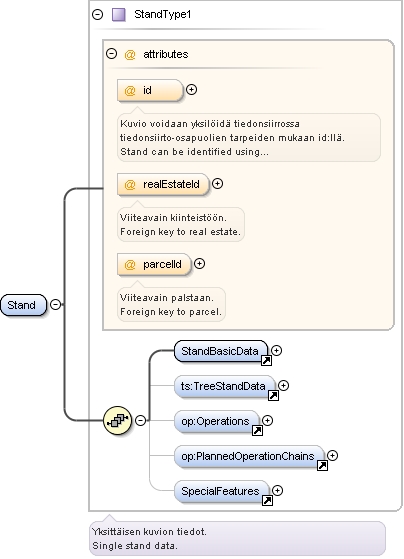

Element Stand
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Diagram
Diagram index29.tmp#id1232 index29.tmp#id1233 index29.tmp#id1234 index29.tmp#id1175 index30.tmp#id562 index26.tmp#id767 index26.tmp#id1215 index29.tmp#id1224 index29.tmp#id1174
Type StandType1
Properties
content: complex
Used by
Complex Type StandsType1
Model StandBasicData , TreeStandData{0,1} , Operations{0,1} , PlannedOperationChains{0,1} , SpecialFeatures{0,1}
Children Operations, PlannedOperationChains, SpecialFeatures, StandBasicData, TreeStandData
Instance

<Stand id="" parcelId="" realEstateId="">
  <StandBasicData>{1,1}</StandBasicData>
  <TreeStandData>{0,1}</TreeStandData>
  <Operations>{0,1}</Operations>
  <PlannedOperationChains>{0,1}</PlannedOperationChains>
  <SpecialFeatures>{0,1}</SpecialFeatures>
</Stand>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Kuvio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Stand can be identified using string id.
parcelId xs:string optional
Viiteavain palstaan.Foreign key to parcel.
realEstateId xs:string optional
Viiteavain kiinteistöön.Foreign key to real estate.
Source

<xs:element name="Stand" type="StandType1"/>

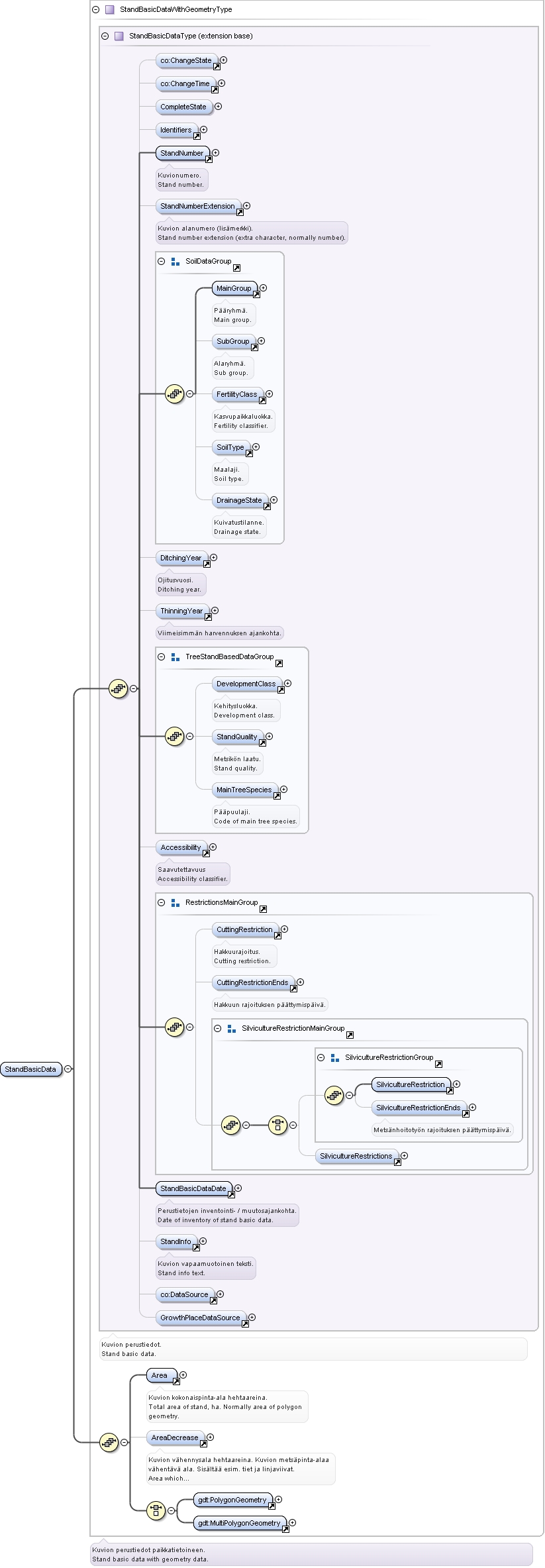

Element StandBasicData
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Diagram
Diagram index5.tmp#id572 index5.tmp#id574 index80.tmp#id1178 index80.tmp#id1180 index80.tmp#id1182 index80.tmp#id1183 index80.tmp#id1185 index80.tmp#id1188 index80.tmp#id1189 index80.tmp#id1190 index80.tmp#id1191 index80.tmp#id1184 index80.tmp#id1192 index80.tmp#id1193 index80.tmp#id1195 index80.tmp#id1196 index80.tmp#id1197 index80.tmp#id1194 index80.tmp#id1198 index80.tmp#id1200 index80.tmp#id1201 index80.tmp#id1204 index80.tmp#id1205 index80.tmp#id1203 index80.tmp#id1206 index80.tmp#id1202 index80.tmp#id1199 index80.tmp#id1210 index80.tmp#id1211 index5.tmp#id461 index80.tmp#id1212 index80.tmp#id1177 index80.tmp#id1213 index80.tmp#id1214 index70.tmp#id471 index70.tmp#id555 index29.tmp#id1176
Type StandBasicDataWithGeometryType
Type hierarchy
Properties
content: complex
Used by
Complex Type StandType1
Model ChangeState{0,1} , ChangeTime{0,1} , CompleteState{0,1} , Identifiers{0,1} , StandNumber , StandNumberExtension{0,1} , MainGroup , SubGroup{0,1} , FertilityClass{0,1} , SoilType{0,1} , DrainageState{0,1} , DitchingYear{0,1} , ThinningYear{0,1} , DevelopmentClass{0,1} , StandQuality{0,1} , MainTreeSpecies{0,1} , Accessibility{0,1} , CuttingRestriction{0,1} , CuttingRestrictionEnds{0,1} , ((SilvicultureRestriction , SilvicultureRestrictionEnds{0,1}) | SilvicultureRestrictions{0,1}) , StandBasicDataDate , StandInfo{0,1} , DataSource{0,1} , GrowthPlaceDataSource{0,1} , Area , AreaDecrease{0,1} , (PolygonGeometry | MultiPolygonGeometry)
Children Accessibility, Area, AreaDecrease, ChangeState, ChangeTime, CompleteState, CuttingRestriction, CuttingRestrictionEnds, DataSource, DevelopmentClass, DitchingYear, DrainageState, FertilityClass, GrowthPlaceDataSource, Identifiers, MainGroup, MainTreeSpecies, MultiPolygonGeometry, PolygonGeometry, SilvicultureRestriction, SilvicultureRestrictionEnds, SilvicultureRestrictions, SoilType, StandBasicDataDate, StandInfo, StandNumber, StandNumberExtension, StandQuality, SubGroup, ThinningYear
Instance

<StandBasicData>
  <ChangeState>{0,1}</ChangeState>
  <ChangeTime>{0,1}</ChangeTime>
  <CompleteState>{0,1}</CompleteState>
  <Identifiers>{0,1}</Identifiers>
  <StandNumber>{1,1}</StandNumber>
  <StandNumberExtension>{0,1}</StandNumberExtension>
  <DitchingYear>{0,1}</DitchingYear>
  <ThinningYear>{0,1}</ThinningYear>
  <Accessibility>{0,1}</Accessibility>
  <StandBasicDataDate>{1,1}</StandBasicDataDate>
  <StandInfo>{0,1}</StandInfo>
  <DataSource>{0,1}</DataSource>
  <GrowthPlaceDataSource>{0,1}</GrowthPlaceDataSource>
</StandBasicData>
Source

<xs:element name="StandBasicData" type="StandBasicDataWithGeometryType"/>

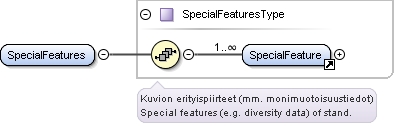

Element SpecialFeatures
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Diagram
Diagram index29.tmp#id1226 index29.tmp#id1225
Type SpecialFeaturesType
Properties
content: complex
Used by
Complex Type StandType1
Model SpecialFeature+
Children SpecialFeature
Instance

<SpecialFeatures>
  <SpecialFeature id="">{1,unbounded}</SpecialFeature>
</SpecialFeatures>
Source

<xs:element name="SpecialFeatures" type="SpecialFeaturesType"/>

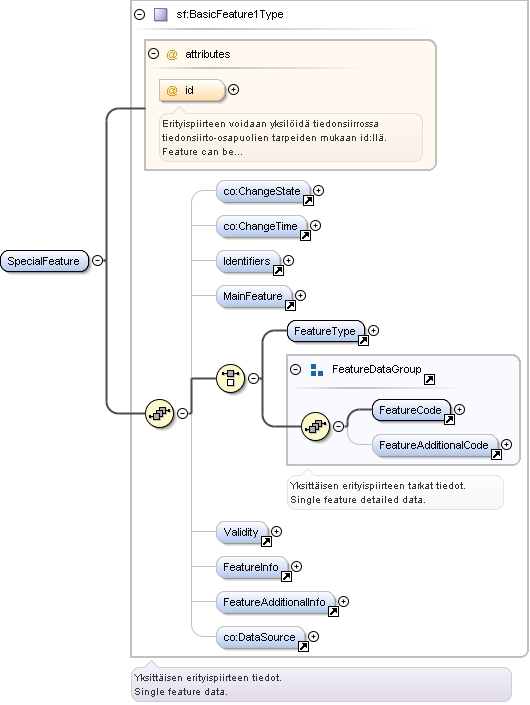

Element SpecialFeature
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Diagram
Diagram index31.tmp#id1231 index5.tmp#id572 index5.tmp#id574 index31.tmp#id858 index31.tmp#id1228 index31.tmp#id868 index31.tmp#id873 index31.tmp#id879 index31.tmp#id872 index31.tmp#id883 index31.tmp#id893 index31.tmp#id896 index5.tmp#id461 index31.tmp#id1227
Type BasicFeature1Type
Properties
content: complex
Used by
Complex Type SpecialFeaturesType
Model ChangeState{0,1} , ChangeTime{0,1} , Identifiers{0,1} , MainFeature{0,1} , (FeatureType | (FeatureCode , FeatureAdditionalCode{0,1})) , Validity{0,1} , FeatureInfo{0,1} , FeatureAdditionalInfo{0,1} , DataSource{0,1}
Children ChangeState, ChangeTime, DataSource, FeatureAdditionalCode, FeatureAdditionalInfo, FeatureCode, FeatureInfo, FeatureType, Identifiers, MainFeature, Validity
Instance

<SpecialFeature id="">
  <ChangeState>{0,1}</ChangeState>
  <ChangeTime>{0,1}</ChangeTime>
  <Identifiers>{0,1}</Identifiers>
  <MainFeature>{0,1}</MainFeature>
  <Validity>{0,1}</Validity>
  <FeatureInfo>{0,1}</FeatureInfo>
  <FeatureAdditionalInfo>{0,1}</FeatureAdditionalInfo>
  <DataSource>{0,1}</DataSource>
</SpecialFeature>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Erityispiirteen voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Feature can be identified using string id.
Source

<xs:element name="SpecialFeature" type="sf:BasicFeature1Type"/>
Element Identifier
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Diagram
Diagram index5.tmp#id400 index5.tmp#id402 index5.tmp#id399
Type IdentifierType
Properties
content: complex
Model IdentifierType , IdentifierValue
Children IdentifierType, IdentifierValue
Instance

<Identifier>
  <IdentifierType>{1,1}</IdentifierType>
  <IdentifierValue>{1,1}</IdentifierValue>
</Identifier>
Source

<xs:element name="Identifier" type="co:IdentifierType"/>
Complex Type StandsType1
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Kuvioiden tiedot.
Stands data.
Diagram
Diagram index29.tmp#id1173
Used by
Element Stands
Model Stand+
Children Stand
Source

<xs:complexType name="StandsType1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvioiden tiedot.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stands data.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="Stand" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

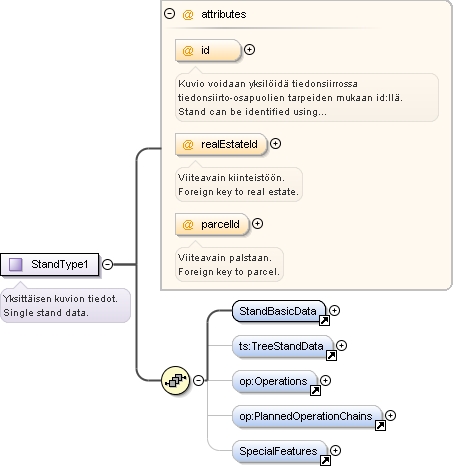

Complex Type StandType1
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Yksittäisen kuvion tiedot.
Single stand data.
Diagram
Diagram index29.tmp#id1232 index29.tmp#id1233 index29.tmp#id1234 index29.tmp#id1175 index30.tmp#id562 index26.tmp#id767 index26.tmp#id1215 index29.tmp#id1224
Used by
Element Stand
Model StandBasicData , TreeStandData{0,1} , Operations{0,1} , PlannedOperationChains{0,1} , SpecialFeatures{0,1}
Children Operations, PlannedOperationChains, SpecialFeatures, StandBasicData, TreeStandData
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Kuvio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Stand can be identified using string id.
parcelId xs:string optional
Viiteavain palstaan.Foreign key to parcel.
realEstateId xs:string optional
Viiteavain kiinteistöön.Foreign key to real estate.
Source

<xs:complexType name="StandType1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Yksittäisen kuvion tiedot.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Single stand data.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="StandBasicData" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="ts:TreeStandData" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="op:Operations" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="op:PlannedOperationChains" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="SpecialFeatures" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
  <xs:attribute name="id" type="xs:string">
    <xs:annotation>
      <xs:documentation xml:lang="fi">Kuvio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.</xs:documentation>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en">Stand can be identified using string id.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="realEstateId" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation xml:lang="fi">Viiteavain kiinteistöön.</xs:documentation>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en">Foreign key to real estate.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="parcelId" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation xml:lang="fi">Viiteavain palstaan.</xs:documentation>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en">Foreign key to parcel.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>

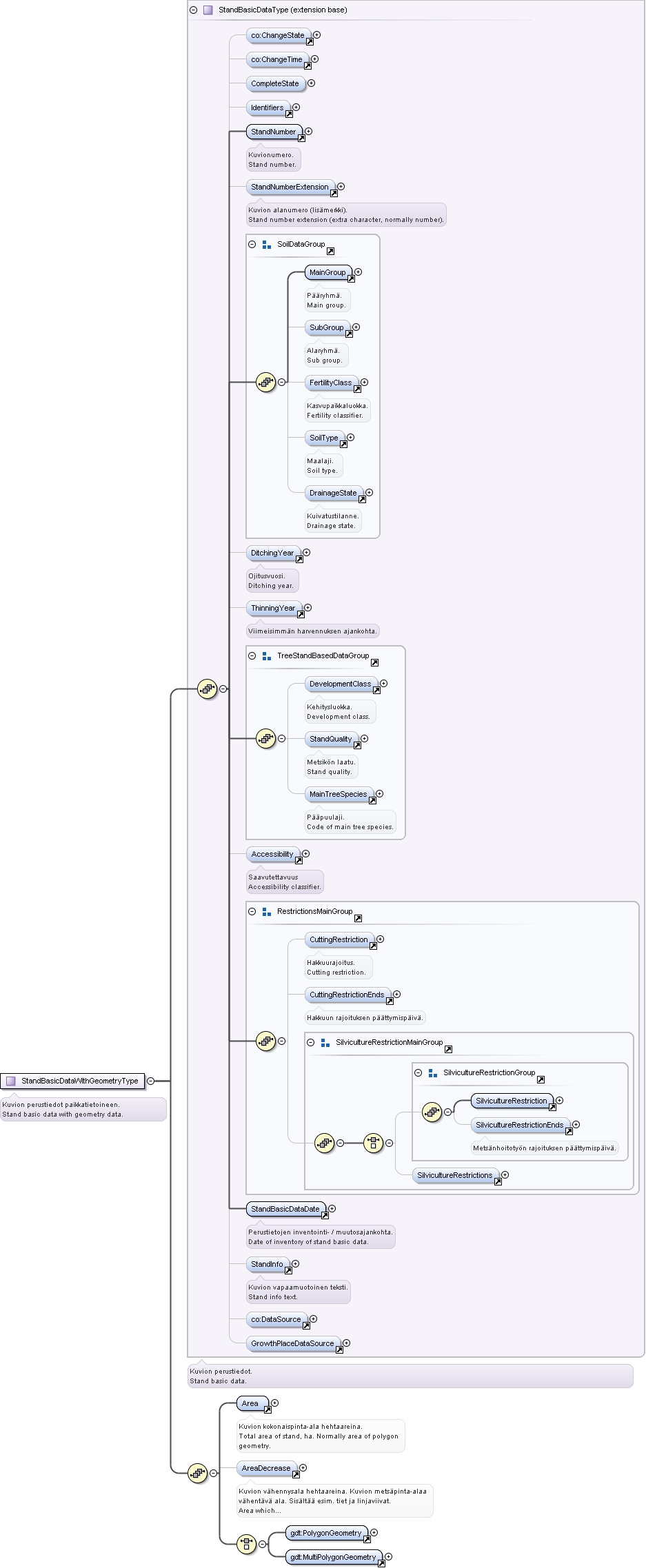

Complex Type StandBasicDataWithGeometryType
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Kuvion perustiedot paikkatietoineen.
Stand basic data with geometry data.
Diagram
Diagram index5.tmp#id572 index5.tmp#id574 index80.tmp#id1178 index80.tmp#id1180 index80.tmp#id1182 index80.tmp#id1183 index80.tmp#id1185 index80.tmp#id1188 index80.tmp#id1189 index80.tmp#id1190 index80.tmp#id1191 index80.tmp#id1184 index80.tmp#id1192 index80.tmp#id1193 index80.tmp#id1195 index80.tmp#id1196 index80.tmp#id1197 index80.tmp#id1194 index80.tmp#id1198 index80.tmp#id1200 index80.tmp#id1201 index80.tmp#id1204 index80.tmp#id1205 index80.tmp#id1203 index80.tmp#id1206 index80.tmp#id1202 index80.tmp#id1199 index80.tmp#id1210 index80.tmp#id1211 index5.tmp#id461 index80.tmp#id1212 index80.tmp#id1177 index80.tmp#id1213 index80.tmp#id1214 index70.tmp#id471 index70.tmp#id555
Type extension of StandBasicDataType
Type hierarchy
Used by
Element StandBasicData
Model ChangeState{0,1} , ChangeTime{0,1} , CompleteState{0,1} , Identifiers{0,1} , StandNumber , StandNumberExtension{0,1} , MainGroup , SubGroup{0,1} , FertilityClass{0,1} , SoilType{0,1} , DrainageState{0,1} , DitchingYear{0,1} , ThinningYear{0,1} , DevelopmentClass{0,1} , StandQuality{0,1} , MainTreeSpecies{0,1} , Accessibility{0,1} , CuttingRestriction{0,1} , CuttingRestrictionEnds{0,1} , ((SilvicultureRestriction , SilvicultureRestrictionEnds{0,1}) | SilvicultureRestrictions{0,1}) , StandBasicDataDate , StandInfo{0,1} , DataSource{0,1} , GrowthPlaceDataSource{0,1} , Area , AreaDecrease{0,1} , (PolygonGeometry | MultiPolygonGeometry)
Children Accessibility, Area, AreaDecrease, ChangeState, ChangeTime, CompleteState, CuttingRestriction, CuttingRestrictionEnds, DataSource, DevelopmentClass, DitchingYear, DrainageState, FertilityClass, GrowthPlaceDataSource, Identifiers, MainGroup, MainTreeSpecies, MultiPolygonGeometry, PolygonGeometry, SilvicultureRestriction, SilvicultureRestrictionEnds, SilvicultureRestrictions, SoilType, StandBasicDataDate, StandInfo, StandNumber, StandNumberExtension, StandQuality, SubGroup, ThinningYear
Source

<xs:complexType name="StandBasicDataWithGeometryType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvion perustiedot paikkatietoineen.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stand basic data with geometry data.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="StandBasicDataType">
      <xs:sequence>
        <xs:element ref="Area" minOccurs="1" maxOccurs="1"/>
        <xs:element ref="AreaDecrease" minOccurs="0" maxOccurs="1"/>
        <xs:choice>
          <xs:element ref="gdt:PolygonGeometry"/>
          <xs:element ref="gdt:MultiPolygonGeometry"/>
        </xs:choice>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

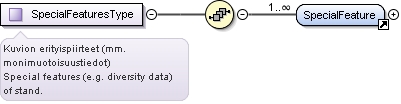

Complex Type SpecialFeaturesType
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Kuvion erityispiirteet (mm. monimuotoisuustiedot)
Special features (e.g. diversity data) of stand.
Diagram
Diagram index29.tmp#id1226
Used by
Element SpecialFeatures
Model SpecialFeature+
Children SpecialFeature
Source

<xs:complexType name="SpecialFeaturesType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvion erityispiirteet (mm. monimuotoisuustiedot)</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Special features (e.g. diversity data) of stand.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="SpecialFeature" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Attribute StandType1 / @id
Namespace No namespace
Annotations
Kuvio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.
Stand can be identified using string id.
Type xs:string
Properties
content: simple
Used by
Complex Type StandType1
Source

<xs:attribute name="id" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stand can be identified using string id.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute StandType1 / @realEstateId
Namespace No namespace
Annotations
Viiteavain kiinteistöön.
Foreign key to real estate.
Type xs:string
Properties
use: optional
Used by
Complex Type StandType1
Source

<xs:attribute name="realEstateId" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Viiteavain kiinteistöön.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Foreign key to real estate.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute StandType1 / @parcelId
Namespace No namespace
Annotations
Viiteavain palstaan.
Foreign key to parcel.
Type xs:string
Properties
use: optional
Used by
Complex Type StandType1
Source

<xs:attribute name="parcelId" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Viiteavain palstaan.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Foreign key to parcel.</xs:documentation>
  </xs:annotation>
</xs:attribute>
