Imported schema WorkingSiteQualityControlPlantManagement.xsd
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Properties
attribute form default: unqualified
element form default: qualified
version: 0.3

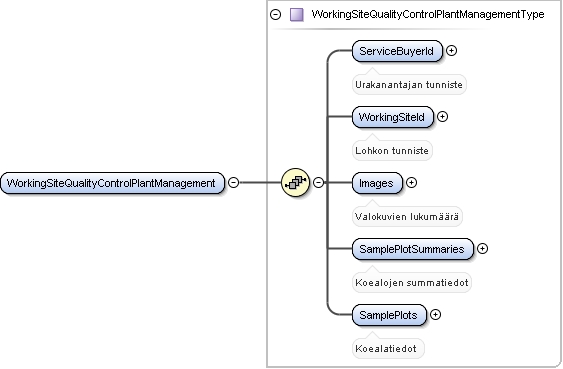

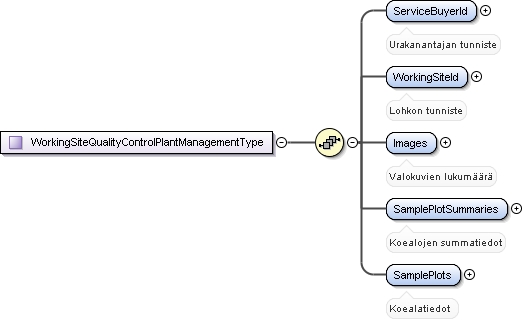

Element WorkingSiteQualityControlPlantManagement
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Diagram
Diagram index32.tmp#id3194 index32.tmp#id3195 index32.tmp#id3196 index32.tmp#id3197 index32.tmp#id3220 index32.tmp#id3193
Type WorkingSiteQualityControlPlantManagementType
Properties
content: complex
Used by
Element Group ObjectDataGroup
Model ServiceBuyerId , WorkingSiteId , Images , SamplePlotSummaries , SamplePlots
Children Images, SamplePlotSummaries, SamplePlots, ServiceBuyerId, WorkingSiteId
Instance

<WorkingSiteQualityControlPlantManagement>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <Images>{1,1}</Images>
  <SamplePlotSummaries>{1,1}</SamplePlotSummaries>
  <SamplePlots>{1,1}</SamplePlots>
</WorkingSiteQualityControlPlantManagement>
Source

<xs:element name="WorkingSiteQualityControlPlantManagement" type="WorkingSiteQualityControlPlantManagementType"/>
Element WorkingSiteQualityControlPlantManagementType / ServiceBuyerId
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Urakanantajan tunniste
Diagram
Diagram index0.tmp#id1241
Type String20Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 20
Source

<xs:element name="ServiceBuyerId" type="bdt:String20Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Urakanantajan tunniste</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteQualityControlPlantManagementType / WorkingSiteId
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Lohkon tunniste
Diagram
Diagram index0.tmp#id1241
Type String20Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 20
Source

<xs:element name="WorkingSiteId" type="bdt:String20Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Lohkon tunniste</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteQualityControlPlantManagementType / Images
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Valokuvien lukumäärä
Diagram
Diagram index0.tmp#id1318
Type PositiveInteger2digitsType
Properties
content: simple
minOccurs: 1
Facets
maxInclusive 99
minInclusive 0
Source

<xs:element name="Images" type="bdt:PositiveInteger2digitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Valokuvien lukumäärä</xs:documentation>
  </xs:annotation>
</xs:element>

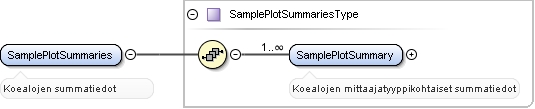

Element WorkingSiteQualityControlPlantManagementType / SamplePlotSummaries
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Koealojen summatiedot
Diagram
Diagram index32.tmp#id3199 index32.tmp#id3198
Type SamplePlotSummariesType
Properties
content: complex
minOccurs: 1
Model SamplePlotSummary+
Children SamplePlotSummary
Instance

<SamplePlotSummaries>
  <SamplePlotSummary>{1,unbounded}</SamplePlotSummary>
</SamplePlotSummaries>
Source

<xs:element name="SamplePlotSummaries" type="SamplePlotSummariesType" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Koealojen summatiedot</xs:documentation>
  </xs:annotation>
</xs:element>

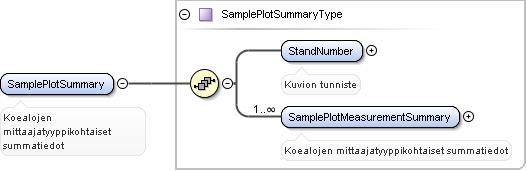

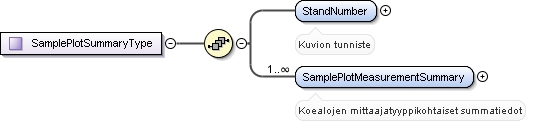

Element SamplePlotSummariesType / SamplePlotSummary
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Koealojen mittaajatyyppikohtaiset summatiedot
Diagram
Diagram index32.tmp#id3201 index32.tmp#id3202 index32.tmp#id3200
Type SamplePlotSummaryType
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Model StandNumber , SamplePlotMeasurementSummary+
Children SamplePlotMeasurementSummary, StandNumber
Instance

<SamplePlotSummary>
  <StandNumber>{1,1}</StandNumber>
  <SamplePlotMeasurementSummary>{1,unbounded}</SamplePlotMeasurementSummary>
</SamplePlotSummary>
Source

<xs:element name="SamplePlotSummary" type="SamplePlotSummaryType" minOccurs="1" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Koealojen mittaajatyyppikohtaiset summatiedot</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotSummaryType / StandNumber
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Kuvion tunniste
Diagram
Diagram index0.tmp#id1301
Type String10Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 10
Source

<xs:element name="StandNumber" type="bdt:String10Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvion tunniste</xs:documentation>
  </xs:annotation>
</xs:element>

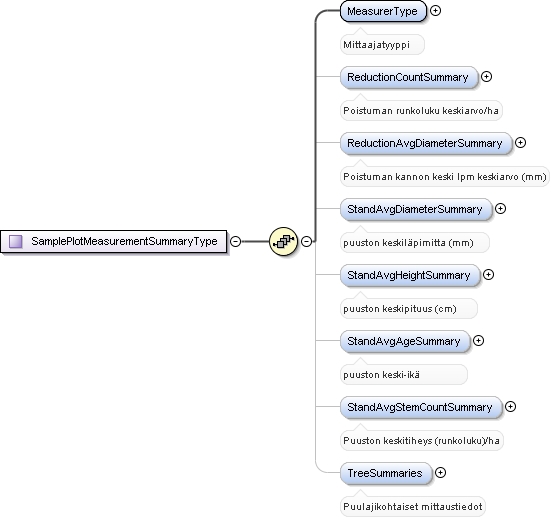

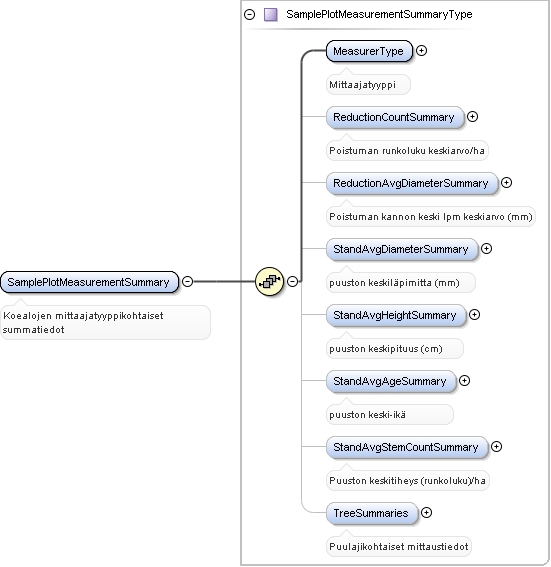

Element SamplePlotSummaryType / SamplePlotMeasurementSummary
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Koealojen mittaajatyyppikohtaiset summatiedot
Diagram
Diagram index32.tmp#id3204 index32.tmp#id3205 index32.tmp#id3206 index32.tmp#id3207 index32.tmp#id3208 index32.tmp#id3209 index32.tmp#id3210 index32.tmp#id3211 index32.tmp#id3203
Type SamplePlotMeasurementSummaryType
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Model MeasurerType , ReductionCountSummary{0,1} , ReductionAvgDiameterSummary{0,1} , StandAvgDiameterSummary{0,1} , StandAvgHeightSummary{0,1} , StandAvgAgeSummary{0,1} , StandAvgStemCountSummary{0,1} , TreeSummaries{0,1}
Children MeasurerType, ReductionAvgDiameterSummary, ReductionCountSummary, StandAvgAgeSummary, StandAvgDiameterSummary, StandAvgHeightSummary, StandAvgStemCountSummary, TreeSummaries
Instance

<SamplePlotMeasurementSummary>
  <MeasurerType>{1,1}</MeasurerType>
  <ReductionCountSummary>{0,1}</ReductionCountSummary>
  <ReductionAvgDiameterSummary>{0,1}</ReductionAvgDiameterSummary>
  <StandAvgDiameterSummary>{0,1}</StandAvgDiameterSummary>
  <StandAvgHeightSummary>{0,1}</StandAvgHeightSummary>
  <StandAvgAgeSummary>{0,1}</StandAvgAgeSummary>
  <StandAvgStemCountSummary>{0,1}</StandAvgStemCountSummary>
  <TreeSummaries>{0,1}</TreeSummaries>
</SamplePlotMeasurementSummary>
Source

<xs:element name="SamplePlotMeasurementSummary" type="SamplePlotMeasurementSummaryType" minOccurs="1" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Koealojen mittaajatyyppikohtaiset summatiedot</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotMeasurementSummaryType / MeasurerType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Mittaajatyyppi
Diagram
Diagram index1.tmp#id1427
Type MeasurerTypeType
Properties
content: simple
minOccurs: 1
Facets
enumeration 1
Kuljettaja
enumeration 2
Yrittäjä
enumeration 3
Urakanantaja
enumeration 4
Ulkopuolinen palvelun tarjoaja
Source

<xs:element name="MeasurerType" type="bdt:MeasurerTypeType" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Mittaajatyyppi</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotMeasurementSummaryType / ReductionCountSummary
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Poistuman runkoluku keskiarvo/ha
Diagram
Diagram index0.tmp#id1320
Type PositiveInteger5digitsType
Properties
content: simple
minOccurs: 0
Facets
maxInclusive 99999
minInclusive 0
Source

<xs:element name="ReductionCountSummary" type="bdt:PositiveInteger5digitsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Poistuman runkoluku keskiarvo/ha</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotMeasurementSummaryType / ReductionAvgDiameterSummary
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Poistuman kannon keski lpm keskiarvo (mm)
Diagram
Diagram index0.tmp#id327
Type Decimal2FractionDigitsType
Properties
content: simple
minOccurs: 0
Facets
fractionDigits 2
Source

<xs:element name="ReductionAvgDiameterSummary" type="bdt:Decimal2FractionDigitsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Poistuman kannon keski lpm keskiarvo (mm)</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotMeasurementSummaryType / StandAvgDiameterSummary
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
puuston keskiläpimitta (mm)
Diagram
Diagram index0.tmp#id1260
Type PositiveInteger3digitsType
Properties
content: simple
minOccurs: 0
Facets
maxInclusive 999
minInclusive 0
Source

<xs:element name="StandAvgDiameterSummary" type="bdt:PositiveInteger3digitsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation xml:lang="fi">puuston keskiläpimitta (mm)</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotMeasurementSummaryType / StandAvgHeightSummary
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
puuston keskipituus (cm)
Diagram
Diagram index0.tmp#id347
Type Decimal1FractionDigitType
Properties
content: simple
minOccurs: 0
Facets
fractionDigits 1
Source

<xs:element name="StandAvgHeightSummary" type="bdt:Decimal1FractionDigitType" minOccurs="0">
  <xs:annotation>
    <xs:documentation xml:lang="fi">puuston keskipituus (cm)</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotMeasurementSummaryType / StandAvgAgeSummary
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
puuston keski-ikä
Diagram
Diagram index0.tmp#id1260
Type PositiveInteger3digitsType
Properties
content: simple
minOccurs: 0
Facets
maxInclusive 999
minInclusive 0
Source

<xs:element name="StandAvgAgeSummary" type="bdt:PositiveInteger3digitsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation xml:lang="fi">puuston keski-ikä</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotMeasurementSummaryType / StandAvgStemCountSummary
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Puuston keskitiheys (runkoluku)/ha
Diagram
Diagram index0.tmp#id1320
Type PositiveInteger5digitsType
Properties
content: simple
minOccurs: 0
Facets
maxInclusive 99999
minInclusive 0
Source

<xs:element name="StandAvgStemCountSummary" type="bdt:PositiveInteger5digitsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Puuston keskitiheys (runkoluku)/ha</xs:documentation>
  </xs:annotation>
</xs:element>

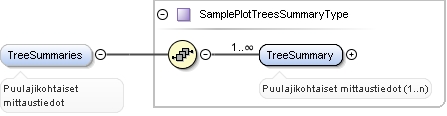

Element SamplePlotMeasurementSummaryType / TreeSummaries
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Puulajikohtaiset mittaustiedot
Diagram
Diagram index32.tmp#id3213 index32.tmp#id3212
Type SamplePlotTreesSummaryType
Properties
content: complex
minOccurs: 0
Model TreeSummary+
Children TreeSummary
Instance

<TreeSummaries>
  <TreeSummary>{1,unbounded}</TreeSummary>
</TreeSummaries>
Source

<xs:element name="TreeSummaries" type="SamplePlotTreesSummaryType" minOccurs="0">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Puulajikohtaiset mittaustiedot</xs:documentation>
  </xs:annotation>
</xs:element>

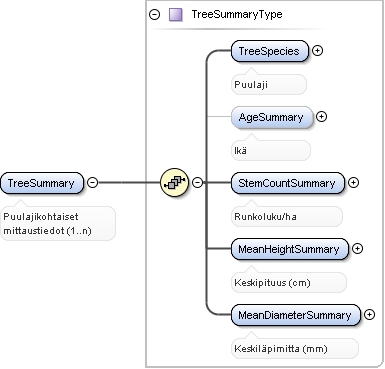

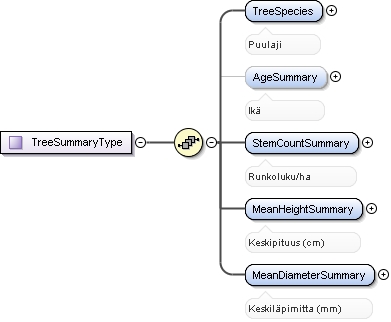

Element SamplePlotTreesSummaryType / TreeSummary
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Puulajikohtaiset mittaustiedot (1..n)
Diagram
Diagram index32.tmp#id3215 index32.tmp#id3216 index32.tmp#id3217 index32.tmp#id3218 index32.tmp#id3219 index32.tmp#id3214
Type TreeSummaryType
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Model TreeSpecies , AgeSummary{0,1} , StemCountSummary , MeanHeightSummary , MeanDiameterSummary
Children AgeSummary, MeanDiameterSummary, MeanHeightSummary, StemCountSummary, TreeSpecies
Instance

<TreeSummary>
  <TreeSpecies>{1,1}</TreeSpecies>
  <AgeSummary>{0,1}</AgeSummary>
  <StemCountSummary>{1,1}</StemCountSummary>
  <MeanHeightSummary>{1,1}</MeanHeightSummary>
  <MeanDiameterSummary>{1,1}</MeanDiameterSummary>
</TreeSummary>
Source

<xs:element name="TreeSummary" type="TreeSummaryType" minOccurs="1" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Puulajikohtaiset mittaustiedot (1..n)</xs:documentation>
  </xs:annotation>
</xs:element>
Element TreeSummaryType / TreeSpecies
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Puulaji
Diagram
Diagram index1.tmp#id313
Type TreeSpeciesType
Properties
content: simple
minOccurs: 1
Facets
enumeration 1
Mänty
enumeration 2
Kuusi
enumeration 3
Rauduskoivu
enumeration 4
Hieskoivu
enumeration 5
Haapa
enumeration 6
Harmaaleppä
enumeration 7
Tervaleppä
enumeration 8
Muu havupuu
enumeration 9
Muu lehtipuu
enumeration 10
Douglaskuusi
enumeration 11
Kataja
enumeration 12
Kontortamänty
enumeration 13
Kynäjalava
enumeration 14
Lehtikuusi
enumeration 15
Metsälehmus
enumeration 16
Mustakuusi
enumeration 17
Paju
enumeration 18
Pihlaja
enumeration 19
Pihta
enumeration 20
Raita
enumeration 21
Saarni
enumeration 22
Sembramänty
enumeration 23
Serbiankuusi
enumeration 24
Tammi
enumeration 25
Tuomi
enumeration 26
Vaahtera
enumeration 27
Visakoivu
enumeration 28
Vuorijalava
enumeration 29
Lehtipuu
enumeration 30
Havupuu
Source

<xs:element name="TreeSpecies" type="bdt:TreeSpeciesType" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Puulaji</xs:documentation>
  </xs:annotation>
</xs:element>
Element TreeSummaryType / AgeSummary
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Ikä
Diagram
Diagram index0.tmp#id1260
Type PositiveInteger3digitsType
Properties
content: simple
minOccurs: 0
Facets
maxInclusive 999
minInclusive 0
Source

<xs:element name="AgeSummary" type="bdt:PositiveInteger3digitsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Ikä</xs:documentation>
  </xs:annotation>
</xs:element>
Element TreeSummaryType / StemCountSummary
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Runkoluku/ha
Diagram
Diagram index0.tmp#id1320
Type PositiveInteger5digitsType
Properties
content: simple
minOccurs: 1
Facets
maxInclusive 99999
minInclusive 0
Source

<xs:element name="StemCountSummary" type="bdt:PositiveInteger5digitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Runkoluku/ha</xs:documentation>
  </xs:annotation>
</xs:element>
Element TreeSummaryType / MeanHeightSummary
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Keskipituus (cm)
Diagram
Diagram index0.tmp#id347
Type Decimal1FractionDigitType
Properties
content: simple
minOccurs: 1
Facets
fractionDigits 1
Source

<xs:element name="MeanHeightSummary" type="bdt:Decimal1FractionDigitType" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Keskipituus (cm)</xs:documentation>
  </xs:annotation>
</xs:element>
Element TreeSummaryType / MeanDiameterSummary
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Keskiläpimitta (mm)
Diagram
Diagram index0.tmp#id1260
Type PositiveInteger3digitsType
Properties
content: simple
minOccurs: 1
Facets
maxInclusive 999
minInclusive 0
Source

<xs:element name="MeanDiameterSummary" type="bdt:PositiveInteger3digitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Keskiläpimitta (mm)</xs:documentation>
  </xs:annotation>
</xs:element>

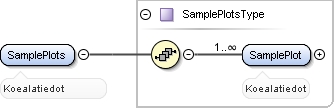

Element WorkingSiteQualityControlPlantManagementType / SamplePlots
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Koealatiedot
Diagram
Diagram index32.tmp#id3222 index32.tmp#id3221
Type SamplePlotsType
Properties
content: complex
minOccurs: 1
Model SamplePlot+
Children SamplePlot
Instance

<SamplePlots>
  <SamplePlot>{1,unbounded}</SamplePlot>
</SamplePlots>
Source

<xs:element name="SamplePlots" type="SamplePlotsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Koealatiedot</xs:documentation>
  </xs:annotation>
</xs:element>

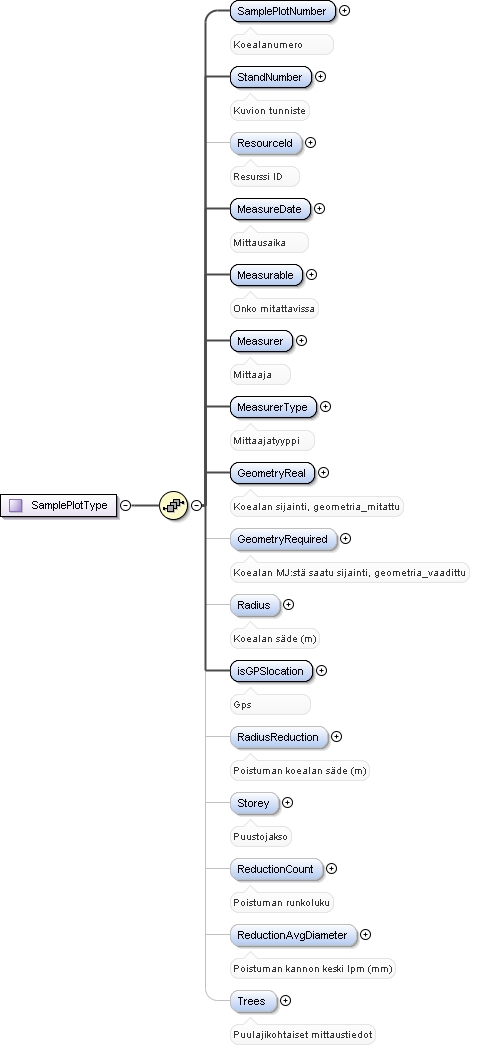

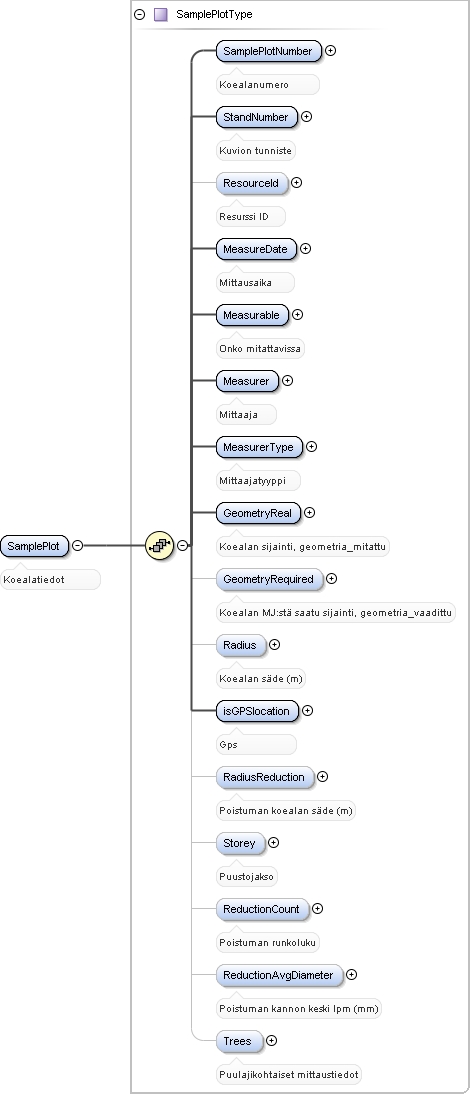

Element SamplePlotsType / SamplePlot
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Koealatiedot
Diagram
Diagram index32.tmp#id3224 index32.tmp#id3225 index32.tmp#id3226 index32.tmp#id3227 index32.tmp#id3228 index32.tmp#id3229 index32.tmp#id3230 index32.tmp#id3231 index32.tmp#id3232 index32.tmp#id3233 index32.tmp#id3234 index32.tmp#id3235 index32.tmp#id3236 index32.tmp#id3237 index32.tmp#id3238 index32.tmp#id3239 index32.tmp#id3223
Type SamplePlotType
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Model SamplePlotNumber , StandNumber , ResourceId{0,1} , MeasureDate , Measurable , Measurer , MeasurerType , GeometryReal , GeometryRequired{0,1} , Radius{0,1} , isGPSlocation , RadiusReduction{0,1} , Storey{0,1} , ReductionCount{0,1} , ReductionAvgDiameter{0,1} , Trees{0,1}
Children GeometryReal, GeometryRequired, Measurable, MeasureDate, Measurer, MeasurerType, Radius, RadiusReduction, ReductionAvgDiameter, ReductionCount, ResourceId, SamplePlotNumber, StandNumber, Storey, Trees, isGPSlocation
Instance

<SamplePlot>
  <SamplePlotNumber>{1,1}</SamplePlotNumber>
  <StandNumber>{1,1}</StandNumber>
  <ResourceId>{0,1}</ResourceId>
  <MeasureDate>{1,1}</MeasureDate>
  <Measurable>{1,1}</Measurable>
  <Measurer>{1,1}</Measurer>
  <MeasurerType>{1,1}</MeasurerType>
  <GeometryReal dimension="" location="">{1,1}</GeometryReal>
  <GeometryRequired dimension="" location="">{0,1}</GeometryRequired>
  <Radius>{0,1}</Radius>
  <isGPSlocation>{1,1}</isGPSlocation>
  <RadiusReduction>{0,1}</RadiusReduction>
  <Storey>{0,1}</Storey>
  <ReductionCount>{0,1}</ReductionCount>
  <ReductionAvgDiameter>{0,1}</ReductionAvgDiameter>
  <Trees>{0,1}</Trees>
</SamplePlot>
Source

<xs:element name="SamplePlot" type="SamplePlotType" minOccurs="1" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Koealatiedot</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotType / SamplePlotNumber
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Koealanumero
Diagram
Diagram index0.tmp#id342
Type PositiveIntegerType
Properties
content: simple
minOccurs: 1
Facets
minInclusive 0
Source

<xs:element name="SamplePlotNumber" type="bdt:PositiveIntegerType" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Koealanumero</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotType / StandNumber
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Kuvion tunniste
Diagram
Diagram index0.tmp#id1301
Type String10Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 10
Source

<xs:element name="StandNumber" type="bdt:String10Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvion tunniste</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotType / ResourceId
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Resurssi ID
Diagram
Diagram index0.tmp#id1241
Type String20Type
Properties
content: simple
minOccurs: 0
Facets
maxLength 20
Source

<xs:element name="ResourceId" type="bdt:String20Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Resurssi ID</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotType / MeasureDate
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Mittausaika
Diagram
Diagram index0.tmp#id112
Type DateType
Properties
content: simple
minOccurs: 1
Facets
minInclusive 1900-01-01
Source

<xs:element name="MeasureDate" type="bdt:DateType" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Mittausaika</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotType / Measurable
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Onko mitattavissa
Diagram
Diagram index1.tmp#id193
Type YesNoType
Properties
content: simple
minOccurs: 1
Facets
enumeration 0
Ei
enumeration 1
Kyllä
Source

<xs:element name="Measurable" type="bdt:YesNoType" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Onko mitattavissa</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotType / Measurer
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Mittaaja
Diagram
Diagram index0.tmp#id321
Type String50Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 50
Source

<xs:element name="Measurer" type="bdt:String50Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Mittaaja</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotType / MeasurerType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Mittaajatyyppi
Diagram
Diagram index1.tmp#id1427
Type MeasurerTypeType
Properties
content: simple
minOccurs: 1
Facets
enumeration 1
Kuljettaja
enumeration 2
Yrittäjä
enumeration 3
Urakanantaja
enumeration 4
Ulkopuolinen palvelun tarjoaja
Source

<xs:element name="MeasurerType" type="bdt:MeasurerTypeType" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Mittaajatyyppi</xs:documentation>
  </xs:annotation>
</xs:element>

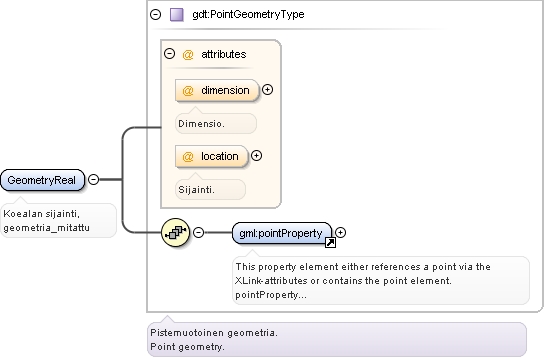

Element SamplePlotType / GeometryReal
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Koealan sijainti, geometria_mitattu
Diagram
Diagram index70.tmp#id1641 index70.tmp#id1642 index13.tmp#id474 index70.tmp#id1640
Type PointGeometryType
Properties
content: complex
minOccurs: 1
Model gml:pointProperty
Children gml:pointProperty
Instance

<GeometryReal dimension="" location="">
  <gml:pointProperty xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:pointProperty>
</GeometryReal>
Attributes
QName Type Fixed Default Use Annotation
dimension xs:decimal optional
Dimensio.
location PointLocationType optional
Sijainti.
Source

<xs:element name="GeometryReal" type="gdt:PointGeometryType" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Koealan sijainti, geometria_mitattu</xs:documentation>
  </xs:annotation>
</xs:element>

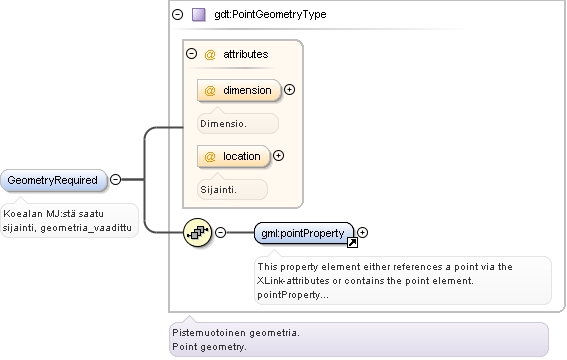

Element SamplePlotType / GeometryRequired
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Koealan MJ:stä saatu sijainti, geometria_vaadittu
Diagram
Diagram index70.tmp#id1641 index70.tmp#id1642 index13.tmp#id474 index70.tmp#id1640
Type PointGeometryType
Properties
content: complex
minOccurs: 0
Model gml:pointProperty
Children gml:pointProperty
Instance

<GeometryRequired dimension="" location="">
  <gml:pointProperty xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:pointProperty>
</GeometryRequired>
Attributes
QName Type Fixed Default Use Annotation
dimension xs:decimal optional
Dimensio.
location PointLocationType optional
Sijainti.
Source

<xs:element name="GeometryRequired" type="gdt:PointGeometryType" minOccurs="0">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Koealan MJ:stä saatu sijainti, geometria_vaadittu</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotType / Radius
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Koealan säde (m)
Diagram
Diagram index0.tmp#id327
Type Decimal2FractionDigitsType
Properties
content: simple
minOccurs: 0
Facets
fractionDigits 2
Source

<xs:element name="Radius" type="bdt:Decimal2FractionDigitsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Koealan säde (m)</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotType / isGPSlocation
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Gps
Diagram
Diagram index1.tmp#id193
Type YesNoType
Properties
content: simple
Facets
enumeration 0
Ei
enumeration 1
Kyllä
Source

<xs:element name="isGPSlocation" type="bdt:YesNoType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Gps</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotType / RadiusReduction
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Poistuman koealan säde (m)
Diagram
Diagram index0.tmp#id327
Type Decimal2FractionDigitsType
Properties
content: simple
minOccurs: 0
Facets
fractionDigits 2
Source

<xs:element name="RadiusReduction" type="bdt:Decimal2FractionDigitsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Poistuman koealan säde (m)</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotType / Storey
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Puustojakso
Diagram
Diagram index1.tmp#id582
Type StoreyType
Properties
content: simple
minOccurs: 0
Facets
enumeration 1
Vallitseva jakso
enumeration 2
Alempi jakso
enumeration 3
Ylempi jakso
enumeration 4
Säästöpuusto
enumeration 5
Kaukokartoitus
enumeration 6
Poistettava puusto
Source

<xs:element name="Storey" type="bdt:StoreyType" minOccurs="0">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Puustojakso</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotType / ReductionCount
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Poistuman runkoluku
Diagram
Diagram index0.tmp#id1318
Type PositiveInteger2digitsType
Properties
content: simple
minOccurs: 0
Facets
maxInclusive 99
minInclusive 0
Source

<xs:element name="ReductionCount" type="bdt:PositiveInteger2digitsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Poistuman runkoluku</xs:documentation>
  </xs:annotation>
</xs:element>
Element SamplePlotType / ReductionAvgDiameter
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Poistuman kannon keski lpm (mm)
Diagram
Diagram index0.tmp#id327
Type Decimal2FractionDigitsType
Properties
content: simple
minOccurs: 0
Facets
fractionDigits 2
Source

<xs:element name="ReductionAvgDiameter" type="bdt:Decimal2FractionDigitsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Poistuman kannon keski lpm (mm)</xs:documentation>
  </xs:annotation>
</xs:element>

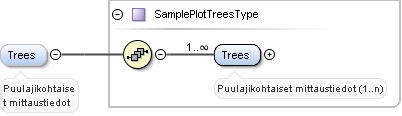

Element SamplePlotType / Trees
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Puulajikohtaiset mittaustiedot
Diagram
Diagram index32.tmp#id3241 index32.tmp#id3240
Type SamplePlotTreesType
Properties
content: complex
minOccurs: 0
Model Trees+
Children Trees
Instance

<Trees>
  <Trees>{1,unbounded}</Trees>
</Trees>
Source

<xs:element name="Trees" type="SamplePlotTreesType" minOccurs="0">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Puulajikohtaiset mittaustiedot</xs:documentation>
  </xs:annotation>
</xs:element>

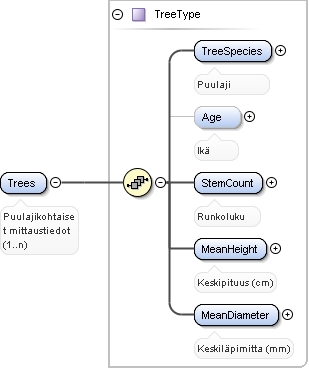

Element SamplePlotTreesType / Trees
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Puulajikohtaiset mittaustiedot (1..n)
Diagram
Diagram index32.tmp#id3243 index32.tmp#id3244 index32.tmp#id3245 index32.tmp#id3246 index32.tmp#id3247 index32.tmp#id3242

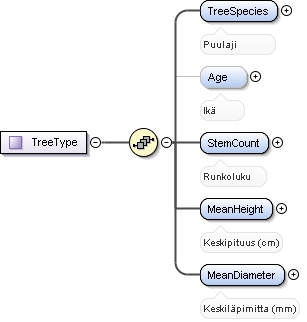

Type TreeType
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Model TreeSpecies , Age{0,1} , StemCount , MeanHeight , MeanDiameter
Children Age, MeanDiameter, MeanHeight, StemCount, TreeSpecies
Instance

<Trees>
  <TreeSpecies>{1,1}</TreeSpecies>
  <Age>{0,1}</Age>
  <StemCount>{1,1}</StemCount>
  <MeanHeight>{1,1}</MeanHeight>
  <MeanDiameter>{1,1}</MeanDiameter>
</Trees>
Source

<xs:element name="Trees" type="TreeType" minOccurs="1" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Puulajikohtaiset mittaustiedot (1..n)</xs:documentation>
  </xs:annotation>
</xs:element>
Element TreeType / TreeSpecies
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Puulaji
Diagram
Diagram index1.tmp#id313
Type TreeSpeciesType
Properties
content: simple
minOccurs: 1
Facets
enumeration 1
Mänty
enumeration 2
Kuusi
enumeration 3
Rauduskoivu
enumeration 4
Hieskoivu
enumeration 5
Haapa
enumeration 6
Harmaaleppä
enumeration 7
Tervaleppä
enumeration 8
Muu havupuu
enumeration 9
Muu lehtipuu
enumeration 10
Douglaskuusi
enumeration 11
Kataja
enumeration 12
Kontortamänty
enumeration 13
Kynäjalava
enumeration 14
Lehtikuusi
enumeration 15
Metsälehmus
enumeration 16
Mustakuusi
enumeration 17
Paju
enumeration 18
Pihlaja
enumeration 19
Pihta
enumeration 20
Raita
enumeration 21
Saarni
enumeration 22
Sembramänty
enumeration 23
Serbiankuusi
enumeration 24
Tammi
enumeration 25
Tuomi
enumeration 26
Vaahtera
enumeration 27
Visakoivu
enumeration 28
Vuorijalava
enumeration 29
Lehtipuu
enumeration 30
Havupuu
Source

<xs:element name="TreeSpecies" type="bdt:TreeSpeciesType" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Puulaji</xs:documentation>
  </xs:annotation>
</xs:element>
Element TreeType / Age
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Ikä
Diagram
Diagram index0.tmp#id1260
Type PositiveInteger3digitsType
Properties
content: simple
minOccurs: 0
Facets
maxInclusive 999
minInclusive 0
Source

<xs:element name="Age" type="bdt:PositiveInteger3digitsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Ikä</xs:documentation>
  </xs:annotation>
</xs:element>
Element TreeType / StemCount
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Runkoluku
Diagram
Diagram index0.tmp#id1318
Type PositiveInteger2digitsType
Properties
content: simple
minOccurs: 1
Facets
maxInclusive 99
minInclusive 0
Source

<xs:element name="StemCount" type="bdt:PositiveInteger2digitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Runkoluku</xs:documentation>
  </xs:annotation>
</xs:element>
Element TreeType / MeanHeight
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Keskipituus (cm)
Diagram
Diagram index0.tmp#id347
Type Decimal1FractionDigitType
Properties
content: simple
minOccurs: 1
Facets
fractionDigits 1
Source

<xs:element name="MeanHeight" type="bdt:Decimal1FractionDigitType" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Keskipituus (cm)</xs:documentation>
  </xs:annotation>
</xs:element>
Element TreeType / MeanDiameter
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Annotations
Keskiläpimitta (mm)
Diagram
Diagram index0.tmp#id1260
Type PositiveInteger3digitsType
Properties
content: simple
minOccurs: 1
Facets
maxInclusive 999
minInclusive 0
Source

<xs:element name="MeanDiameter" type="bdt:PositiveInteger3digitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Keskiläpimitta (mm)</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type WorkingSiteQualityControlPlantManagementType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Diagram
Diagram index32.tmp#id3194 index32.tmp#id3195 index32.tmp#id3196 index32.tmp#id3197 index32.tmp#id3220
Used by
Model ServiceBuyerId , WorkingSiteId , Images , SamplePlotSummaries , SamplePlots
Children Images, SamplePlotSummaries, SamplePlots, ServiceBuyerId, WorkingSiteId
Source

<xs:complexType name="WorkingSiteQualityControlPlantManagementType">
  <xs:sequence>
    <xs:element name="ServiceBuyerId" type="bdt:String20Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Urakanantajan tunniste</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteId" type="bdt:String20Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Lohkon tunniste</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Images" type="bdt:PositiveInteger2digitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Valokuvien lukumäärä</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SamplePlotSummaries" type="SamplePlotSummariesType" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Koealojen summatiedot</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SamplePlots" type="SamplePlotsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Koealatiedot</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type SamplePlotSummariesType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Diagram
Diagram index32.tmp#id3199
Used by
Model SamplePlotSummary+
Children SamplePlotSummary
Source

<xs:complexType name="SamplePlotSummariesType">
  <xs:sequence>
    <xs:element name="SamplePlotSummary" type="SamplePlotSummaryType" minOccurs="1" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Koealojen mittaajatyyppikohtaiset summatiedot</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type SamplePlotSummaryType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Diagram
Diagram index32.tmp#id3201 index32.tmp#id3202
Used by
Model StandNumber , SamplePlotMeasurementSummary+
Children SamplePlotMeasurementSummary, StandNumber
Source

<xs:complexType name="SamplePlotSummaryType">
  <xs:sequence>
    <xs:element name="StandNumber" type="bdt:String10Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Kuvion tunniste</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SamplePlotMeasurementSummary" type="SamplePlotMeasurementSummaryType" minOccurs="1" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Koealojen mittaajatyyppikohtaiset summatiedot</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type SamplePlotMeasurementSummaryType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Diagram
Diagram index32.tmp#id3204 index32.tmp#id3205 index32.tmp#id3206 index32.tmp#id3207 index32.tmp#id3208 index32.tmp#id3209 index32.tmp#id3210 index32.tmp#id3211
Used by
Model MeasurerType , ReductionCountSummary{0,1} , ReductionAvgDiameterSummary{0,1} , StandAvgDiameterSummary{0,1} , StandAvgHeightSummary{0,1} , StandAvgAgeSummary{0,1} , StandAvgStemCountSummary{0,1} , TreeSummaries{0,1}
Children MeasurerType, ReductionAvgDiameterSummary, ReductionCountSummary, StandAvgAgeSummary, StandAvgDiameterSummary, StandAvgHeightSummary, StandAvgStemCountSummary, TreeSummaries
Source

<xs:complexType name="SamplePlotMeasurementSummaryType">
  <xs:sequence>
    <xs:element name="MeasurerType" type="bdt:MeasurerTypeType" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Mittaajatyyppi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ReductionCountSummary" type="bdt:PositiveInteger5digitsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Poistuman runkoluku keskiarvo/ha</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ReductionAvgDiameterSummary" type="bdt:Decimal2FractionDigitsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Poistuman kannon keski lpm keskiarvo (mm)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="StandAvgDiameterSummary" type="bdt:PositiveInteger3digitsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation xml:lang="fi">puuston keskiläpimitta (mm)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="StandAvgHeightSummary" type="bdt:Decimal1FractionDigitType" minOccurs="0">
      <xs:annotation>
        <xs:documentation xml:lang="fi">puuston keskipituus (cm)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="StandAvgAgeSummary" type="bdt:PositiveInteger3digitsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation xml:lang="fi">puuston keski-ikä</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="StandAvgStemCountSummary" type="bdt:PositiveInteger5digitsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Puuston keskitiheys (runkoluku)/ha</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TreeSummaries" type="SamplePlotTreesSummaryType" minOccurs="0">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Puulajikohtaiset mittaustiedot</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type SamplePlotTreesSummaryType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Diagram
Diagram index32.tmp#id3213
Used by
Model TreeSummary+
Children TreeSummary
Source

<xs:complexType name="SamplePlotTreesSummaryType">
  <xs:sequence>
    <xs:element name="TreeSummary" type="TreeSummaryType" minOccurs="1" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Puulajikohtaiset mittaustiedot (1..n)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type TreeSummaryType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Diagram
Diagram index32.tmp#id3215 index32.tmp#id3216 index32.tmp#id3217 index32.tmp#id3218 index32.tmp#id3219
Used by
Model TreeSpecies , AgeSummary{0,1} , StemCountSummary , MeanHeightSummary , MeanDiameterSummary
Children AgeSummary, MeanDiameterSummary, MeanHeightSummary, StemCountSummary, TreeSpecies
Source

<xs:complexType name="TreeSummaryType">
  <xs:sequence>
    <xs:element name="TreeSpecies" type="bdt:TreeSpeciesType" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Puulaji</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AgeSummary" type="bdt:PositiveInteger3digitsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Ikä</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="StemCountSummary" type="bdt:PositiveInteger5digitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Runkoluku/ha</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MeanHeightSummary" type="bdt:Decimal1FractionDigitType" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Keskipituus (cm)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MeanDiameterSummary" type="bdt:PositiveInteger3digitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Keskiläpimitta (mm)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type SamplePlotsType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Diagram
Diagram index32.tmp#id3222
Used by
Model SamplePlot+
Children SamplePlot
Source

<xs:complexType name="SamplePlotsType">
  <xs:sequence>
    <xs:element name="SamplePlot" type="SamplePlotType" minOccurs="1" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Koealatiedot</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type SamplePlotType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Diagram
Diagram index32.tmp#id3224 index32.tmp#id3225 index32.tmp#id3226 index32.tmp#id3227 index32.tmp#id3228 index32.tmp#id3229 index32.tmp#id3230 index32.tmp#id3231 index32.tmp#id3232 index32.tmp#id3233 index32.tmp#id3234 index32.tmp#id3235 index32.tmp#id3236 index32.tmp#id3237 index32.tmp#id3238 index32.tmp#id3239
Used by
Model SamplePlotNumber , StandNumber , ResourceId{0,1} , MeasureDate , Measurable , Measurer , MeasurerType , GeometryReal , GeometryRequired{0,1} , Radius{0,1} , isGPSlocation , RadiusReduction{0,1} , Storey{0,1} , ReductionCount{0,1} , ReductionAvgDiameter{0,1} , Trees{0,1}
Children GeometryReal, GeometryRequired, Measurable, MeasureDate, Measurer, MeasurerType, Radius, RadiusReduction, ReductionAvgDiameter, ReductionCount, ResourceId, SamplePlotNumber, StandNumber, Storey, Trees, isGPSlocation
Source

<xs:complexType name="SamplePlotType">
  <xs:sequence>
    <xs:element name="SamplePlotNumber" type="bdt:PositiveIntegerType" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Koealanumero</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="StandNumber" type="bdt:String10Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Kuvion tunniste</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ResourceId" type="bdt:String20Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Resurssi ID</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MeasureDate" type="bdt:DateType" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Mittausaika</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Measurable" type="bdt:YesNoType" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Onko mitattavissa</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Measurer" type="bdt:String50Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Mittaaja</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MeasurerType" type="bdt:MeasurerTypeType" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Mittaajatyyppi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="GeometryReal" type="gdt:PointGeometryType" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Koealan sijainti, geometria_mitattu</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="GeometryRequired" type="gdt:PointGeometryType" minOccurs="0">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Koealan MJ:stä saatu sijainti, geometria_vaadittu</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Radius" type="bdt:Decimal2FractionDigitsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Koealan säde (m)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="isGPSlocation" type="bdt:YesNoType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Gps</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="RadiusReduction" type="bdt:Decimal2FractionDigitsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Poistuman koealan säde (m)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Storey" type="bdt:StoreyType" minOccurs="0">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Puustojakso</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ReductionCount" type="bdt:PositiveInteger2digitsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Poistuman runkoluku</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ReductionAvgDiameter" type="bdt:Decimal2FractionDigitsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Poistuman kannon keski lpm (mm)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Trees" type="SamplePlotTreesType" minOccurs="0">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Puulajikohtaiset mittaustiedot</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type SamplePlotTreesType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Diagram
Diagram index32.tmp#id3241
Used by
Model Trees+
Children Trees
Source

<xs:complexType name="SamplePlotTreesType">
  <xs:sequence>
    <xs:element name="Trees" type="TreeType" minOccurs="1" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Puulajikohtaiset mittaustiedot (1..n)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type TreeType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteQualityControlPlantManagement
Diagram
Diagram index32.tmp#id3243 index32.tmp#id3244 index32.tmp#id3245 index32.tmp#id3246 index32.tmp#id3247
Used by
Model TreeSpecies , Age{0,1} , StemCount , MeanHeight , MeanDiameter
Children Age, MeanDiameter, MeanHeight, StemCount, TreeSpecies
Source

<xs:complexType name="TreeType">
  <xs:sequence>
    <xs:element name="TreeSpecies" type="bdt:TreeSpeciesType" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Puulaji</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Age" type="bdt:PositiveInteger3digitsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Ikä</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="StemCount" type="bdt:PositiveInteger2digitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Runkoluku</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MeanHeight" type="bdt:Decimal1FractionDigitType" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Keskipituus (cm)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MeanDiameter" type="bdt:PositiveInteger3digitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Keskiläpimitta (mm)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
