Showing:

Annotations
Attributes
Diagrams
Instances
Properties
Source
Used by
Imported schema RealEstate.xsd
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Properties
attribute form default: unqualified
element form default: qualified
version: 1.0

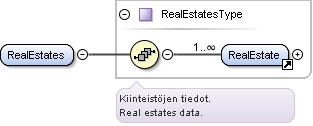

Element RealEstates
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index38.tmp#id1160 index38.tmp#id1159
Type RealEstatesType
Properties
content: complex
Used by
Complex Type ForestPropertyDataType
Model RealEstate+
Children RealEstate
Instance

<RealEstates>
  <RealEstate id="">{1,unbounded}</RealEstate>
</RealEstates>
Source

<xs:element name="RealEstates" type="RealEstatesType"/>

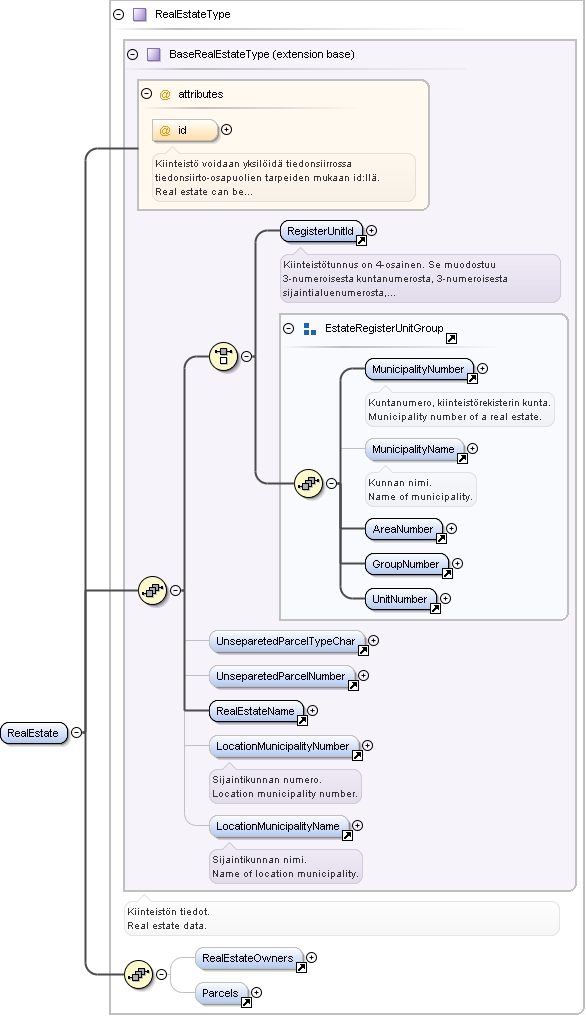

Element RealEstate
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index35.tmp#id276 index35.tmp#id254 index35.tmp#id257 index35.tmp#id260 index35.tmp#id262 index35.tmp#id264 index35.tmp#id266 index35.tmp#id256 index35.tmp#id268 index35.tmp#id270 index35.tmp#id272 index35.tmp#id274 index35.tmp#id275 index35.tmp#id253 index38.tmp#id1162 index35.tmp#id1165 index38.tmp#id1161
Type RealEstateType
Type hierarchy
Properties
content: complex
Used by
Complex Type RealEstatesType
Model (RegisterUnitId | (MunicipalityNumber , MunicipalityName{0,1} , AreaNumber , GroupNumber , UnitNumber)) , UnseparetedParcelTypeChar{0,1} , UnseparetedParcelNumber{0,1} , RealEstateName , LocationMunicipalityNumber{0,1} , LocationMunicipalityName{0,1} , RealEstateOwners{0,1} , Parcels{0,1}
Children AreaNumber, GroupNumber, LocationMunicipalityName, LocationMunicipalityNumber, MunicipalityName, MunicipalityNumber, Parcels, RealEstateName, RealEstateOwners, RegisterUnitId, UnitNumber, UnseparetedParcelNumber, UnseparetedParcelTypeChar
Instance

<RealEstate id="">
  <RegisterUnitId>{1,1}</RegisterUnitId>
  <UnseparetedParcelTypeChar>{0,1}</UnseparetedParcelTypeChar>
  <UnseparetedParcelNumber>{0,1}</UnseparetedParcelNumber>
  <RealEstateName>{1,1}</RealEstateName>
  <LocationMunicipalityNumber>{0,1}</LocationMunicipalityNumber>
  <LocationMunicipalityName>{0,1}</LocationMunicipalityName>
</RealEstate>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Kiinteistö voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Real estate can be identified using string id.
Source

<xs:element name="RealEstate" type="RealEstateType"/>

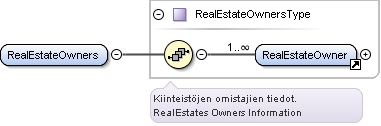

Element RealEstateOwners
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index38.tmp#id1164 index38.tmp#id1163
Type RealEstateOwnersType
Properties
content: complex
Used by
Model RealEstateOwner+
Children RealEstateOwner
Instance

<RealEstateOwners>
  <RealEstateOwner id="" language="">{1,unbounded}</RealEstateOwner>
</RealEstateOwners>
Source

<xs:element name="RealEstateOwners" type="RealEstateOwnersType"/>

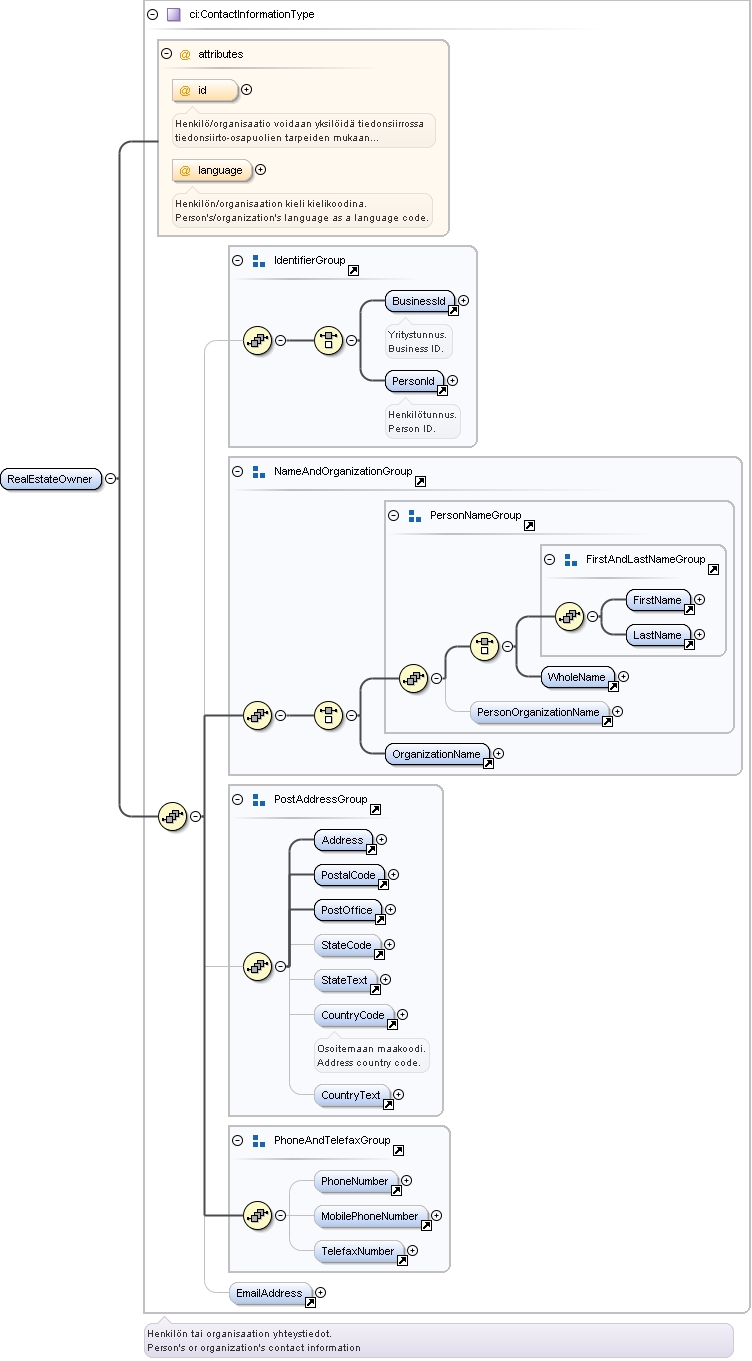

Element RealEstateOwner
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index24.tmp#id181 index24.tmp#id182 index24.tmp#id132 index24.tmp#id134 index24.tmp#id131 index24.tmp#id139 index24.tmp#id142 index24.tmp#id138 index24.tmp#id145 index24.tmp#id148 index24.tmp#id137 index24.tmp#id151 index24.tmp#id136 index24.tmp#id154 index24.tmp#id156 index24.tmp#id159 index24.tmp#id162 index24.tmp#id164 index24.tmp#id166 index24.tmp#id168 index24.tmp#id153 index24.tmp#id171 index24.tmp#id174 index24.tmp#id176 index24.tmp#id170 index24.tmp#id178 index24.tmp#id130
Type ContactInformationType
Properties
content: complex
Used by
Complex Type RealEstateOwnersType
Model (BusinessId | PersonId) , ((((FirstName , LastName) | WholeName) , PersonOrganizationName{0,1}) | OrganizationName) , Address , PostalCode , PostOffice , StateCode{0,1} , StateText{0,1} , CountryCode{0,1} , CountryText{0,1} , PhoneNumber{0,1} , MobilePhoneNumber{0,1} , TelefaxNumber{0,1} , EmailAddress{0,1}
Children Address, BusinessId, CountryCode, CountryText, EmailAddress, FirstName, LastName, MobilePhoneNumber, OrganizationName, PersonId, PersonOrganizationName, PhoneNumber, PostOffice, PostalCode, StateCode, StateText, TelefaxNumber, WholeName
Instance

<RealEstateOwner id="" language="">
  <BusinessId>{1,1}</BusinessId>
  <PersonId>{1,1}</PersonId>
  <EmailAddress>{0,1}</EmailAddress>
</RealEstateOwner>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Henkilö/organisaatio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Person/organization can be identified using string id.
language ISO639char2LanguageType optional
Henkilön/organisaation kieli kielikoodina.Person's/organization's language as a language code.
Source

<xs:element name="RealEstateOwner" type="ci:ContactInformationType"/>

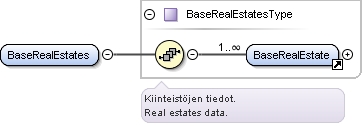

Element BaseRealEstates
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index35.tmp#id2920 index35.tmp#id2919
Type BaseRealEstatesType
Properties
content: complex
Model BaseRealEstate+
Children BaseRealEstate
Instance

<BaseRealEstates>
  <BaseRealEstate id="">{1,unbounded}</BaseRealEstate>
</BaseRealEstates>
Source

<xs:element name="BaseRealEstates" type="BaseRealEstatesType"/>

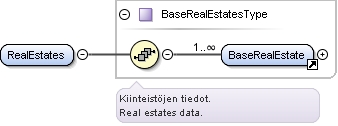

Element RealEstatesWithOwnersInformationType / RealEstates
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index35.tmp#id2920 index35.tmp#id2919
Type BaseRealEstatesType
Properties
content: complex
minOccurs: 1
maxOccurs: 1
Model BaseRealEstate+
Children BaseRealEstate
Instance

<RealEstates>
  <BaseRealEstate id="">{1,unbounded}</BaseRealEstate>
</RealEstates>
Source

<xs:element name="RealEstates" type="BaseRealEstatesType" minOccurs="1" maxOccurs="1"/>

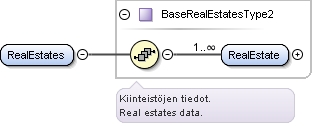

Element RealEstatesWithOwnersInformationType2 / RealEstates
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index35.tmp#id2926 index35.tmp#id2925
Type BaseRealEstatesType2
Properties
content: complex
minOccurs: 1
maxOccurs: 1
Model RealEstate+
Children RealEstate
Instance

<RealEstates>
  <RealEstate id="">{1,unbounded}</RealEstate>
</RealEstates>
Source

<xs:element name="RealEstates" type="BaseRealEstatesType2" minOccurs="1" maxOccurs="1"/>
Complex Type RealEstatesType
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Annotations
Kiinteistöjen tiedot.
Real estates data.
Diagram
Diagram index38.tmp#id1160
Used by
Element RealEstates
Model RealEstate+
Children RealEstate
Source

<xs:complexType name="RealEstatesType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kiinteistöjen tiedot.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Real estates data.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="RealEstate" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

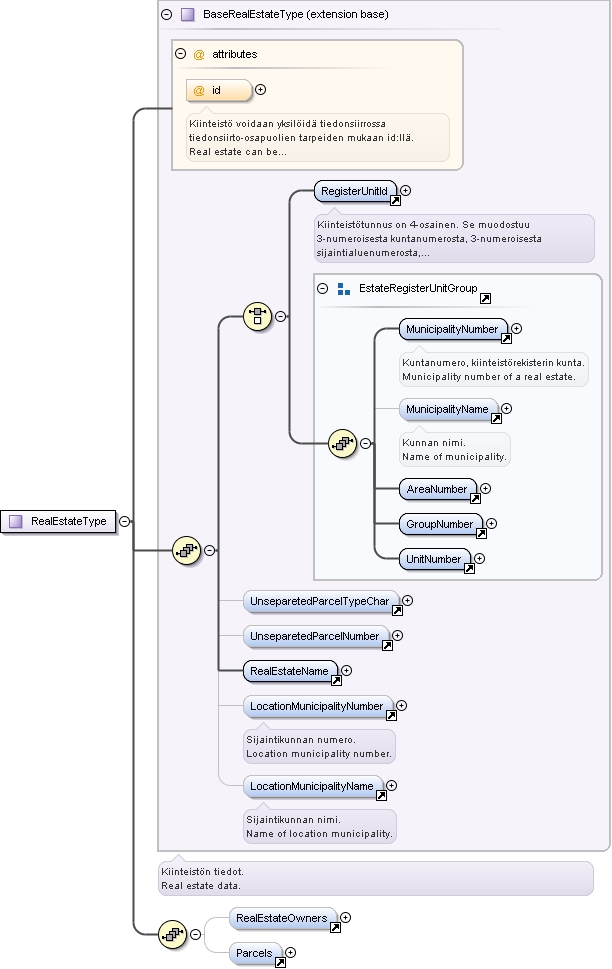

Complex Type RealEstateType
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Diagram
Diagram index35.tmp#id276 index35.tmp#id254 index35.tmp#id257 index35.tmp#id260 index35.tmp#id262 index35.tmp#id264 index35.tmp#id266 index35.tmp#id256 index35.tmp#id268 index35.tmp#id270 index35.tmp#id272 index35.tmp#id274 index35.tmp#id275 index35.tmp#id253 index38.tmp#id1162 index35.tmp#id1165
Type extension of BaseRealEstateType
Type hierarchy
Used by
Element RealEstate
Model (RegisterUnitId | (MunicipalityNumber , MunicipalityName{0,1} , AreaNumber , GroupNumber , UnitNumber)) , UnseparetedParcelTypeChar{0,1} , UnseparetedParcelNumber{0,1} , RealEstateName , LocationMunicipalityNumber{0,1} , LocationMunicipalityName{0,1} , RealEstateOwners{0,1} , Parcels{0,1}
Children AreaNumber, GroupNumber, LocationMunicipalityName, LocationMunicipalityNumber, MunicipalityName, MunicipalityNumber, Parcels, RealEstateName, RealEstateOwners, RegisterUnitId, UnitNumber, UnseparetedParcelNumber, UnseparetedParcelTypeChar
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Kiinteistö voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Real estate can be identified using string id.
Source

<xs:complexType name="RealEstateType">
  <xs:complexContent>
    <xs:extension base="BaseRealEstateType">
      <xs:sequence>
        <xs:element ref="RealEstateOwners" minOccurs="0" maxOccurs="1"/>
        <xs:element ref="Parcels" minOccurs="0" maxOccurs="1"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type RealEstateOwnersType
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Annotations
Kiinteistöjen omistajien tiedot.
RealEstates Owners Information
Diagram
Diagram index38.tmp#id1164
Used by
Model RealEstateOwner+
Children RealEstateOwner
Source

<xs:complexType name="RealEstateOwnersType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kiinteistöjen omistajien tiedot.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">RealEstates Owners Information</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="RealEstateOwner" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Complex Type RealEstatesWithOwnersInformationType
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Annotations
Kiintestö- ja omistajainformaatio.
RealEstates and Owners Information
Diagram
Diagram index38.tmp#id1162 index38.tmp#id2922
Model RealEstateOwners , RealEstates
Children RealEstateOwners, RealEstates
Source

<xs:complexType name="RealEstatesWithOwnersInformationType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kiintestö- ja omistajainformaatio.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">RealEstates and Owners Information</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="RealEstateOwners" minOccurs="1" maxOccurs="1"/>
    <xs:element name="RealEstates" type="BaseRealEstatesType" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
Complex Type RealEstatesWithOwnersInformationType2
Namespace http://standardit.tapio.fi/schemas/forestData/realEstate
Annotations
Kiinteistö- ja omistajainformaatio. Kaikki omistajalistassa olevat toimijat ovat kaikkien kiinteistölistan kiinteistöjen omistajia.
RealEstates and Owners Information. Every actor in the Owners Information list is an owner of every estate in the RealEstates list.
Diagram
Diagram index38.tmp#id1162 index38.tmp#id2924
Model RealEstateOwners , RealEstates
Children RealEstateOwners, RealEstates
Source

<xs:complexType name="RealEstatesWithOwnersInformationType2">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kiinteistö- ja omistajainformaatio. Kaikki omistajalistassa olevat toimijat ovat kaikkien kiinteistölistan kiinteistöjen omistajia.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">RealEstates and Owners Information. Every actor in the Owners Information list is an owner of every estate in the RealEstates list.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="RealEstateOwners" minOccurs="1" maxOccurs="1"/>
    <xs:element name="RealEstates" type="BaseRealEstatesType2" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
