Imported schema WorkingSiteTrade_Offer.xsd
Namespace http://standardit.tapio.fi/schemas/workingsitetrade/offer
Properties
attribute form default: qualified
element form default: qualified
version: 1.0

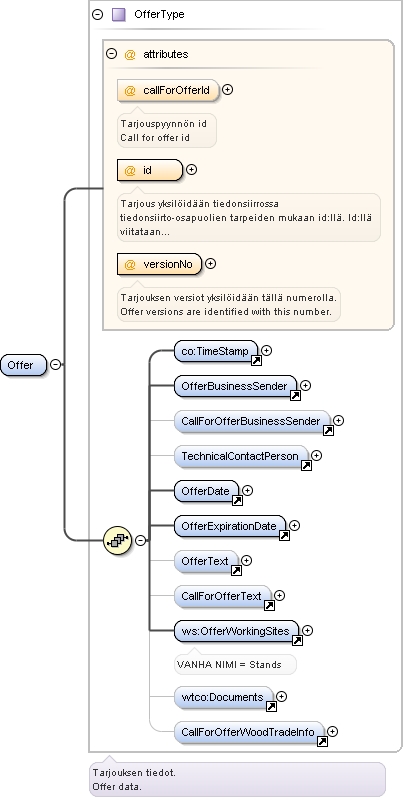

Element Offer
Namespace http://standardit.tapio.fi/schemas/workingsitetrade/offer
Diagram
Diagram index54.tmp#id1120 index54.tmp#id1121 index54.tmp#id1122 index5.tmp#id117 index54.tmp#id1068 index54.tmp#id1070 index54.tmp#id1071 index54.tmp#id1073 index54.tmp#id1075 index54.tmp#id1077 index54.tmp#id1079 index46.tmp#id1080 index21.tmp#id373 index54.tmp#id1119 index54.tmp#id1067
Type OfferType
Properties
content: complex
Used by
Model TimeStamp , OfferBusinessSender , CallForOfferBusinessSender{0,1} , TechnicalContactPerson{0,1} , OfferDate , OfferExpirationDate , OfferText{0,1} , CallForOfferText{0,1} , OfferWorkingSites , Documents{0,1} , CallForOfferWoodTradeInfo{0,1}
Children CallForOfferBusinessSender, CallForOfferText, CallForOfferWoodTradeInfo, Documents, OfferBusinessSender, OfferDate, OfferExpirationDate, OfferText, OfferWorkingSites, TechnicalContactPerson, TimeStamp
Instance

<Offer callForOfferId="" id="" versionNo="">
  <TimeStamp>{1,1}</TimeStamp>
  <OfferBusinessSender id="" language="">{1,1}</OfferBusinessSender>
  <CallForOfferBusinessSender id="" language="" role="">{0,1}</CallForOfferBusinessSender>
  <TechnicalContactPerson id="" language="">{0,1}</TechnicalContactPerson>
  <OfferDate>{1,1}</OfferDate>
  <OfferExpirationDate>{1,1}</OfferExpirationDate>
  <OfferText>{0,1}</OfferText>
  <CallForOfferText>{0,1}</CallForOfferText>
  <OfferWorkingSites>{1,1}</OfferWorkingSites>
  <Documents>{0,1}</Documents>
  <CallForOfferWoodTradeInfo>{0,1}</CallForOfferWoodTradeInfo>
</Offer>
Attributes
QName Type Fixed Default Use Annotation
callForOfferId xs:string optional
Tarjouspyynnön idCall for offer id
id xs:string required
Tarjous yksilöidään tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä. Id:llä viitataan tarjouspyyntöön.Offer can be identified using string id. Id is foreign key to call for offer id.
versionNo xs:int required
Tarjouksen versiot yksilöidään tällä numerolla.Offer versions are identified with this number.
Source

<xs:element name="Offer" type="OfferType"/>

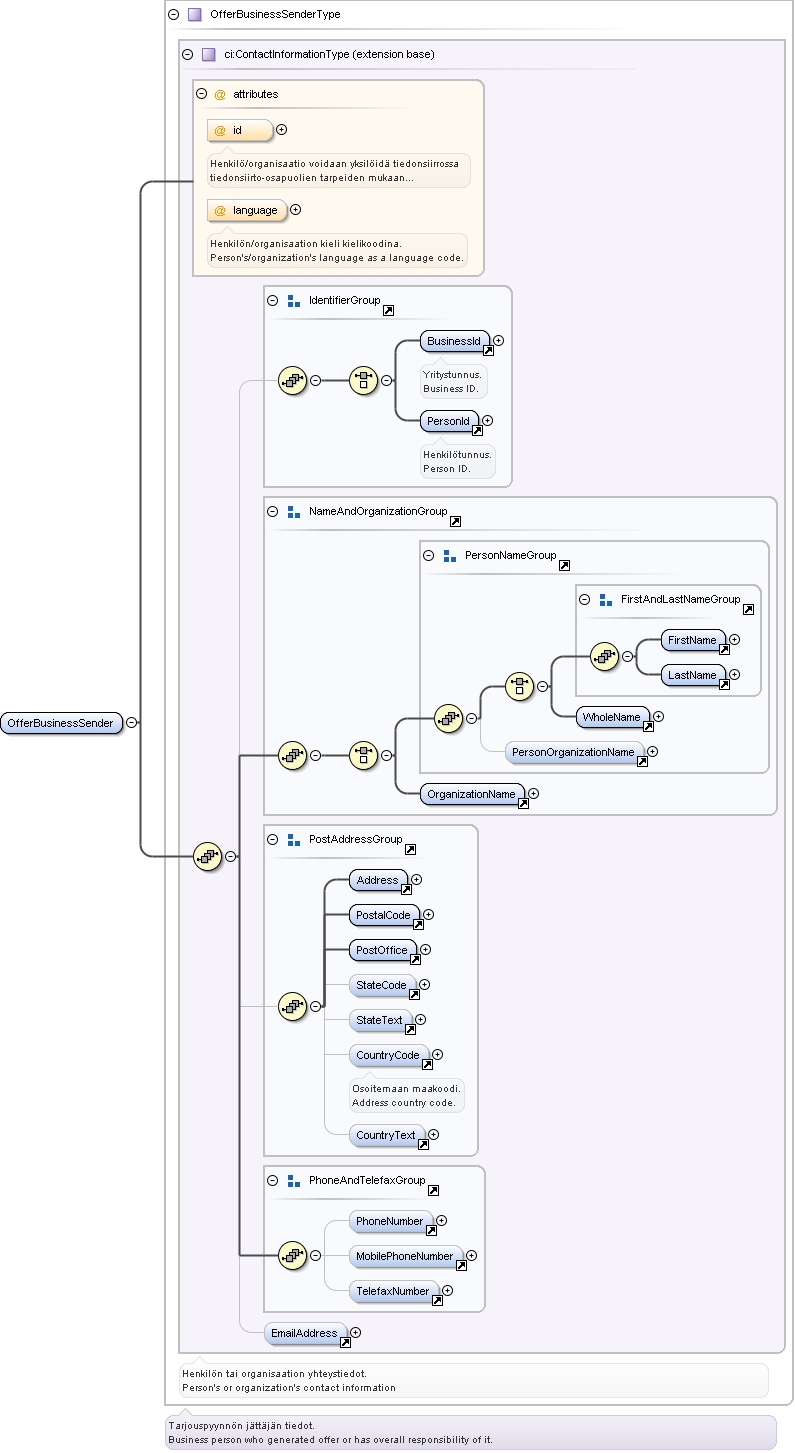

Element OfferBusinessSender
Namespace http://standardit.tapio.fi/schemas/workingsitetrade/offer
Diagram
Diagram index24.tmp#id181 index24.tmp#id182 index24.tmp#id132 index24.tmp#id134 index24.tmp#id131 index24.tmp#id139 index24.tmp#id142 index24.tmp#id138 index24.tmp#id145 index24.tmp#id148 index24.tmp#id137 index24.tmp#id151 index24.tmp#id136 index24.tmp#id154 index24.tmp#id156 index24.tmp#id159 index24.tmp#id162 index24.tmp#id164 index24.tmp#id166 index24.tmp#id168 index24.tmp#id153 index24.tmp#id171 index24.tmp#id174 index24.tmp#id176 index24.tmp#id170 index24.tmp#id178 index24.tmp#id130 index54.tmp#id1069
Type OfferBusinessSenderType
Type hierarchy
Properties
content: complex
Used by
Complex Type OfferType
Model (BusinessId | PersonId) , ((((FirstName , LastName) | WholeName) , PersonOrganizationName{0,1}) | OrganizationName) , Address , PostalCode , PostOffice , StateCode{0,1} , StateText{0,1} , CountryCode{0,1} , CountryText{0,1} , PhoneNumber{0,1} , MobilePhoneNumber{0,1} , TelefaxNumber{0,1} , EmailAddress{0,1}
Children Address, BusinessId, CountryCode, CountryText, EmailAddress, FirstName, LastName, MobilePhoneNumber, OrganizationName, PersonId, PersonOrganizationName, PhoneNumber, PostOffice, PostalCode, StateCode, StateText, TelefaxNumber, WholeName
Instance

<OfferBusinessSender id="" language="">
  <BusinessId>{1,1}</BusinessId>
  <PersonId>{1,1}</PersonId>
  <EmailAddress>{0,1}</EmailAddress>
</OfferBusinessSender>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Henkilö/organisaatio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Person/organization can be identified using string id.
language ISO639char2LanguageType optional
Henkilön/organisaation kieli kielikoodina.Person's/organization's language as a language code.
Source

<xs:element name="OfferBusinessSender" type="OfferBusinessSenderType"/>

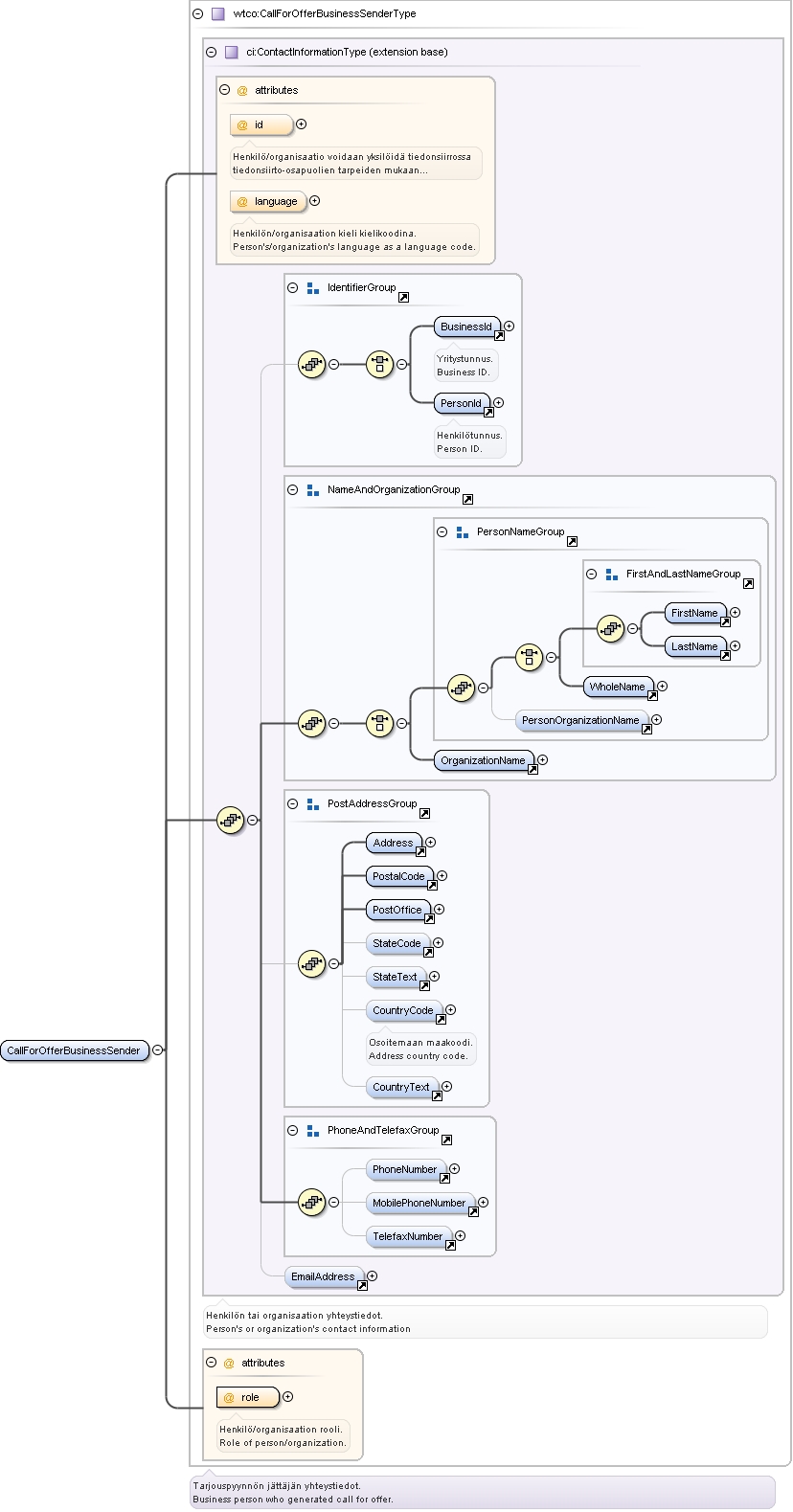

Element CallForOfferBusinessSender
Namespace http://standardit.tapio.fi/schemas/workingsitetrade/offer
Diagram
Diagram index24.tmp#id181 index24.tmp#id182 index24.tmp#id132 index24.tmp#id134 index24.tmp#id131 index24.tmp#id139 index24.tmp#id142 index24.tmp#id138 index24.tmp#id145 index24.tmp#id148 index24.tmp#id137 index24.tmp#id151 index24.tmp#id136 index24.tmp#id154 index24.tmp#id156 index24.tmp#id159 index24.tmp#id162 index24.tmp#id164 index24.tmp#id166 index24.tmp#id168 index24.tmp#id153 index24.tmp#id171 index24.tmp#id174 index24.tmp#id176 index24.tmp#id170 index24.tmp#id178 index24.tmp#id130 index21.tmp#id184 index21.tmp#id129
Type CallForOfferBusinessSenderType
Type hierarchy
Properties
content: complex
Used by
Complex Type OfferType
Model (BusinessId | PersonId) , ((((FirstName , LastName) | WholeName) , PersonOrganizationName{0,1}) | OrganizationName) , Address , PostalCode , PostOffice , StateCode{0,1} , StateText{0,1} , CountryCode{0,1} , CountryText{0,1} , PhoneNumber{0,1} , MobilePhoneNumber{0,1} , TelefaxNumber{0,1} , EmailAddress{0,1}
Children Address, BusinessId, CountryCode, CountryText, EmailAddress, FirstName, LastName, MobilePhoneNumber, OrganizationName, PersonId, PersonOrganizationName, PhoneNumber, PostOffice, PostalCode, StateCode, StateText, TelefaxNumber, WholeName
Instance

<CallForOfferBusinessSender id="" language="" role="">
  <BusinessId>{1,1}</BusinessId>
  <PersonId>{1,1}</PersonId>
  <EmailAddress>{0,1}</EmailAddress>
</CallForOfferBusinessSender>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Henkilö/organisaatio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Person/organization can be identified using string id.
language ISO639char2LanguageType optional
Henkilön/organisaation kieli kielikoodina.Person's/organization's language as a language code.
role CallForOfferBusinessSenderRoleType required
Henkilö/organisaation rooli.Role of person/organization.
Source

<xs:element name="CallForOfferBusinessSender" type="wtco:CallForOfferBusinessSenderType"/>

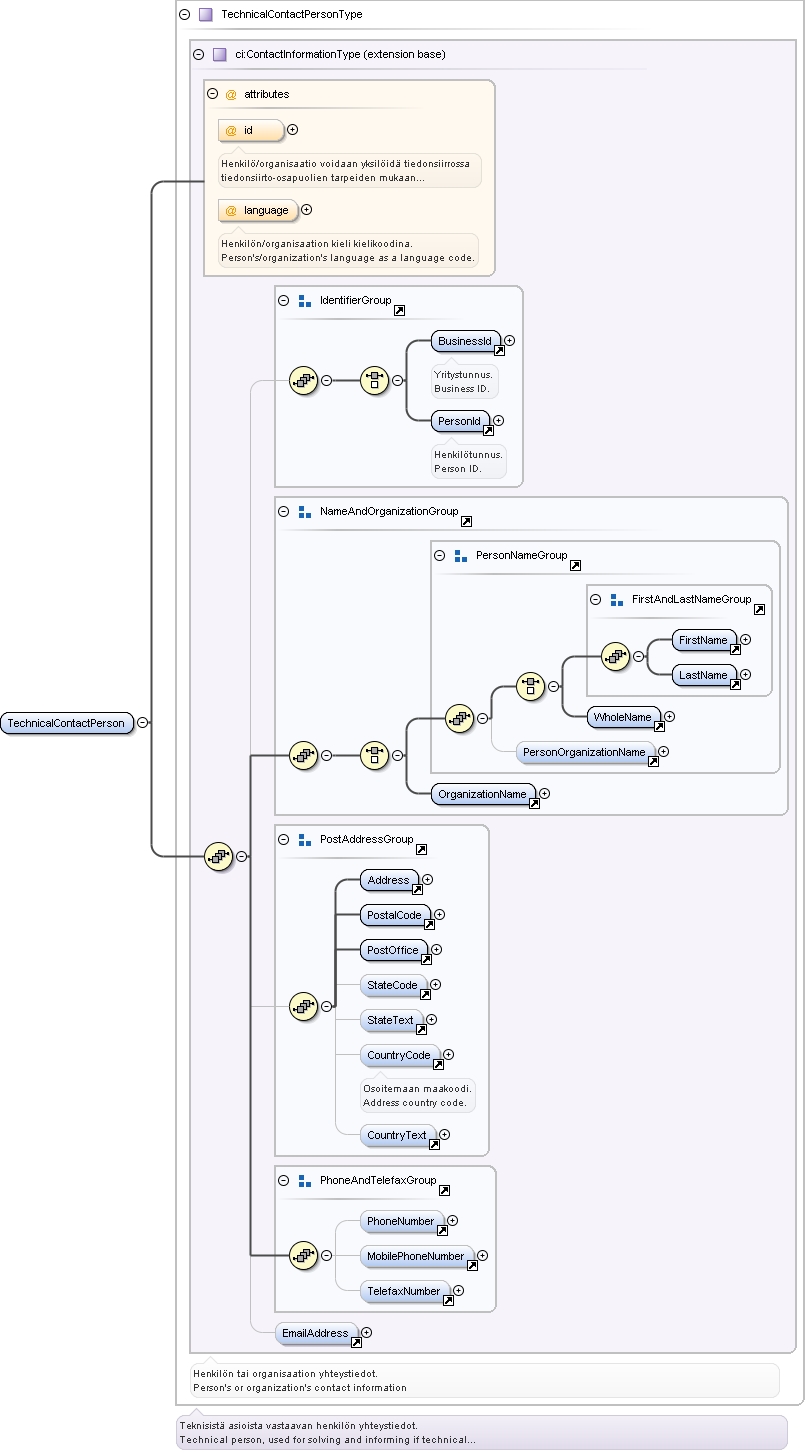

Element TechnicalContactPerson
Namespace http://standardit.tapio.fi/schemas/workingsitetrade/offer
Diagram
Diagram index24.tmp#id181 index24.tmp#id182 index24.tmp#id132 index24.tmp#id134 index24.tmp#id131 index24.tmp#id139 index24.tmp#id142 index24.tmp#id138 index24.tmp#id145 index24.tmp#id148 index24.tmp#id137 index24.tmp#id151 index24.tmp#id136 index24.tmp#id154 index24.tmp#id156 index24.tmp#id159 index24.tmp#id162 index24.tmp#id164 index24.tmp#id166 index24.tmp#id168 index24.tmp#id153 index24.tmp#id171 index24.tmp#id174 index24.tmp#id176 index24.tmp#id170 index24.tmp#id178 index24.tmp#id130 index54.tmp#id1072
Type TechnicalContactPersonType
Type hierarchy
Properties
content: complex
Used by
Complex Type OfferType
Model (BusinessId | PersonId) , ((((FirstName , LastName) | WholeName) , PersonOrganizationName{0,1}) | OrganizationName) , Address , PostalCode , PostOffice , StateCode{0,1} , StateText{0,1} , CountryCode{0,1} , CountryText{0,1} , PhoneNumber{0,1} , MobilePhoneNumber{0,1} , TelefaxNumber{0,1} , EmailAddress{0,1}
Children Address, BusinessId, CountryCode, CountryText, EmailAddress, FirstName, LastName, MobilePhoneNumber, OrganizationName, PersonId, PersonOrganizationName, PhoneNumber, PostOffice, PostalCode, StateCode, StateText, TelefaxNumber, WholeName
Instance

<TechnicalContactPerson id="" language="">
  <BusinessId>{1,1}</BusinessId>
  <PersonId>{1,1}</PersonId>
  <EmailAddress>{0,1}</EmailAddress>
</TechnicalContactPerson>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Henkilö/organisaatio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Person/organization can be identified using string id.
language ISO639char2LanguageType optional
Henkilön/organisaation kieli kielikoodina.Person's/organization's language as a language code.
Source

<xs:element name="TechnicalContactPerson" type="TechnicalContactPersonType"/>
Element OfferDate
Namespace http://standardit.tapio.fi/schemas/workingsitetrade/offer
Diagram
Diagram index54.tmp#id1074
Type OfferDateType
Type hierarchy
Properties
content: simple
Facets
minInclusive 1900-01-01
Used by
Complex Type OfferType
Source

<xs:element name="OfferDate" type="OfferDateType"/>
Element OfferExpirationDate
Namespace http://standardit.tapio.fi/schemas/workingsitetrade/offer
Diagram
Diagram index54.tmp#id1076
Type OfferExpirationDateType
Type hierarchy
Properties
content: simple
Facets
minInclusive 1900-01-01
Used by
Complex Type OfferType
Source

<xs:element name="OfferExpirationDate" type="OfferExpirationDateType"/>
Element OfferText
Namespace http://standardit.tapio.fi/schemas/workingsitetrade/offer
Diagram
Diagram index54.tmp#id1078
Type OfferTextType
Type hierarchy
Properties
content: simple
Facets
maxLength 1500
Used by
Complex Type OfferType
Source

<xs:element name="OfferText" type="OfferTextType"/>
Element CallForOfferText
Namespace http://standardit.tapio.fi/schemas/workingsitetrade/offer
Diagram
Diagram index21.tmp#id205
Type CallForOfferTextType
Properties
content: simple
Facets
maxLength 1500
Used by
Complex Type OfferType
Source

<xs:element name="CallForOfferText" type="wtco:CallForOfferTextType"/>

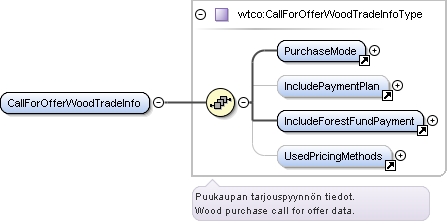

Element CallForOfferWoodTradeInfo
Namespace http://standardit.tapio.fi/schemas/workingsitetrade/offer
Diagram
Diagram index21.tmp#id208 index21.tmp#id211 index21.tmp#id213 index21.tmp#id215 index21.tmp#id207
Type CallForOfferWoodTradeInfoType
Properties
content: complex
Used by
Complex Type OfferType
Model PurchaseMode , IncludePaymentPlan{0,1} , IncludeForestFundPayment , UsedPricingMethods{0,1}
Children IncludeForestFundPayment, IncludePaymentPlan, PurchaseMode, UsedPricingMethods
Instance

<CallForOfferWoodTradeInfo>
  <PurchaseMode>{1,1}</PurchaseMode>
  <IncludePaymentPlan>{0,1}</IncludePaymentPlan>
  <IncludeForestFundPayment>{1,1}</IncludeForestFundPayment>
  <UsedPricingMethods>{0,1}</UsedPricingMethods>
</CallForOfferWoodTradeInfo>
Source

<xs:element name="CallForOfferWoodTradeInfo" type="wtco:CallForOfferWoodTradeInfoType"/>

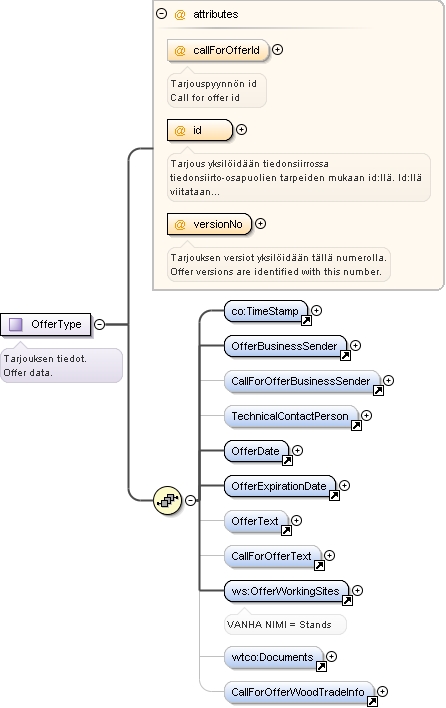

Complex Type OfferType
Namespace http://standardit.tapio.fi/schemas/workingsitetrade/offer
Annotations
Tarjouksen tiedot.
Offer data.
Diagram
Diagram index54.tmp#id1120 index54.tmp#id1121 index54.tmp#id1122 index5.tmp#id117 index54.tmp#id1068 index54.tmp#id1070 index54.tmp#id1071 index54.tmp#id1073 index54.tmp#id1075 index54.tmp#id1077 index54.tmp#id1079 index46.tmp#id1080 index21.tmp#id373 index54.tmp#id1119
Used by
Element Offer
Model TimeStamp , OfferBusinessSender , CallForOfferBusinessSender{0,1} , TechnicalContactPerson{0,1} , OfferDate , OfferExpirationDate , OfferText{0,1} , CallForOfferText{0,1} , OfferWorkingSites , Documents{0,1} , CallForOfferWoodTradeInfo{0,1}
Children CallForOfferBusinessSender, CallForOfferText, CallForOfferWoodTradeInfo, Documents, OfferBusinessSender, OfferDate, OfferExpirationDate, OfferText, OfferWorkingSites, TechnicalContactPerson, TimeStamp
Attributes
QName Type Fixed Default Use Annotation
callForOfferId xs:string optional
Tarjouspyynnön idCall for offer id
id xs:string required
Tarjous yksilöidään tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä. Id:llä viitataan tarjouspyyntöön.Offer can be identified using string id. Id is foreign key to call for offer id.
versionNo xs:int required
Tarjouksen versiot yksilöidään tällä numerolla.Offer versions are identified with this number.
Source

<xs:complexType name="OfferType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Tarjouksen tiedot.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Offer data.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="co:TimeStamp"/>
    <xs:element ref="OfferBusinessSender"/>
    <xs:element ref="CallForOfferBusinessSender" minOccurs="0"/>
    <xs:element ref="TechnicalContactPerson" minOccurs="0"/>
    <xs:element ref="OfferDate"/>
    <xs:element ref="OfferExpirationDate"/>
    <xs:element ref="OfferText" minOccurs="0"/>
    <xs:element ref="CallForOfferText" minOccurs="0"/>
    <xs:element ref="ws:OfferWorkingSites">
      <xs:annotation>
        <xs:documentation xml:lang="fi">VANHA NIMI = Stands</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element ref="wtco:Documents" minOccurs="0"/>
    <xs:element ref="CallForOfferWoodTradeInfo" minOccurs="0"/>
  </xs:sequence>
  <xs:attribute name="callForOfferId" type="xs:string">
    <xs:annotation>
      <xs:documentation xml:lang="fi">Tarjouspyynnön id</xs:documentation>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en">Call for offer id</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="id" type="xs:string" use="required">
    <xs:annotation>
      <xs:documentation xml:lang="fi">Tarjous yksilöidään tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä. Id:llä viitataan tarjouspyyntöön.</xs:documentation>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en">Offer can be identified using string id. Id is foreign key to call for offer id.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="versionNo" type="xs:int" use="required">
    <xs:annotation>
      <xs:documentation xml:lang="fi">Tarjouksen versiot yksilöidään tällä numerolla.</xs:documentation>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en">Offer versions are identified with this number.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>

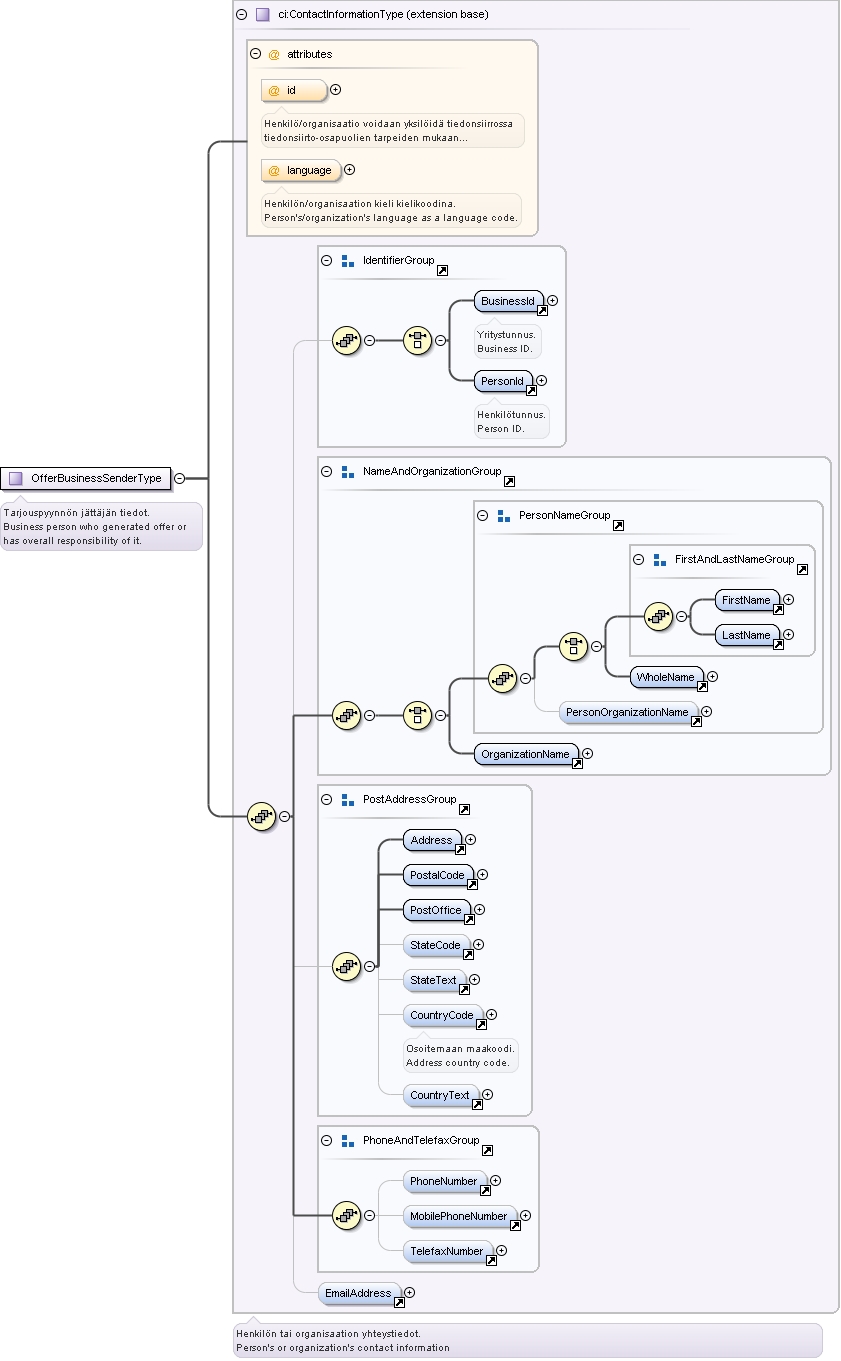

Complex Type OfferBusinessSenderType
Namespace http://standardit.tapio.fi/schemas/workingsitetrade/offer
Annotations
Tarjouspyynnön jättäjän tiedot.
Business person who generated offer or has overall responsibility of it.
Diagram
Diagram index24.tmp#id181 index24.tmp#id182 index24.tmp#id132 index24.tmp#id134 index24.tmp#id131 index24.tmp#id139 index24.tmp#id142 index24.tmp#id138 index24.tmp#id145 index24.tmp#id148 index24.tmp#id137 index24.tmp#id151 index24.tmp#id136 index24.tmp#id154 index24.tmp#id156 index24.tmp#id159 index24.tmp#id162 index24.tmp#id164 index24.tmp#id166 index24.tmp#id168 index24.tmp#id153 index24.tmp#id171 index24.tmp#id174 index24.tmp#id176 index24.tmp#id170 index24.tmp#id178 index24.tmp#id130
Type extension of ContactInformationType
Type hierarchy
Used by
Model (BusinessId | PersonId) , ((((FirstName , LastName) | WholeName) , PersonOrganizationName{0,1}) | OrganizationName) , Address , PostalCode , PostOffice , StateCode{0,1} , StateText{0,1} , CountryCode{0,1} , CountryText{0,1} , PhoneNumber{0,1} , MobilePhoneNumber{0,1} , TelefaxNumber{0,1} , EmailAddress{0,1}
Children Address, BusinessId, CountryCode, CountryText, EmailAddress, FirstName, LastName, MobilePhoneNumber, OrganizationName, PersonId, PersonOrganizationName, PhoneNumber, PostOffice, PostalCode, StateCode, StateText, TelefaxNumber, WholeName
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Henkilö/organisaatio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Person/organization can be identified using string id.
language ISO639char2LanguageType optional
Henkilön/organisaation kieli kielikoodina.Person's/organization's language as a language code.
Source

<xs:complexType name="OfferBusinessSenderType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Tarjouspyynnön jättäjän tiedot.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Business person who generated offer or has overall responsibility of it.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="ci:ContactInformationType"/>
  </xs:complexContent>
</xs:complexType>

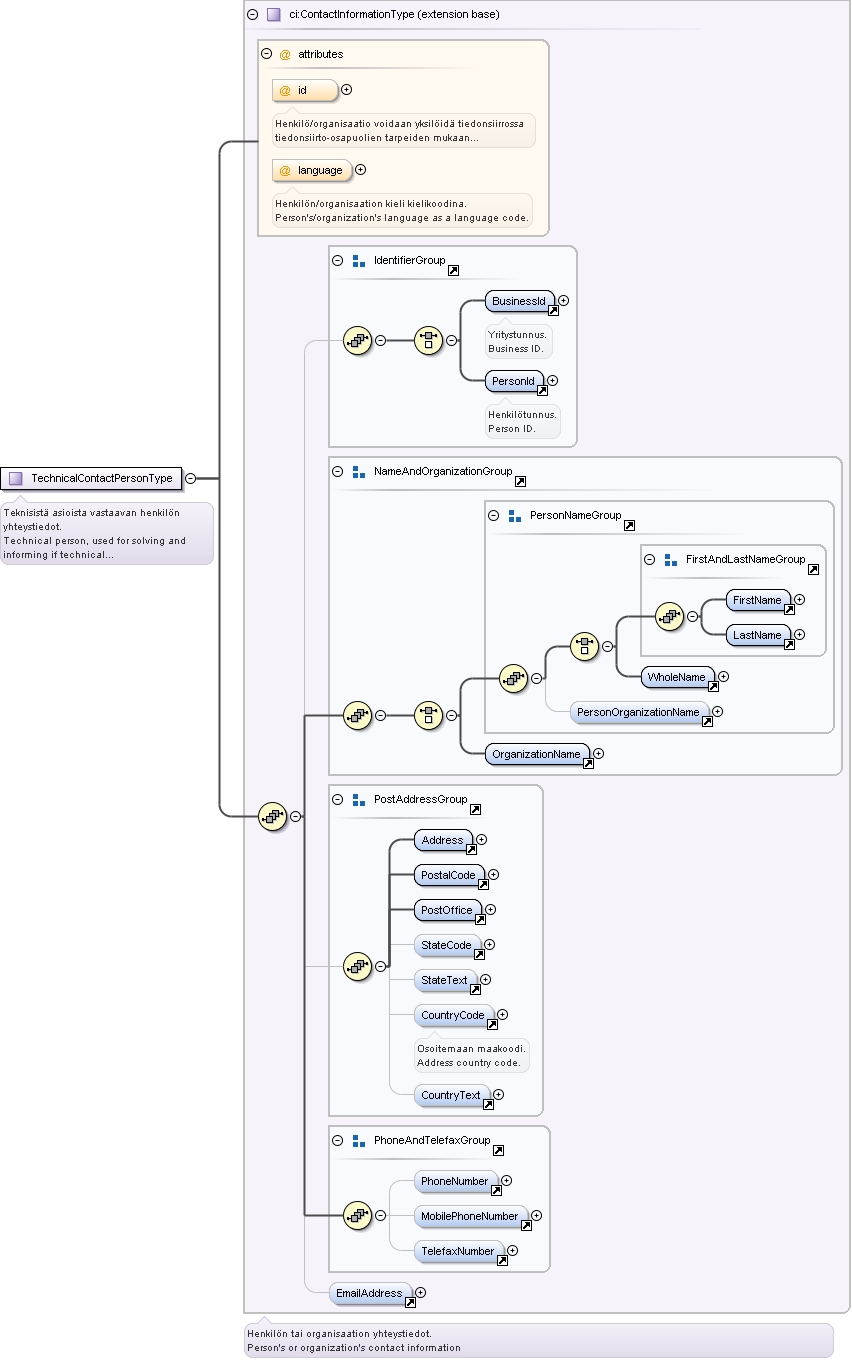

Complex Type TechnicalContactPersonType
Namespace http://standardit.tapio.fi/schemas/workingsitetrade/offer
Annotations
Teknisistä asioista vastaavan henkilön yhteystiedot.
Technical person, used for solving and informing if technical problems occurs.
Diagram
Diagram index24.tmp#id181 index24.tmp#id182 index24.tmp#id132 index24.tmp#id134 index24.tmp#id131 index24.tmp#id139 index24.tmp#id142 index24.tmp#id138 index24.tmp#id145 index24.tmp#id148 index24.tmp#id137 index24.tmp#id151 index24.tmp#id136 index24.tmp#id154 index24.tmp#id156 index24.tmp#id159 index24.tmp#id162 index24.tmp#id164 index24.tmp#id166 index24.tmp#id168 index24.tmp#id153 index24.tmp#id171 index24.tmp#id174 index24.tmp#id176 index24.tmp#id170 index24.tmp#id178 index24.tmp#id130
Type extension of ContactInformationType
Type hierarchy
Used by
Model (BusinessId | PersonId) , ((((FirstName , LastName) | WholeName) , PersonOrganizationName{0,1}) | OrganizationName) , Address , PostalCode , PostOffice , StateCode{0,1} , StateText{0,1} , CountryCode{0,1} , CountryText{0,1} , PhoneNumber{0,1} , MobilePhoneNumber{0,1} , TelefaxNumber{0,1} , EmailAddress{0,1}
Children Address, BusinessId, CountryCode, CountryText, EmailAddress, FirstName, LastName, MobilePhoneNumber, OrganizationName, PersonId, PersonOrganizationName, PhoneNumber, PostOffice, PostalCode, StateCode, StateText, TelefaxNumber, WholeName
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Henkilö/organisaatio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Person/organization can be identified using string id.
language ISO639char2LanguageType optional
Henkilön/organisaation kieli kielikoodina.Person's/organization's language as a language code.
Source

<xs:complexType name="TechnicalContactPersonType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Teknisistä asioista vastaavan henkilön yhteystiedot.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Technical person, used for solving and informing if technical problems occurs.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="ci:ContactInformationType"/>
  </xs:complexContent>
</xs:complexType>
Simple Type OfferDateType
Namespace http://standardit.tapio.fi/schemas/workingsitetrade/offer
Annotations
Tarjouksen jättöpvm.
Date when offer has been generated and sent to recipients (business point of view).
Diagram
Diagram index0.tmp#id112
Type DateType
Type hierarchy
Facets
minInclusive 1900-01-01
Used by
Element OfferDate
Source

<xs:simpleType name="OfferDateType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Tarjouksen jättöpvm.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Date when offer has been generated and sent to recipients (business point of view).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="co:DateType"/>
</xs:simpleType>
Simple Type OfferExpirationDateType
Namespace http://standardit.tapio.fi/schemas/workingsitetrade/offer
Annotations
tarjouksen viimeinen mahdollinen hyväksymispvm.
Last day for recipient to accept offer.
Diagram
Diagram index0.tmp#id112
Type DateType
Type hierarchy
Facets
minInclusive 1900-01-01
Used by
Source

<xs:simpleType name="OfferExpirationDateType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">tarjouksen viimeinen mahdollinen hyväksymispvm.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Last day for recipient to accept offer.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="co:DateType"/>
</xs:simpleType>
Simple Type OfferTextType
Namespace http://standardit.tapio.fi/schemas/workingsitetrade/offer
Annotations
Tarjouksen teksti.
Diagram
Diagram index0.tmp#id125
Type String1500Type
Type hierarchy
Facets
maxLength 1500
Used by
Element OfferText
Source

<xs:simpleType name="OfferTextType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Tarjouksen teksti.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:restriction base="co:String1500Type"/>
</xs:simpleType>
Attribute OfferType / @callForOfferId
Namespace http://standardit.tapio.fi/schemas/workingsitetrade/offer
Annotations
Tarjouspyynnön id
Call for offer id
Type xs:string
Properties
content: simple
Used by
Complex Type OfferType
Source

<xs:attribute name="callForOfferId" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Tarjouspyynnön id</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Call for offer id</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute OfferType / @id
Namespace http://standardit.tapio.fi/schemas/workingsitetrade/offer
Annotations
Tarjous yksilöidään tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä. Id:llä viitataan tarjouspyyntöön.
Offer can be identified using string id. Id is foreign key to call for offer id.
Type xs:string
Properties
use: required
Used by
Complex Type OfferType
Source

<xs:attribute name="id" type="xs:string" use="required">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Tarjous yksilöidään tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä. Id:llä viitataan tarjouspyyntöön.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Offer can be identified using string id. Id is foreign key to call for offer id.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute OfferType / @versionNo
Namespace http://standardit.tapio.fi/schemas/workingsitetrade/offer
Annotations
Tarjouksen versiot yksilöidään tällä numerolla.
Offer versions are identified with this number.
Type xs:int
Properties
use: required
Used by
Complex Type OfferType
Source

<xs:attribute name="versionNo" type="xs:int" use="required">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Tarjouksen versiot yksilöidään tällä numerolla.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Offer versions are identified with this number.</xs:documentation>
  </xs:annotation>
</xs:attribute>
XML Schema documentation generated by ® XML Editor.
