Imported schema TreeStandSummary.xsd
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Properties
attribute form default: unqualified
element form default: qualified
version: 1.0
Element TreeStandSummary
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary

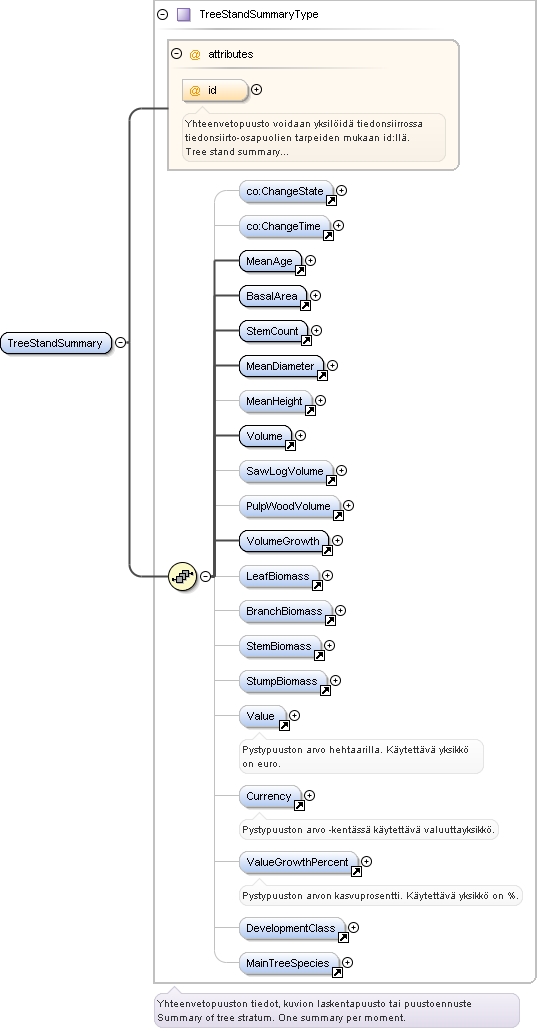

Diagram
Diagram index61.tmp#id677 index5.tmp#id572 index5.tmp#id574 index61.tmp#id648 index61.tmp#id650 index61.tmp#id651 index61.tmp#id653 index61.tmp#id655 index61.tmp#id656 index61.tmp#id658 index61.tmp#id660 index61.tmp#id662 index61.tmp#id664 index61.tmp#id666 index61.tmp#id668 index61.tmp#id670 index61.tmp#id672 index61.tmp#id673 index61.tmp#id674 index61.tmp#id675 index61.tmp#id676 index61.tmp#id647
Type TreeStandSummaryType
Properties
content: complex
Used by
Complex Type TreeStandDataDateType
Model ChangeState{0,1} , ChangeTime{0,1} , MeanAge , BasalArea , StemCount , MeanDiameter , MeanHeight{0,1} , Volume , SawLogVolume{0,1} , PulpWoodVolume{0,1} , VolumeGrowth , LeafBiomass{0,1} , BranchBiomass{0,1} , StemBiomass{0,1} , StumpBiomass{0,1} , Value{0,1} , Currency{0,1} , ValueGrowthPercent{0,1} , DevelopmentClass{0,1} , MainTreeSpecies{0,1}
Children BasalArea, BranchBiomass, ChangeState, ChangeTime, Currency, DevelopmentClass, LeafBiomass, MainTreeSpecies, MeanAge, MeanDiameter, MeanHeight, PulpWoodVolume, SawLogVolume, StemBiomass, StemCount, StumpBiomass, Value, ValueGrowthPercent, Volume, VolumeGrowth
Instance
<TreeStandSummary id="">
  <ChangeState>{0,1}</ChangeState>
  <ChangeTime>{0,1}</ChangeTime>
  <MeanAge>{1,1}</MeanAge>
  <BasalArea>{1,1}</BasalArea>
  <StemCount>{1,1}</StemCount>
  <MeanDiameter>{1,1}</MeanDiameter>
  <MeanHeight>{0,1}</MeanHeight>
  <Volume>{1,1}</Volume>
  <SawLogVolume>{0,1}</SawLogVolume>
  <PulpWoodVolume>{0,1}</PulpWoodVolume>
  <VolumeGrowth>{1,1}</VolumeGrowth>
  <LeafBiomass>{0,1}</LeafBiomass>
  <BranchBiomass>{0,1}</BranchBiomass>
  <StemBiomass>{0,1}</StemBiomass>
  <StumpBiomass>{0,1}</StumpBiomass>
  <Value>{0,1}</Value>
  <Currency>{0,1}</Currency>
  <ValueGrowthPercent>{0,1}</ValueGrowthPercent>
  <DevelopmentClass>{0,1}</DevelopmentClass>
  <MainTreeSpecies>{0,1}</MainTreeSpecies>
</TreeStandSummary>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Yhteenvetopuusto voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Tree stand summary can be identified using string id.
Source
<xs:element name="TreeStandSummary" type="TreeStandSummaryType"/>
Element MeanAge
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index61.tmp#id649
Type MeanAgeType
Type hierarchy
Properties
content: simple
Facets
pattern [0-9]{1,3}
Used by
Complex Type TreeStandSummaryType
Source
<xs:element name="MeanAge" type="MeanAgeType"/>
Element BasalArea
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index5.tmp#id587
Type BasalAreaType
Type hierarchy
Properties
content: simple
Facets
fractionDigits 2
maxExclusive 1000
minInclusive 0
Used by
Complex Type TreeStandSummaryType
Source
<xs:element name="BasalArea" type="co:BasalAreaType"/>
Element StemCount
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index61.tmp#id652
Type StemCountType
Type hierarchy
Properties
content: simple
Facets
pattern [0-9]{0,5}
Used by
Complex Type TreeStandSummaryType
Source
<xs:element name="StemCount" type="StemCountType"/>
Element MeanDiameter
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index61.tmp#id654
Type MeanDiameterType
Type hierarchy
Properties
content: simple
Facets
fractionDigits 2
maxExclusive 100
minInclusive 0
Used by
Complex Type TreeStandSummaryType
Source
<xs:element name="MeanDiameter" type="MeanDiameterType"/>
Element MeanHeight
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index5.tmp#id597
Type MeanHeightType
Properties
content: simple
Used by
Complex Type TreeStandSummaryType
Source
<xs:element name="MeanHeight" type="co:MeanHeightType"/>
Element Volume
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index61.tmp#id657
Type VolumeType
Type hierarchy
Properties
content: simple
Facets
fractionDigits 2
maxExclusive 1000
minInclusive 0
Used by
Complex Type TreeStandSummaryType
Source
<xs:element name="Volume" type="VolumeType"/>
Element SawLogVolume
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index61.tmp#id659
Type SawLogVolumeType
Type hierarchy
Properties
content: simple
Facets
fractionDigits 2
maxExclusive 1000
minInclusive 0
Used by
Complex Type TreeStandSummaryType
Source
<xs:element name="SawLogVolume" type="SawLogVolumeType"/>
Element PulpWoodVolume
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index61.tmp#id661
Type PulpWoodVolumeType
Type hierarchy
Properties
content: simple
Facets
fractionDigits 2
maxExclusive 1000
minInclusive 0
Used by
Complex Type TreeStandSummaryType
Source
<xs:element name="PulpWoodVolume" type="PulpWoodVolumeType"/>
Element VolumeGrowth
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index61.tmp#id663
Type VolumeGrowthType
Type hierarchy
Properties
content: simple
Facets
fractionDigits 2
maxExclusive 1000
minInclusive 0
Used by
Complex Type TreeStandSummaryType
Source
<xs:element name="VolumeGrowth" type="VolumeGrowthType"/>
Element LeafBiomass
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index61.tmp#id665
Type LeafBiomassType
Type hierarchy
Properties
content: simple
Facets
fractionDigits 2
maxExclusive 1000
minInclusive 0
Used by
Complex Type TreeStandSummaryType
Source
<xs:element name="LeafBiomass" type="LeafBiomassType"/>
Element BranchBiomass
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index61.tmp#id667
Type BranchBiomassType
Type hierarchy
Properties
content: simple
Facets
fractionDigits 2
maxExclusive 1000
minInclusive 0
Used by
Complex Type TreeStandSummaryType
Source
<xs:element name="BranchBiomass" type="BranchBiomassType"/>
Element StemBiomass
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index61.tmp#id669
Type StemBiomassType
Type hierarchy
Properties
content: simple
Facets
fractionDigits 2
maxExclusive 1000
minInclusive 0
Used by
Complex Type TreeStandSummaryType
Source
<xs:element name="StemBiomass" type="StemBiomassType"/>
Element StumpBiomass
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index61.tmp#id671
Type StumpBiomassType
Type hierarchy
Properties
content: simple
Facets
fractionDigits 2
maxExclusive 1000
minInclusive 0
Used by
Complex Type TreeStandSummaryType
Source
<xs:element name="StumpBiomass" type="StumpBiomassType"/>
Element Value
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index0.tmp#id327
Type Decimal2FractionDigitsType
Properties
content: simple
Facets
fractionDigits 2
Used by
Complex Type TreeStandSummaryType
Source
<xs:element name="Value" type="co:Decimal2FractionDigitsType"/>
Element Currency
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index1.tmp#id338
Type CurrencyType
Properties
content: simple
Facets
enumeration EUR
Euro (esim. sata euroa 100.00).
enumeration EURc
Eurosentit (esim. sata euroa 10000).
Used by
Complex Type TreeStandSummaryType
Source
<xs:element name="Currency" type="co:CurrencyType"/>
Element ValueGrowthPercent
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index0.tmp#id327
Type Decimal2FractionDigitsType
Properties
content: simple
Facets
fractionDigits 2
Used by
Complex Type TreeStandSummaryType
Source
<xs:element name="ValueGrowthPercent" type="co:Decimal2FractionDigitsType"/>
Element DevelopmentClass
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index1.tmp#id434
Type DevelopmentClassType
Properties
content: simple
Facets
enumeration 02
Nuori kasvatusmetsikkö
enumeration 03
Varttunut kasvatusmetsikkö
enumeration 04
Uudistuskypsä metsikkö
enumeration 05
Suojuspuumetsikkö
enumeration A0
Aukea
enumeration ER
Eri-ikäisrakenteinen metsikkö
enumeration S0
Siemenpuumetsikkö
enumeration T1
Taimikko alle 1,3 m
enumeration T2
Taimikko yli 1,3 m
enumeration Y1
Ylispuustoinen taimikko
Used by
Complex Type TreeStandSummaryType
Source
<xs:element name="DevelopmentClass" type="co:DevelopmentClassType"/>
Element MainTreeSpecies
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index1.tmp#id313
Type TreeSpeciesType
Properties
content: simple
Facets
enumeration 1
Mänty
enumeration 2
Kuusi
enumeration 3
Rauduskoivu
enumeration 4
Hieskoivu
enumeration 5
Haapa
enumeration 6
Harmaaleppä
enumeration 7
Tervaleppä
enumeration 8
Muu havupuu
enumeration 9
Muu lehtipuu
enumeration 10
Douglaskuusi
enumeration 11
Kataja
enumeration 12
Kontortamänty
enumeration 13
Kynäjalava
enumeration 14
Lehtikuusi
enumeration 15
Metsälehmus
enumeration 16
Mustakuusi
enumeration 17
Paju
enumeration 18
Pihlaja
enumeration 19
Pihta
enumeration 20
Raita
enumeration 21
Saarni
enumeration 22
Sembramänty
enumeration 23
Serbiankuusi
enumeration 24
Tammi
enumeration 25
Tuomi
enumeration 26
Vaahtera
enumeration 27
Visakoivu
enumeration 28
Vuorijalava
enumeration 29
Lehtipuu
enumeration 30
Havupuu
Used by
Complex Type TreeStandSummaryType
Source
<xs:element name="MainTreeSpecies" type="co:TreeSpeciesType"/>
Element DominantHeight
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index0.tmp#id1343
Type PositiveDecimalMax2IntegralPartMax1FractionalPartType
Properties
content: simple
Facets
pattern [0-9]{1,2}\.?[0-9]{0,1}
Source
<xs:element name="DominantHeight" type="co:PositiveDecimalMax2IntegralPartMax1FractionalPartType"/>
Element MeanStumpDiameter
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Diagram
Diagram index5.tmp#id594
Type DiameterType
Type hierarchy
Properties
content: simple
Facets
fractionDigits 2
maxExclusive 100
minInclusive 0
Source
<xs:element name="MeanStumpDiameter" type="co:DiameterType"/>
Complex Type TreeStandSummaryType
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Annotations
Yhteenvetopuuston tiedot, kuvion laskentapuusto tai puustoennuste
Summary of tree stratum. One summary per moment.

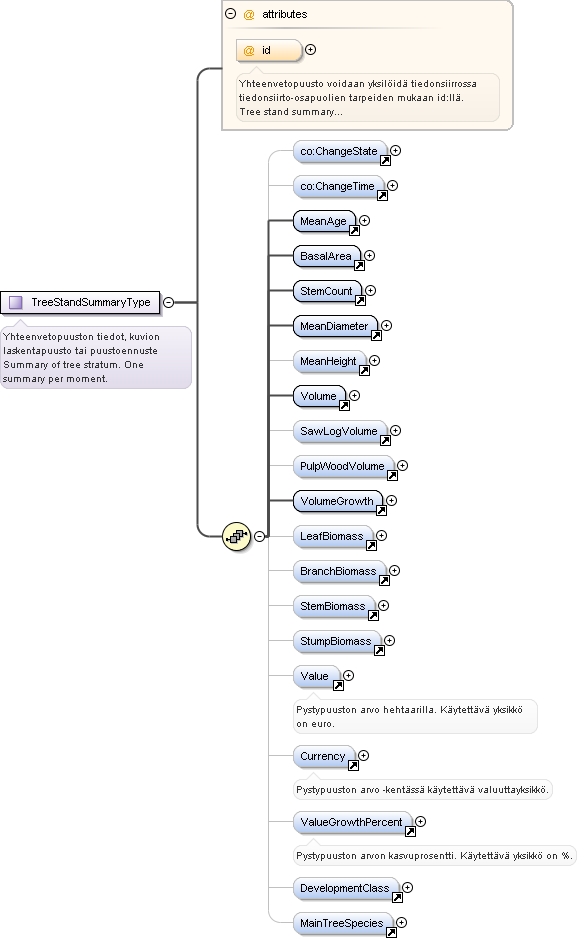

Diagram
Diagram index61.tmp#id677 index5.tmp#id572 index5.tmp#id574 index61.tmp#id648 index61.tmp#id650 index61.tmp#id651 index61.tmp#id653 index61.tmp#id655 index61.tmp#id656 index61.tmp#id658 index61.tmp#id660 index61.tmp#id662 index61.tmp#id664 index61.tmp#id666 index61.tmp#id668 index61.tmp#id670 index61.tmp#id672 index61.tmp#id673 index61.tmp#id674 index61.tmp#id675 index61.tmp#id676
Used by
Model ChangeState{0,1} , ChangeTime{0,1} , MeanAge , BasalArea , StemCount , MeanDiameter , MeanHeight{0,1} , Volume , SawLogVolume{0,1} , PulpWoodVolume{0,1} , VolumeGrowth , LeafBiomass{0,1} , BranchBiomass{0,1} , StemBiomass{0,1} , StumpBiomass{0,1} , Value{0,1} , Currency{0,1} , ValueGrowthPercent{0,1} , DevelopmentClass{0,1} , MainTreeSpecies{0,1}
Children BasalArea, BranchBiomass, ChangeState, ChangeTime, Currency, DevelopmentClass, LeafBiomass, MainTreeSpecies, MeanAge, MeanDiameter, MeanHeight, PulpWoodVolume, SawLogVolume, StemBiomass, StemCount, StumpBiomass, Value, ValueGrowthPercent, Volume, VolumeGrowth
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Yhteenvetopuusto voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Tree stand summary can be identified using string id.
Source
<xs:complexType name="TreeStandSummaryType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Yhteenvetopuuston tiedot, kuvion laskentapuusto tai puustoennuste</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Summary of tree stratum. One summary per moment.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="co:ChangeState" minOccurs="0"/>
    <xs:element ref="co:ChangeTime" minOccurs="0"/>
    <xs:element ref="MeanAge"/>
    <xs:element ref="BasalArea"/>
    <xs:element ref="StemCount"/>
    <xs:element ref="MeanDiameter"/>
    <!-- <xs:element ref="MeanStumpDiameter" minOccurs="0"/> -->
    <xs:element ref="MeanHeight" minOccurs="0"/>
    <!-- <xs:element ref="DominantHeight" minOccurs="0"/> -->
    <xs:element ref="Volume"/>
    <xs:element ref="SawLogVolume" minOccurs="0"/>
    <xs:element ref="PulpWoodVolume" minOccurs="0"/>
    <xs:element ref="VolumeGrowth"/>
    <xs:element ref="LeafBiomass" minOccurs="0"/>
    <xs:element ref="BranchBiomass" minOccurs="0"/>
    <xs:element ref="StemBiomass" minOccurs="0"/>
    <xs:element ref="StumpBiomass" minOccurs="0"/>
    <xs:element ref="Value" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Pystypuuston arvo hehtaarilla. Käytettävä yksikkö on euro.</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en"/>
      </xs:annotation>
    </xs:element>
    <xs:element ref="Currency" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Pystypuuston arvo -kentässä käytettävä valuuttayksikkö.</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en"/>
      </xs:annotation>
    </xs:element>
    <xs:element ref="ValueGrowthPercent" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Pystypuuston arvon kasvuprosentti. Käytettävä yksikkö on %.</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en"/>
      </xs:annotation>
    </xs:element>
    <xs:element ref="DevelopmentClass" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="MainTreeSpecies" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
  <xs:attribute name="id" type="xs:string">
    <xs:annotation>
      <xs:documentation xml:lang="fi">Yhteenvetopuusto voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.</xs:documentation>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en">Tree stand summary can be identified using string id.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
Simple Type MeanAgeType
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Annotations
Puuston keski-ikä, v.
Mean age of tree stand, year.
Diagram
Diagram index5.tmp#id585
Type AgeType
Type hierarchy
Facets
pattern [0-9]{1,3}
Used by
Element MeanAge
Source
<xs:simpleType name="MeanAgeType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Puuston keski-ikä, v.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Mean age of tree stand, year.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="co:AgeType"/>
</xs:simpleType>
Simple Type StemCountType
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Annotations
Runkoluku, kpl/ha.
Stem count, stem/ha.
Diagram
Diagram index5.tmp#id591
Type StemCountType
Type hierarchy
Facets
pattern [0-9]{0,5}
Used by
Element StemCount
Source
<xs:simpleType name="StemCountType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Runkoluku, kpl/ha.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stem count, stem/ha.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="co:StemCountType"/>
</xs:simpleType>
Simple Type MeanDiameterType
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Annotations
Keskiläpimitta, cm.
Mean diameter, cm.
Diagram
Diagram index5.tmp#id594
Type DiameterType
Type hierarchy
Facets
fractionDigits 2
maxExclusive 100
minInclusive 0
Used by
Element MeanDiameter
Source
<xs:simpleType name="MeanDiameterType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Keskiläpimitta, cm.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Mean diameter, cm.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="co:DiameterType"/>
</xs:simpleType>
Simple Type VolumeType
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Annotations
Tilavuus, m3/ha.
Volume, m3/ha.
Diagram
Diagram index5.tmp#id601
Type VolumeType
Type hierarchy
Facets
fractionDigits 2
maxExclusive 1000
minInclusive 0
Used by
Element Volume
Source
<xs:simpleType name="VolumeType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Tilavuus, m3/ha.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Volume, m3/ha.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="co:VolumeType"/>
</xs:simpleType>
Simple Type SawLogVolumeType
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Annotations
Tukkitilavuus, m3/ha.
Volume of saw log, m3/ha.
Diagram
Diagram index5.tmp#id608
Type SawLogVolumeType
Type hierarchy
Facets
fractionDigits 2
maxExclusive 1000
minInclusive 0
Used by
Element SawLogVolume
Source
<xs:simpleType name="SawLogVolumeType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Tukkitilavuus, m3/ha.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Volume of saw log, m3/ha.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="co:SawLogVolumeType"/>
</xs:simpleType>
Simple Type PulpWoodVolumeType
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Annotations
Kuitutilavuus, m3/ha.
Volume of pulp wood, m3/ha.
Diagram
Diagram index5.tmp#id611
Type PulpWoodVolumeType
Type hierarchy
Facets
fractionDigits 2
maxExclusive 1000
minInclusive 0
Used by
Element PulpWoodVolume
Source
<xs:simpleType name="PulpWoodVolumeType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuitutilavuus, m3/ha.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Volume of pulp wood, m3/ha.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="co:PulpWoodVolumeType"/>
</xs:simpleType>
Simple Type VolumeGrowthType
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Annotations
Tilavuuskasvu, m3/ha/v
Growth of volume, m3/ha/year.
Diagram
Diagram index5.tmp#id614
Type VolumeGrowthType
Type hierarchy
Facets
fractionDigits 2
maxExclusive 1000
minInclusive 0
Used by
Element VolumeGrowth
Source
<xs:simpleType name="VolumeGrowthType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Tilavuuskasvu, m3/ha/v</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Growth of volume, m3/ha/year.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="co:VolumeGrowthType"/>
</xs:simpleType>
Simple Type LeafBiomassType
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Annotations
Ositteiden lehtien biomassa yhteensä, t/ha.
Leaf biomass of all stratum, ton/ha.
Diagram
Diagram index5.tmp#id617
Type LeafBiomassType
Type hierarchy
Facets
fractionDigits 2
maxExclusive 1000
minInclusive 0
Used by
Element LeafBiomass
Source
<xs:simpleType name="LeafBiomassType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Ositteiden lehtien biomassa yhteensä, t/ha.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Leaf biomass of all stratum, ton/ha.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="co:LeafBiomassType"/>
</xs:simpleType>
Simple Type BranchBiomassType
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Annotations
Ositteiden oksien biomassa yhteensä, t/ha.
Branch biomass of all stratum, ton/ha.
Diagram
Diagram index5.tmp#id621
Type BranchBiomassType
Type hierarchy
Facets
fractionDigits 2
maxExclusive 1000
minInclusive 0
Used by
Element BranchBiomass
Source
<xs:simpleType name="BranchBiomassType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Ositteiden oksien biomassa yhteensä, t/ha.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Branch biomass of all stratum, ton/ha.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="co:BranchBiomassType"/>
</xs:simpleType>
Simple Type StemBiomassType
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Annotations
Ositteiden runkojen biomassa yhteensä, t/ha
Stem biomass of all stratum, ton/ha.
Diagram
Diagram index5.tmp#id624
Type StemBiomassType
Type hierarchy
Facets
fractionDigits 2
maxExclusive 1000
minInclusive 0
Used by
Element StemBiomass
Source
<xs:simpleType name="StemBiomassType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Ositteiden runkojen biomassa yhteensä, t/ha</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stem biomass of all stratum, ton/ha.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="co:StemBiomassType"/>
</xs:simpleType>
Simple Type StumpBiomassType
Namespace http://standardit.tapio.fi/schemas/forestData/treeStandSummary
Annotations
Ositteiden kantojen biomassa yhteensä, t/ha
Stump biomass of all stratum, ton/ha.
Diagram
Diagram index5.tmp#id627
Type StumpBiomassType
Type hierarchy
Facets
fractionDigits 2
maxExclusive 1000
minInclusive 0
Used by
Element StumpBiomass
Source
<xs:simpleType name="StumpBiomassType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Ositteiden kantojen biomassa yhteensä, t/ha</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stump biomass of all stratum, ton/ha.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="co:StumpBiomassType"/>
</xs:simpleType>
Attribute TreeStandSummaryType / @id
Namespace No namespace
Annotations
Yhteenvetopuusto voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.
Tree stand summary can be identified using string id.
Type xs:string
Properties
content: simple
Used by
Complex Type TreeStandSummaryType
Source
<xs:attribute name="id" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Yhteenvetopuusto voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Tree stand summary can be identified using string id.</xs:documentation>
  </xs:annotation>
</xs:attribute>
