Imported schema WorkingSiteHarvestingQualityControl.xsd
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Properties
attribute form default: unqualified
element form default: qualified
version: V17.04

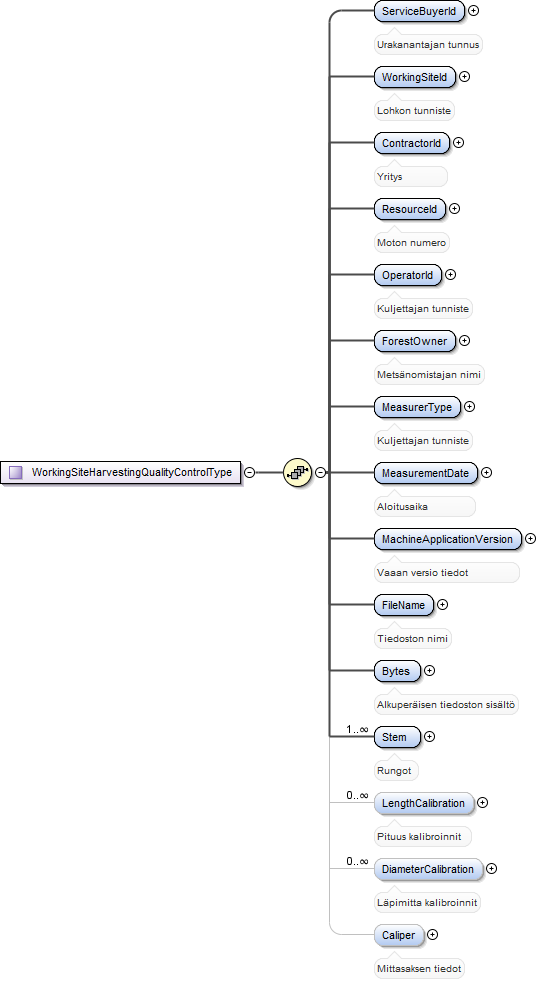

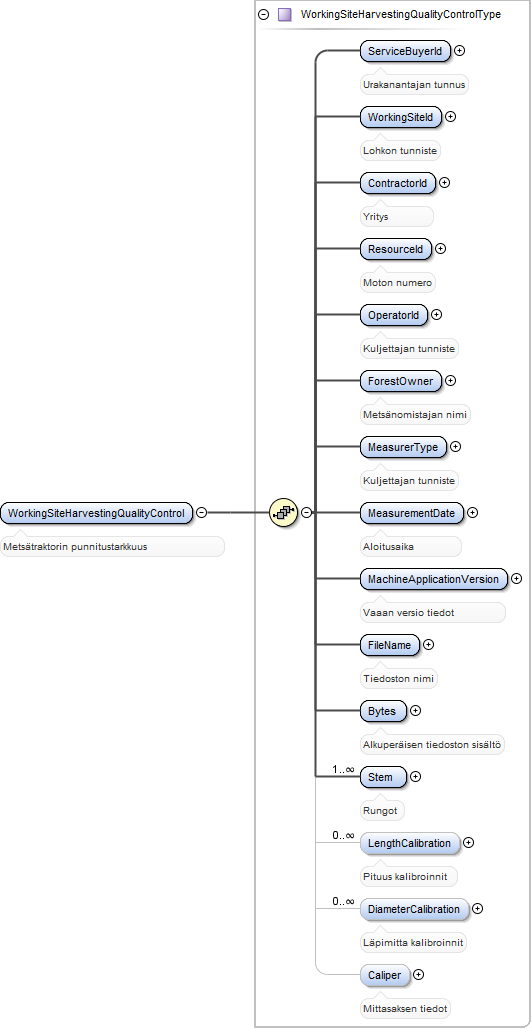

Element WorkingSiteHarvestingQualityControlType / ServiceBuyerId
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Urakanantajan tunnus
Diagram
Diagram index0.tmp#id135
Type String20Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 20
Source

<xs:element name="ServiceBuyerId" type="bdt:String20Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Urakanantajan tunnus</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestingQualityControlType / WorkingSiteId
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Lohkon tunniste
Diagram
Diagram index0.tmp#id135
Type String20Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 20
Source

<xs:element name="WorkingSiteId" type="bdt:String20Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Lohkon tunniste</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestingQualityControlType / ContractorId
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Yritys
Diagram
Diagram index0.tmp#id135
Type String20Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 20
Source

<xs:element name="ContractorId" type="bdt:String20Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Yritys</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestingQualityControlType / ResourceId
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Moton numero
Diagram
Diagram index0.tmp#id135
Type String20Type
Properties
content: simple
Facets
maxLength 20
Source

<xs:element name="ResourceId" type="bdt:String20Type">
  <xs:annotation>
    <xs:documentation>Moton numero</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestingQualityControlType / OperatorId
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Kuljettajan tunniste
Diagram
Diagram index0.tmp#id135
Type String20Type
Properties
content: simple
Facets
maxLength 20
Source

<xs:element name="OperatorId" type="bdt:String20Type">
  <xs:annotation>
    <xs:documentation>Kuljettajan tunniste</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestingQualityControlType / ForestOwner
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Metsänomistajan nimi
Diagram
Diagram index0.tmp#id137
Type String100Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 100
Source

<xs:element name="ForestOwner" type="bdt:String100Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Metsänomistajan nimi</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestingQualityControlType / MeasurerType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Kuljettajan tunniste
Diagram
Diagram index2.tmp#id1757
Type MeasurerTypeType
Properties
content: simple
Facets
enumeration 1
Kuljettaja
enumeration 2
Yrittäjä
enumeration 3
Urakanantaja
enumeration 4
Ulkopuolinen palvelun tarjoaja
enumeration 5
Metsänomistaja
Source

<xs:element name="MeasurerType" type="bdt:MeasurerTypeType">
  <xs:annotation>
    <xs:documentation>Kuljettajan tunniste</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestingQualityControlType / MeasurementDate
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Aloitusaika
Diagram
Diagram index0.tmp#id342
Type TimeStampType
Properties
content: simple
minOccurs: 1
Facets
minInclusive 1900-01-01T00:00:00
Source

<xs:element name="MeasurementDate" type="bdt:TimeStampType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Aloitusaika</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestingQualityControlType / MachineApplicationVersion
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Vaaan versio tiedot
Diagram
Diagram index0.tmp#id137
Type String100Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 100
Source

<xs:element name="MachineApplicationVersion" type="bdt:String100Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Vaaan versio tiedot</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestingQualityControlType / FileName
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Tiedoston nimi
Diagram
Diagram index0.tmp#id137
Type String100Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 100
Source

<xs:element name="FileName" type="bdt:String100Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Tiedoston nimi</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestingQualityControlType / Bytes
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Alkuperäisen tiedoston sisältö
Diagram
Diagram
Type xs:base64Binary
Properties
content: simple
minOccurs: 1
Source

<xs:element name="Bytes" type="xs:base64Binary" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Alkuperäisen tiedoston sisältö</xs:documentation>
  </xs:annotation>
</xs:element>

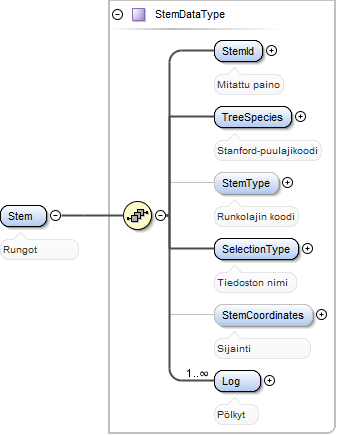

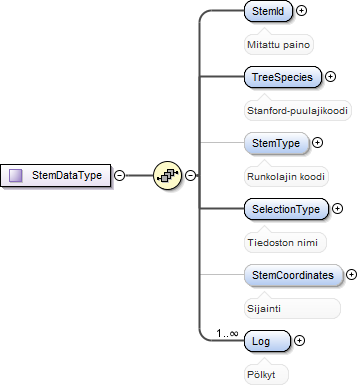

Element WorkingSiteHarvestingQualityControlType / Stem
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Rungot
Diagram
Diagram index25.tmp#id1764 index25.tmp#id1765 index25.tmp#id1766 index25.tmp#id1767 index25.tmp#id1769 index25.tmp#id1770 index25.tmp#id1763
Type StemDataType
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Model StemId , TreeSpecies , StemType{0,1} , SelectionType , StemCoordinates{0,1} , Log+
Children Log, SelectionType, StemCoordinates, StemId, StemType, TreeSpecies
Instance

<Stem>
  <StemId>{1,1}</StemId>
  <TreeSpecies>{1,1}</TreeSpecies>
  <StemType>{0,1}</StemType>
  <SelectionType>{1,1}</SelectionType>
  <StemCoordinates dimension="" location="">{0,1}</StemCoordinates>
  <Log>{1,unbounded}</Log>
</Stem>
Source

<xs:element name="Stem" type="StemDataType" minOccurs="1" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Rungot</xs:documentation>
  </xs:annotation>
</xs:element>
Element StemDataType / StemId
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Mitattu paino
Diagram
Diagram index0.tmp#id361
Type PositiveIntegerType
Properties
content: simple
minOccurs: 1
Facets
minInclusive 0
Source

<xs:element name="StemId" type="bdt:PositiveIntegerType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Mitattu paino</xs:documentation>
  </xs:annotation>
</xs:element>
Element StemDataType / TreeSpecies
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Stanford-puulajikoodi
Diagram
Diagram index30.tmp#id1698
Type StanfordTreeSpeciesType
Properties
content: simple
minOccurs: 1
Facets
enumeration 1
Mänty
enumeration 2
Kuusi
enumeration 3
Koivu
enumeration 4
Muu lehtipuu
Source

<xs:element name="TreeSpecies" type="wct:StanfordTreeSpeciesType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Stanford-puulajikoodi</xs:documentation>
  </xs:annotation>
</xs:element>
Element StemDataType / StemType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Runkolajin koodi
Diagram
Diagram index2.tmp#id1700
Type HarvestingStemTypeType
Properties
content: simple
minOccurs: 0
Facets
enumeration 11
Mäntytukki
enumeration 12
Mäntykuitu
enumeration 13
Mäntyenergia
enumeration 21
Kuusitukki
enumeration 22
Kuusikuitu
enumeration 23
Kuusienergia
enumeration 31
Koivutukki
enumeration 32
Koivukuitu
enumeration 33
Koivuenergia
enumeration 41
Lehtitukki
enumeration 42
Lehtikuitu
enumeration 43
Lehtienergia
Source

<xs:element name="StemType" type="bdt:HarvestingStemTypeType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Runkolajin koodi</xs:documentation>
  </xs:annotation>
</xs:element>
Element StemDataType / SelectionType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Tiedoston nimi
Diagram
Diagram index25.tmp#id1768
Type ControlStemSelectionType
Properties
content: simple
minOccurs: 1
Facets
enumeration Randomly selected stem
enumeration Manually by operator selected stem
Source

<xs:element name="SelectionType" type="ControlStemSelectionType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Tiedoston nimi</xs:documentation>
  </xs:annotation>
</xs:element>

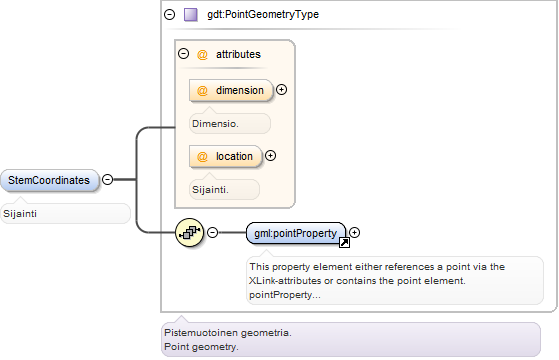

Element StemDataType / StemCoordinates
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Sijainti
Diagram
Diagram index44.tmp#id478 index44.tmp#id479 index6.tmp#id221 index44.tmp#id477
Type PointGeometryType
Properties
content: complex
minOccurs: 0
Model gml:pointProperty
Children gml:pointProperty
Instance

<StemCoordinates dimension="" location="">
  <gml:pointProperty xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:pointProperty>
</StemCoordinates>
Attributes
QName Type Fixed Default Use Annotation
dimension xs:decimal optional
Dimensio.
location PointLocationType optional
Sijainti.
Source

<xs:element name="StemCoordinates" type="gdt:PointGeometryType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Sijainti</xs:documentation>
  </xs:annotation>
</xs:element>

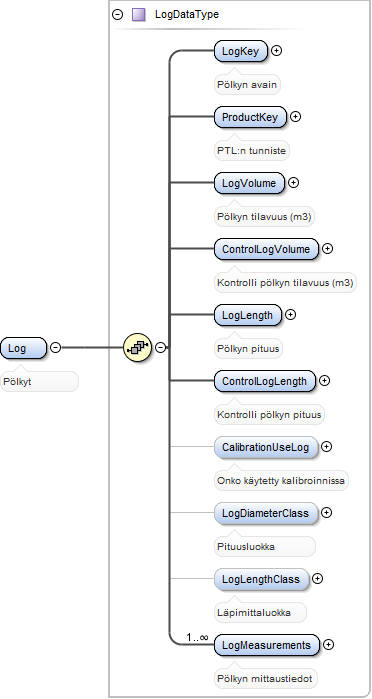

Element StemDataType / Log
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Pölkyt
Diagram
Diagram index25.tmp#id1772 index25.tmp#id1773 index25.tmp#id1774 index25.tmp#id1775 index25.tmp#id1776 index25.tmp#id1777 index25.tmp#id1778 index25.tmp#id1779 index25.tmp#id1780 index25.tmp#id1781 index25.tmp#id1771
Type LogDataType
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded

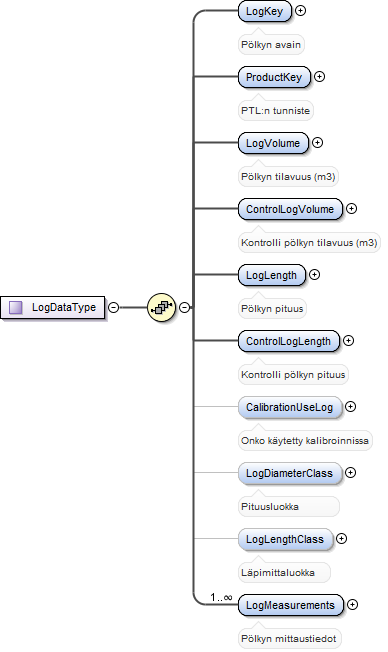

Model LogKey , ProductKey , LogVolume , ControlLogVolume , LogLength , ControlLogLength , CalibrationUseLog{0,1} , LogDiameterClass{0,1} , LogLengthClass{0,1} , LogMeasurements+
Children CalibrationUseLog, ControlLogLength, ControlLogVolume, LogDiameterClass, LogKey, LogLength, LogLengthClass, LogMeasurements, LogVolume, ProductKey
Instance

<Log>
  <LogKey>{1,1}</LogKey>
  <ProductKey>{1,1}</ProductKey>
  <LogVolume>{1,1}</LogVolume>
  <ControlLogVolume>{1,1}</ControlLogVolume>
  <LogLength>{1,1}</LogLength>
  <ControlLogLength>{1,1}</ControlLogLength>
  <CalibrationUseLog>{0,1}</CalibrationUseLog>
  <LogDiameterClass>{0,1}</LogDiameterClass>
  <LogLengthClass>{0,1}</LogLengthClass>
  <LogMeasurements>{1,unbounded}</LogMeasurements>
</Log>
Source

<xs:element name="Log" type="LogDataType" minOccurs="1" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Pölkyt</xs:documentation>
  </xs:annotation>
</xs:element>
Element LogDataType / LogKey
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Pölkyn avain
Diagram
Diagram index0.tmp#id143
Type String10Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 10
Source

<xs:element name="LogKey" type="bdt:String10Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Pölkyn avain</xs:documentation>
  </xs:annotation>
</xs:element>
Element LogDataType / ProductKey
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
PTL:n tunniste
Diagram
Diagram index0.tmp#id121
Type String50Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 50
Source

<xs:element name="ProductKey" type="bdt:String50Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>PTL:n tunniste</xs:documentation>
  </xs:annotation>
</xs:element>
Element LogDataType / LogVolume
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Pölkyn tilavuus (m3)
Diagram
Diagram index0.tmp#id375
Type Decimal3FractionDigitsType
Properties
content: simple
minOccurs: 1
Facets
fractionDigits 3
Source

<xs:element name="LogVolume" type="bdt:Decimal3FractionDigitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Pölkyn tilavuus (m3)</xs:documentation>
  </xs:annotation>
</xs:element>
Element LogDataType / ControlLogVolume
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Kontrolli pölkyn tilavuus (m3)
Diagram
Diagram index0.tmp#id375
Type Decimal3FractionDigitsType
Properties
content: simple
minOccurs: 1
Facets
fractionDigits 3
Source

<xs:element name="ControlLogVolume" type="bdt:Decimal3FractionDigitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Kontrolli pölkyn tilavuus (m3)</xs:documentation>
  </xs:annotation>
</xs:element>
Element LogDataType / LogLength
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Pölkyn pituus
Diagram
Diagram index0.tmp#id350
Type PositiveInteger4digitsType
Properties
content: simple
minOccurs: 1
Facets
maxInclusive 9999
minInclusive 0
Source

<xs:element name="LogLength" type="bdt:PositiveInteger4digitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Pölkyn pituus</xs:documentation>
  </xs:annotation>
</xs:element>
Element LogDataType / ControlLogLength
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Kontrolli pölkyn pituus
Diagram
Diagram index0.tmp#id350
Type PositiveInteger4digitsType
Properties
content: simple
minOccurs: 1
Facets
maxInclusive 9999
minInclusive 0
Source

<xs:element name="ControlLogLength" type="bdt:PositiveInteger4digitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Kontrolli pölkyn pituus</xs:documentation>
  </xs:annotation>
</xs:element>
Element LogDataType / CalibrationUseLog
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Onko käytetty kalibroinnissa
Diagram
Diagram index2.tmp#id163
Type YesNoType
Properties
content: simple
minOccurs: 0
Facets
enumeration 0
Ei
enumeration 1
Kyllä
Source

<xs:element name="CalibrationUseLog" type="bdt:YesNoType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Onko käytetty kalibroinnissa</xs:documentation>
  </xs:annotation>
</xs:element>
Element LogDataType / LogDiameterClass
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Pituusluokka
Diagram
Diagram index0.tmp#id123
Type PositiveInteger3digitsType
Properties
content: simple
minOccurs: 0
Facets
maxInclusive 999
minInclusive 0
Source

<xs:element name="LogDiameterClass" type="bdt:PositiveInteger3digitsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Pituusluokka</xs:documentation>
  </xs:annotation>
</xs:element>
Element LogDataType / LogLengthClass
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Läpimittaluokka
Diagram
Diagram index0.tmp#id350
Type PositiveInteger4digitsType
Properties
content: simple
minOccurs: 0
Facets
maxInclusive 9999
minInclusive 0
Source

<xs:element name="LogLengthClass" type="bdt:PositiveInteger4digitsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Läpimittaluokka</xs:documentation>
  </xs:annotation>
</xs:element>

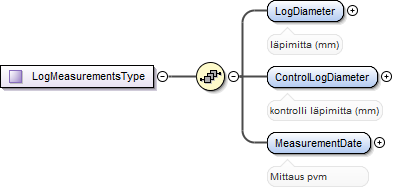

Element LogDataType / LogMeasurements
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Pölkyn mittaustiedot
Diagram
Diagram index25.tmp#id1783 index25.tmp#id1784 index25.tmp#id1785 index25.tmp#id1782
Type LogMeasurementsType
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Model LogDiameter , ControlLogDiameter , MeasurementDate
Children ControlLogDiameter, LogDiameter, MeasurementDate
Instance

<LogMeasurements>
  <LogDiameter>{1,1}</LogDiameter>
  <ControlLogDiameter>{1,1}</ControlLogDiameter>
  <MeasurementDate>{1,1}</MeasurementDate>
</LogMeasurements>
Source

<xs:element name="LogMeasurements" type="LogMeasurementsType" minOccurs="1" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Pölkyn mittaustiedot</xs:documentation>
  </xs:annotation>
</xs:element>
Element LogMeasurementsType / LogDiameter
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
läpimitta (mm)
Diagram
Diagram index0.tmp#id123
Type PositiveInteger3digitsType
Properties
content: simple
minOccurs: 1
Facets
maxInclusive 999
minInclusive 0
Source

<xs:element name="LogDiameter" type="bdt:PositiveInteger3digitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>läpimitta (mm)</xs:documentation>
  </xs:annotation>
</xs:element>
Element LogMeasurementsType / ControlLogDiameter
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
kontrolli läpimitta (mm)
Diagram
Diagram index0.tmp#id123
Type PositiveInteger3digitsType
Properties
content: simple
minOccurs: 1
Facets
maxInclusive 999
minInclusive 0
Source

<xs:element name="ControlLogDiameter" type="bdt:PositiveInteger3digitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>kontrolli läpimitta (mm)</xs:documentation>
  </xs:annotation>
</xs:element>
Element LogMeasurementsType / MeasurementDate
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Mittaus pvm
Diagram
Diagram index0.tmp#id342
Type TimeStampType
Properties
content: simple
minOccurs: 1
Facets
minInclusive 1900-01-01T00:00:00
Source

<xs:element name="MeasurementDate" type="bdt:TimeStampType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Mittaus pvm</xs:documentation>
  </xs:annotation>
</xs:element>

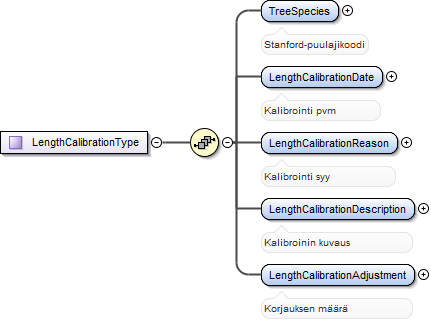

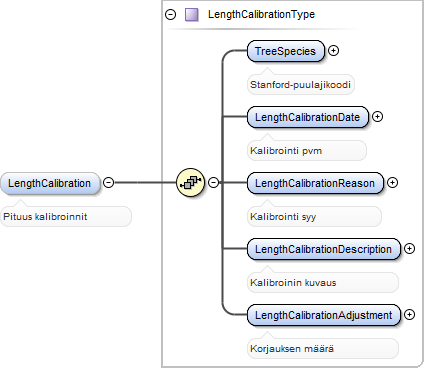

Element WorkingSiteHarvestingQualityControlType / LengthCalibration
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Pituus kalibroinnit
Diagram
Diagram index25.tmp#id1788 index25.tmp#id1789 index25.tmp#id1790 index25.tmp#id1791 index25.tmp#id1792 index25.tmp#id1787
Type LengthCalibrationType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model TreeSpecies , LengthCalibrationDate , LengthCalibrationReason , LengthCalibrationDescription , LengthCalibrationAdjustment
Children LengthCalibrationAdjustment, LengthCalibrationDate, LengthCalibrationDescription, LengthCalibrationReason, TreeSpecies
Instance

<LengthCalibration>
  <TreeSpecies>{1,1}</TreeSpecies>
  <LengthCalibrationDate>{1,1}</LengthCalibrationDate>
  <LengthCalibrationReason>{1,1}</LengthCalibrationReason>
  <LengthCalibrationDescription>{1,1}</LengthCalibrationDescription>
  <LengthCalibrationAdjustment>{1,1}</LengthCalibrationAdjustment>
</LengthCalibration>
Source

<xs:element name="LengthCalibration" type="LengthCalibrationType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Pituus kalibroinnit</xs:documentation>
  </xs:annotation>
</xs:element>
Element LengthCalibrationType / TreeSpecies
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Stanford-puulajikoodi
Diagram
Diagram index30.tmp#id1698
Type StanfordTreeSpeciesType
Properties
content: simple
minOccurs: 1
Facets
enumeration 1
Mänty
enumeration 2
Kuusi
enumeration 3
Koivu
enumeration 4
Muu lehtipuu
Source

<xs:element name="TreeSpecies" type="wct:StanfordTreeSpeciesType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Stanford-puulajikoodi</xs:documentation>
  </xs:annotation>
</xs:element>
Element LengthCalibrationType / LengthCalibrationDate
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Kalibrointi pvm
Diagram
Diagram index0.tmp#id342
Type TimeStampType
Properties
content: simple
minOccurs: 1
Facets
minInclusive 1900-01-01T00:00:00
Source

<xs:element name="LengthCalibrationDate" type="bdt:TimeStampType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Kalibrointi pvm</xs:documentation>
  </xs:annotation>
</xs:element>
Element LengthCalibrationType / LengthCalibrationReason
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Kalibrointi syy
Diagram
Diagram index0.tmp#id400
Type String200Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 200
Source

<xs:element name="LengthCalibrationReason" type="bdt:String200Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Kalibrointi syy</xs:documentation>
  </xs:annotation>
</xs:element>
Element LengthCalibrationType / LengthCalibrationDescription
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Kalibroinin kuvaus
Diagram
Diagram index0.tmp#id400
Type String200Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 200
Source

<xs:element name="LengthCalibrationDescription" type="bdt:String200Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Kalibroinin kuvaus</xs:documentation>
  </xs:annotation>
</xs:element>
Element LengthCalibrationType / LengthCalibrationAdjustment
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Korjauksen määrä
Diagram
Diagram index0.tmp#id1793
Type Integer3digitsType
Properties
content: simple
minOccurs: 1
Facets
maxInclusive 999
minInclusive -999
Source

<xs:element name="LengthCalibrationAdjustment" type="bdt:Integer3digitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Korjauksen määrä</xs:documentation>
  </xs:annotation>
</xs:element>

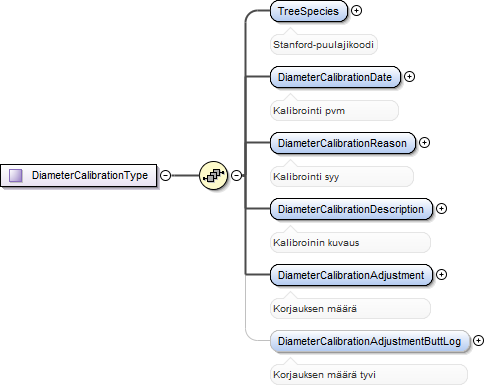

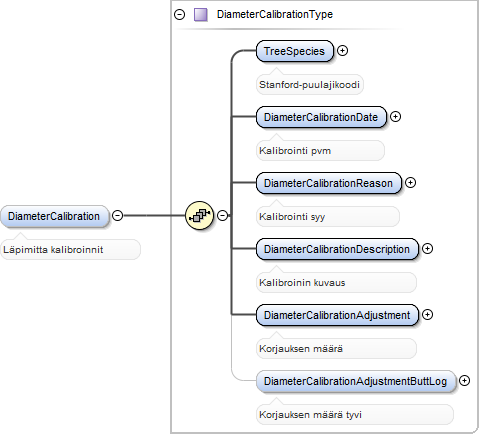

Element WorkingSiteHarvestingQualityControlType / DiameterCalibration
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Läpimitta kalibroinnit
Diagram
Diagram index25.tmp#id1796 index25.tmp#id1797 index25.tmp#id1798 index25.tmp#id1799 index25.tmp#id1800 index25.tmp#id1801 index25.tmp#id1795
Type DiameterCalibrationType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model TreeSpecies , DiameterCalibrationDate , DiameterCalibrationReason , DiameterCalibrationDescription , DiameterCalibrationAdjustment , DiameterCalibrationAdjustmentButtLog{0,1}
Children DiameterCalibrationAdjustment, DiameterCalibrationAdjustmentButtLog, DiameterCalibrationDate, DiameterCalibrationDescription, DiameterCalibrationReason, TreeSpecies
Instance

<DiameterCalibration>
  <TreeSpecies>{1,1}</TreeSpecies>
  <DiameterCalibrationDate>{1,1}</DiameterCalibrationDate>
  <DiameterCalibrationReason>{1,1}</DiameterCalibrationReason>
  <DiameterCalibrationDescription>{1,1}</DiameterCalibrationDescription>
  <DiameterCalibrationAdjustment>{1,1}</DiameterCalibrationAdjustment>
  <DiameterCalibrationAdjustmentButtLog>{0,1}</DiameterCalibrationAdjustmentButtLog>
</DiameterCalibration>
Source

<xs:element name="DiameterCalibration" type="DiameterCalibrationType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Läpimitta kalibroinnit</xs:documentation>
  </xs:annotation>
</xs:element>
Element DiameterCalibrationType / TreeSpecies
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Stanford-puulajikoodi
Diagram
Diagram index30.tmp#id1698
Type StanfordTreeSpeciesType
Properties
content: simple
minOccurs: 1
Facets
enumeration 1
Mänty
enumeration 2
Kuusi
enumeration 3
Koivu
enumeration 4
Muu lehtipuu
Source

<xs:element name="TreeSpecies" type="wct:StanfordTreeSpeciesType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Stanford-puulajikoodi</xs:documentation>
  </xs:annotation>
</xs:element>
Element DiameterCalibrationType / DiameterCalibrationDate
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Kalibrointi pvm
Diagram
Diagram index0.tmp#id342
Type TimeStampType
Properties
content: simple
minOccurs: 1
Facets
minInclusive 1900-01-01T00:00:00
Source

<xs:element name="DiameterCalibrationDate" type="bdt:TimeStampType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Kalibrointi pvm</xs:documentation>
  </xs:annotation>
</xs:element>
Element DiameterCalibrationType / DiameterCalibrationReason
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Kalibrointi syy
Diagram
Diagram index0.tmp#id400
Type String200Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 200
Source

<xs:element name="DiameterCalibrationReason" type="bdt:String200Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Kalibrointi syy</xs:documentation>
  </xs:annotation>
</xs:element>
Element DiameterCalibrationType / DiameterCalibrationDescription
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Kalibroinin kuvaus
Diagram
Diagram index0.tmp#id400
Type String200Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 200
Source

<xs:element name="DiameterCalibrationDescription" type="bdt:String200Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Kalibroinin kuvaus</xs:documentation>
  </xs:annotation>
</xs:element>
Element DiameterCalibrationType / DiameterCalibrationAdjustment
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Korjauksen määrä
Diagram
Diagram index0.tmp#id1793
Type Integer3digitsType
Properties
content: simple
minOccurs: 1
Facets
maxInclusive 999
minInclusive -999
Source

<xs:element name="DiameterCalibrationAdjustment" type="bdt:Integer3digitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Korjauksen määrä</xs:documentation>
  </xs:annotation>
</xs:element>
Element DiameterCalibrationType / DiameterCalibrationAdjustmentButtLog
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Korjauksen määrä tyvi
Diagram
Diagram index0.tmp#id1793
Type Integer3digitsType
Properties
content: simple
minOccurs: 0
Facets
maxInclusive 999
minInclusive -999
Source

<xs:element name="DiameterCalibrationAdjustmentButtLog" type="bdt:Integer3digitsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Korjauksen määrä tyvi</xs:documentation>
  </xs:annotation>
</xs:element>

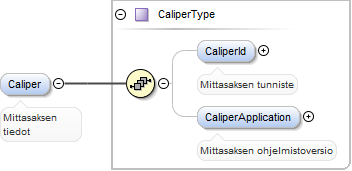

Element WorkingSiteHarvestingQualityControlType / Caliper
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Mittasaksen tiedot
Diagram
Diagram index25.tmp#id1804 index25.tmp#id1805 index25.tmp#id1803
Type CaliperType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model CaliperId{0,1} , CaliperApplication{0,1}
Children CaliperApplication, CaliperId
Instance

<Caliper>
  <CaliperId>{0,1}</CaliperId>
  <CaliperApplication>{0,1}</CaliperApplication>
</Caliper>
Source

<xs:element name="Caliper" type="CaliperType" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Mittasaksen tiedot</xs:documentation>
  </xs:annotation>
</xs:element>
Element CaliperType / CaliperId
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Mittasaksen tunniste
Diagram
Diagram index0.tmp#id400
Type String200Type
Properties
content: simple
minOccurs: 0
Facets
maxLength 200
Source

<xs:element name="CaliperId" type="bdt:String200Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Mittasaksen tunniste</xs:documentation>
  </xs:annotation>
</xs:element>
Element CaliperType / CaliperApplication
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Mittasaksen ohjelmistoversio
Diagram
Diagram index0.tmp#id400
Type String200Type
Properties
content: simple
minOccurs: 0
Facets
maxLength 200
Source

<xs:element name="CaliperApplication" type="bdt:String200Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Mittasaksen ohjelmistoversio</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestingQualityControl
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Annotations
Metsätraktorin punnitustarkkuus
Diagram
Diagram index25.tmp#id1750 index25.tmp#id1751 index25.tmp#id1752 index25.tmp#id1753 index25.tmp#id1754 index25.tmp#id1755 index25.tmp#id1756 index25.tmp#id1758 index25.tmp#id1759 index25.tmp#id1760 index25.tmp#id1761 index25.tmp#id1762 index25.tmp#id1786 index25.tmp#id1794 index25.tmp#id1802 index25.tmp#id1749
Type WorkingSiteHarvestingQualityControlType
Properties
content: complex
Model ServiceBuyerId , WorkingSiteId , ContractorId , ResourceId , OperatorId , ForestOwner , MeasurerType , MeasurementDate , MachineApplicationVersion , FileName , Bytes , Stem+ , LengthCalibration* , DiameterCalibration* , Caliper{0,1}
Children Bytes, Caliper, ContractorId, DiameterCalibration, FileName, ForestOwner, LengthCalibration, MachineApplicationVersion, MeasurementDate, MeasurerType, OperatorId, ResourceId, ServiceBuyerId, Stem, WorkingSiteId
Instance

<WorkingSiteHarvestingQualityControl>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ContractorId>{1,1}</ContractorId>
  <ResourceId>{1,1}</ResourceId>
  <OperatorId>{1,1}</OperatorId>
  <ForestOwner>{1,1}</ForestOwner>
  <MeasurerType>{1,1}</MeasurerType>
  <MeasurementDate>{1,1}</MeasurementDate>
  <MachineApplicationVersion>{1,1}</MachineApplicationVersion>
  <FileName>{1,1}</FileName>
  <Bytes>{1,1}</Bytes>
  <Stem>{1,unbounded}</Stem>
  <LengthCalibration>{0,unbounded}</LengthCalibration>
  <DiameterCalibration>{0,unbounded}</DiameterCalibration>
  <Caliper>{0,1}</Caliper>
</WorkingSiteHarvestingQualityControl>
Source

<xs:element name="WorkingSiteHarvestingQualityControl" type="WorkingSiteHarvestingQualityControlType">
  <xs:annotation>
    <xs:documentation>Metsätraktorin punnitustarkkuus</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type WorkingSiteHarvestingQualityControlType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Diagram
Diagram index25.tmp#id1750 index25.tmp#id1751 index25.tmp#id1752 index25.tmp#id1753 index25.tmp#id1754 index25.tmp#id1755 index25.tmp#id1756 index25.tmp#id1758 index25.tmp#id1759 index25.tmp#id1760 index25.tmp#id1761 index25.tmp#id1762 index25.tmp#id1786 index25.tmp#id1794 index25.tmp#id1802
Used by
Model ServiceBuyerId , WorkingSiteId , ContractorId , ResourceId , OperatorId , ForestOwner , MeasurerType , MeasurementDate , MachineApplicationVersion , FileName , Bytes , Stem+ , LengthCalibration* , DiameterCalibration* , Caliper{0,1}
Children Bytes, Caliper, ContractorId, DiameterCalibration, FileName, ForestOwner, LengthCalibration, MachineApplicationVersion, MeasurementDate, MeasurerType, OperatorId, ResourceId, ServiceBuyerId, Stem, WorkingSiteId
Source

<xs:complexType name="WorkingSiteHarvestingQualityControlType">
  <xs:sequence>
    <xs:element name="ServiceBuyerId" type="bdt:String20Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Urakanantajan tunnus</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteId" type="bdt:String20Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Lohkon tunniste</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ContractorId" type="bdt:String20Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Yritys</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ResourceId" type="bdt:String20Type">
      <xs:annotation>
        <xs:documentation>Moton numero</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="OperatorId" type="bdt:String20Type">
      <xs:annotation>
        <xs:documentation>Kuljettajan tunniste</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ForestOwner" type="bdt:String100Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Metsänomistajan nimi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MeasurerType" type="bdt:MeasurerTypeType">
      <xs:annotation>
        <xs:documentation>Kuljettajan tunniste</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MeasurementDate" type="bdt:TimeStampType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Aloitusaika</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MachineApplicationVersion" type="bdt:String100Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Vaaan versio tiedot</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="FileName" type="bdt:String100Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Tiedoston nimi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Bytes" type="xs:base64Binary" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Alkuperäisen tiedoston sisältö</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Stem" type="StemDataType" minOccurs="1" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Rungot</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LengthCalibration" type="LengthCalibrationType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Pituus kalibroinnit</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DiameterCalibration" type="DiameterCalibrationType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Läpimitta kalibroinnit</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Caliper" type="CaliperType" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Mittasaksen tiedot</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type StemDataType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Diagram
Diagram index25.tmp#id1764 index25.tmp#id1765 index25.tmp#id1766 index25.tmp#id1767 index25.tmp#id1769 index25.tmp#id1770
Used by
Model StemId , TreeSpecies , StemType{0,1} , SelectionType , StemCoordinates{0,1} , Log+
Children Log, SelectionType, StemCoordinates, StemId, StemType, TreeSpecies
Source

<xs:complexType name="StemDataType">
  <xs:sequence>
    <xs:element name="StemId" type="bdt:PositiveIntegerType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Mitattu paino</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TreeSpecies" type="wct:StanfordTreeSpeciesType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Stanford-puulajikoodi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="StemType" type="bdt:HarvestingStemTypeType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Runkolajin koodi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SelectionType" type="ControlStemSelectionType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Tiedoston nimi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="StemCoordinates" type="gdt:PointGeometryType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Sijainti</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Log" type="LogDataType" minOccurs="1" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Pölkyt</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Simple Type ControlStemSelectionType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Randomly selected stem
enumeration Manually by operator selected stem
Used by
Source

<xs:simpleType name="ControlStemSelectionType">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Randomly selected stem"/>
    <xs:enumeration value="Manually by operator selected stem"/>
  </xs:restriction>
</xs:simpleType>
Complex Type LogDataType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Diagram
Diagram index25.tmp#id1772 index25.tmp#id1773 index25.tmp#id1774 index25.tmp#id1775 index25.tmp#id1776 index25.tmp#id1777 index25.tmp#id1778 index25.tmp#id1779 index25.tmp#id1780 index25.tmp#id1781
Used by
Model LogKey , ProductKey , LogVolume , ControlLogVolume , LogLength , ControlLogLength , CalibrationUseLog{0,1} , LogDiameterClass{0,1} , LogLengthClass{0,1} , LogMeasurements+
Children CalibrationUseLog, ControlLogLength, ControlLogVolume, LogDiameterClass, LogKey, LogLength, LogLengthClass, LogMeasurements, LogVolume, ProductKey
Source

<xs:complexType name="LogDataType">
  <xs:sequence>
    <xs:element name="LogKey" type="bdt:String10Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Pölkyn avain</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ProductKey" type="bdt:String50Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>PTL:n tunniste</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LogVolume" type="bdt:Decimal3FractionDigitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Pölkyn tilavuus (m3)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ControlLogVolume" type="bdt:Decimal3FractionDigitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Kontrolli pölkyn tilavuus (m3)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LogLength" type="bdt:PositiveInteger4digitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Pölkyn pituus</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ControlLogLength" type="bdt:PositiveInteger4digitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Kontrolli pölkyn pituus</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CalibrationUseLog" type="bdt:YesNoType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Onko käytetty kalibroinnissa</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LogDiameterClass" type="bdt:PositiveInteger3digitsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Pituusluokka</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LogLengthClass" type="bdt:PositiveInteger4digitsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Läpimittaluokka</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LogMeasurements" type="LogMeasurementsType" minOccurs="1" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Pölkyn mittaustiedot</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type LogMeasurementsType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Diagram
Diagram index25.tmp#id1783 index25.tmp#id1784 index25.tmp#id1785
Used by
Model LogDiameter , ControlLogDiameter , MeasurementDate
Children ControlLogDiameter, LogDiameter, MeasurementDate
Source

<xs:complexType name="LogMeasurementsType">
  <xs:sequence>
    <xs:element name="LogDiameter" type="bdt:PositiveInteger3digitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>läpimitta (mm)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ControlLogDiameter" type="bdt:PositiveInteger3digitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>kontrolli läpimitta (mm)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MeasurementDate" type="bdt:TimeStampType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Mittaus pvm</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type LengthCalibrationType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Diagram
Diagram index25.tmp#id1788 index25.tmp#id1789 index25.tmp#id1790 index25.tmp#id1791 index25.tmp#id1792
Used by
Model TreeSpecies , LengthCalibrationDate , LengthCalibrationReason , LengthCalibrationDescription , LengthCalibrationAdjustment
Children LengthCalibrationAdjustment, LengthCalibrationDate, LengthCalibrationDescription, LengthCalibrationReason, TreeSpecies
Source

<xs:complexType name="LengthCalibrationType">
  <xs:sequence>
    <xs:element name="TreeSpecies" type="wct:StanfordTreeSpeciesType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Stanford-puulajikoodi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LengthCalibrationDate" type="bdt:TimeStampType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Kalibrointi pvm</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LengthCalibrationReason" type="bdt:String200Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Kalibrointi syy</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LengthCalibrationDescription" type="bdt:String200Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Kalibroinin kuvaus</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LengthCalibrationAdjustment" type="bdt:Integer3digitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Korjauksen määrä</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type DiameterCalibrationType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Diagram
Diagram index25.tmp#id1796 index25.tmp#id1797 index25.tmp#id1798 index25.tmp#id1799 index25.tmp#id1800 index25.tmp#id1801
Used by
Model TreeSpecies , DiameterCalibrationDate , DiameterCalibrationReason , DiameterCalibrationDescription , DiameterCalibrationAdjustment , DiameterCalibrationAdjustmentButtLog{0,1}
Children DiameterCalibrationAdjustment, DiameterCalibrationAdjustmentButtLog, DiameterCalibrationDate, DiameterCalibrationDescription, DiameterCalibrationReason, TreeSpecies
Source

<xs:complexType name="DiameterCalibrationType">
  <xs:sequence>
    <xs:element name="TreeSpecies" type="wct:StanfordTreeSpeciesType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Stanford-puulajikoodi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DiameterCalibrationDate" type="bdt:TimeStampType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Kalibrointi pvm</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DiameterCalibrationReason" type="bdt:String200Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Kalibrointi syy</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DiameterCalibrationDescription" type="bdt:String200Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Kalibroinin kuvaus</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DiameterCalibrationAdjustment" type="bdt:Integer3digitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Korjauksen määrä</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DiameterCalibrationAdjustmentButtLog" type="bdt:Integer3digitsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Korjauksen määrä tyvi</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

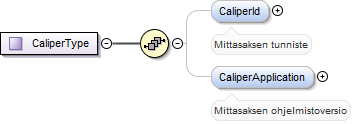

Complex Type CaliperType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestingQualityControl
Diagram
Diagram index25.tmp#id1804 index25.tmp#id1805
Used by
Model CaliperId{0,1} , CaliperApplication{0,1}
Children CaliperApplication, CaliperId
Source

<xs:complexType name="CaliperType">
  <xs:sequence>
    <xs:element name="CaliperId" type="bdt:String200Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Mittasaksen tunniste</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CaliperApplication" type="bdt:String200Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Mittasaksen ohjelmistoversio</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
