Schema documentation for

Showing:

Annotations

Attributes

Diagrams

Instances

Properties

Source

Used by

Main schema Envelope.xsd

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Properties

attribute form default:	unqualified
element form default:	qualified
version:	V17.04

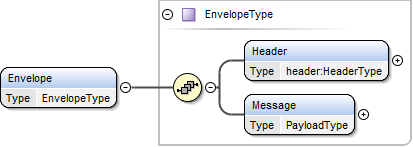

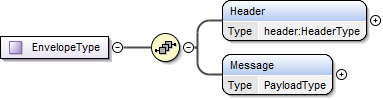

Element Envelope

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Diagram

Type

EnvelopeType

Properties

content:

complex

Model

Header , Message

Children

Header, Message

Instance

<Envelope>
  <Header schemaPackageSubversion="" schemaPackageVersion="" schemaPackageVersionDate="">{1,1}</Header>
  <Message>{1,1}</Message>
</Envelope>

Source

<xs:element name="Envelope" type="EnvelopeType"/>

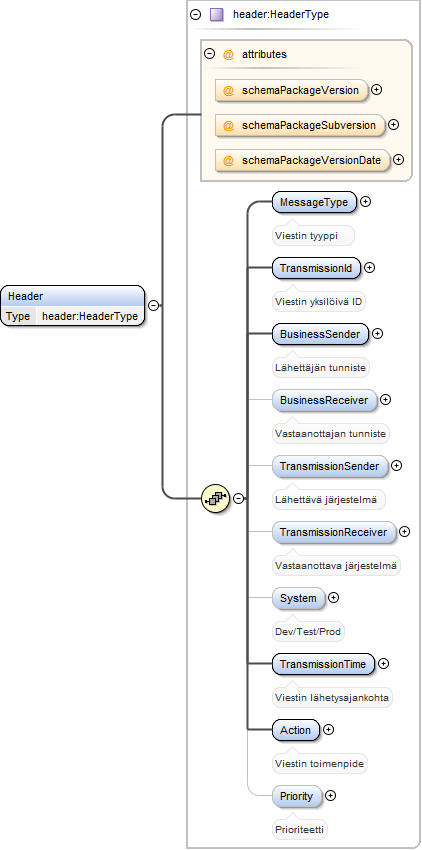

Element EnvelopeType / Header

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Diagram

Type

HeaderType

Properties

content:

complex

Model

MessageType , TransmissionId , BusinessSender , BusinessReceiver{0,1} , TransmissionSender{0,1} , TransmissionReceiver{0,1} , System{0,1} , TransmissionTime , Action , Priority{0,1}

Children

Action, BusinessReceiver, BusinessSender, MessageType, Priority, System, TransmissionId, TransmissionReceiver, TransmissionSender, TransmissionTime

Instance

<Header schemaPackageSubversion="" schemaPackageVersion="" schemaPackageVersionDate="">
  <MessageType>{1,1}</MessageType>
  <TransmissionId>{1,1}</TransmissionId>
  <BusinessSender>{1,1}</BusinessSender>
  <BusinessReceiver>{0,1}</BusinessReceiver>
  <TransmissionSender>{0,1}</TransmissionSender>
  <TransmissionReceiver>{0,1}</TransmissionReceiver>
  <System>{0,1}</System>
  <TransmissionTime>{1,1}</TransmissionTime>
  <Action>{1,1}</Action>
  <Priority>{0,1}</Priority>
</Header>

Attributes

QName	Type	Use
schemaPackageSubversion	ForestDataStandardSchemaPackageSubversionType	optional
schemaPackageVersion	ForestDataStandardSchemaPackageVersionType	optional
schemaPackageVersionDate	DateType	optional

Source

<xs:element name="Header" type="header:HeaderType"/>

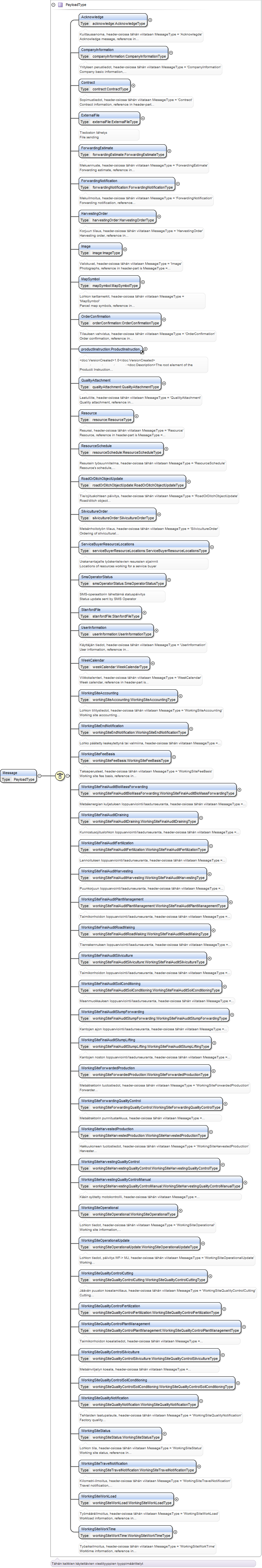

Element EnvelopeType / Message

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Diagram

Type

PayloadType

Properties

content:

complex

Model

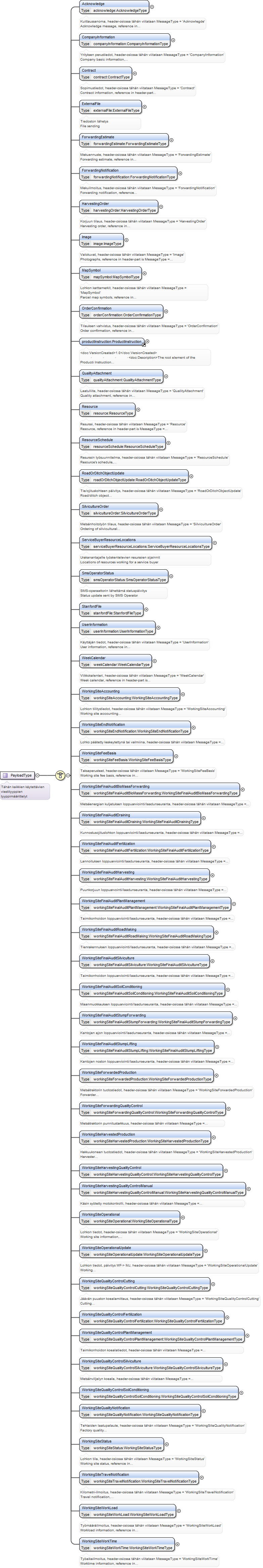

Children

Acknowledge, CompanyInformation, Contract, ExternalFile, ForwardingEstimate, ForwardingNotification, HarvestingOrder, Image, MapSymbol, OrderConfirmation, ProductInstruction, QualityAttachment, Resource, ResourceSchedule, RoadOrDitchObjectUpdate, ServiceBuyerResourceLocations, SilvicultureOrder, SmsOperatorStatus, StanfordFile, UserInformation, WeekCalendar, WorkingSiteAccounting, WorkingSiteEndNotification, WorkingSiteFeeBasis, WorkingSiteFinalAuditBioMassForwarding, WorkingSiteFinalAuditDraining, WorkingSiteFinalAuditFertilization, WorkingSiteFinalAuditHarvesting, WorkingSiteFinalAuditPlantManagement, WorkingSiteFinalAuditRoadMaking, WorkingSiteFinalAuditSilviculture, WorkingSiteFinalAuditSoilConditioning, WorkingSiteFinalAuditStumpForwarding, WorkingSiteFinalAuditStumpLifting, WorkingSiteForwardedProduction, WorkingSiteForwardingQualityControl, WorkingSiteHarvestedProduction, WorkingSiteHarvestingQualityControl, WorkingSiteHarvestingQualityControlManual, WorkingSiteOperational, WorkingSiteOperationalUpdate, WorkingSiteQualityControlCutting, WorkingSiteQualityControlFertilization, WorkingSiteQualityControlPlantManagement, WorkingSiteQualityControlSilviculture, WorkingSiteQualityControlSoilConditioning, WorkingSiteQualityNotification, WorkingSiteStatus, WorkingSiteTravelNotification, WorkingSiteWorkLoad, WorkingSiteWorkTime

Instance

<Message>
  <Acknowledge>{1,1}</Acknowledge>
  <CompanyInformation>{1,1}</CompanyInformation>
  <Contract>{1,1}</Contract>
  <ExternalFile>{1,1}</ExternalFile>
  <ForwardingEstimate>{1,1}</ForwardingEstimate>

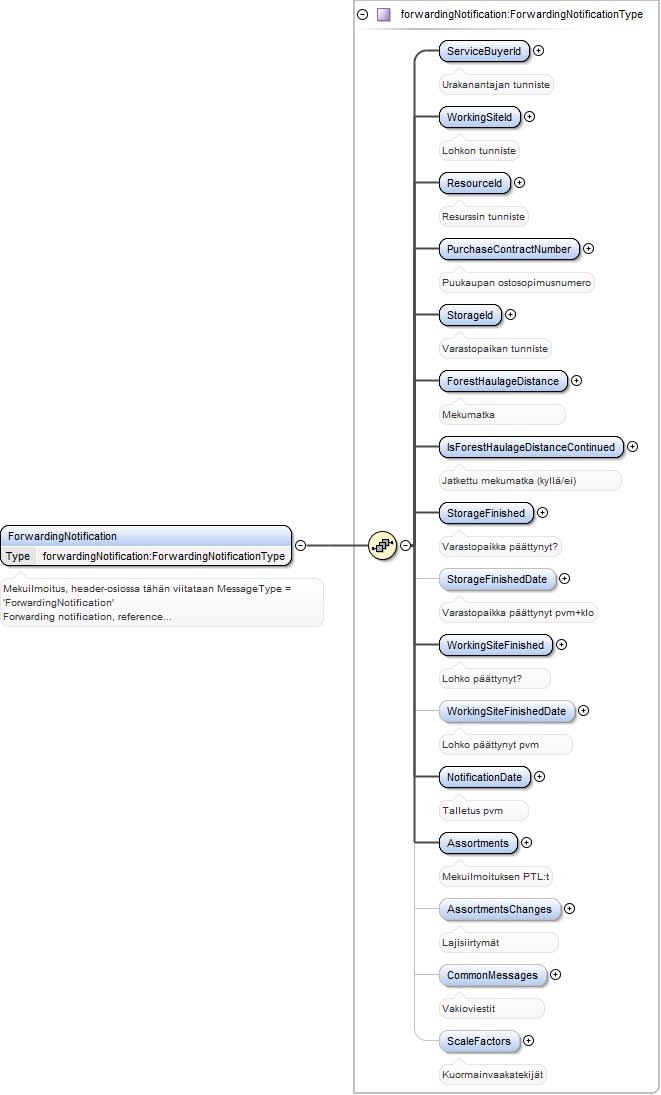

  <ForwardingNotification>{1,1}</ForwardingNotification>

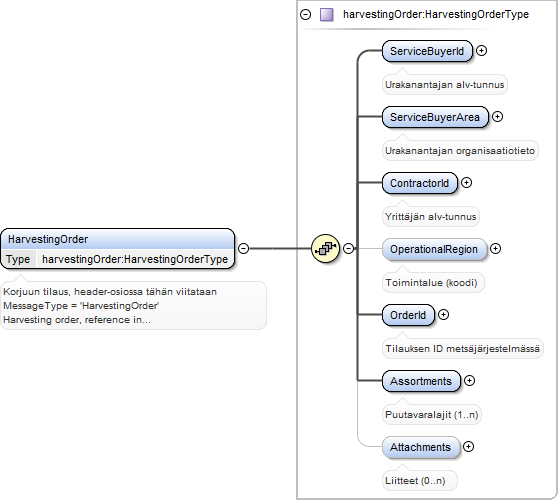

  <HarvestingOrder>{1,1}</HarvestingOrder>

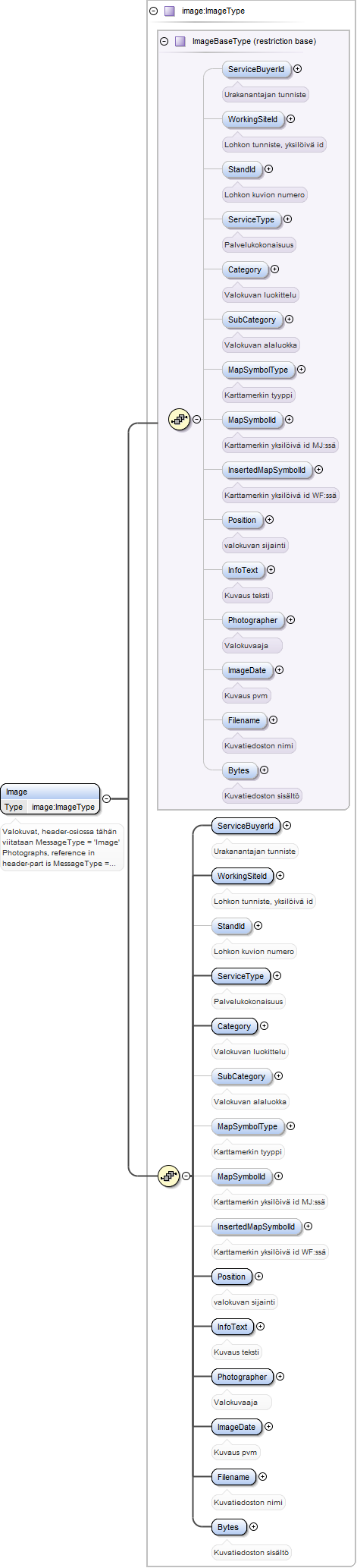

  <Image>{1,1}</Image>
  <MapSymbol>{1,1}</MapSymbol>

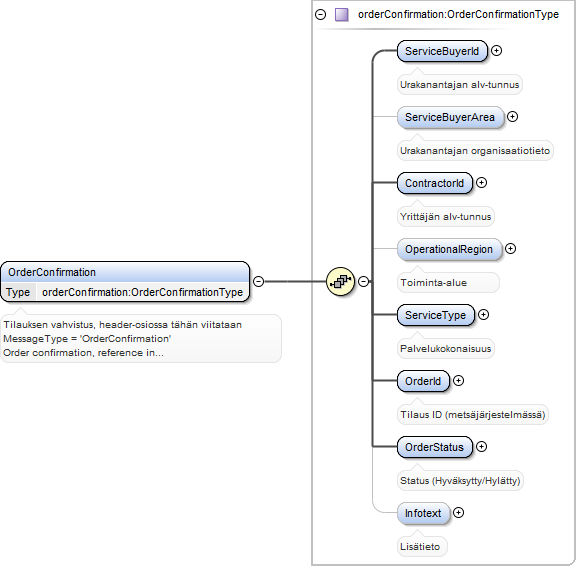

  <OrderConfirmation>{1,1}</OrderConfirmation>
  <ProductInstruction areaUnit="" diameterUnit="" lengthUnit="" messageType="pin" version="" versionDate="" volumeUnit="" weightUnit="">{1,1}</ProductInstruction>
  <QualityAttachment>{1,1}</QualityAttachment>

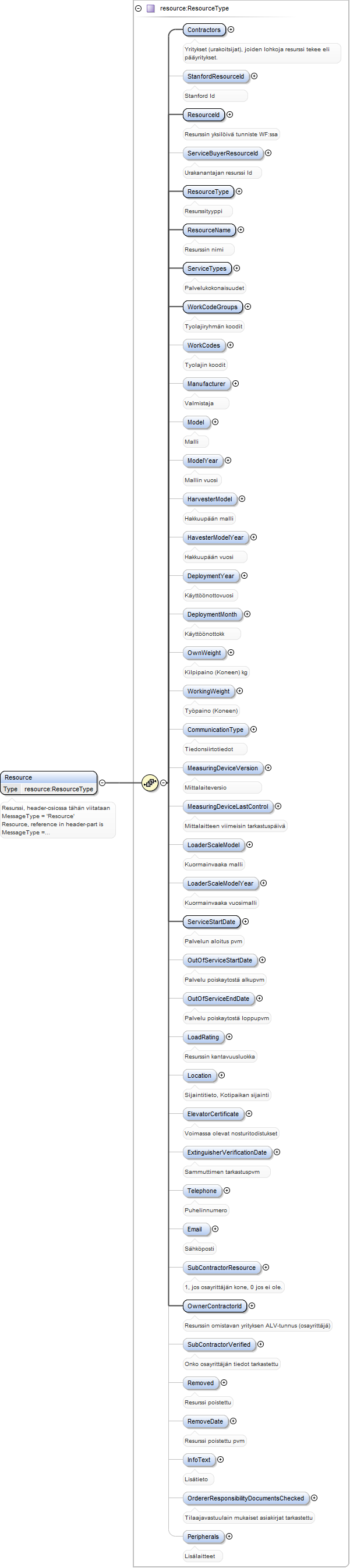

  <Resource>{1,1}</Resource>
  <ResourceSchedule>{1,1}</ResourceSchedule>

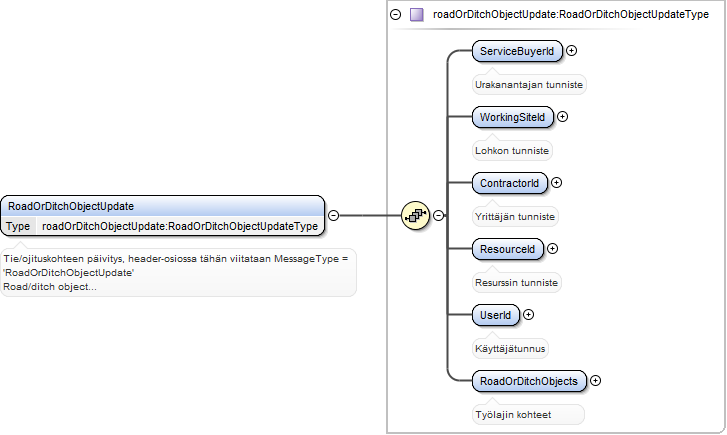

  <RoadOrDitchObjectUpdate>{1,1}</RoadOrDitchObjectUpdate>

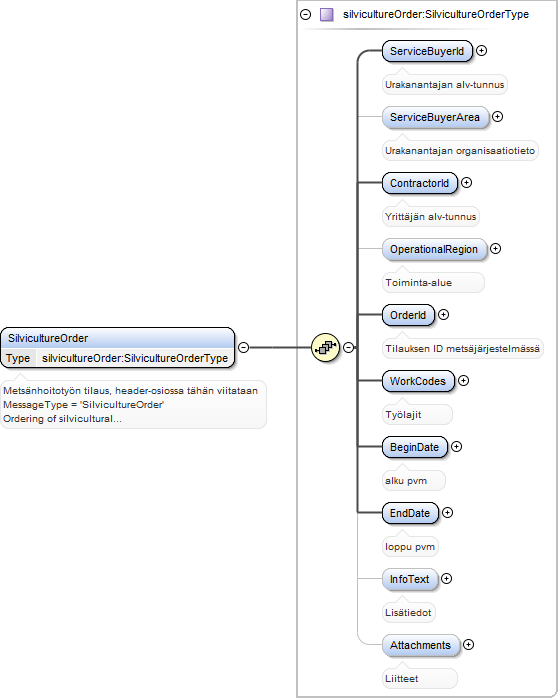

  <SilvicultureOrder>{1,1}</SilvicultureOrder>

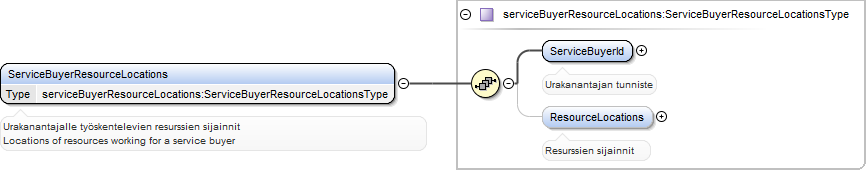

  <ServiceBuyerResourceLocations>{1,1}</ServiceBuyerResourceLocations>

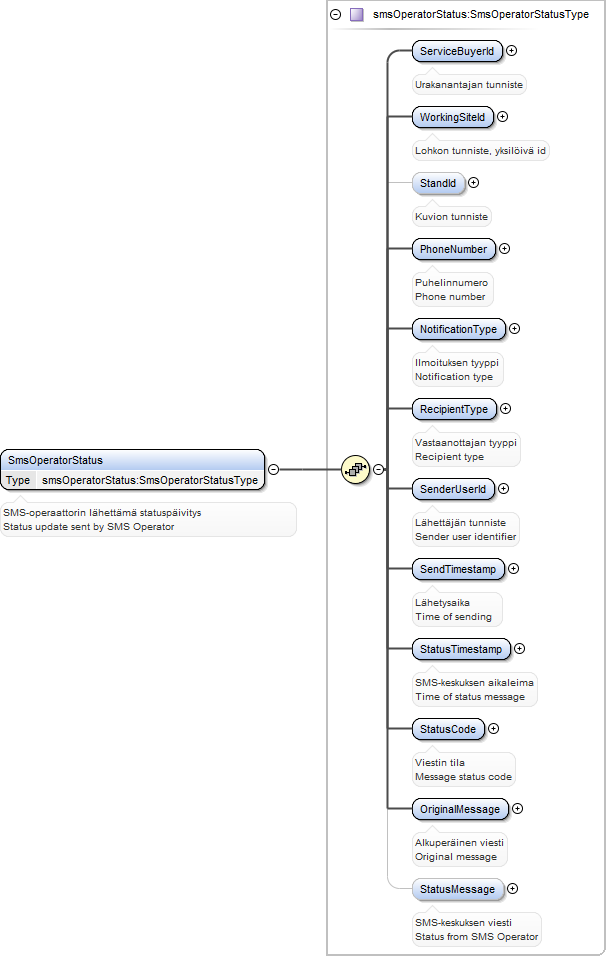

  <SmsOperatorStatus>{1,1}</SmsOperatorStatus>
  <StanfordFile>{1,1}</StanfordFile>
  <UserInformation>{1,1}</UserInformation>

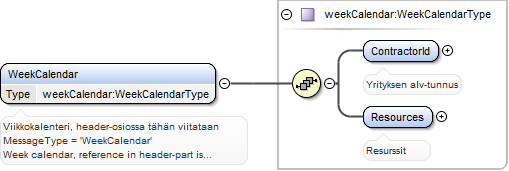

  <WeekCalendar>{1,1}</WeekCalendar>
  <WorkingSiteAccounting>{1,1}</WorkingSiteAccounting>

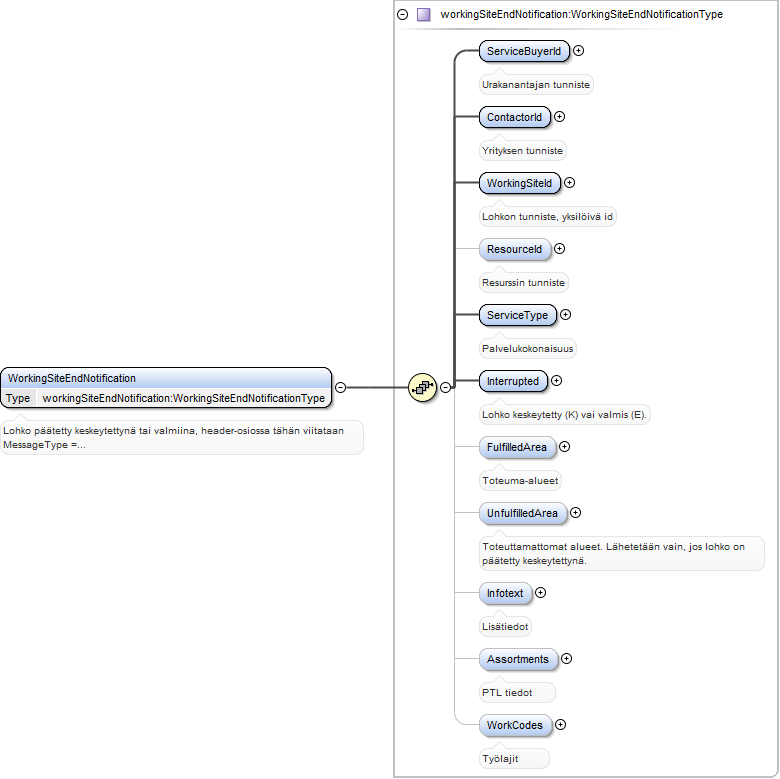

  <WorkingSiteEndNotification>{1,1}</WorkingSiteEndNotification>
  <WorkingSiteFeeBasis>{1,1}</WorkingSiteFeeBasis>

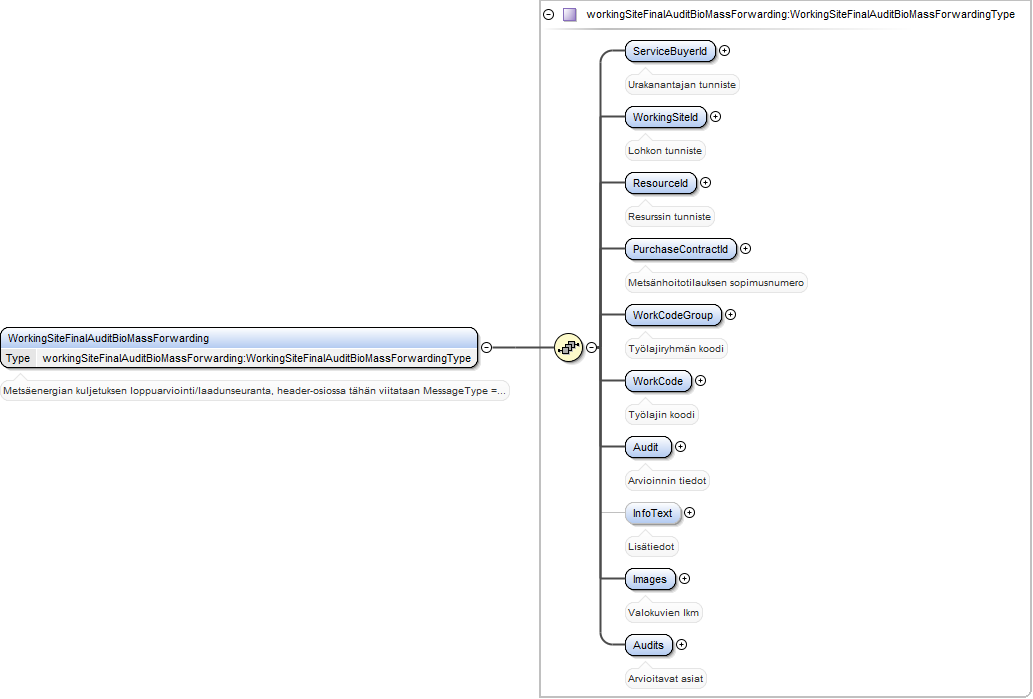

  <WorkingSiteFinalAuditBioMassForwarding>{1,1}</WorkingSiteFinalAuditBioMassForwarding>
  <WorkingSiteFinalAuditDraining>{1,1}</WorkingSiteFinalAuditDraining>

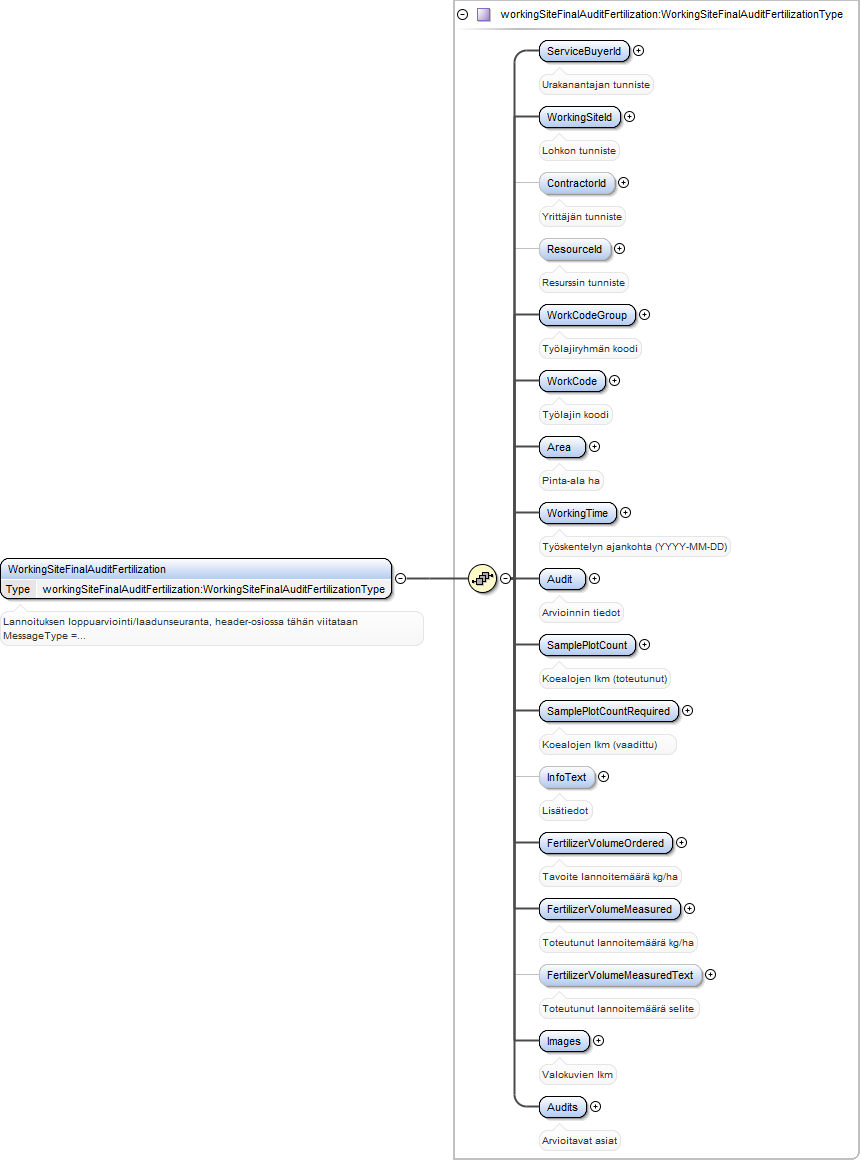

  <WorkingSiteFinalAuditFertilization>{1,1}</WorkingSiteFinalAuditFertilization>

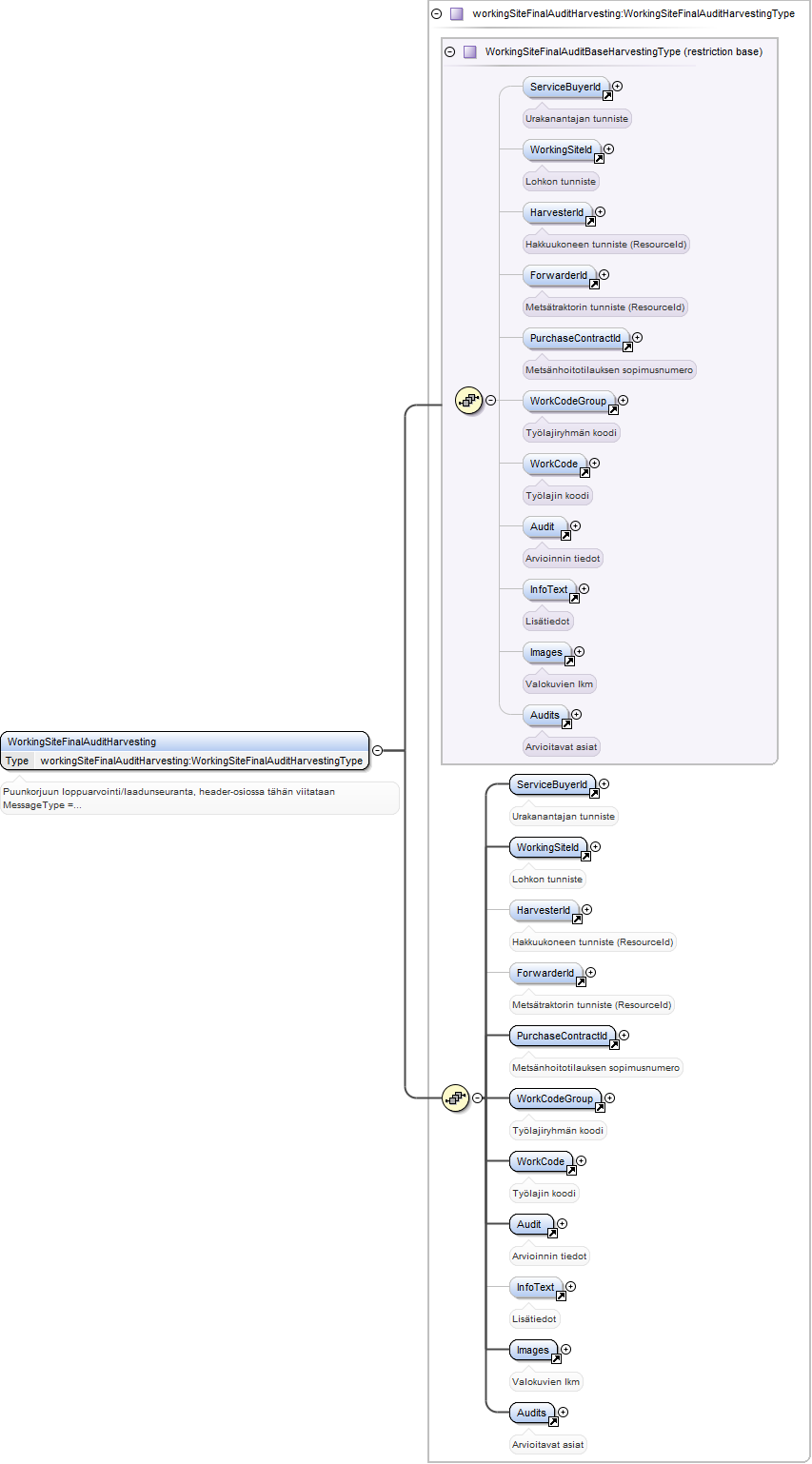

  <WorkingSiteFinalAuditHarvesting>{1,1}</WorkingSiteFinalAuditHarvesting>
  <WorkingSiteFinalAuditPlantManagement>{1,1}</WorkingSiteFinalAuditPlantManagement>
  <WorkingSiteFinalAuditRoadMaking>{1,1}</WorkingSiteFinalAuditRoadMaking>

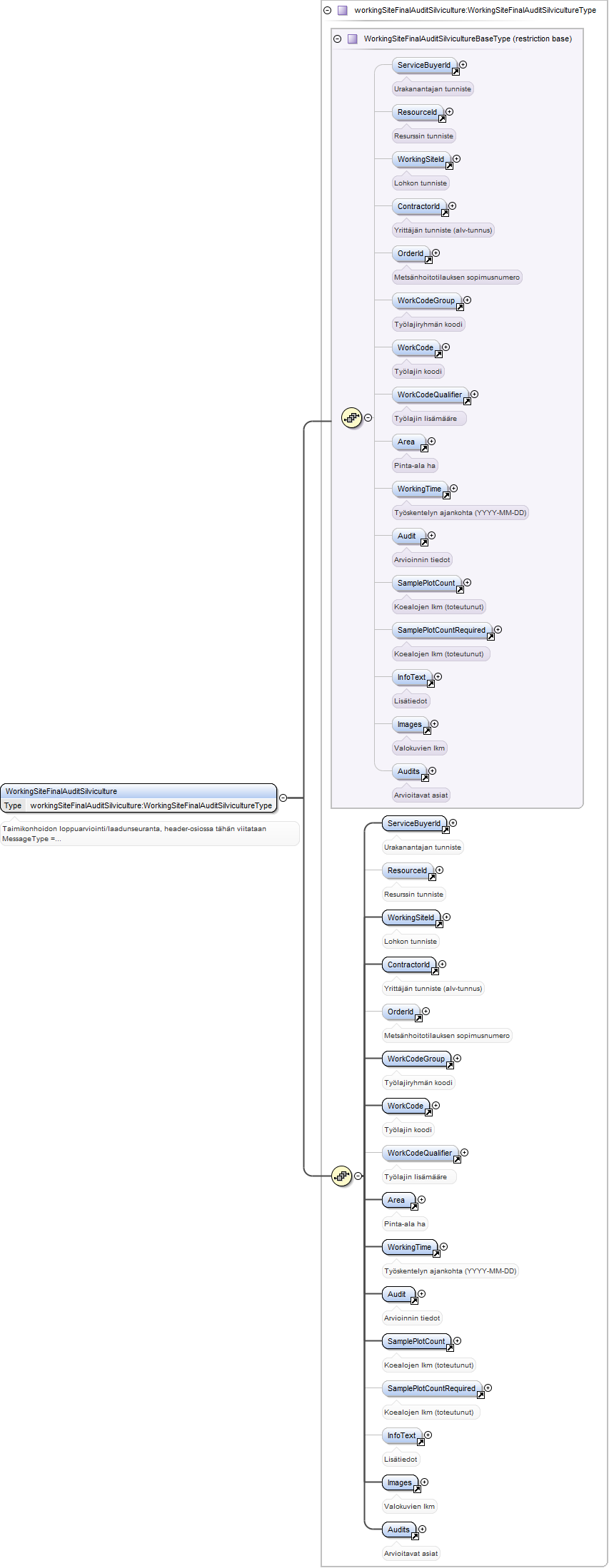

  <WorkingSiteFinalAuditSilviculture>{1,1}</WorkingSiteFinalAuditSilviculture>
  <WorkingSiteFinalAuditSoilConditioning>{1,1}</WorkingSiteFinalAuditSoilConditioning>

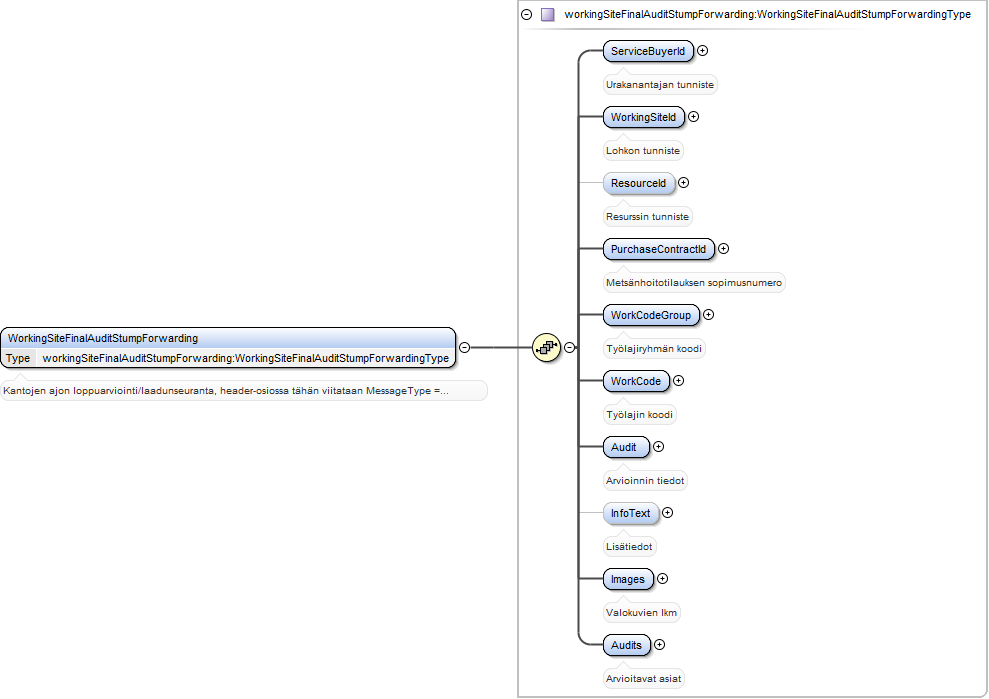

  <WorkingSiteFinalAuditStumpForwarding>{1,1}</WorkingSiteFinalAuditStumpForwarding>

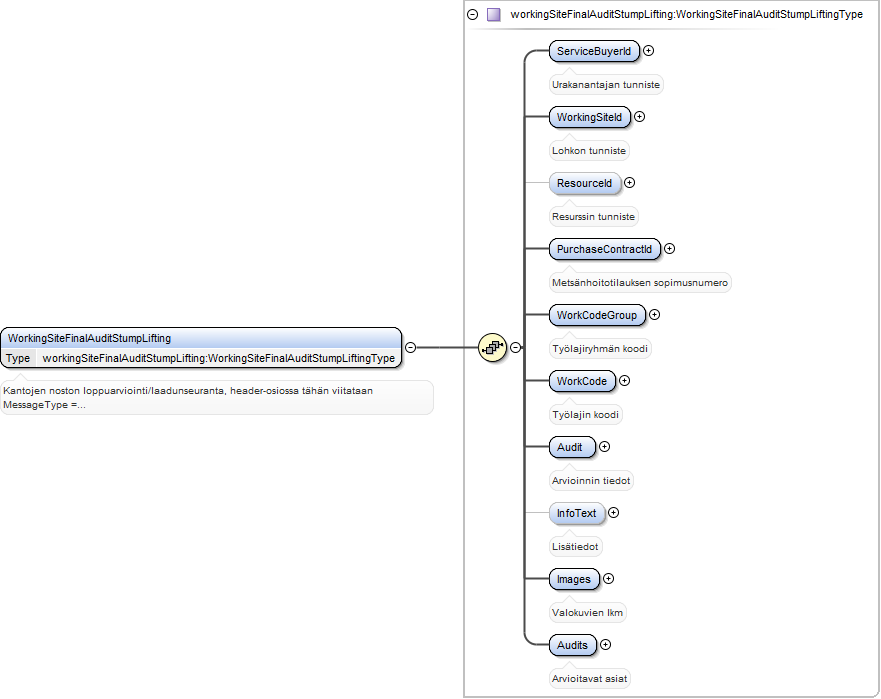

  <WorkingSiteFinalAuditStumpLifting>{1,1}</WorkingSiteFinalAuditStumpLifting>
  <WorkingSiteForwardedProduction>{1,1}</WorkingSiteForwardedProduction>

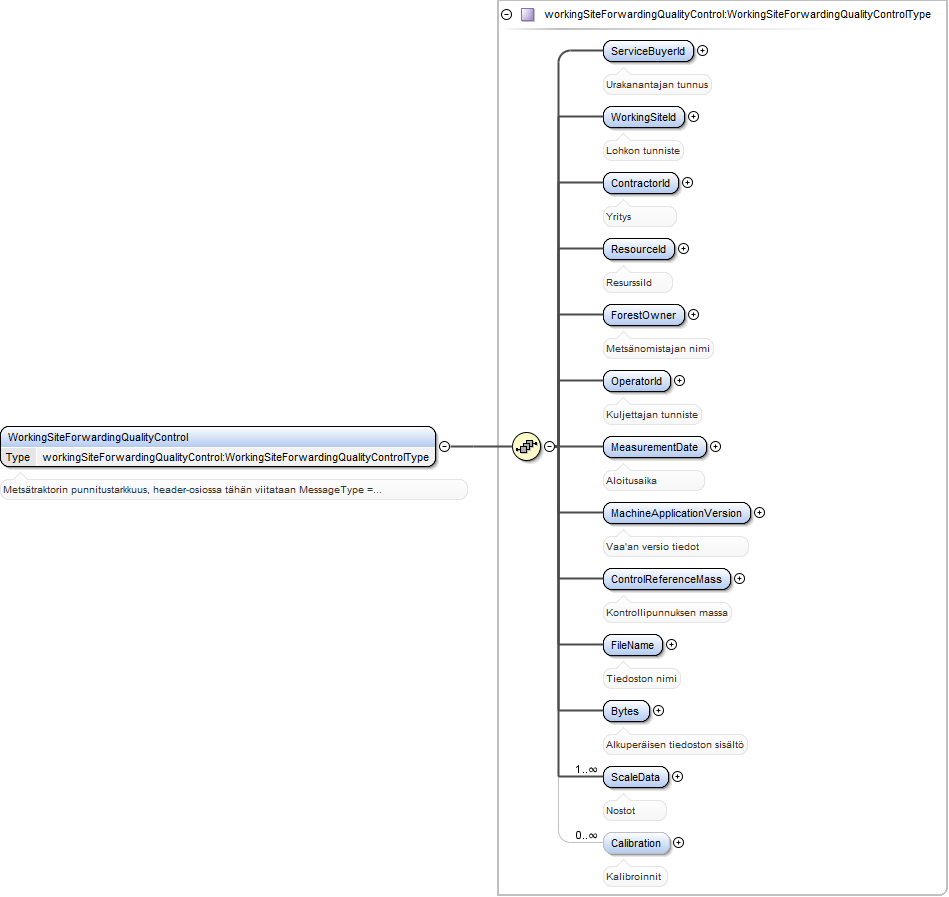

  <WorkingSiteForwardingQualityControl>{1,1}</WorkingSiteForwardingQualityControl>

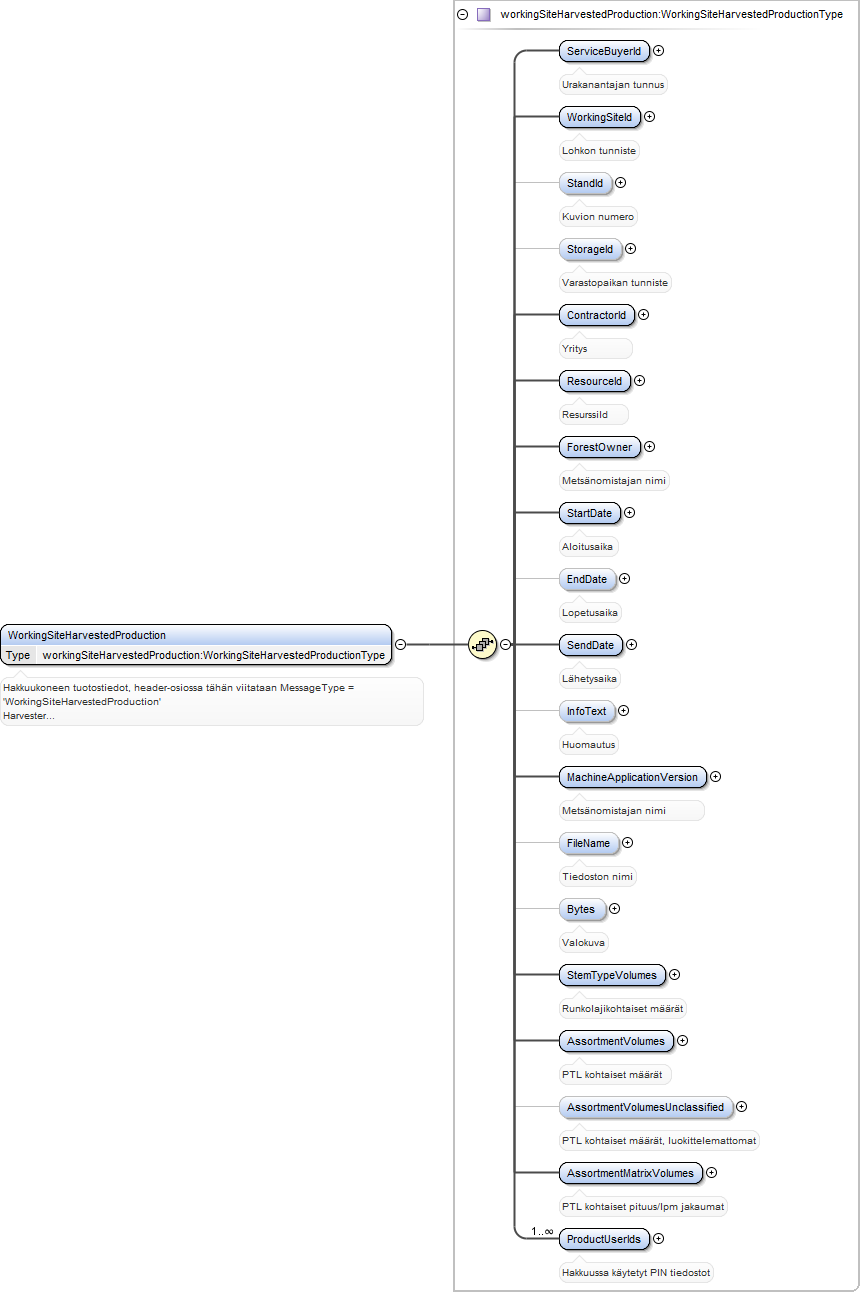

  <WorkingSiteHarvestedProduction>{1,1}</WorkingSiteHarvestedProduction>

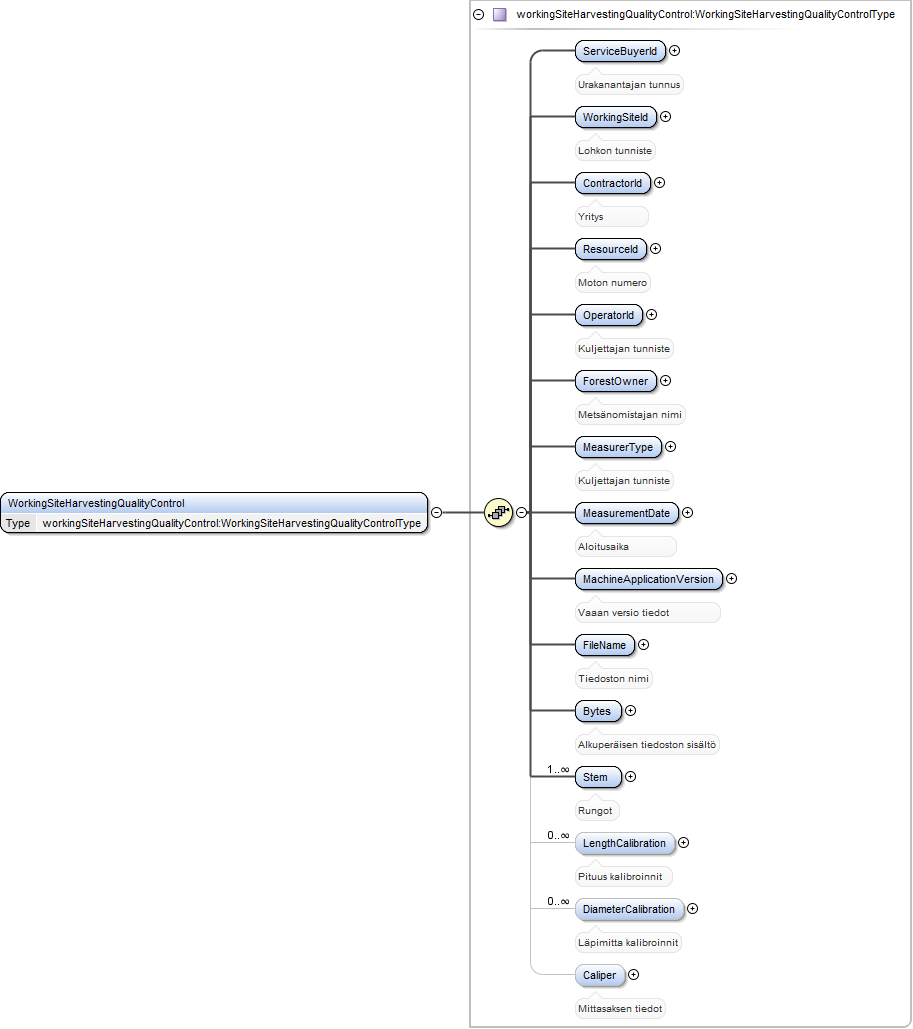

  <WorkingSiteHarvestingQualityControl>{1,1}</WorkingSiteHarvestingQualityControl>
  <WorkingSiteHarvestingQualityControlManual>{1,1}</WorkingSiteHarvestingQualityControlManual>
  <WorkingSiteOperational>{1,1}</WorkingSiteOperational>

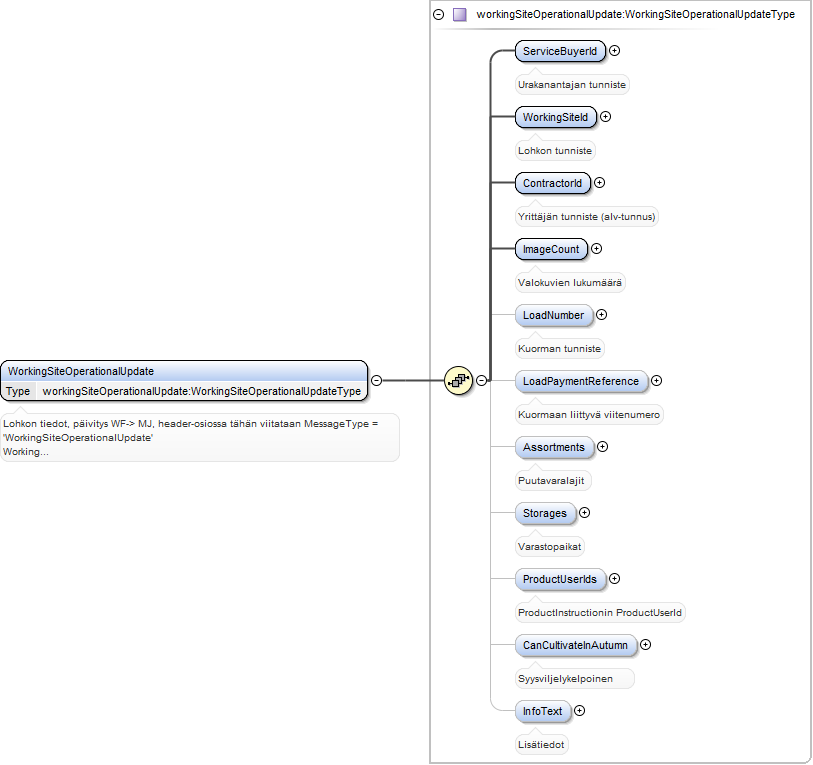

  <WorkingSiteOperationalUpdate>{1,1}</WorkingSiteOperationalUpdate>

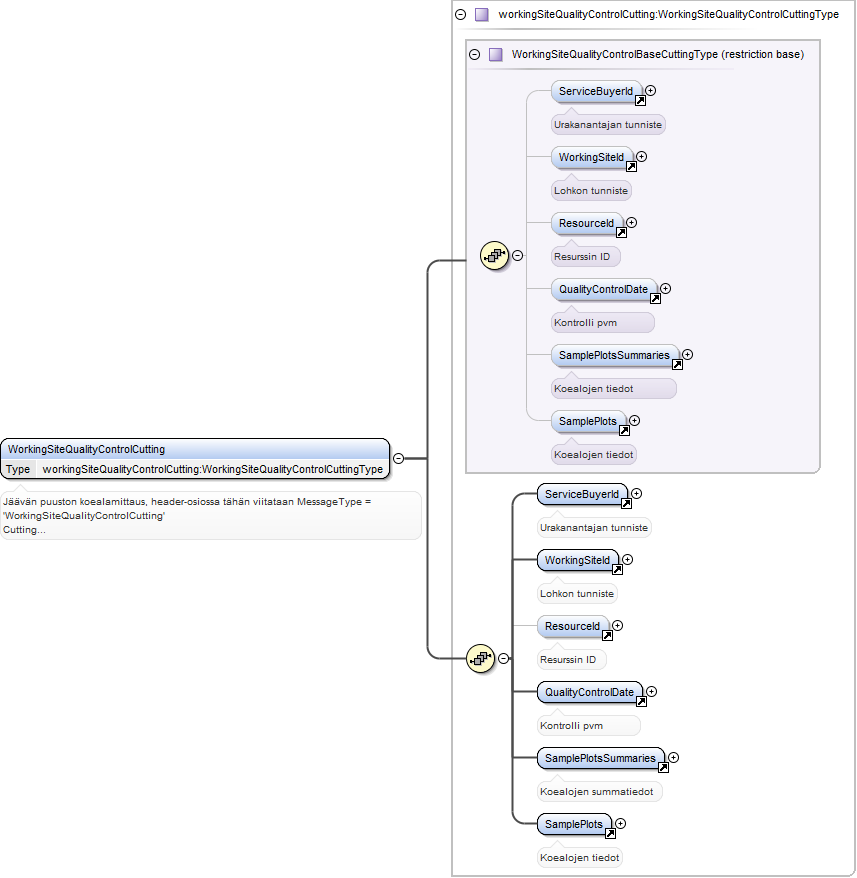

  <WorkingSiteQualityControlCutting>{1,1}</WorkingSiteQualityControlCutting>
  <WorkingSiteQualityControlFertilization>{1,1}</WorkingSiteQualityControlFertilization>

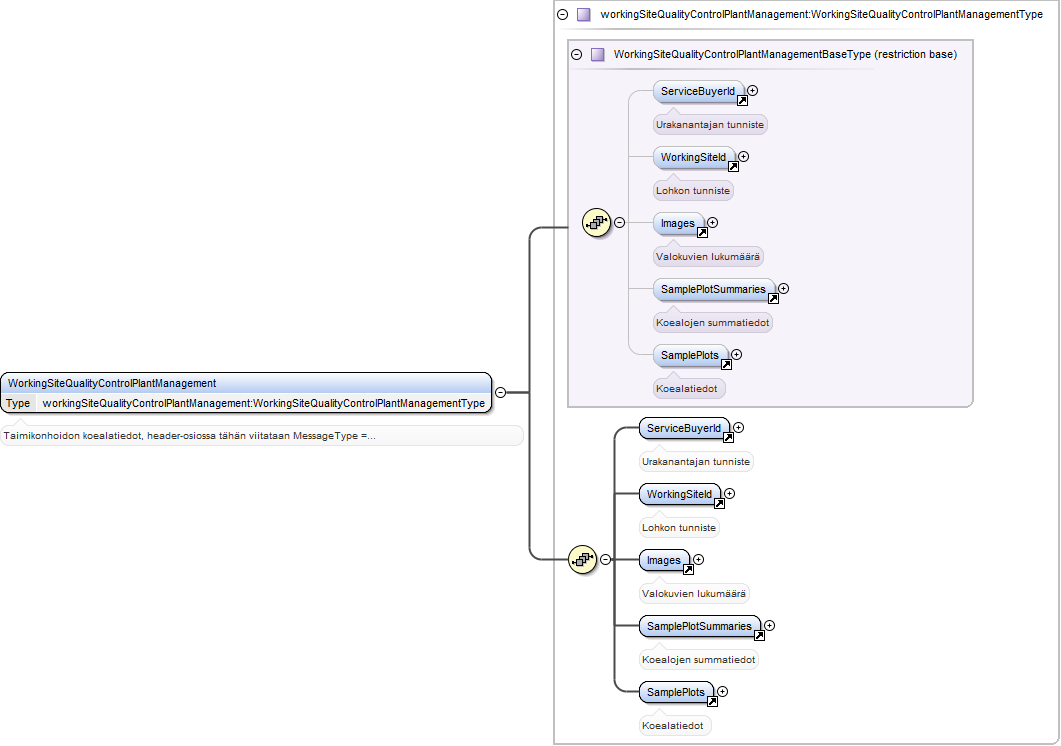

  <WorkingSiteQualityControlPlantManagement>{1,1}</WorkingSiteQualityControlPlantManagement>

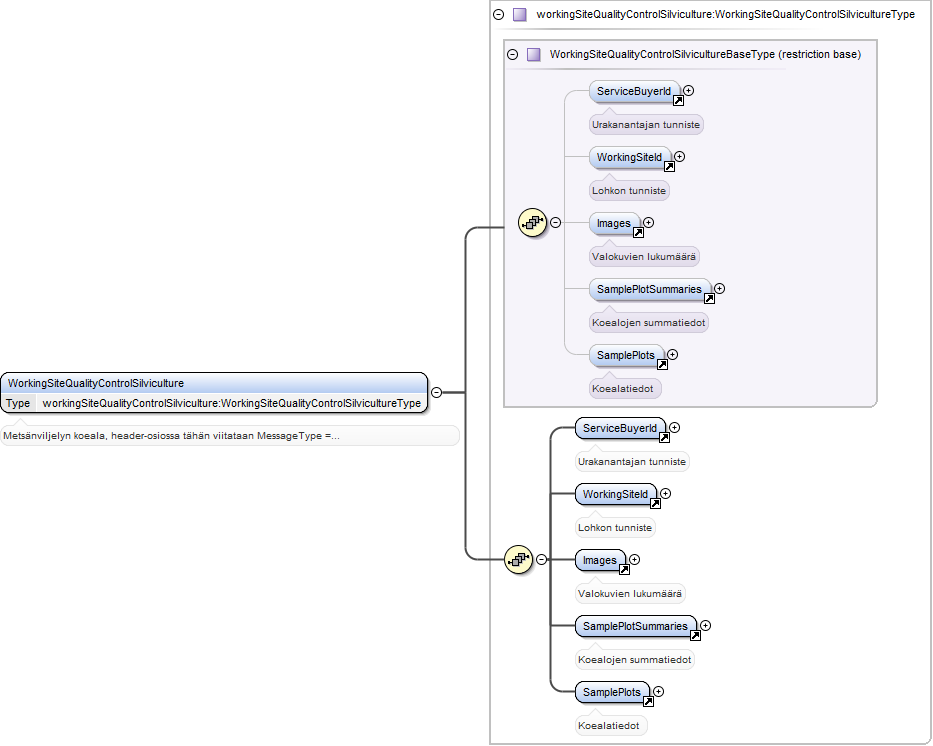

  <WorkingSiteQualityControlSilviculture>{1,1}</WorkingSiteQualityControlSilviculture>
  <WorkingSiteQualityControlSoilConditioning>{1,1}</WorkingSiteQualityControlSoilConditioning>
  <WorkingSiteQualityNotification>{1,1}</WorkingSiteQualityNotification>

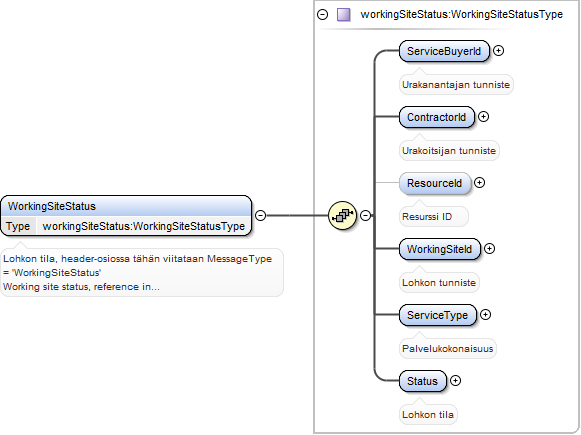

  <WorkingSiteStatus>{1,1}</WorkingSiteStatus>

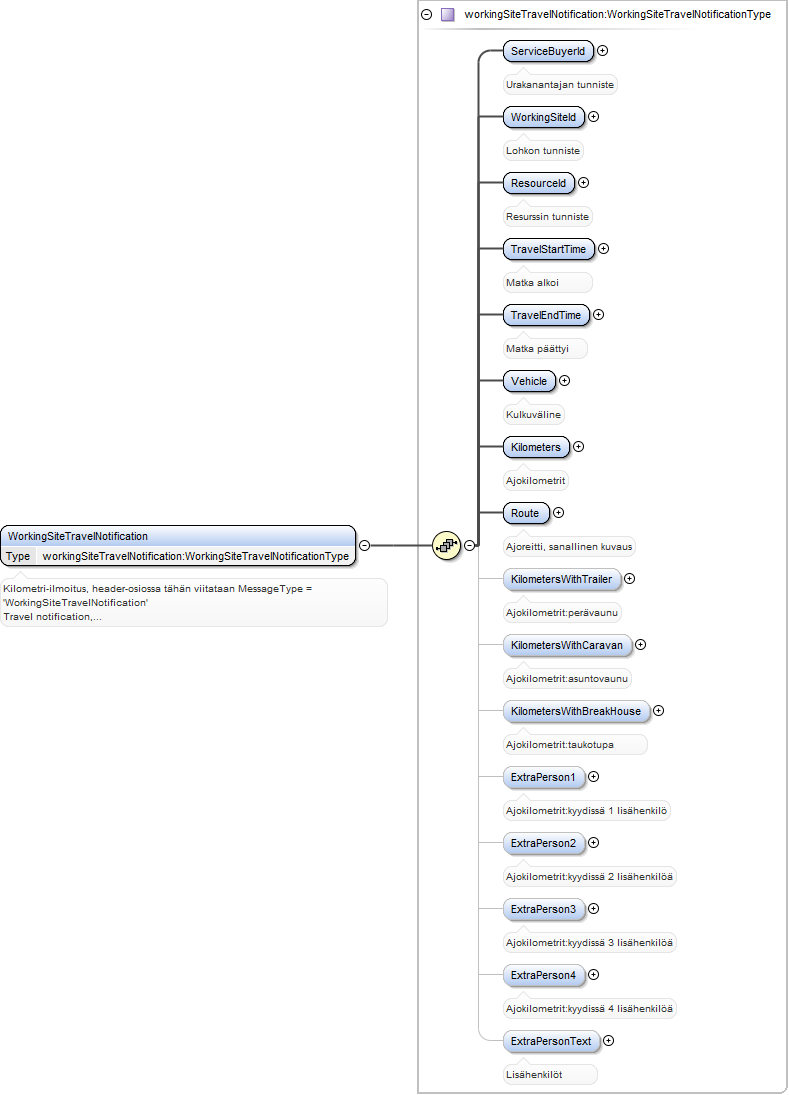

  <WorkingSiteTravelNotification>{1,1}</WorkingSiteTravelNotification>
  <WorkingSiteWorkLoad>{1,1}</WorkingSiteWorkLoad>

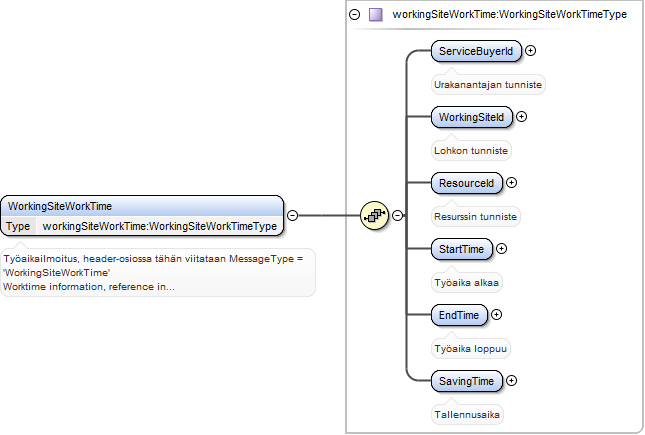

  <WorkingSiteWorkTime>{1,1}</WorkingSiteWorkTime>
</Message>

Source

<xs:element name="Message" type="PayloadType"/>

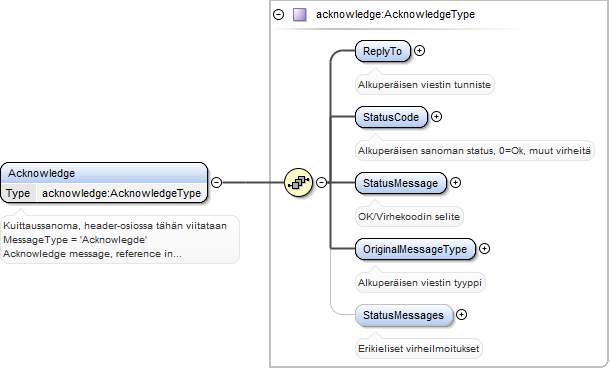

Element PayloadType / Acknowledge

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Kuittaussanoma, header-osiossa tähän viitataan MessageType = 'Acknowlegde'

Acknowledge message, reference in header-part is MessageType = 'Acknowledge'

Diagram

Type

AcknowledgeType

Properties

content:

complex

Model

ReplyTo , StatusCode , StatusMessage , OriginalMessageType , StatusMessages{0,1}

Children

OriginalMessageType, ReplyTo, StatusCode, StatusMessage, StatusMessages

Instance

<Acknowledge>
  <ReplyTo>{1,1}</ReplyTo>
  <StatusCode>{1,1}</StatusCode>
  <StatusMessage>{1,1}</StatusMessage>
  <OriginalMessageType>{1,1}</OriginalMessageType>
  <StatusMessages>{0,1}</StatusMessages>
</Acknowledge>

Source

<xs:element name="Acknowledge" type="acknowledge:AcknowledgeType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuittaussanoma, header-osiossa tähän viitataan MessageType = 'Acknowlegde'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Acknowledge message, reference in header-part is MessageType = 'Acknowledge'</xs:documentation>
  </xs:annotation>
</xs:element>

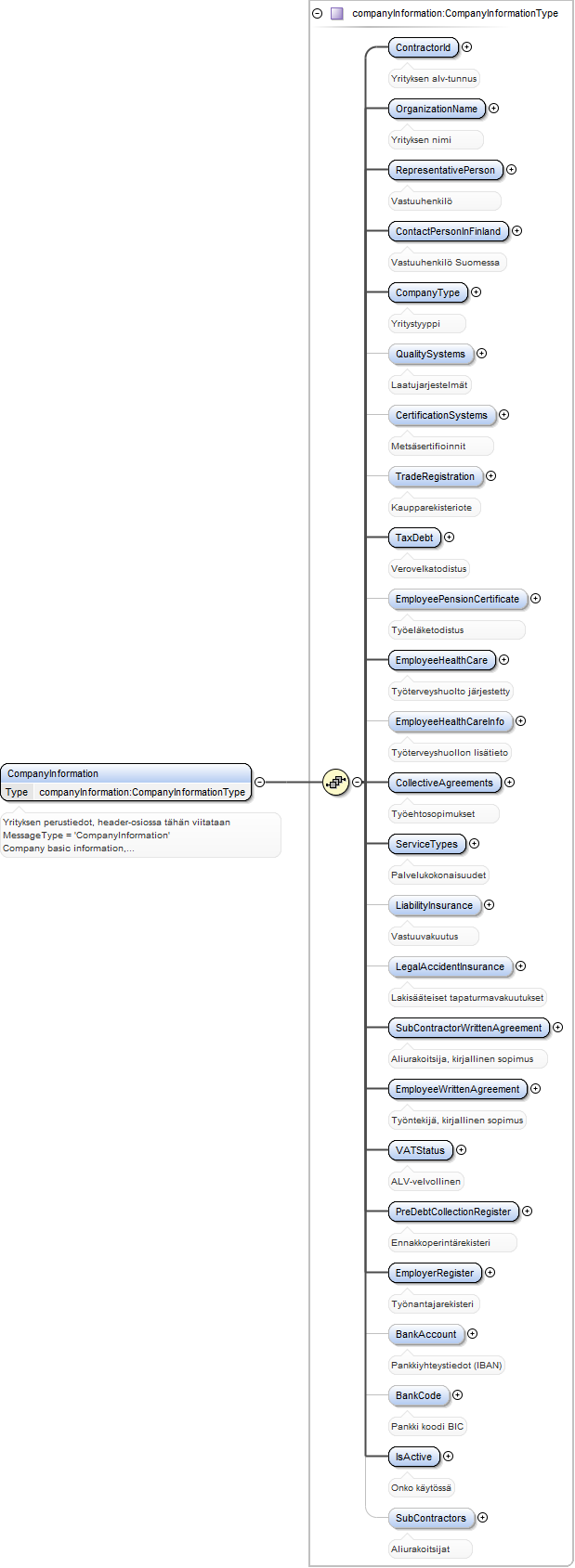

Element PayloadType / CompanyInformation

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Yrityksen perustiedot, header-osiossa tähän viitataan MessageType = 'CompanyInformation'

Company basic information, reference in header-part is MessageType = 'CompanyInformation'

Diagram

Type

CompanyInformationType

Properties

content:

complex

Model

ContractorId , OrganizationName , RepresentativePerson , ContactPersonInFinland , CompanyType , QualitySystems{0,1} , CertificationSystems{0,1} , TradeRegistration{0,1} , TaxDebt , EmployeePensionCertificate{0,1} , EmployeeHealthCare , EmployeeHealthCareInfo{0,1} , CollectiveAgreements , ServiceTypes , LiabilityInsurance{0,1} , LegalAccidentInsurance{0,1} , SubContractorWrittenAgreement , EmployeeWrittenAgreement , VATStatus , PreDebtCollectionRegister , EmployerRegister , BankAccount{0,1} , BankCode{0,1} , IsActive , SubContractors{0,1}

Children

BankAccount, BankCode, CertificationSystems, CollectiveAgreements, CompanyType, ContactPersonInFinland, ContractorId, EmployeeHealthCare, EmployeeHealthCareInfo, EmployeePensionCertificate, EmployeeWrittenAgreement, EmployerRegister, IsActive, LegalAccidentInsurance, LiabilityInsurance, OrganizationName, PreDebtCollectionRegister, QualitySystems, RepresentativePerson, ServiceTypes, SubContractorWrittenAgreement, SubContractors, TaxDebt, TradeRegistration, VATStatus

Instance

<CompanyInformation>
  <ContractorId>{1,1}</ContractorId>
  <OrganizationName>{1,1}</OrganizationName>
  <RepresentativePerson>{1,1}</RepresentativePerson>
  <ContactPersonInFinland>{1,1}</ContactPersonInFinland>
  <CompanyType>{1,1}</CompanyType>
  <QualitySystems>{0,1}</QualitySystems>
  <CertificationSystems>{0,1}</CertificationSystems>
  <TradeRegistration>{0,1}</TradeRegistration>
  <TaxDebt>{1,1}</TaxDebt>
  <EmployeePensionCertificate>{0,1}</EmployeePensionCertificate>
  <EmployeeHealthCare>{1,1}</EmployeeHealthCare>
  <EmployeeHealthCareInfo>{0,1}</EmployeeHealthCareInfo>
  <CollectiveAgreements>{1,1}</CollectiveAgreements>
  <ServiceTypes>{1,1}</ServiceTypes>
  <LiabilityInsurance>{0,1}</LiabilityInsurance>
  <LegalAccidentInsurance>{0,1}</LegalAccidentInsurance>
  <SubContractorWrittenAgreement>{1,1}</SubContractorWrittenAgreement>
  <EmployeeWrittenAgreement>{1,1}</EmployeeWrittenAgreement>
  <VATStatus>{1,1}</VATStatus>
  <PreDebtCollectionRegister>{1,1}</PreDebtCollectionRegister>
  <EmployerRegister>{1,1}</EmployerRegister>
  <BankAccount>{0,1}</BankAccount>
  <BankCode>{0,1}</BankCode>
  <IsActive>{1,1}</IsActive>
  <SubContractors>{0,1}</SubContractors>
</CompanyInformation>

Source

<xs:element name="CompanyInformation" type="companyInformation:CompanyInformationType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Yrityksen perustiedot, header-osiossa tähän viitataan MessageType = 'CompanyInformation'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Company basic information, reference in header-part is MessageType = 'CompanyInformation'</xs:documentation>
  </xs:annotation>
</xs:element>

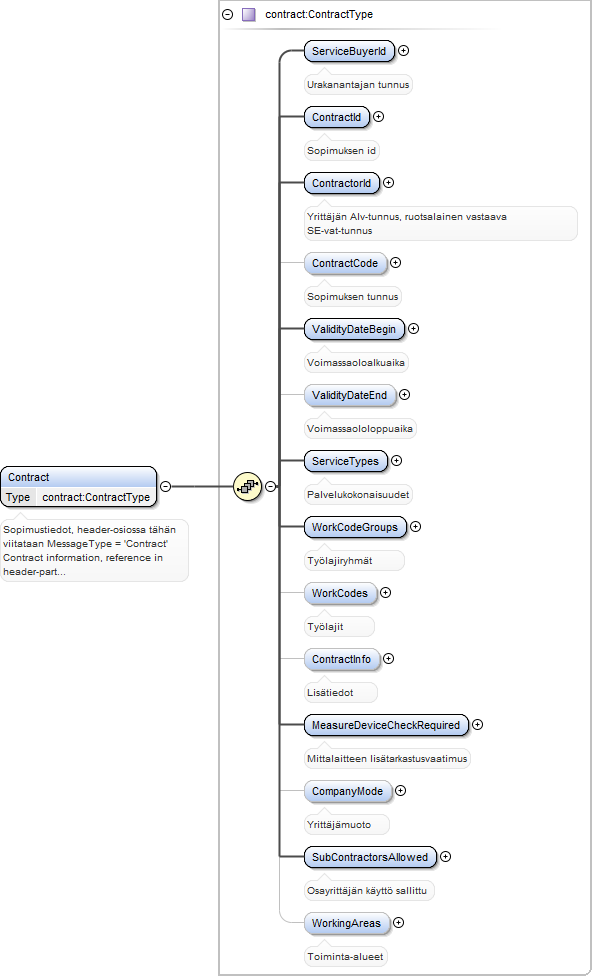

Element PayloadType / Contract

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Sopimustiedot, header-osiossa tähän viitataan MessageType = 'Contract'

Contract information, reference in header-part is MessageType = 'Contract'

Diagram

Type

ContractType

Properties

content:

complex

Model

ServiceBuyerId , ContractId , ContractorId , ContractCode{0,1} , ValidityDateBegin , ValidityDateEnd{0,1} , ServiceTypes , WorkCodeGroups , WorkCodes{0,1} , ContractInfo{0,1} , MeasureDeviceCheckRequired , CompanyMode{0,1} , SubContractorsAllowed , WorkingAreas{0,1}

Children

CompanyMode, ContractCode, ContractId, ContractInfo, ContractorId, MeasureDeviceCheckRequired, ServiceBuyerId, ServiceTypes, SubContractorsAllowed, ValidityDateBegin, ValidityDateEnd, WorkCodeGroups, WorkCodes, WorkingAreas

Instance

<Contract>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <ContractId>{1,1}</ContractId>
  <ContractorId>{1,1}</ContractorId>
  <ContractCode>{0,1}</ContractCode>
  <ValidityDateBegin>{1,1}</ValidityDateBegin>
  <ValidityDateEnd>{0,1}</ValidityDateEnd>
  <ServiceTypes>{1,1}</ServiceTypes>
  <WorkCodeGroups>{1,1}</WorkCodeGroups>
  <WorkCodes>{0,1}</WorkCodes>
  <ContractInfo>{0,1}</ContractInfo>
  <MeasureDeviceCheckRequired>{1,1}</MeasureDeviceCheckRequired>
  <CompanyMode>{0,1}</CompanyMode>
  <SubContractorsAllowed>{1,1}</SubContractorsAllowed>
  <WorkingAreas>{0,1}</WorkingAreas>
</Contract>

Source

<xs:element name="Contract" type="contract:ContractType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Sopimustiedot, header-osiossa tähän viitataan MessageType = 'Contract'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Contract information, reference in header-part is MessageType = 'Contract'</xs:documentation>
  </xs:annotation>
</xs:element>

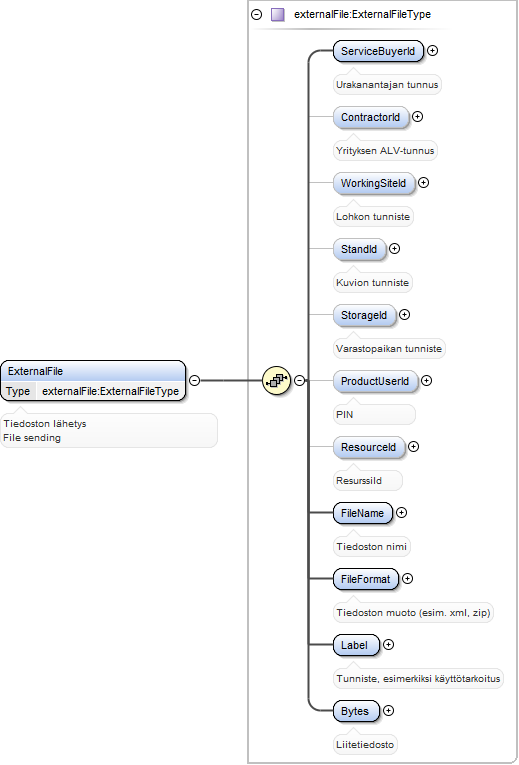

Element PayloadType / ExternalFile

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Tiedoston lähetys

File sending

Diagram

Type

ExternalFileType

Properties

content:

complex

Model

ServiceBuyerId , ContractorId{0,1} , WorkingSiteId{0,1} , StandId{0,1} , StorageId{0,1} , ProductUserId{0,1} , ResourceId{0,1} , FileName , FileFormat , Label , Bytes

Children

Bytes, ContractorId, FileFormat, FileName, Label, ProductUserId, ResourceId, ServiceBuyerId, StandId, StorageId, WorkingSiteId

Instance

<ExternalFile>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <ContractorId>{0,1}</ContractorId>
  <WorkingSiteId>{0,1}</WorkingSiteId>
  <StandId>{0,1}</StandId>
  <StorageId>{0,1}</StorageId>
  <ProductUserId>{0,1}</ProductUserId>
  <ResourceId>{0,1}</ResourceId>
  <FileName>{1,1}</FileName>
  <FileFormat>{1,1}</FileFormat>
  <Label>{1,1}</Label>
  <Bytes>{1,1}</Bytes>
</ExternalFile>

Source

<xs:element name="ExternalFile" type="externalFile:ExternalFileType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Tiedoston lähetys</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">File sending</xs:documentation>
  </xs:annotation>
</xs:element>

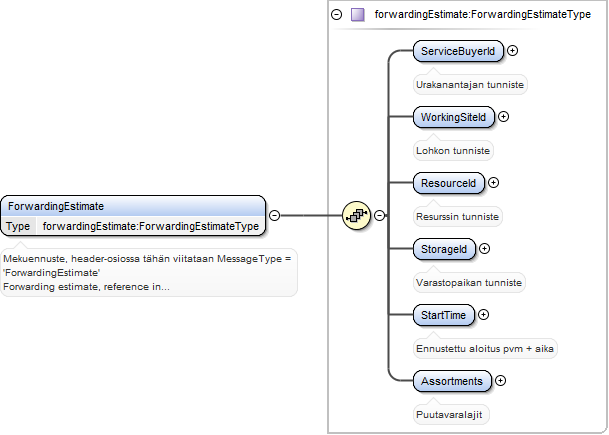

Element PayloadType / ForwardingEstimate

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Mekuennuste, header-osiossa tähän viitataan MessageType = 'ForwardingEstimate'

Forwarding estimate, reference in header-part is MessageType = 'ForwardingEstimate'

Diagram

Type

ForwardingEstimateType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , ResourceId , StorageId , StartTime , Assortments

Children

Assortments, ResourceId, ServiceBuyerId, StartTime, StorageId, WorkingSiteId

Instance

<ForwardingEstimate>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ResourceId>{1,1}</ResourceId>
  <StorageId>{1,1}</StorageId>
  <StartTime>{1,1}</StartTime>
  <Assortments>{1,1}</Assortments>
</ForwardingEstimate>

Source

<xs:element name="ForwardingEstimate" type="forwardingEstimate:ForwardingEstimateType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Mekuennuste, header-osiossa tähän viitataan MessageType = 'ForwardingEstimate'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Forwarding estimate, reference in header-part is MessageType = 'ForwardingEstimate'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / ForwardingNotification

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Mekuilmoitus, header-osiossa tähän viitataan MessageType = 'ForwardingNotification'

Forwarding notification, reference in header-part is MessageType = 'ForwardingNotification'

Diagram

Type

ForwardingNotificationType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , ResourceId , PurchaseContractNumber , StorageId , ForestHaulageDistance , IsForestHaulageDistanceContinued , StorageFinished , StorageFinishedDate{0,1} , WorkingSiteFinished , WorkingSiteFinishedDate{0,1} , NotificationDate , Assortments , AssortmentsChanges{0,1} , CommonMessages{0,1} , ScaleFactors{0,1}

Children

Assortments, AssortmentsChanges, CommonMessages, ForestHaulageDistance, IsForestHaulageDistanceContinued, NotificationDate, PurchaseContractNumber, ResourceId, ScaleFactors, ServiceBuyerId, StorageFinished, StorageFinishedDate, StorageId, WorkingSiteFinished, WorkingSiteFinishedDate, WorkingSiteId

Instance

<ForwardingNotification>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ResourceId>{1,1}</ResourceId>
  <PurchaseContractNumber>{1,1}</PurchaseContractNumber>
  <StorageId>{1,1}</StorageId>
  <ForestHaulageDistance>{1,1}</ForestHaulageDistance>
  <IsForestHaulageDistanceContinued>{1,1}</IsForestHaulageDistanceContinued>
  <StorageFinished>{1,1}</StorageFinished>
  <StorageFinishedDate>{0,1}</StorageFinishedDate>
  <WorkingSiteFinished>{1,1}</WorkingSiteFinished>
  <WorkingSiteFinishedDate>{0,1}</WorkingSiteFinishedDate>
  <NotificationDate>{1,1}</NotificationDate>
  <Assortments>{1,1}</Assortments>
  <AssortmentsChanges>{0,1}</AssortmentsChanges>
  <CommonMessages>{0,1}</CommonMessages>
  <ScaleFactors>{0,1}</ScaleFactors>
</ForwardingNotification>

Source

<xs:element name="ForwardingNotification" type="forwardingNotification:ForwardingNotificationType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Mekuilmoitus, header-osiossa tähän viitataan MessageType = 'ForwardingNotification'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Forwarding notification, reference in header-part is MessageType = 'ForwardingNotification'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / HarvestingOrder

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Korjuun tilaus, header-osiossa tähän viitataan MessageType = 'HarvestingOrder'

Harvesting order, reference in header-part is MessageType = 'HarvestingOrder'

Diagram

Type

HarvestingOrderType

Properties

content:

complex

Model

ServiceBuyerId , ServiceBuyerArea , ContractorId , OperationalRegion{0,1} , OrderId , Assortments , Attachments{0,1}

Children

Assortments, Attachments, ContractorId, OperationalRegion, OrderId, ServiceBuyerArea, ServiceBuyerId

Instance

<HarvestingOrder>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <ServiceBuyerArea>{1,1}</ServiceBuyerArea>
  <ContractorId>{1,1}</ContractorId>
  <OperationalRegion>{0,1}</OperationalRegion>
  <OrderId>{1,1}</OrderId>
  <Assortments>{1,1}</Assortments>
  <Attachments>{0,1}</Attachments>
</HarvestingOrder>

Source

<xs:element name="HarvestingOrder" type="harvestingOrder:HarvestingOrderType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Korjuun tilaus, header-osiossa tähän viitataan MessageType = 'HarvestingOrder'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Harvesting order, reference in header-part is MessageType = 'HarvestingOrder'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / Image

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Valokuvat, header-osiossa tähän viitataan MessageType = 'Image'

Photographs, reference in header-part is MessageType = 'Image'

Diagram

Type

ImageType

Type hierarchy

ImageBaseType
- ImageType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , StandId{0,1} , ServiceType , Category , SubCategory{0,1} , MapSymbolType{0,1} , MapSymbolId{0,1} , InsertedMapSymbolId{0,1} , Position , InfoText , Photographer , ImageDate , Filename , Bytes

Children

Bytes, Category, Filename, ImageDate, InfoText, InsertedMapSymbolId, MapSymbolId, MapSymbolType, Photographer, Position, ServiceBuyerId, ServiceType, StandId, SubCategory, WorkingSiteId

Instance

<Image>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <StandId>{0,1}</StandId>
  <ServiceType>{1,1}</ServiceType>
  <Category>{1,1}</Category>
  <SubCategory>{0,1}</SubCategory>
  <MapSymbolType>{0,1}</MapSymbolType>
  <MapSymbolId>{0,1}</MapSymbolId>
  <InsertedMapSymbolId>{0,1}</InsertedMapSymbolId>
  <Position dimension="" location="">{1,1}</Position>
  <InfoText>{1,1}</InfoText>
  <Photographer>{1,1}</Photographer>
  <ImageDate>{1,1}</ImageDate>
  <Filename>{1,1}</Filename>
  <Bytes>{1,1}</Bytes>
</Image>

Source

<xs:element name="Image" type="image:ImageType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Valokuvat, header-osiossa tähän viitataan MessageType = 'Image'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Photographs, reference in header-part is MessageType = 'Image'</xs:documentation>
  </xs:annotation>
</xs:element>

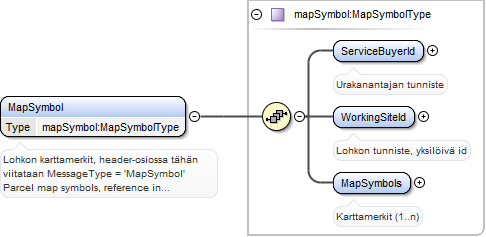

Element PayloadType / MapSymbol

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Lohkon karttamerkit, header-osiossa tähän viitataan MessageType = 'MapSymbol'

Parcel map symbols, reference in header-part is MessageType = 'MapSymbol'

Diagram

Type

MapSymbolType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , MapSymbols

Children

MapSymbols, ServiceBuyerId, WorkingSiteId

Instance

<MapSymbol>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <MapSymbols>{1,1}</MapSymbols>
</MapSymbol>

Source

<xs:element name="MapSymbol" type="mapSymbol:MapSymbolType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Lohkon karttamerkit, header-osiossa tähän viitataan MessageType = 'MapSymbol'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Parcel map symbols, reference in header-part is MessageType = 'MapSymbol'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / OrderConfirmation

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Tilauksen vahvistus, header-osiossa tähän viitataan MessageType = 'OrderConfirmation'

Order confirmation, reference in header-part is MessageType = 'OrderConfirmation'

Diagram

Type

OrderConfirmationType

Properties

content:

complex

Model

ServiceBuyerId , ServiceBuyerArea{0,1} , ContractorId , OperationalRegion{0,1} , ServiceType , OrderId , OrderStatus , Infotext{0,1}

Children

ContractorId, Infotext, OperationalRegion, OrderId, OrderStatus, ServiceBuyerArea, ServiceBuyerId, ServiceType

Instance

<OrderConfirmation>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <ServiceBuyerArea>{0,1}</ServiceBuyerArea>
  <ContractorId>{1,1}</ContractorId>
  <OperationalRegion>{0,1}</OperationalRegion>
  <ServiceType>{1,1}</ServiceType>
  <OrderId>{1,1}</OrderId>
  <OrderStatus>{1,1}</OrderStatus>
  <Infotext>{0,1}</Infotext>
</OrderConfirmation>

Source

<xs:element name="OrderConfirmation" type="orderConfirmation:OrderConfirmationType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Tilauksen vahvistus, header-osiossa tähän viitataan MessageType = 'OrderConfirmation'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Order confirmation, reference in header-part is MessageType = 'OrderConfirmation'</xs:documentation>
  </xs:annotation>
</xs:element>

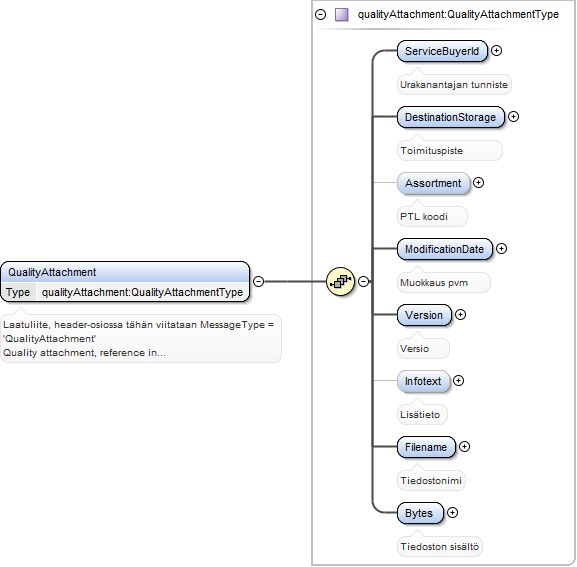

Element PayloadType / QualityAttachment

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Laatuliite, header-osiossa tähän viitataan MessageType = 'QualityAttachment'

Quality attachment, reference in header-part is MessageType = 'QualityAttachment'

Diagram

Type

QualityAttachmentType

Properties

content:

complex

Model

ServiceBuyerId , DestinationStorage , Assortment{0,1} , ModificationDate , Version , Infotext{0,1} , Filename , Bytes

Children

Assortment, Bytes, DestinationStorage, Filename, Infotext, ModificationDate, ServiceBuyerId, Version

Instance

<QualityAttachment>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <DestinationStorage>{1,1}</DestinationStorage>
  <Assortment>{0,1}</Assortment>
  <ModificationDate>{1,1}</ModificationDate>
  <Version>{1,1}</Version>
  <Infotext>{0,1}</Infotext>
  <Filename>{1,1}</Filename>
  <Bytes>{1,1}</Bytes>
</QualityAttachment>

Source

<xs:element name="QualityAttachment" type="qualityAttachment:QualityAttachmentType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Laatuliite, header-osiossa tähän viitataan MessageType = 'QualityAttachment'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Quality attachment, reference in header-part is MessageType = 'QualityAttachment'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / Resource

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Resurssi, header-osiossa tähän viitataan MessageType = 'Resource'

Resource, reference in header-part is MessageType = 'OrderConfirmation'

Diagram

Type

ResourceType

Properties

content:

complex

Model

Contractors , StanfordResourceId{0,1} , ResourceId , ServiceBuyerResourceId{0,1} , ResourceType , ResourceName , ServiceTypes , WorkCodeGroups , WorkCodes{0,1} , Manufacturer{0,1} , Model{0,1} , ModelYear{0,1} , HarvesterModel{0,1} , HavesterModelYear{0,1} , DeploymentYear{0,1} , DeploymentMonth{0,1} , OwnWeight{0,1} , WorkingWeight{0,1} , CommunicationType{0,1} , MeasuringDeviceVersion{0,1} , MeasuringDeviceLastControl{0,1} , LoaderScaleModel{0,1} , LoaderScaleModelYear{0,1} , ServiceStartDate , OutOfServiceStartDate{0,1} , OutOfServiceEndDate{0,1} , LoadRating{0,1} , Location{0,1} , ElevatorCertificate{0,1} , ExtinguisherVerificationDate{0,1} , Telephone{0,1} , Email{0,1} , SubContractorResource{0,1} , OwnerContractorId , SubContractorVerified{0,1} , Removed{0,1} , RemoveDate{0,1} , InfoText{0,1} , OrdererResponsibilityDocumentsChecked{0,1} , Peripherals{0,1}

Children

CommunicationType, Contractors, DeploymentMonth, DeploymentYear, ElevatorCertificate, Email, ExtinguisherVerificationDate, HarvesterModel, HavesterModelYear, InfoText, LoadRating, LoaderScaleModel, LoaderScaleModelYear, Location, Manufacturer, MeasuringDeviceLastControl, MeasuringDeviceVersion, Model, ModelYear, OrdererResponsibilityDocumentsChecked, OutOfServiceEndDate, OutOfServiceStartDate, OwnWeight, OwnerContractorId, Peripherals, RemoveDate, Removed, ResourceId, ResourceName, ResourceType, ServiceBuyerResourceId, ServiceStartDate, ServiceTypes, StanfordResourceId, SubContractorResource, SubContractorVerified, Telephone, WorkCodeGroups, WorkCodes, WorkingWeight

Instance

<Resource>
  <Contractors>{1,1}</Contractors>
  <StanfordResourceId>{0,1}</StanfordResourceId>
  <ResourceId>{1,1}</ResourceId>
  <ServiceBuyerResourceId>{0,1}</ServiceBuyerResourceId>
  <ResourceType>{1,1}</ResourceType>
  <ResourceName>{1,1}</ResourceName>
  <ServiceTypes>{1,1}</ServiceTypes>
  <WorkCodeGroups>{1,1}</WorkCodeGroups>
  <WorkCodes>{0,1}</WorkCodes>
  <Manufacturer>{0,1}</Manufacturer>
  <Model>{0,1}</Model>
  <ModelYear>{0,1}</ModelYear>
  <HarvesterModel>{0,1}</HarvesterModel>
  <HavesterModelYear>{0,1}</HavesterModelYear>
  <DeploymentYear>{0,1}</DeploymentYear>
  <DeploymentMonth>{0,1}</DeploymentMonth>
  <OwnWeight>{0,1}</OwnWeight>
  <WorkingWeight>{0,1}</WorkingWeight>
  <CommunicationType>{0,1}</CommunicationType>
  <MeasuringDeviceVersion>{0,1}</MeasuringDeviceVersion>
  <MeasuringDeviceLastControl>{0,1}</MeasuringDeviceLastControl>
  <LoaderScaleModel>{0,1}</LoaderScaleModel>
  <LoaderScaleModelYear>{0,1}</LoaderScaleModelYear>
  <ServiceStartDate>{1,1}</ServiceStartDate>
  <OutOfServiceStartDate>{0,1}</OutOfServiceStartDate>
  <OutOfServiceEndDate>{0,1}</OutOfServiceEndDate>
  <LoadRating>{0,1}</LoadRating>
  <Location dimension="" location="">{0,1}</Location>
  <ElevatorCertificate>{0,1}</ElevatorCertificate>
  <ExtinguisherVerificationDate>{0,1}</ExtinguisherVerificationDate>
  <Telephone>{0,1}</Telephone>
  <Email>{0,1}</Email>
  <SubContractorResource>{0,1}</SubContractorResource>
  <OwnerContractorId>{1,1}</OwnerContractorId>
  <SubContractorVerified>{0,1}</SubContractorVerified>
  <Removed>{0,1}</Removed>
  <RemoveDate>{0,1}</RemoveDate>
  <InfoText>{0,1}</InfoText>
  <OrdererResponsibilityDocumentsChecked>{0,1}</OrdererResponsibilityDocumentsChecked>
  <Peripherals>{0,1}</Peripherals>
</Resource>

Source

<xs:element name="Resource" type="resource:ResourceType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Resurssi, header-osiossa tähän viitataan MessageType = 'Resource'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Resource, reference in header-part is MessageType = 'OrderConfirmation'</xs:documentation>
  </xs:annotation>
</xs:element>

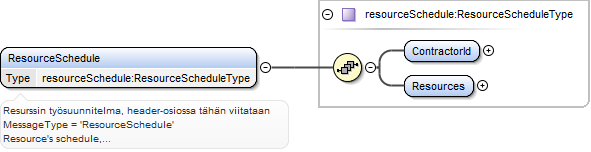

Element PayloadType / ResourceSchedule

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Resurssin työsuunnitelma, header-osiossa tähän viitataan MessageType = 'ResourceSchedule'

Resource's schedule, reference in header-part is MessageType = 'ResourceSchedule'

Diagram

Type

ResourceScheduleType

Properties

content:

complex

Model

ContractorId , Resources

Children

ContractorId, Resources

Instance

<ResourceSchedule>
  <ContractorId>{1,1}</ContractorId>
  <Resources>{1,1}</Resources>
</ResourceSchedule>

Source

<xs:element name="ResourceSchedule" type="resourceSchedule:ResourceScheduleType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Resurssin työsuunnitelma, header-osiossa tähän viitataan MessageType = 'ResourceSchedule'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Resource's schedule, reference in header-part is MessageType = 'ResourceSchedule'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / RoadOrDitchObjectUpdate

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Tie/ojituskohteen päivitys, header-osiossa tähän viitataan MessageType = 'RoadOrDitchObjectUpdate'

Road/ditch object update, reference in header-part is MessageType = 'RoadOrDitchObjectUpdate'

Diagram

Type

RoadOrDitchObjectUpdateType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , ContractorId , ResourceId , UserId , RoadOrDitchObjects

Children

ContractorId, ResourceId, RoadOrDitchObjects, ServiceBuyerId, UserId, WorkingSiteId

Instance

<RoadOrDitchObjectUpdate>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ContractorId>{1,1}</ContractorId>
  <ResourceId>{1,1}</ResourceId>
  <UserId>{1,1}</UserId>
  <RoadOrDitchObjects>{1,1}</RoadOrDitchObjects>
</RoadOrDitchObjectUpdate>

Source

<xs:element name="RoadOrDitchObjectUpdate" type="roadOrDitchObjectUpdate:RoadOrDitchObjectUpdateType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Tie/ojituskohteen päivitys, header-osiossa tähän viitataan MessageType = 'RoadOrDitchObjectUpdate'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Road/ditch object update, reference in header-part is MessageType = 'RoadOrDitchObjectUpdate'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / SilvicultureOrder

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Metsänhoitotyön tilaus, header-osiossa tähän viitataan MessageType = 'SilvicultureOrder'

Ordering of silvicultural operation, reference in header-part is MessageType = 'SilvicultureOrder'

Diagram

Type

SilvicultureOrderType

Properties

content:

complex

Model

ServiceBuyerId , ServiceBuyerArea{0,1} , ContractorId , OperationalRegion{0,1} , OrderId , WorkCodes , BeginDate , EndDate , InfoText{0,1} , Attachments{0,1}

Children

Attachments, BeginDate, ContractorId, EndDate, InfoText, OperationalRegion, OrderId, ServiceBuyerArea, ServiceBuyerId, WorkCodes

Instance

<SilvicultureOrder>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <ServiceBuyerArea>{0,1}</ServiceBuyerArea>
  <ContractorId>{1,1}</ContractorId>
  <OperationalRegion>{0,1}</OperationalRegion>
  <OrderId>{1,1}</OrderId>
  <WorkCodes>{1,1}</WorkCodes>
  <BeginDate>{1,1}</BeginDate>
  <EndDate>{1,1}</EndDate>
  <InfoText>{0,1}</InfoText>
  <Attachments>{0,1}</Attachments>
</SilvicultureOrder>

Source

<xs:element name="SilvicultureOrder" type="silvicultureOrder:SilvicultureOrderType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Metsänhoitotyön tilaus, header-osiossa tähän viitataan MessageType = 'SilvicultureOrder'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Ordering of silvicultural operation, reference in header-part is MessageType = 'SilvicultureOrder'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / ServiceBuyerResourceLocations

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Urakanantajalle työskentelevien resurssien sijainnit

Locations of resources working for a service buyer

Diagram

Type

ServiceBuyerResourceLocationsType

Properties

content:

complex

Model

ServiceBuyerId , ResourceLocations{0,1}

Children

ResourceLocations, ServiceBuyerId

Instance

<ServiceBuyerResourceLocations>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <ResourceLocations>{0,1}</ResourceLocations>
</ServiceBuyerResourceLocations>

Source

<xs:element name="ServiceBuyerResourceLocations" type="serviceBuyerResourceLocations:ServiceBuyerResourceLocationsType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Urakanantajalle työskentelevien resurssien sijainnit</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Locations of resources working for a service buyer</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / SmsOperatorStatus

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

SMS-operaattorin lähettämä statuspäivitys

Status update sent by SMS Operator

Diagram

Type

SmsOperatorStatusType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , StandId{0,1} , PhoneNumber , NotificationType , RecipientType , SenderUserId , SendTimestamp , StatusTimestamp , StatusCode , OriginalMessage , StatusMessage{0,1}

Children

NotificationType, OriginalMessage, PhoneNumber, RecipientType, SendTimestamp, SenderUserId, ServiceBuyerId, StandId, StatusCode, StatusMessage, StatusTimestamp, WorkingSiteId

Instance

<SmsOperatorStatus>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <StandId>{0,1}</StandId>
  <PhoneNumber>{1,1}</PhoneNumber>
  <NotificationType>{1,1}</NotificationType>
  <RecipientType>{1,1}</RecipientType>
  <SenderUserId>{1,1}</SenderUserId>
  <SendTimestamp>{1,1}</SendTimestamp>
  <StatusTimestamp>{1,1}</StatusTimestamp>
  <StatusCode>{1,1}</StatusCode>
  <OriginalMessage>{1,1}</OriginalMessage>
  <StatusMessage>{0,1}</StatusMessage>
</SmsOperatorStatus>

Source

<xs:element name="SmsOperatorStatus" type="smsOperatorStatus:SmsOperatorStatusType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">SMS-operaattorin lähettämä statuspäivitys</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Status update sent by SMS Operator</xs:documentation>
  </xs:annotation>
</xs:element>

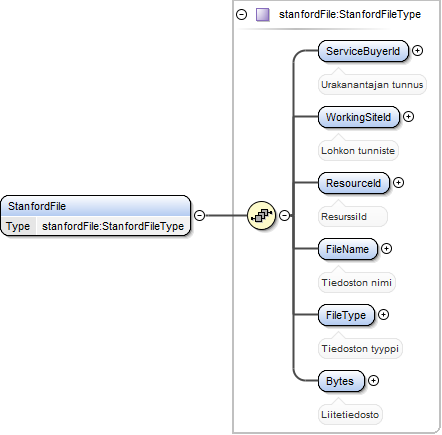

Element PayloadType / StanfordFile

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Diagram

Type

StanfordFileType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , ResourceId , FileName , FileType , Bytes

Children

Bytes, FileName, FileType, ResourceId, ServiceBuyerId, WorkingSiteId

Instance

<StanfordFile>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ResourceId>{1,1}</ResourceId>
  <FileName>{1,1}</FileName>
  <FileType>{1,1}</FileType>
  <Bytes>{1,1}</Bytes>
</StanfordFile>

Source

<xs:element name="StanfordFile" type="stanfordFile:StanfordFileType"/>

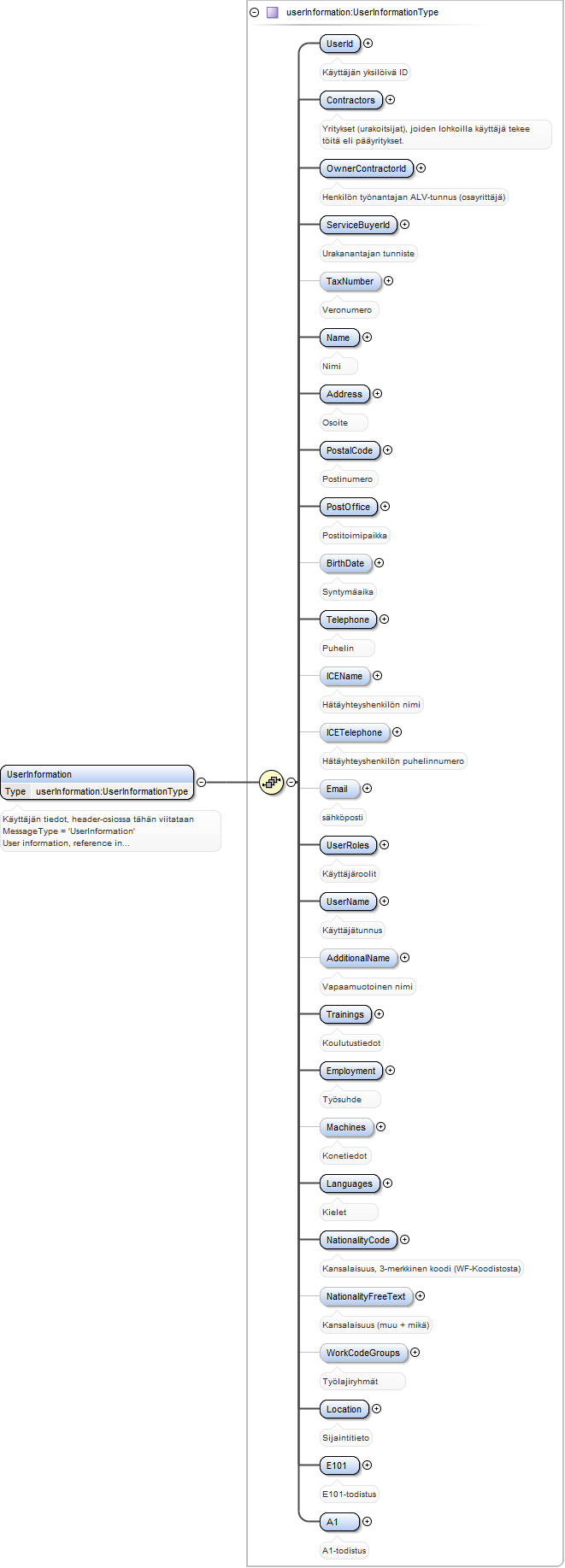

Element PayloadType / UserInformation

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Käyttäjän tiedot, header-osiossa tähän viitataan MessageType = 'UserInformation'

User information, reference in header-part is MessageType = 'UserInformation'

Diagram

Type

UserInformationType

Properties

content:

complex

Model

UserId , Contractors , OwnerContractorId , ServiceBuyerId , TaxNumber{0,1} , Name , Address , PostalCode , PostOffice , BirthDate{0,1} , Telephone , ICEName{0,1} , ICETelephone{0,1} , Email{0,1} , UserRoles , UserName , AdditionalName{0,1} , Trainings , Employment , Machines{0,1} , Languages , NationalityCode , NationalityFreeText{0,1} , WorkCodeGroups{0,1} , Location , E101 , A1

Children

A1, AdditionalName, Address, BirthDate, Contractors, E101, Email, Employment, ICEName, ICETelephone, Languages, Location, Machines, Name, NationalityCode, NationalityFreeText, OwnerContractorId, PostOffice, PostalCode, ServiceBuyerId, TaxNumber, Telephone, Trainings, UserId, UserName, UserRoles, WorkCodeGroups

Instance

<UserInformation>
  <UserId>{1,1}</UserId>
  <Contractors>{1,1}</Contractors>
  <OwnerContractorId>{1,1}</OwnerContractorId>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <TaxNumber>{0,1}</TaxNumber>
  <Name>{1,1}</Name>
  <Address>{1,1}</Address>
  <PostalCode>{1,1}</PostalCode>
  <PostOffice>{1,1}</PostOffice>
  <BirthDate>{0,1}</BirthDate>
  <Telephone>{1,1}</Telephone>
  <ICEName>{0,1}</ICEName>
  <ICETelephone>{0,1}</ICETelephone>
  <Email>{0,1}</Email>
  <UserRoles>{1,1}</UserRoles>
  <UserName>{1,1}</UserName>
  <AdditionalName>{0,1}</AdditionalName>
  <Trainings>{1,1}</Trainings>
  <Employment>{1,1}</Employment>
  <Machines>{0,1}</Machines>
  <Languages>{1,1}</Languages>
  <NationalityCode>{1,1}</NationalityCode>
  <NationalityFreeText>{0,1}</NationalityFreeText>
  <WorkCodeGroups>{0,1}</WorkCodeGroups>
  <Location dimension="" location="">{1,1}</Location>
  <E101>{1,1}</E101>
  <A1>{1,1}</A1>
</UserInformation>

Source

<xs:element name="UserInformation" type="userInformation:UserInformationType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Käyttäjän tiedot, header-osiossa tähän viitataan MessageType = 'UserInformation'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">User information, reference in header-part is MessageType = 'UserInformation'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WeekCalendar

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Viikkokalenteri, header-osiossa tähän viitataan MessageType = 'WeekCalendar'

Week calendar, reference in header-part is MessageType = 'WeekCalendar'

Diagram

Type

WeekCalendarType

Properties

content:

complex

Model

ContractorId , Resources

Children

ContractorId, Resources

Instance

<WeekCalendar>
  <ContractorId>{1,1}</ContractorId>
  <Resources>{1,1}</Resources>
</WeekCalendar>

Source

<xs:element name="WeekCalendar" type="weekCalendar:WeekCalendarType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Viikkokalenteri, header-osiossa tähän viitataan MessageType = 'WeekCalendar'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Week calendar, reference in header-part is MessageType = 'WeekCalendar'</xs:documentation>
  </xs:annotation>
</xs:element>

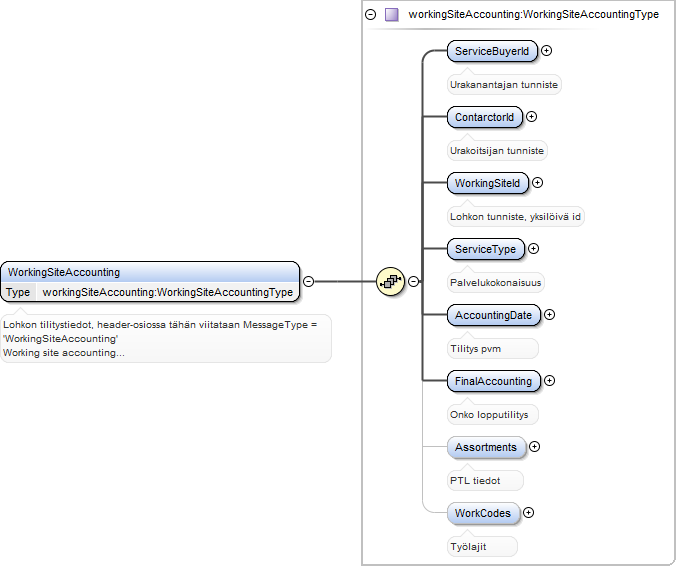

Element PayloadType / WorkingSiteAccounting

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Lohkon tilitystiedot, header-osiossa tähän viitataan MessageType = 'WorkingSiteAccounting'

Working site accounting information, reference in header-part is MessageType = 'WorkingSiteAccounting'

Diagram

Type

WorkingSiteAccountingType

Properties

content:

complex

Model

ServiceBuyerId , ContarctorId , WorkingSiteId , ServiceType , AccountingDate , FinalAccounting , Assortments{0,1} , WorkCodes{0,1}

Children

AccountingDate, Assortments, ContarctorId, FinalAccounting, ServiceBuyerId, ServiceType, WorkCodes, WorkingSiteId

Instance

<WorkingSiteAccounting>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <ContarctorId>{1,1}</ContarctorId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ServiceType>{1,1}</ServiceType>
  <AccountingDate>{1,1}</AccountingDate>
  <FinalAccounting>{1,1}</FinalAccounting>
  <Assortments>{0,1}</Assortments>
  <WorkCodes>{0,1}</WorkCodes>
</WorkingSiteAccounting>

Source

<xs:element name="WorkingSiteAccounting" type="workingSiteAccounting:WorkingSiteAccountingType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Lohkon tilitystiedot, header-osiossa tähän viitataan MessageType = 'WorkingSiteAccounting'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Working site accounting information, reference in header-part is MessageType = 'WorkingSiteAccounting'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteEndNotification

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Lohko päätetty keskeytettynä tai valmiina, header-osiossa tähän viitataan MessageType = 'WorkingSiteEndNotification'

Working site ended either interrupted or ready, reference in header-part is MessageType = 'WorkingSiteEndNotification'

Diagram

Type

WorkingSiteEndNotificationType

Properties

content:

complex

Model

ServiceBuyerId , ContactorId , WorkingSiteId , ResourceId{0,1} , ServiceType , Interrupted , FulfilledArea{0,1} , UnfulfilledArea{0,1} , Infotext{0,1} , Assortments{0,1} , WorkCodes{0,1}

Children

Assortments, ContactorId, FulfilledArea, Infotext, Interrupted, ResourceId, ServiceBuyerId, ServiceType, UnfulfilledArea, WorkCodes, WorkingSiteId

Instance

<WorkingSiteEndNotification>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <ContactorId>{1,1}</ContactorId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ResourceId>{0,1}</ResourceId>
  <ServiceType>{1,1}</ServiceType>
  <Interrupted>{1,1}</Interrupted>
  <FulfilledArea>{0,1}</FulfilledArea>
  <UnfulfilledArea>{0,1}</UnfulfilledArea>
  <Infotext>{0,1}</Infotext>
  <Assortments>{0,1}</Assortments>
  <WorkCodes>{0,1}</WorkCodes>
</WorkingSiteEndNotification>

Source

<xs:element name="WorkingSiteEndNotification" type="workingSiteEndNotification:WorkingSiteEndNotificationType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Lohko päätetty keskeytettynä tai valmiina, header-osiossa tähän viitataan MessageType = 'WorkingSiteEndNotification'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Working site ended either interrupted or ready, reference in header-part is MessageType = 'WorkingSiteEndNotification'</xs:documentation>
  </xs:annotation>
</xs:element>

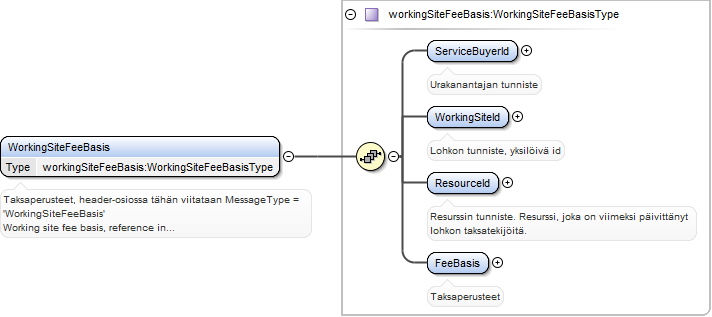

Element PayloadType / WorkingSiteFeeBasis

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Taksaperusteet, header-osiossa tähän viitataan MessageType = 'WorkingSiteFeeBasis'

Working site fee basis, reference in header-part is MessageType = 'WorkingSiteFeeBasis'

Diagram

Type

WorkingSiteFeeBasisType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , ResourceId , FeeBasis

Children

FeeBasis, ResourceId, ServiceBuyerId, WorkingSiteId

Instance

<WorkingSiteFeeBasis>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ResourceId>{1,1}</ResourceId>
  <FeeBasis>{1,1}</FeeBasis>
</WorkingSiteFeeBasis>

Source

<xs:element name="WorkingSiteFeeBasis" type="workingSiteFeeBasis:WorkingSiteFeeBasisType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Taksaperusteet, header-osiossa tähän viitataan MessageType = 'WorkingSiteFeeBasis'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Working site fee basis, reference in header-part is MessageType = 'WorkingSiteFeeBasis'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteFinalAuditBioMassForwarding

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Metsäenergian kuljetuksen loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditBioMassForwarding'

Forest biomass forwarding final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditBioMassForwarding'

Diagram

Type

WorkingSiteFinalAuditBioMassForwardingType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , ResourceId , PurchaseContractId , WorkCodeGroup , WorkCode , Audit , InfoText{0,1} , Images , Audits

Children

Audit, Audits, Images, InfoText, PurchaseContractId, ResourceId, ServiceBuyerId, WorkCode, WorkCodeGroup, WorkingSiteId

Instance

<WorkingSiteFinalAuditBioMassForwarding>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ResourceId>{1,1}</ResourceId>
  <PurchaseContractId>{1,1}</PurchaseContractId>
  <WorkCodeGroup>{1,1}</WorkCodeGroup>
  <WorkCode>{1,1}</WorkCode>
  <Audit>{1,1}</Audit>
  <InfoText>{0,1}</InfoText>
  <Images>{1,1}</Images>
  <Audits>{1,1}</Audits>
</WorkingSiteFinalAuditBioMassForwarding>

Source

<xs:element name="WorkingSiteFinalAuditBioMassForwarding" type="workingSiteFinalAuditBioMassForwarding:WorkingSiteFinalAuditBioMassForwardingType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Metsäenergian kuljetuksen loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditBioMassForwarding'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Forest biomass forwarding final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditBioMassForwarding'</xs:documentation>
  </xs:annotation>
</xs:element>

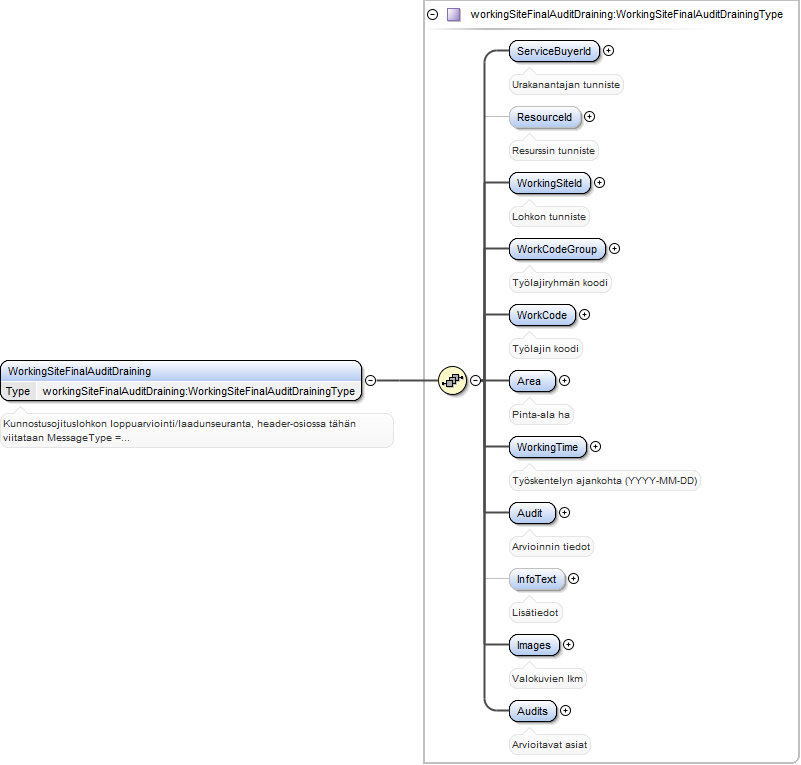

Element PayloadType / WorkingSiteFinalAuditDraining

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Kunnostusojituslohkon loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditDraining'

Overhaul ditching working site final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditDraining'

Diagram

Type

WorkingSiteFinalAuditDrainingType

Properties

content:

complex

Model

ServiceBuyerId , ResourceId{0,1} , WorkingSiteId , WorkCodeGroup , WorkCode , Area , WorkingTime , Audit , InfoText{0,1} , Images , Audits

Children

Area, Audit, Audits, Images, InfoText, ResourceId, ServiceBuyerId, WorkCode, WorkCodeGroup, WorkingSiteId, WorkingTime

Instance

<WorkingSiteFinalAuditDraining>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <ResourceId>{0,1}</ResourceId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <WorkCodeGroup>{1,1}</WorkCodeGroup>
  <WorkCode>{1,1}</WorkCode>
  <Area>{1,1}</Area>
  <WorkingTime>{1,1}</WorkingTime>
  <Audit>{1,1}</Audit>
  <InfoText>{0,1}</InfoText>
  <Images>{1,1}</Images>
  <Audits>{1,1}</Audits>
</WorkingSiteFinalAuditDraining>

Source

<xs:element name="WorkingSiteFinalAuditDraining" type="workingSiteFinalAuditDraining:WorkingSiteFinalAuditDrainingType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kunnostusojituslohkon loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditDraining'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Overhaul ditching working site final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditDraining'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteFinalAuditFertilization

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Lannoituksen loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditFertilization'

Fertilization final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditFertilization'

Diagram

Type

WorkingSiteFinalAuditFertilizationType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , ContractorId{0,1} , ResourceId{0,1} , WorkCodeGroup , WorkCode , Area , WorkingTime , Audit , SamplePlotCount , SamplePlotCountRequired , InfoText{0,1} , FertilizerVolumeOrdered , FertilizerVolumeMeasured , FertilizerVolumeMeasuredText{0,1} , Images , Audits

Children

Area, Audit, Audits, ContractorId, FertilizerVolumeMeasured, FertilizerVolumeMeasuredText, FertilizerVolumeOrdered, Images, InfoText, ResourceId, SamplePlotCount, SamplePlotCountRequired, ServiceBuyerId, WorkCode, WorkCodeGroup, WorkingSiteId, WorkingTime

Instance

<WorkingSiteFinalAuditFertilization>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ContractorId>{0,1}</ContractorId>
  <ResourceId>{0,1}</ResourceId>
  <WorkCodeGroup>{1,1}</WorkCodeGroup>
  <WorkCode>{1,1}</WorkCode>
  <Area>{1,1}</Area>
  <WorkingTime>{1,1}</WorkingTime>
  <Audit>{1,1}</Audit>
  <SamplePlotCount>{1,1}</SamplePlotCount>
  <SamplePlotCountRequired>{1,1}</SamplePlotCountRequired>
  <InfoText>{0,1}</InfoText>
  <FertilizerVolumeOrdered>{1,1}</FertilizerVolumeOrdered>
  <FertilizerVolumeMeasured>{1,1}</FertilizerVolumeMeasured>
  <FertilizerVolumeMeasuredText>{0,1}</FertilizerVolumeMeasuredText>
  <Images>{1,1}</Images>
  <Audits>{1,1}</Audits>
</WorkingSiteFinalAuditFertilization>

Source

<xs:element name="WorkingSiteFinalAuditFertilization" type="workingSiteFinalAuditFertilization:WorkingSiteFinalAuditFertilizationType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Lannoituksen loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditFertilization'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Fertilization final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditFertilization'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteFinalAuditHarvesting

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Puunkorjuun loppuarvointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditHarvesting'

Harvesting final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditHarvesting'

Diagram

Type

WorkingSiteFinalAuditHarvestingType

Type hierarchy

WorkingSiteFinalAuditBaseHarvestingType
- WorkingSiteFinalAuditHarvestingType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , HarvesterId{0,1} , ForwarderId{0,1} , PurchaseContractId , WorkCodeGroup , WorkCode , Audit , InfoText{0,1} , Images , Audits

Children

Audit, Audits, ForwarderId, HarvesterId, Images, InfoText, PurchaseContractId, ServiceBuyerId, WorkCode, WorkCodeGroup, WorkingSiteId

Instance

<WorkingSiteFinalAuditHarvesting>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <HarvesterId>{0,1}</HarvesterId>
  <ForwarderId>{0,1}</ForwarderId>
  <PurchaseContractId>{1,1}</PurchaseContractId>
  <WorkCodeGroup>{1,1}</WorkCodeGroup>
  <WorkCode>{1,1}</WorkCode>
  <Audit>{1,1}</Audit>
  <InfoText>{0,1}</InfoText>
  <Images>{1,1}</Images>
  <Audits>{1,1}</Audits>
</WorkingSiteFinalAuditHarvesting>

Source

<xs:element name="WorkingSiteFinalAuditHarvesting" type="workingSiteFinalAuditHarvesting:WorkingSiteFinalAuditHarvestingType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Puunkorjuun loppuarvointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditHarvesting'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Harvesting final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditHarvesting'</xs:documentation>
  </xs:annotation>
</xs:element>

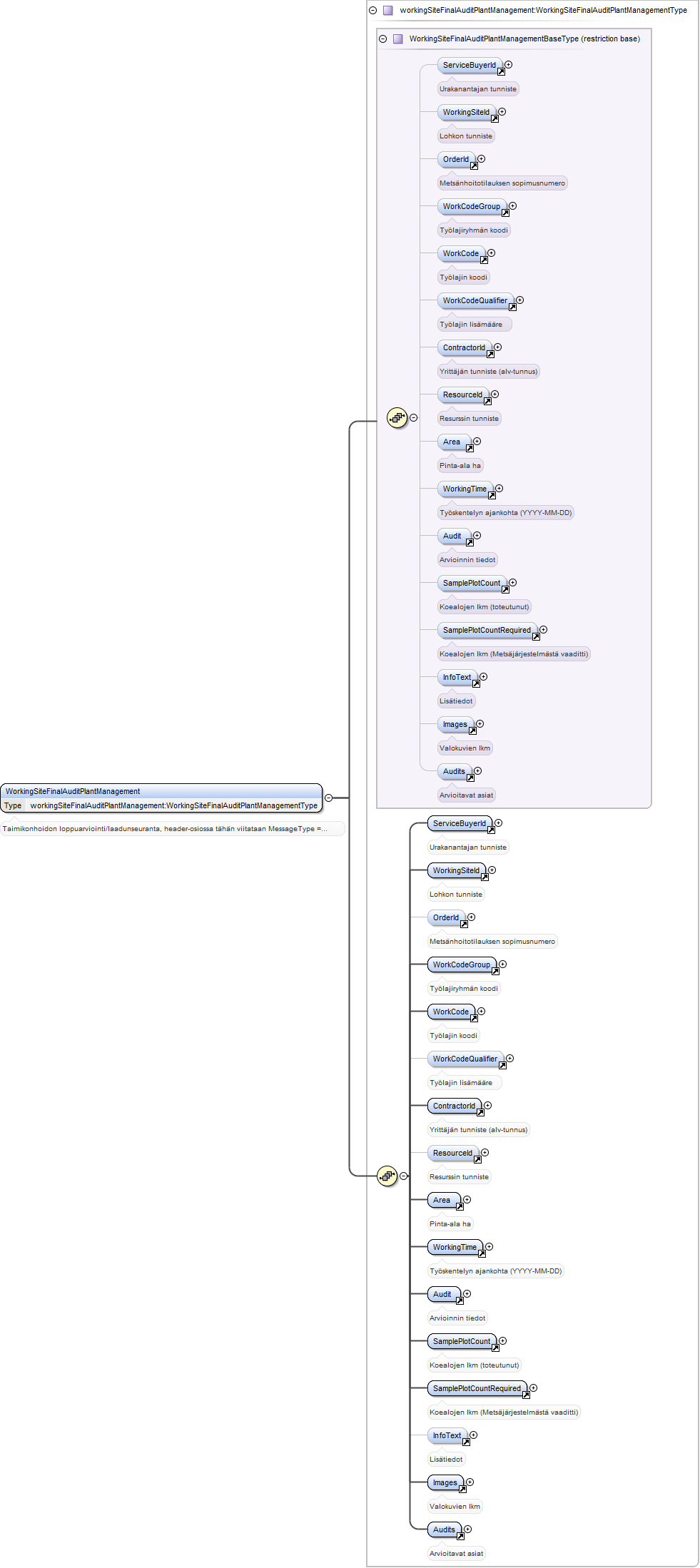

Element PayloadType / WorkingSiteFinalAuditPlantManagement

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Taimikonhoidon loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditPlantManagement'

Plant management final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditPlantManagement'

Diagram

Type

WorkingSiteFinalAuditPlantManagementType

Type hierarchy

WorkingSiteFinalAuditPlantManagementBaseType
- WorkingSiteFinalAuditPlantManagementType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , OrderId{0,1} , WorkCodeGroup , WorkCode , WorkCodeQualifier{0,1} , ContractorId , ResourceId{0,1} , Area , WorkingTime , Audit , SamplePlotCount , SamplePlotCountRequired , InfoText{0,1} , Images , Audits

Children

Area, Audit, Audits, ContractorId, Images, InfoText, OrderId, ResourceId, SamplePlotCount, SamplePlotCountRequired, ServiceBuyerId, WorkCode, WorkCodeGroup, WorkCodeQualifier, WorkingSiteId, WorkingTime

Instance

<WorkingSiteFinalAuditPlantManagement>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <OrderId>{0,1}</OrderId>
  <WorkCodeGroup>{1,1}</WorkCodeGroup>
  <WorkCode>{1,1}</WorkCode>
  <WorkCodeQualifier>{0,1}</WorkCodeQualifier>
  <ContractorId>{1,1}</ContractorId>
  <ResourceId>{0,1}</ResourceId>
  <Area>{1,1}</Area>
  <WorkingTime>{1,1}</WorkingTime>
  <Audit>{1,1}</Audit>
  <SamplePlotCount>{1,1}</SamplePlotCount>
  <SamplePlotCountRequired>{1,1}</SamplePlotCountRequired>
  <InfoText>{0,1}</InfoText>
  <Images>{1,1}</Images>
  <Audits>{1,1}</Audits>
</WorkingSiteFinalAuditPlantManagement>

Source

<xs:element name="WorkingSiteFinalAuditPlantManagement" type="workingSiteFinalAuditPlantManagement:WorkingSiteFinalAuditPlantManagementType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Taimikonhoidon loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditPlantManagement'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Plant management final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditPlantManagement'</xs:documentation>
  </xs:annotation>
</xs:element>

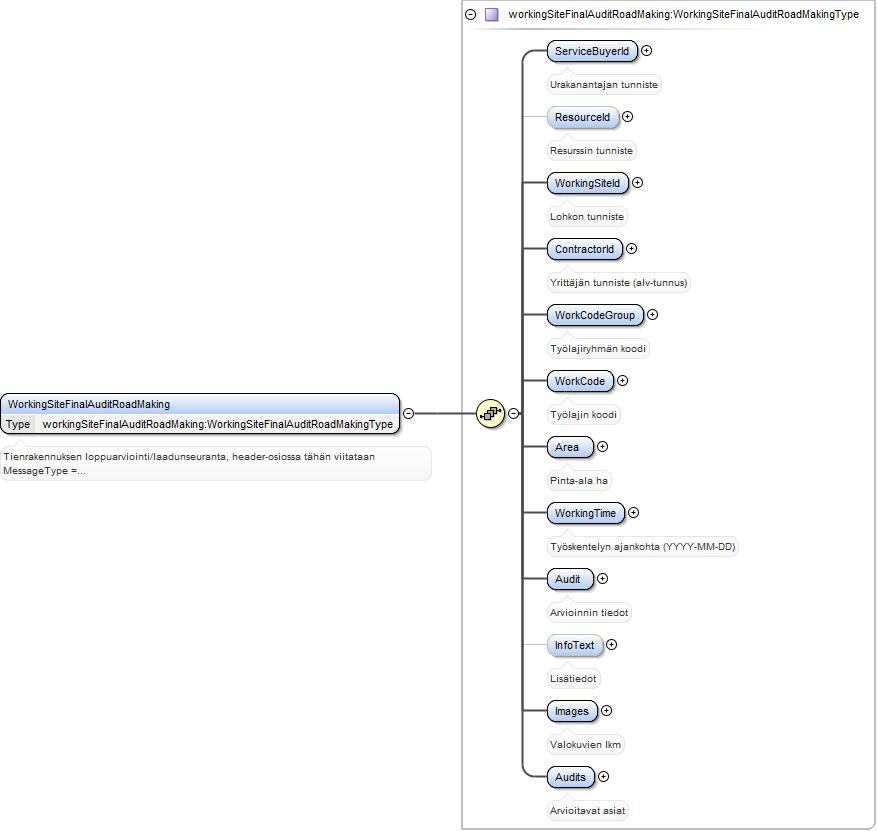

Element PayloadType / WorkingSiteFinalAuditRoadMaking

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Tienrakennuksen loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditRoadMaking'

Road construction final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditRoadMaking'

Diagram

Type

WorkingSiteFinalAuditRoadMakingType

Properties

content:

complex

Model

ServiceBuyerId , ResourceId{0,1} , WorkingSiteId , ContractorId , WorkCodeGroup , WorkCode , Area , WorkingTime , Audit , InfoText{0,1} , Images , Audits

Children

Area, Audit, Audits, ContractorId, Images, InfoText, ResourceId, ServiceBuyerId, WorkCode, WorkCodeGroup, WorkingSiteId, WorkingTime

Instance

<WorkingSiteFinalAuditRoadMaking>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <ResourceId>{0,1}</ResourceId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ContractorId>{1,1}</ContractorId>
  <WorkCodeGroup>{1,1}</WorkCodeGroup>
  <WorkCode>{1,1}</WorkCode>
  <Area>{1,1}</Area>
  <WorkingTime>{1,1}</WorkingTime>
  <Audit>{1,1}</Audit>
  <InfoText>{0,1}</InfoText>
  <Images>{1,1}</Images>
  <Audits>{1,1}</Audits>
</WorkingSiteFinalAuditRoadMaking>

Source

<xs:element name="WorkingSiteFinalAuditRoadMaking" type="workingSiteFinalAuditRoadMaking:WorkingSiteFinalAuditRoadMakingType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Tienrakennuksen loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditRoadMaking'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Road construction final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditRoadMaking'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteFinalAuditSilviculture

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Taimikonhoidon loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditSilviculture'

Silviculture operations final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditSilviculture'

Diagram

Type

WorkingSiteFinalAuditSilvicultureType

Type hierarchy

WorkingSiteFinalAuditSilvicultureBaseType
- WorkingSiteFinalAuditSilvicultureType

Properties

content:

complex

Model

ServiceBuyerId , ResourceId{0,1} , WorkingSiteId , ContractorId , OrderId{0,1} , WorkCodeGroup , WorkCode , WorkCodeQualifier{0,1} , Area , WorkingTime , Audit , SamplePlotCount , SamplePlotCountRequired{0,1} , InfoText{0,1} , Images , Audits

Children

Instance

<WorkingSiteFinalAuditSilviculture>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <ResourceId>{0,1}</ResourceId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ContractorId>{1,1}</ContractorId>
  <OrderId>{0,1}</OrderId>
  <WorkCodeGroup>{1,1}</WorkCodeGroup>
  <WorkCode>{1,1}</WorkCode>
  <WorkCodeQualifier>{0,1}</WorkCodeQualifier>
  <Area>{1,1}</Area>
  <WorkingTime>{1,1}</WorkingTime>
  <Audit>{1,1}</Audit>
  <SamplePlotCount>{1,1}</SamplePlotCount>
  <SamplePlotCountRequired>{0,1}</SamplePlotCountRequired>
  <InfoText>{0,1}</InfoText>
  <Images>{1,1}</Images>
  <Audits>{1,1}</Audits>
</WorkingSiteFinalAuditSilviculture>

Source

<xs:element name="WorkingSiteFinalAuditSilviculture" type="workingSiteFinalAuditSilviculture:WorkingSiteFinalAuditSilvicultureType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Taimikonhoidon loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditSilviculture'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Silviculture operations final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditSilviculture'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteFinalAuditSoilConditioning

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Maanmuokkauksen loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditSoilConditioning'

Soil conditioning final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditSoilConditioning'

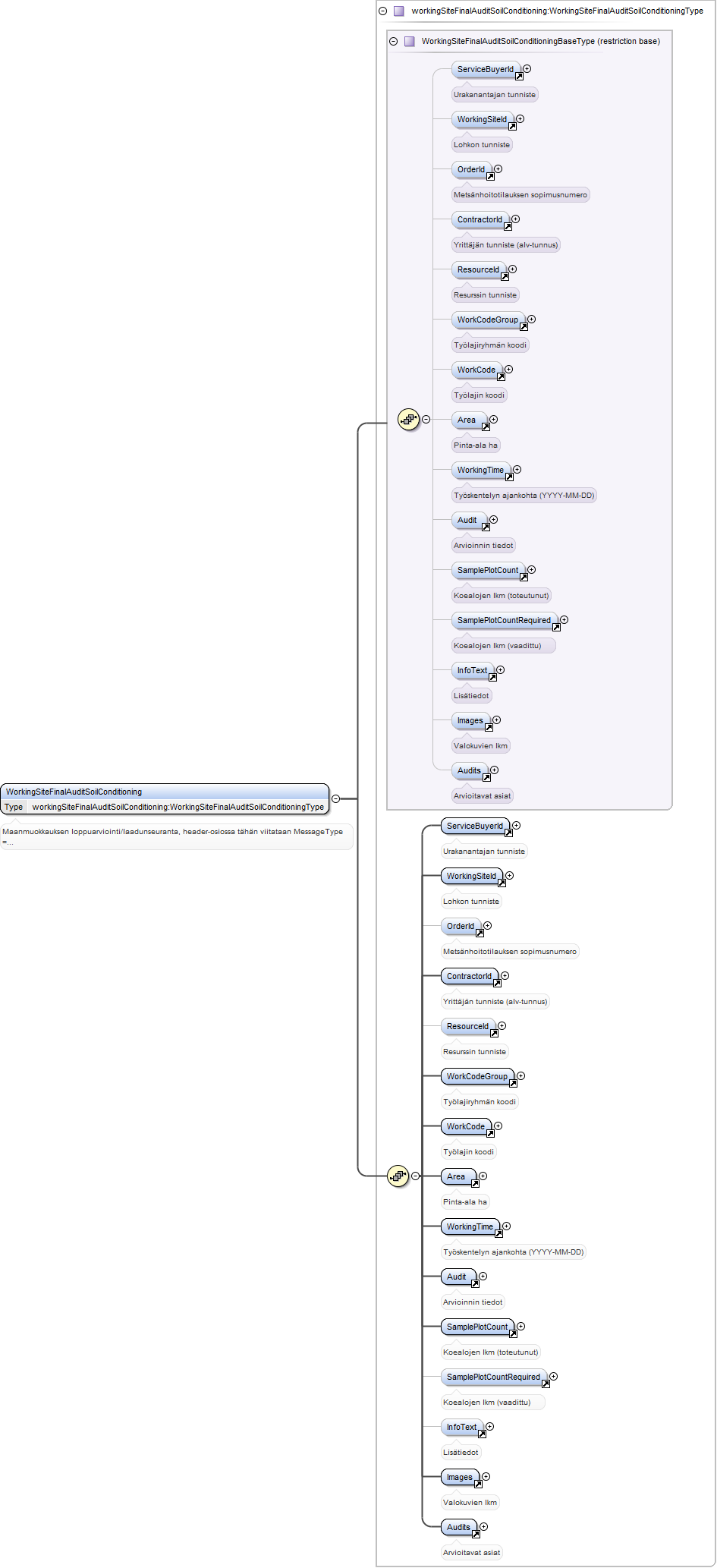

Diagram

Type

WorkingSiteFinalAuditSoilConditioningType

Type hierarchy

WorkingSiteFinalAuditSoilConditioningBaseType
- WorkingSiteFinalAuditSoilConditioningType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , OrderId{0,1} , ContractorId , ResourceId{0,1} , WorkCodeGroup , WorkCode , Area , WorkingTime , Audit , SamplePlotCount , SamplePlotCountRequired{0,1} , InfoText{0,1} , Images , Audits

Children

Instance

<WorkingSiteFinalAuditSoilConditioning>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <OrderId>{0,1}</OrderId>
  <ContractorId>{1,1}</ContractorId>
  <ResourceId>{0,1}</ResourceId>
  <WorkCodeGroup>{1,1}</WorkCodeGroup>
  <WorkCode>{1,1}</WorkCode>
  <Area>{1,1}</Area>
  <WorkingTime>{1,1}</WorkingTime>
  <Audit>{1,1}</Audit>
  <SamplePlotCount>{1,1}</SamplePlotCount>
  <SamplePlotCountRequired>{0,1}</SamplePlotCountRequired>
  <InfoText>{0,1}</InfoText>
  <Images>{1,1}</Images>
  <Audits>{1,1}</Audits>
</WorkingSiteFinalAuditSoilConditioning>

Source

<xs:element name="WorkingSiteFinalAuditSoilConditioning" type="workingSiteFinalAuditSoilConditioning:WorkingSiteFinalAuditSoilConditioningType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Maanmuokkauksen loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditSoilConditioning'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Soil conditioning final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditSoilConditioning'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteFinalAuditStumpForwarding

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Kantojen ajon loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditStumpForwarding'

Stump forwarding final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditStumpForwarding'

Diagram

Type

WorkingSiteFinalAuditStumpForwardingType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , ResourceId{0,1} , PurchaseContractId , WorkCodeGroup , WorkCode , Audit , InfoText{0,1} , Images , Audits

Children

Audit, Audits, Images, InfoText, PurchaseContractId, ResourceId, ServiceBuyerId, WorkCode, WorkCodeGroup, WorkingSiteId

Instance

<WorkingSiteFinalAuditStumpForwarding>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ResourceId>{0,1}</ResourceId>
  <PurchaseContractId>{1,1}</PurchaseContractId>
  <WorkCodeGroup>{1,1}</WorkCodeGroup>
  <WorkCode>{1,1}</WorkCode>
  <Audit>{1,1}</Audit>
  <InfoText>{0,1}</InfoText>
  <Images>{1,1}</Images>
  <Audits>{1,1}</Audits>
</WorkingSiteFinalAuditStumpForwarding>

Source

<xs:element name="WorkingSiteFinalAuditStumpForwarding" type="workingSiteFinalAuditStumpForwarding:WorkingSiteFinalAuditStumpForwardingType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kantojen ajon loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditStumpForwarding'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stump forwarding final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditStumpForwarding'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteFinalAuditStumpLifting

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Kantojen noston loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditStumpLifting'

Stump lifting final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditStumpLifting'

Diagram

Type

WorkingSiteFinalAuditStumpLiftingType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , ResourceId{0,1} , PurchaseContractId , WorkCodeGroup , WorkCode , Audit , InfoText{0,1} , Images , Audits

Children

Audit, Audits, Images, InfoText, PurchaseContractId, ResourceId, ServiceBuyerId, WorkCode, WorkCodeGroup, WorkingSiteId

Instance

<WorkingSiteFinalAuditStumpLifting>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ResourceId>{0,1}</ResourceId>
  <PurchaseContractId>{1,1}</PurchaseContractId>
  <WorkCodeGroup>{1,1}</WorkCodeGroup>
  <WorkCode>{1,1}</WorkCode>
  <Audit>{1,1}</Audit>
  <InfoText>{0,1}</InfoText>
  <Images>{1,1}</Images>
  <Audits>{1,1}</Audits>
</WorkingSiteFinalAuditStumpLifting>

Source

<xs:element name="WorkingSiteFinalAuditStumpLifting" type="workingSiteFinalAuditStumpLifting:WorkingSiteFinalAuditStumpLiftingType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kantojen noston loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditStumpLifting'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stump lifting final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditStumpLifting'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteForwardedProduction

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Metsätraktorin tuotostiedot, header-osiossa tähän viitataan MessageType = 'WorkingSiteForwardedProduction'

Forwarder production information, reference in header-part is MessageType = 'WorkingSiteForwardedProduction'

Diagram

Type

WorkingSiteForwardedProductionType

Properties

content:

complex

Model

Children

Bytes, ContractorId, EndDate, FileName, ForestOwner, Load, LoadCount, MachineApplicationVersion, ResourceId, SendDate, ServiceBuyerId, StandId, StartDate, StorageId, WorkingSiteId

Instance

<WorkingSiteForwardedProduction>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <StandId>{0,1}</StandId>
  <StorageId>{0,1}</StorageId>
  <ContractorId>{1,1}</ContractorId>
  <ResourceId>{1,1}</ResourceId>
  <ForestOwner>{1,1}</ForestOwner>
  <StartDate>{1,1}</StartDate>
  <EndDate>{0,1}</EndDate>
  <SendDate>{1,1}</SendDate>
  <MachineApplicationVersion>{1,1}</MachineApplicationVersion>
  <FileName>{1,1}</FileName>
  <Bytes>{1,1}</Bytes>
  <LoadCount>{1,1}</LoadCount>
  <Load>{1,unbounded}</Load>
</WorkingSiteForwardedProduction>

Source

<xs:element name="WorkingSiteForwardedProduction" type="workingSiteForwardedProduction:WorkingSiteForwardedProductionType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Metsätraktorin tuotostiedot, header-osiossa tähän viitataan MessageType = 'WorkingSiteForwardedProduction'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Forwarder production information, reference in header-part is MessageType = 'WorkingSiteForwardedProduction'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteForwardingQualityControl

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Metsätraktorin punnitustarkkuus, header-osiossa tähän viitataan MessageType = 'WorkingSiteForwardingQualityControl'

Forwarder weighing accuracy, reference in header-part is MessageType = 'WorkingSiteForwardingQualityControl'

Diagram

Type

WorkingSiteForwardingQualityControlType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , ContractorId , ResourceId , ForestOwner , OperatorId , MeasurementDate , MachineApplicationVersion , ControlReferenceMass , FileName , Bytes , ScaleData+ , Calibration*

Children

Bytes, Calibration, ContractorId, ControlReferenceMass, FileName, ForestOwner, MachineApplicationVersion, MeasurementDate, OperatorId, ResourceId, ScaleData, ServiceBuyerId, WorkingSiteId

Instance

<WorkingSiteForwardingQualityControl>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ContractorId>{1,1}</ContractorId>
  <ResourceId>{1,1}</ResourceId>
  <ForestOwner>{1,1}</ForestOwner>
  <OperatorId>{1,1}</OperatorId>
  <MeasurementDate>{1,1}</MeasurementDate>
  <MachineApplicationVersion>{1,1}</MachineApplicationVersion>
  <ControlReferenceMass>{1,1}</ControlReferenceMass>
  <FileName>{1,1}</FileName>
  <Bytes>{1,1}</Bytes>
  <ScaleData>{1,unbounded}</ScaleData>
  <Calibration>{0,unbounded}</Calibration>
</WorkingSiteForwardingQualityControl>

Source

<xs:element name="WorkingSiteForwardingQualityControl" type="workingSiteForwardingQualityControl:WorkingSiteForwardingQualityControlType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Metsätraktorin punnitustarkkuus, header-osiossa tähän viitataan MessageType = 'WorkingSiteForwardingQualityControl'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Forwarder weighing accuracy, reference in header-part is MessageType = 'WorkingSiteForwardingQualityControl'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteHarvestedProduction

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Hakkuukoneen tuotostiedot, header-osiossa tähän viitataan MessageType = 'WorkingSiteHarvestedProduction'

Harvester production information, reference in header-part is MessageType = 'WorkingSiteHarvestedProduction'

Diagram

Type

WorkingSiteHarvestedProductionType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , StandId{0,1} , StorageId{0,1} , ContractorId , ResourceId , ForestOwner , StartDate , EndDate{0,1} , SendDate , InfoText{0,1} , MachineApplicationVersion , FileName{0,1} , Bytes{0,1} , StemTypeVolumes , AssortmentVolumes , AssortmentVolumesUnclassified{0,1} , AssortmentMatrixVolumes , ProductUserIds+

Children

AssortmentMatrixVolumes, AssortmentVolumes, AssortmentVolumesUnclassified, Bytes, ContractorId, EndDate, FileName, ForestOwner, InfoText, MachineApplicationVersion, ProductUserIds, ResourceId, SendDate, ServiceBuyerId, StandId, StartDate, StemTypeVolumes, StorageId, WorkingSiteId

Instance

<WorkingSiteHarvestedProduction>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <StandId>{0,1}</StandId>
  <StorageId>{0,1}</StorageId>
  <ContractorId>{1,1}</ContractorId>
  <ResourceId>{1,1}</ResourceId>
  <ForestOwner>{1,1}</ForestOwner>
  <StartDate>{1,1}</StartDate>
  <EndDate>{0,1}</EndDate>
  <SendDate>{1,1}</SendDate>
  <InfoText>{0,1}</InfoText>
  <MachineApplicationVersion>{1,1}</MachineApplicationVersion>
  <FileName>{0,1}</FileName>
  <Bytes>{0,1}</Bytes>
  <StemTypeVolumes>{1,1}</StemTypeVolumes>
  <AssortmentVolumes>{1,1}</AssortmentVolumes>
  <AssortmentVolumesUnclassified>{0,1}</AssortmentVolumesUnclassified>
  <AssortmentMatrixVolumes>{1,1}</AssortmentMatrixVolumes>
  <ProductUserIds>{1,unbounded}</ProductUserIds>
</WorkingSiteHarvestedProduction>

Source

<xs:element name="WorkingSiteHarvestedProduction" type="workingSiteHarvestedProduction:WorkingSiteHarvestedProductionType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Hakkuukoneen tuotostiedot, header-osiossa tähän viitataan MessageType = 'WorkingSiteHarvestedProduction'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Harvester production information, reference in header-part is MessageType = 'WorkingSiteHarvestedProduction'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteHarvestingQualityControl

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Diagram

Type

WorkingSiteHarvestingQualityControlType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , ContractorId , ResourceId , OperatorId , ForestOwner , MeasurerType , MeasurementDate , MachineApplicationVersion , FileName , Bytes , Stem+ , LengthCalibration* , DiameterCalibration* , Caliper{0,1}

Children

Bytes, Caliper, ContractorId, DiameterCalibration, FileName, ForestOwner, LengthCalibration, MachineApplicationVersion, MeasurementDate, MeasurerType, OperatorId, ResourceId, ServiceBuyerId, Stem, WorkingSiteId

Instance

<WorkingSiteHarvestingQualityControl>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ContractorId>{1,1}</ContractorId>
  <ResourceId>{1,1}</ResourceId>
  <OperatorId>{1,1}</OperatorId>
  <ForestOwner>{1,1}</ForestOwner>
  <MeasurerType>{1,1}</MeasurerType>
  <MeasurementDate>{1,1}</MeasurementDate>
  <MachineApplicationVersion>{1,1}</MachineApplicationVersion>
  <FileName>{1,1}</FileName>
  <Bytes>{1,1}</Bytes>
  <Stem>{1,unbounded}</Stem>
  <LengthCalibration>{0,unbounded}</LengthCalibration>
  <DiameterCalibration>{0,unbounded}</DiameterCalibration>
  <Caliper>{0,1}</Caliper>
</WorkingSiteHarvestingQualityControl>

Source

<xs:element name="WorkingSiteHarvestingQualityControl" type="workingSiteHarvestingQualityControl:WorkingSiteHarvestingQualityControlType">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteHarvestingQualityControlManual

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Käsin syötetty motokontrolli, header-osiossa tähän viitataan MessageType = 'WorkingSiteHarvestingQualityControlManual'

Manually supplied harvester control measurement, reference in header-part is MessageType = 'WorkingSiteHarvestingQualityControlManual'

Diagram

Type

WorkingSiteHarvestingQualityControlManualType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , ContractorId , ResourceId , InfoText , Measurements

Children

ContractorId, InfoText, Measurements, ResourceId, ServiceBuyerId, WorkingSiteId

Instance

<WorkingSiteHarvestingQualityControlManual>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ContractorId>{1,1}</ContractorId>
  <ResourceId>{1,1}</ResourceId>
  <InfoText>{1,1}</InfoText>
  <Measurements>{1,1}</Measurements>
</WorkingSiteHarvestingQualityControlManual>

Source

<xs:element name="WorkingSiteHarvestingQualityControlManual" type="workingSiteHarvestingQualityControlManual:WorkingSiteHarvestingQualityControlManualType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Käsin syötetty motokontrolli, header-osiossa tähän viitataan MessageType = 'WorkingSiteHarvestingQualityControlManual'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Manually supplied harvester control measurement, reference in header-part is MessageType = 'WorkingSiteHarvestingQualityControlManual'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteOperational

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Lohkon tiedot, header-osiossa tähän viitataan MessageType = 'WorkingSiteOperational'

Working site information, reference in header-part is MessageType = 'WorkingSiteOperational'

Diagram

Type

WorkingSiteOperationalType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , PurchaseContractNumber , WorkingSiteNumber , WorkingSiteName , ContractorId , ContractId , ServiceType , CustomerType{0,1} , SilvicultureContractNumber{0,1} , Organisation1{0,1} , Organisation2{0,1} , Organisation3{0,1} , Organisation4{0,1} , OperationalRegion{0,1} , ServiceBuyerContactInformation , CustomerRepresentativePerson{0,1} , ForestOwners , TransportCompany{0,1} , BearingCapacityClass{0,1} , Accessibility , TerrainClass{0,1} , ForestHaulageDistance{0,1} , TerrainPlanningDone{0,1} , ReadyToDo , SellersLogs{0,1} , SellersLogsInfo{0,1} , WorkingsiteInfo{0,1} , Priority{0,1} , OperationTimeStart{0,1} , OperationTimeEnd{0,1} , ResourceId{0,1} , ForestUseDeclaration{0,1} , OperationRestriction{0,1} , ContractValidDate{0,1} , MaterialAreaId{0,1} , QualityAttachments{0,1} , TransportArea{0,1} , HasSupport{0,1} , PaymentDate{0,1} , PreNotificationAllowed{0,1} , BeginNotificationAllowed{0,1} , SendNotificationsAlways{0,1} , LargeSummaryReportRequired{0,1} , TestAreaMethod{0,1} , TestAreaRequired{0,1} , IslandWorkingSite{0,1} , StormWorkingSite{0,1} , SodWorkingSite{0,1} , CanCultivateInAutumn{0,1} , IsValueForceWorkingSite{0,1} , ForestCertification+ , DryingClass{0,1} , HumidityPercentage{0,1} , CuttingControlRequired{0,1} , CuttingFinishedDate{0,1} , StumpLiftingFinishedDate{0,1} , AssortmentIncrementAllowed{0,1} , EnvironmentalObjectInfo{0,1} , WorkingSafetyInfo{0,1} , AccessRightsInfo{0,1} , MainWorkCode , ProductionFileSendFrequency{0,1} , ForestSystemPaymentReference{0,1} , PreviousBlockState{0,1} , PreviousBlocks{0,1} , Assortments{0,1} , Stands , Storages{0,1} , FeeBasis{0,1} , StemTypeBulks{0,1} , ProductUserIds{0,1} , DiameterSections{0,1}

Children

AccessRightsInfo, Accessibility, AssortmentIncrementAllowed, Assortments, BearingCapacityClass, BeginNotificationAllowed, CanCultivateInAutumn, ContractId, ContractValidDate, ContractorId, CustomerRepresentativePerson, CustomerType, CuttingControlRequired, CuttingFinishedDate, DiameterSections, DryingClass, EnvironmentalObjectInfo, FeeBasis, ForestCertification, ForestHaulageDistance, ForestOwners, ForestSystemPaymentReference, ForestUseDeclaration, HasSupport, HumidityPercentage, IsValueForceWorkingSite, IslandWorkingSite, LargeSummaryReportRequired, MainWorkCode, MaterialAreaId, OperationRestriction, OperationTimeEnd, OperationTimeStart, OperationalRegion, Organisation1, Organisation2, Organisation3, Organisation4, PaymentDate, PreNotificationAllowed, PreviousBlockState, PreviousBlocks, Priority, ProductUserIds, ProductionFileSendFrequency, PurchaseContractNumber, QualityAttachments, ReadyToDo, ResourceId, SellersLogs, SellersLogsInfo, SendNotificationsAlways, ServiceBuyerContactInformation, ServiceBuyerId, ServiceType, SilvicultureContractNumber, SodWorkingSite, Stands, StemTypeBulks, Storages, StormWorkingSite, StumpLiftingFinishedDate, TerrainClass, TerrainPlanningDone, TestAreaMethod, TestAreaRequired, TransportArea, TransportCompany, WorkingSafetyInfo, WorkingSiteId, WorkingSiteName, WorkingSiteNumber, WorkingsiteInfo

Instance

<WorkingSiteOperational>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <PurchaseContractNumber>{1,1}</PurchaseContractNumber>
  <WorkingSiteNumber>{1,1}</WorkingSiteNumber>
  <WorkingSiteName>{1,1}</WorkingSiteName>
  <ContractorId>{1,1}</ContractorId>
  <ContractId>{1,1}</ContractId>
  <ServiceType>{1,1}</ServiceType>
  <CustomerType>{0,1}</CustomerType>
  <SilvicultureContractNumber>{0,1}</SilvicultureContractNumber>
  <Organisation1>{0,1}</Organisation1>
  <Organisation2>{0,1}</Organisation2>
  <Organisation3>{0,1}</Organisation3>
  <Organisation4>{0,1}</Organisation4>
  <OperationalRegion>{0,1}</OperationalRegion>
  <ServiceBuyerContactInformation>{1,1}</ServiceBuyerContactInformation>
  <CustomerRepresentativePerson>{0,1}</CustomerRepresentativePerson>
  <ForestOwners>{1,1}</ForestOwners>
  <TransportCompany>{0,1}</TransportCompany>
  <BearingCapacityClass>{0,1}</BearingCapacityClass>
  <Accessibility>{1,1}</Accessibility>
  <TerrainClass>{0,1}</TerrainClass>
  <ForestHaulageDistance>{0,1}</ForestHaulageDistance>
  <TerrainPlanningDone>{0,1}</TerrainPlanningDone>
  <ReadyToDo>{1,1}</ReadyToDo>
  <SellersLogs>{0,1}</SellersLogs>
  <SellersLogsInfo>{0,1}</SellersLogsInfo>
  <WorkingsiteInfo>{0,1}</WorkingsiteInfo>
  <Priority>{0,1}</Priority>
  <OperationTimeStart>{0,1}</OperationTimeStart>
  <OperationTimeEnd>{0,1}</OperationTimeEnd>
  <ResourceId>{0,1}</ResourceId>
  <ForestUseDeclaration>{0,1}</ForestUseDeclaration>
  <OperationRestriction>{0,1}</OperationRestriction>
  <ContractValidDate>{0,1}</ContractValidDate>
  <MaterialAreaId>{0,1}</MaterialAreaId>
  <QualityAttachments>{0,1}</QualityAttachments>
  <TransportArea>{0,1}</TransportArea>
  <HasSupport>{0,1}</HasSupport>
  <PaymentDate>{0,1}</PaymentDate>
  <PreNotificationAllowed>{0,1}</PreNotificationAllowed>
  <BeginNotificationAllowed>{0,1}</BeginNotificationAllowed>
  <SendNotificationsAlways>{0,1}</SendNotificationsAlways>
  <LargeSummaryReportRequired>{0,1}</LargeSummaryReportRequired>
  <TestAreaMethod>{0,1}</TestAreaMethod>
  <TestAreaRequired>{0,1}</TestAreaRequired>
  <IslandWorkingSite>{0,1}</IslandWorkingSite>
  <StormWorkingSite>{0,1}</StormWorkingSite>
  <SodWorkingSite>{0,1}</SodWorkingSite>
  <CanCultivateInAutumn>{0,1}</CanCultivateInAutumn>
  <IsValueForceWorkingSite>{0,1}</IsValueForceWorkingSite>
  <ForestCertification>{1,unbounded}</ForestCertification>
  <DryingClass>{0,1}</DryingClass>
  <HumidityPercentage>{0,1}</HumidityPercentage>
  <CuttingControlRequired>{0,1}</CuttingControlRequired>
  <CuttingFinishedDate>{0,1}</CuttingFinishedDate>
  <StumpLiftingFinishedDate>{0,1}</StumpLiftingFinishedDate>
  <AssortmentIncrementAllowed>{0,1}</AssortmentIncrementAllowed>
  <EnvironmentalObjectInfo>{0,1}</EnvironmentalObjectInfo>
  <WorkingSafetyInfo>{0,1}</WorkingSafetyInfo>
  <AccessRightsInfo>{0,1}</AccessRightsInfo>
  <MainWorkCode>{1,1}</MainWorkCode>
  <ProductionFileSendFrequency>{0,1}</ProductionFileSendFrequency>
  <ForestSystemPaymentReference>{0,1}</ForestSystemPaymentReference>
  <PreviousBlockState>{0,1}</PreviousBlockState>
  <PreviousBlocks>{0,1}</PreviousBlocks>
  <Assortments>{0,1}</Assortments>
  <Stands>{1,1}</Stands>
  <Storages>{0,1}</Storages>
  <FeeBasis>{0,1}</FeeBasis>
  <StemTypeBulks>{0,1}</StemTypeBulks>
  <ProductUserIds>{0,1}</ProductUserIds>
  <DiameterSections>{0,1}</DiameterSections>
</WorkingSiteOperational>

Source

<xs:element name="WorkingSiteOperational" type="workingSiteOperational:WorkingSiteOperationalType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Lohkon tiedot, header-osiossa tähän viitataan MessageType = 'WorkingSiteOperational'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Working site information, reference in header-part is MessageType = 'WorkingSiteOperational'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteOperationalUpdate

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Lohkon tiedot, päivitys WF-> MJ, header-osiossa tähän viitataan MessageType = 'WorkingSiteOperationalUpdate'

Working site information, update WF-> MJ, reference in header-part is MessageType = 'WorkingSiteOperationalUpdate'

Diagram

Type

WorkingSiteOperationalUpdateType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , ContractorId , ImageCount , LoadNumber{0,1} , LoadPaymentReference{0,1} , Assortments{0,1} , Storages{0,1} , ProductUserIds{0,1} , CanCultivateInAutumn{0,1} , InfoText{0,1}

Children

Assortments, CanCultivateInAutumn, ContractorId, ImageCount, InfoText, LoadNumber, LoadPaymentReference, ProductUserIds, ServiceBuyerId, Storages, WorkingSiteId

Instance

<WorkingSiteOperationalUpdate>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ContractorId>{1,1}</ContractorId>
  <ImageCount>{1,1}</ImageCount>
  <LoadNumber>{0,1}</LoadNumber>
  <LoadPaymentReference>{0,1}</LoadPaymentReference>
  <Assortments>{0,1}</Assortments>
  <Storages>{0,1}</Storages>
  <ProductUserIds>{0,1}</ProductUserIds>
  <CanCultivateInAutumn>{0,1}</CanCultivateInAutumn>
  <InfoText>{0,1}</InfoText>
</WorkingSiteOperationalUpdate>

Source

<xs:element name="WorkingSiteOperationalUpdate" type="workingSiteOperationalUpdate:WorkingSiteOperationalUpdateType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Lohkon tiedot, päivitys WF-> MJ, header-osiossa tähän viitataan MessageType = 'WorkingSiteOperationalUpdate'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Working site information, update WF-> MJ, reference in header-part is MessageType = 'WorkingSiteOperationalUpdate'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteQualityControlCutting

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Jäävän puuston koealamittaus, header-osiossa tähän viitataan MessageType = 'WorkingSiteQualityControlCutting'

Cutting quality control measurement, reference in header-part is MessageType = 'WorkingSiteQualityControlCutting'

Diagram

Type

WorkingSiteQualityControlCuttingType

Type hierarchy

WorkingSiteQualityControlBaseCuttingType
- WorkingSiteQualityControlCuttingType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , ResourceId{0,1} , QualityControlDate , SamplePlotsSummaries , SamplePlots

Children

QualityControlDate, ResourceId, SamplePlots, SamplePlotsSummaries, ServiceBuyerId, WorkingSiteId

Instance

<WorkingSiteQualityControlCutting>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ResourceId>{0,1}</ResourceId>
  <QualityControlDate>{1,1}</QualityControlDate>
  <SamplePlotsSummaries>{1,1}</SamplePlotsSummaries>
  <SamplePlots>{1,1}</SamplePlots>
</WorkingSiteQualityControlCutting>

Source

<xs:element name="WorkingSiteQualityControlCutting" type="workingSiteQualityControlCutting:WorkingSiteQualityControlCuttingType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Jäävän puuston koealamittaus, header-osiossa tähän viitataan MessageType = 'WorkingSiteQualityControlCutting'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Cutting quality control measurement, reference in header-part is MessageType = 'WorkingSiteQualityControlCutting'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteQualityControlFertilization

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Diagram

Type

WorkingSiteQualityControlFertilizationType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , Images{0,1} , SamplePlotSummaries , SamplePlots

Children

Images, SamplePlotSummaries, SamplePlots, ServiceBuyerId, WorkingSiteId

Instance

<WorkingSiteQualityControlFertilization>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <Images>{0,1}</Images>
  <SamplePlotSummaries>{1,1}</SamplePlotSummaries>
  <SamplePlots>{1,1}</SamplePlots>
</WorkingSiteQualityControlFertilization>

Source

<xs:element name="WorkingSiteQualityControlFertilization" type="workingSiteQualityControlFertilization:WorkingSiteQualityControlFertilizationType">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteQualityControlPlantManagement

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Taimikonhoidon koealatiedot, header-osiossa tähän viitataan MessageType = 'WorkingSiteQualityControlPlantManagement'

Plant management quality control, reference in header-part is MessageType = 'WorkingSiteQualityControlPlantManagement'

Diagram

Type

WorkingSiteQualityControlPlantManagementType

Type hierarchy

WorkingSiteQualityControlPlantManagementBaseType
- WorkingSiteQualityControlPlantManagementType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , Images , SamplePlotSummaries , SamplePlots

Children

Images, SamplePlotSummaries, SamplePlots, ServiceBuyerId, WorkingSiteId

Instance

<WorkingSiteQualityControlPlantManagement>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <Images>{1,1}</Images>
  <SamplePlotSummaries>{1,1}</SamplePlotSummaries>
  <SamplePlots>{1,1}</SamplePlots>
</WorkingSiteQualityControlPlantManagement>

Source

<xs:element name="WorkingSiteQualityControlPlantManagement" type="workingSiteQualityControlPlantManagement:WorkingSiteQualityControlPlantManagementType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Taimikonhoidon koealatiedot, header-osiossa tähän viitataan MessageType = 'WorkingSiteQualityControlPlantManagement'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Plant management quality control, reference in header-part is MessageType = 'WorkingSiteQualityControlPlantManagement'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteQualityControlSilviculture

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Metsänviljelyn koeala, header-osiossa tähän viitataan MessageType = 'WorkingSiteQualityControlSilviculture'

Silviculture quality control, reference in header-part is MessageType = 'WorkingSiteQualityControlSilviculture'

Diagram

Type

WorkingSiteQualityControlSilvicultureType

Type hierarchy

WorkingSiteQualityControlSilvicultureBaseType
- WorkingSiteQualityControlSilvicultureType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , Images , SamplePlotSummaries , SamplePlots

Children

Images, SamplePlotSummaries, SamplePlots, ServiceBuyerId, WorkingSiteId

Instance

<WorkingSiteQualityControlSilviculture>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <Images>{1,1}</Images>
  <SamplePlotSummaries>{1,1}</SamplePlotSummaries>
  <SamplePlots>{1,1}</SamplePlots>
</WorkingSiteQualityControlSilviculture>

Source

<xs:element name="WorkingSiteQualityControlSilviculture" type="workingSiteQualityControlSilviculture:WorkingSiteQualityControlSilvicultureType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Metsänviljelyn koeala, header-osiossa tähän viitataan MessageType = 'WorkingSiteQualityControlSilviculture'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Silviculture quality control, reference in header-part is MessageType = 'WorkingSiteQualityControlSilviculture'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteQualityControlSoilConditioning

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Diagram

Type

WorkingSiteQualityControlSoilConditioningType

Type hierarchy

WorkingSiteQualityControlSoilConditioningBaseType
- WorkingSiteQualityControlSoilConditioningType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , Images{0,1} , SamplePlotSummaries , SamplePlots

Children

Images, SamplePlotSummaries, SamplePlots, ServiceBuyerId, WorkingSiteId

Instance

<WorkingSiteQualityControlSoilConditioning>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <Images>{0,1}</Images>
  <SamplePlotSummaries>{1,1}</SamplePlotSummaries>
  <SamplePlots>{1,1}</SamplePlots>
</WorkingSiteQualityControlSoilConditioning>

Source

<xs:element name="WorkingSiteQualityControlSoilConditioning" type="workingSiteQualityControlSoilConditioning:WorkingSiteQualityControlSoilConditioningType">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteQualityNotification

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Tehtaiden laatupalaute, header-osiossa tähän viitataan MessageType = 'WorkingSiteQualityNotification'

Factory quality feedback, reference in header-part is MessageType = 'WorkingSiteQualityNotification'

Diagram

Type

WorkingSiteQualityNotificationType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , ContractorId , ResourceId{0,1} , ResourceIdMJ{0,1} , PurchaseContractNumber , ForestOwner{0,1} , DestinationStorage , Assortment , MeasurementDate , Volume , DisQualificationPercentageTotal , CuttingAccuracy , DisQualificationSign , CuttingAccuracySign , Document{0,1} , Image{0,1} , DisQualificationReasons

Children

Assortment, ContractorId, CuttingAccuracy, CuttingAccuracySign, DestinationStorage, DisQualificationPercentageTotal, DisQualificationReasons, DisQualificationSign, Document, ForestOwner, Image, MeasurementDate, PurchaseContractNumber, ResourceId, ResourceIdMJ, ServiceBuyerId, Volume, WorkingSiteId

Instance

<WorkingSiteQualityNotification>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ContractorId>{1,1}</ContractorId>
  <ResourceId>{0,1}</ResourceId>
  <ResourceIdMJ>{0,1}</ResourceIdMJ>
  <PurchaseContractNumber>{1,1}</PurchaseContractNumber>
  <ForestOwner>{0,1}</ForestOwner>
  <DestinationStorage>{1,1}</DestinationStorage>
  <Assortment>{1,1}</Assortment>
  <MeasurementDate>{1,1}</MeasurementDate>
  <Volume>{1,1}</Volume>
  <DisQualificationPercentageTotal>{1,1}</DisQualificationPercentageTotal>
  <CuttingAccuracy>{1,1}</CuttingAccuracy>
  <DisQualificationSign>{1,1}</DisQualificationSign>
  <CuttingAccuracySign>{1,1}</CuttingAccuracySign>
  <Document>{0,1}</Document>
  <Image>{0,1}</Image>
  <DisQualificationReasons>{1,1}</DisQualificationReasons>
</WorkingSiteQualityNotification>

Source

<xs:element name="WorkingSiteQualityNotification" type="workingSiteQualityNotification:WorkingSiteQualityNotificationType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Tehtaiden laatupalaute, header-osiossa tähän viitataan MessageType = 'WorkingSiteQualityNotification'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Factory quality feedback, reference in header-part is MessageType = 'WorkingSiteQualityNotification'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteStatus

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Lohkon tila, header-osiossa tähän viitataan MessageType = 'WorkingSiteStatus'

Working site status, reference in header-part is MessageType = 'WorkingSiteStatus'

Diagram

Type

WorkingSiteStatusType

Properties

content:

complex

Model

ServiceBuyerId , ContractorId , ResourceId{0,1} , WorkingSiteId , ServiceType , Status

Children

ContractorId, ResourceId, ServiceBuyerId, ServiceType, Status, WorkingSiteId

Instance

<WorkingSiteStatus>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <ContractorId>{1,1}</ContractorId>
  <ResourceId>{0,1}</ResourceId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ServiceType>{1,1}</ServiceType>
  <Status>{1,1}</Status>
</WorkingSiteStatus>

Source

<xs:element name="WorkingSiteStatus" type="workingSiteStatus:WorkingSiteStatusType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Lohkon tila, header-osiossa tähän viitataan MessageType = 'WorkingSiteStatus'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Working site status, reference in header-part is MessageType = 'WorkingSiteStatus'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteTravelNotification

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Kilometri-ilmoitus, header-osiossa tähän viitataan MessageType = 'WorkingSiteTravelNotification'

Travel notification, reference in header-part is MessageType = 'WorkingSiteTravelNotification'

Diagram

Type

WorkingSiteTravelNotificationType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , ResourceId , TravelStartTime , TravelEndTime , Vehicle , Kilometers , Route , KilometersWithTrailer{0,1} , KilometersWithCaravan{0,1} , KilometersWithBreakHouse{0,1} , ExtraPerson1{0,1} , ExtraPerson2{0,1} , ExtraPerson3{0,1} , ExtraPerson4{0,1} , ExtraPersonText{0,1}

Children

ExtraPerson1, ExtraPerson2, ExtraPerson3, ExtraPerson4, ExtraPersonText, Kilometers, KilometersWithBreakHouse, KilometersWithCaravan, KilometersWithTrailer, ResourceId, Route, ServiceBuyerId, TravelEndTime, TravelStartTime, Vehicle, WorkingSiteId

Instance

<WorkingSiteTravelNotification>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ResourceId>{1,1}</ResourceId>
  <TravelStartTime>{1,1}</TravelStartTime>
  <TravelEndTime>{1,1}</TravelEndTime>
  <Vehicle>{1,1}</Vehicle>
  <Kilometers>{1,1}</Kilometers>
  <Route>{1,1}</Route>
  <KilometersWithTrailer>{0,1}</KilometersWithTrailer>
  <KilometersWithCaravan>{0,1}</KilometersWithCaravan>
  <KilometersWithBreakHouse>{0,1}</KilometersWithBreakHouse>
  <ExtraPerson1>{0,1}</ExtraPerson1>
  <ExtraPerson2>{0,1}</ExtraPerson2>
  <ExtraPerson3>{0,1}</ExtraPerson3>
  <ExtraPerson4>{0,1}</ExtraPerson4>
  <ExtraPersonText>{0,1}</ExtraPersonText>
</WorkingSiteTravelNotification>

Source

<xs:element name="WorkingSiteTravelNotification" type="workingSiteTravelNotification:WorkingSiteTravelNotificationType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kilometri-ilmoitus, header-osiossa tähän viitataan MessageType = 'WorkingSiteTravelNotification'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Travel notification, reference in header-part is MessageType = 'WorkingSiteTravelNotification'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteWorkLoad

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Työmääräilmoitus, header-osiossa tähän viitataan MessageType = 'WorkingSiteWorkLoad'

Workload information, reference in header-part is MessageType = 'WorkingSiteWorkLoad'

Diagram

Type

WorkingSiteWorkLoadType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , StandNumber{0,1} , WorkLoadId , Accepted , ResourceId , UserId , LoadNumber{0,1} , LoadPaymentReference{0,1} , ForestSystemPaymentReference{0,1} , WorkCode , WorkCodeQualifier1* , WorkCodeQualifier2* , WorkCodeQualifier3* , WorkCodeQualifier4* , WorkCodeQualifier5* , WorkLoad1 , WorkLoad1Unit , TransportDistance{0,1} , TransportDistanceUnit{0,1} , WorkLoad2{0,1} , WorkLoad2Unit{0,1} , WorkLoadInvoiced{0,1} , WorkLoadUnitInvoiced{0,1} , Materials{0,1} , FeeBasis{0,1} , StandFinished{0,1} , InfoText{0,1} , StartTime{0,1} , EndTime{0,1} , SavingTime{0,1}

Children

Accepted, EndTime, FeeBasis, ForestSystemPaymentReference, InfoText, LoadNumber, LoadPaymentReference, Materials, ResourceId, SavingTime, ServiceBuyerId, StandFinished, StandNumber, StartTime, TransportDistance, TransportDistanceUnit, UserId, WorkCode, WorkCodeQualifier1, WorkCodeQualifier2, WorkCodeQualifier3, WorkCodeQualifier4, WorkCodeQualifier5, WorkLoad1, WorkLoad1Unit, WorkLoad2, WorkLoad2Unit, WorkLoadId, WorkLoadInvoiced, WorkLoadUnitInvoiced, WorkingSiteId

Instance

<WorkingSiteWorkLoad>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <StandNumber>{0,1}</StandNumber>
  <WorkLoadId>{1,1}</WorkLoadId>
  <Accepted>{1,1}</Accepted>
  <ResourceId>{1,1}</ResourceId>
  <UserId>{1,1}</UserId>
  <LoadNumber>{0,1}</LoadNumber>
  <LoadPaymentReference>{0,1}</LoadPaymentReference>
  <ForestSystemPaymentReference>{0,1}</ForestSystemPaymentReference>
  <WorkCode>{1,1}</WorkCode>
  <WorkCodeQualifier1>{0,unbounded}</WorkCodeQualifier1>
  <WorkCodeQualifier2>{0,unbounded}</WorkCodeQualifier2>
  <WorkCodeQualifier3>{0,unbounded}</WorkCodeQualifier3>
  <WorkCodeQualifier4>{0,unbounded}</WorkCodeQualifier4>
  <WorkCodeQualifier5>{0,unbounded}</WorkCodeQualifier5>
  <WorkLoad1>{1,1}</WorkLoad1>
  <WorkLoad1Unit>{1,1}</WorkLoad1Unit>
  <TransportDistance>{0,1}</TransportDistance>
  <TransportDistanceUnit>{0,1}</TransportDistanceUnit>
  <WorkLoad2>{0,1}</WorkLoad2>
  <WorkLoad2Unit>{0,1}</WorkLoad2Unit>
  <WorkLoadInvoiced>{0,1}</WorkLoadInvoiced>
  <WorkLoadUnitInvoiced>{0,1}</WorkLoadUnitInvoiced>
  <Materials>{0,1}</Materials>
  <FeeBasis>{0,1}</FeeBasis>
  <StandFinished>{0,1}</StandFinished>
  <InfoText>{0,1}</InfoText>
  <StartTime>{0,1}</StartTime>
  <EndTime>{0,1}</EndTime>
  <SavingTime>{0,1}</SavingTime>
</WorkingSiteWorkLoad>

Source

<xs:element name="WorkingSiteWorkLoad" type="workingSiteWorkLoad:WorkingSiteWorkLoadType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Työmääräilmoitus, header-osiossa tähän viitataan MessageType = 'WorkingSiteWorkLoad'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Workload information, reference in header-part is MessageType = 'WorkingSiteWorkLoad'</xs:documentation>
  </xs:annotation>
</xs:element>

Element PayloadType / WorkingSiteWorkTime

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Työaikailmoitus, header-osiossa tähän viitataan MessageType = 'WorkingSiteWorkTime'

Worktime information, reference in header-part is MessageType = 'WorkingSiteWorkTime'

Diagram

Type

WorkingSiteWorkTimeType

Properties

content:

complex

Model

ServiceBuyerId , WorkingSiteId , ResourceId , StartTime , EndTime , SavingTime

Children

EndTime, ResourceId, SavingTime, ServiceBuyerId, StartTime, WorkingSiteId

Instance

<WorkingSiteWorkTime>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <ResourceId>{1,1}</ResourceId>
  <StartTime>{1,1}</StartTime>
  <EndTime>{1,1}</EndTime>
  <SavingTime>{1,1}</SavingTime>
</WorkingSiteWorkTime>

Source

<xs:element name="WorkingSiteWorkTime" type="workingSiteWorkTime:WorkingSiteWorkTimeType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Työaikailmoitus, header-osiossa tähän viitataan MessageType = 'WorkingSiteWorkTime'</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Worktime information, reference in header-part is MessageType = 'WorkingSiteWorkTime'</xs:documentation>
  </xs:annotation>
</xs:element>

Complex Type EnvelopeType

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Diagram

Used by

Element

Envelope

Model

Header , Message

Children

Header, Message

Source

<xs:complexType name="EnvelopeType">
  <xs:sequence>
    <xs:element name="Header" type="header:HeaderType"/>
    <xs:element name="Message" type="PayloadType"/>
  </xs:sequence>
</xs:complexType>

Complex Type PayloadType

Namespace

http://standardit.tapio.fi/schemas/forestData/envelope

Annotations

Tähän kaikkien käytettävien viestityyppien tyyppimäärittelyt

Diagram

Used by

Element

EnvelopeType/Message

Model

Children

Source

<xs:complexType name="PayloadType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Tähän kaikkien käytettävien viestityyppien tyyppimäärittelyt</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="Acknowledge" type="acknowledge:AcknowledgeType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Kuittaussanoma, header-osiossa tähän viitataan MessageType = 'Acknowlegde'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Acknowledge message, reference in header-part is MessageType = 'Acknowledge'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CompanyInformation" type="companyInformation:CompanyInformationType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Yrityksen perustiedot, header-osiossa tähän viitataan MessageType = 'CompanyInformation'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Company basic information, reference in header-part is MessageType = 'CompanyInformation'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Contract" type="contract:ContractType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Sopimustiedot, header-osiossa tähän viitataan MessageType = 'Contract'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Contract information, reference in header-part is MessageType = 'Contract'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ExternalFile" type="externalFile:ExternalFileType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Tiedoston lähetys</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">File sending</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ForwardingEstimate" type="forwardingEstimate:ForwardingEstimateType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Mekuennuste, header-osiossa tähän viitataan MessageType = 'ForwardingEstimate'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Forwarding estimate, reference in header-part is MessageType = 'ForwardingEstimate'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ForwardingNotification" type="forwardingNotification:ForwardingNotificationType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Mekuilmoitus, header-osiossa tähän viitataan MessageType = 'ForwardingNotification'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Forwarding notification, reference in header-part is MessageType = 'ForwardingNotification'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="HarvestingOrder" type="harvestingOrder:HarvestingOrderType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Korjuun tilaus, header-osiossa tähän viitataan MessageType = 'HarvestingOrder'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Harvesting order, reference in header-part is MessageType = 'HarvestingOrder'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Image" type="image:ImageType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Valokuvat, header-osiossa tähän viitataan MessageType = 'Image'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Photographs, reference in header-part is MessageType = 'Image'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MapSymbol" type="mapSymbol:MapSymbolType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Lohkon karttamerkit, header-osiossa tähän viitataan MessageType = 'MapSymbol'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Parcel map symbols, reference in header-part is MessageType = 'MapSymbol'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="OrderConfirmation" type="orderConfirmation:OrderConfirmationType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Tilauksen vahvistus, header-osiossa tähän viitataan MessageType = 'OrderConfirmation'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Order confirmation, reference in header-part is MessageType = 'OrderConfirmation'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element ref="productInstruction:ProductInstruction"/>
    <xs:element name="QualityAttachment" type="qualityAttachment:QualityAttachmentType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Laatuliite, header-osiossa tähän viitataan MessageType = 'QualityAttachment'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Quality attachment, reference in header-part is MessageType = 'QualityAttachment'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Resource" type="resource:ResourceType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Resurssi, header-osiossa tähän viitataan MessageType = 'Resource'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Resource, reference in header-part is MessageType = 'OrderConfirmation'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ResourceSchedule" type="resourceSchedule:ResourceScheduleType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Resurssin työsuunnitelma, header-osiossa tähän viitataan MessageType = 'ResourceSchedule'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Resource's schedule, reference in header-part is MessageType = 'ResourceSchedule'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="RoadOrDitchObjectUpdate" type="roadOrDitchObjectUpdate:RoadOrDitchObjectUpdateType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Tie/ojituskohteen päivitys, header-osiossa tähän viitataan MessageType = 'RoadOrDitchObjectUpdate'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Road/ditch object update, reference in header-part is MessageType = 'RoadOrDitchObjectUpdate'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SilvicultureOrder" type="silvicultureOrder:SilvicultureOrderType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Metsänhoitotyön tilaus, header-osiossa tähän viitataan MessageType = 'SilvicultureOrder'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Ordering of silvicultural operation, reference in header-part is MessageType = 'SilvicultureOrder'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ServiceBuyerResourceLocations" type="serviceBuyerResourceLocations:ServiceBuyerResourceLocationsType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Urakanantajalle työskentelevien resurssien sijainnit</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Locations of resources working for a service buyer</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SmsOperatorStatus" type="smsOperatorStatus:SmsOperatorStatusType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">SMS-operaattorin lähettämä statuspäivitys</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Status update sent by SMS Operator</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="StanfordFile" type="stanfordFile:StanfordFileType"/>
    <xs:element name="UserInformation" type="userInformation:UserInformationType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Käyttäjän tiedot, header-osiossa tähän viitataan MessageType = 'UserInformation'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">User information, reference in header-part is MessageType = 'UserInformation'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WeekCalendar" type="weekCalendar:WeekCalendarType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Viikkokalenteri, header-osiossa tähän viitataan MessageType = 'WeekCalendar'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Week calendar, reference in header-part is MessageType = 'WeekCalendar'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteAccounting" type="workingSiteAccounting:WorkingSiteAccountingType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Lohkon tilitystiedot, header-osiossa tähän viitataan MessageType = 'WorkingSiteAccounting'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Working site accounting information, reference in header-part is MessageType = 'WorkingSiteAccounting'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteEndNotification" type="workingSiteEndNotification:WorkingSiteEndNotificationType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Lohko päätetty keskeytettynä tai valmiina, header-osiossa tähän viitataan MessageType = 'WorkingSiteEndNotification'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Working site ended either interrupted or ready, reference in header-part is MessageType = 'WorkingSiteEndNotification'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteFeeBasis" type="workingSiteFeeBasis:WorkingSiteFeeBasisType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Taksaperusteet, header-osiossa tähän viitataan MessageType = 'WorkingSiteFeeBasis'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Working site fee basis, reference in header-part is MessageType = 'WorkingSiteFeeBasis'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteFinalAuditBioMassForwarding" type="workingSiteFinalAuditBioMassForwarding:WorkingSiteFinalAuditBioMassForwardingType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Metsäenergian kuljetuksen loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditBioMassForwarding'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Forest biomass forwarding final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditBioMassForwarding'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteFinalAuditDraining" type="workingSiteFinalAuditDraining:WorkingSiteFinalAuditDrainingType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Kunnostusojituslohkon loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditDraining'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Overhaul ditching working site final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditDraining'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteFinalAuditFertilization" type="workingSiteFinalAuditFertilization:WorkingSiteFinalAuditFertilizationType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Lannoituksen loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditFertilization'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Fertilization final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditFertilization'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteFinalAuditHarvesting" type="workingSiteFinalAuditHarvesting:WorkingSiteFinalAuditHarvestingType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Puunkorjuun loppuarvointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditHarvesting'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Harvesting final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditHarvesting'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteFinalAuditPlantManagement" type="workingSiteFinalAuditPlantManagement:WorkingSiteFinalAuditPlantManagementType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Taimikonhoidon loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditPlantManagement'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Plant management final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditPlantManagement'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteFinalAuditRoadMaking" type="workingSiteFinalAuditRoadMaking:WorkingSiteFinalAuditRoadMakingType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Tienrakennuksen loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditRoadMaking'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Road construction final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditRoadMaking'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteFinalAuditSilviculture" type="workingSiteFinalAuditSilviculture:WorkingSiteFinalAuditSilvicultureType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Taimikonhoidon loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditSilviculture'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Silviculture operations final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditSilviculture'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteFinalAuditSoilConditioning" type="workingSiteFinalAuditSoilConditioning:WorkingSiteFinalAuditSoilConditioningType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Maanmuokkauksen loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditSoilConditioning'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Soil conditioning final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditSoilConditioning'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteFinalAuditStumpForwarding" type="workingSiteFinalAuditStumpForwarding:WorkingSiteFinalAuditStumpForwardingType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Kantojen ajon loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditStumpForwarding'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Stump forwarding final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditStumpForwarding'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteFinalAuditStumpLifting" type="workingSiteFinalAuditStumpLifting:WorkingSiteFinalAuditStumpLiftingType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Kantojen noston loppuarviointi/laadunseuranta, header-osiossa tähän viitataan MessageType = 'WorkingSiteFinalAuditStumpLifting'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Stump lifting final audit/quality monitoring, reference in header-part is MessageType = 'WorkingSiteFinalAuditStumpLifting'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteForwardedProduction" type="workingSiteForwardedProduction:WorkingSiteForwardedProductionType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Metsätraktorin tuotostiedot, header-osiossa tähän viitataan MessageType = 'WorkingSiteForwardedProduction'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Forwarder production information, reference in header-part is MessageType = 'WorkingSiteForwardedProduction'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteForwardingQualityControl" type="workingSiteForwardingQualityControl:WorkingSiteForwardingQualityControlType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Metsätraktorin punnitustarkkuus, header-osiossa tähän viitataan MessageType = 'WorkingSiteForwardingQualityControl'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Forwarder weighing accuracy, reference in header-part is MessageType = 'WorkingSiteForwardingQualityControl'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteHarvestedProduction" type="workingSiteHarvestedProduction:WorkingSiteHarvestedProductionType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Hakkuukoneen tuotostiedot, header-osiossa tähän viitataan MessageType = 'WorkingSiteHarvestedProduction'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Harvester production information, reference in header-part is MessageType = 'WorkingSiteHarvestedProduction'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteHarvestingQualityControl" type="workingSiteHarvestingQualityControl:WorkingSiteHarvestingQualityControlType">
      <xs:annotation>
        <xs:documentation xml:lang="fi"/>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en"/>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteHarvestingQualityControlManual" type="workingSiteHarvestingQualityControlManual:WorkingSiteHarvestingQualityControlManualType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Käsin syötetty motokontrolli, header-osiossa tähän viitataan MessageType = 'WorkingSiteHarvestingQualityControlManual'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Manually supplied harvester control measurement, reference in header-part is MessageType = 'WorkingSiteHarvestingQualityControlManual'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteOperational" type="workingSiteOperational:WorkingSiteOperationalType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Lohkon tiedot, header-osiossa tähän viitataan MessageType = 'WorkingSiteOperational'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Working site information, reference in header-part is MessageType = 'WorkingSiteOperational'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteOperationalUpdate" type="workingSiteOperationalUpdate:WorkingSiteOperationalUpdateType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Lohkon tiedot, päivitys WF-> MJ, header-osiossa tähän viitataan MessageType = 'WorkingSiteOperationalUpdate'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Working site information, update WF-> MJ, reference in header-part is MessageType = 'WorkingSiteOperationalUpdate'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteQualityControlCutting" type="workingSiteQualityControlCutting:WorkingSiteQualityControlCuttingType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Jäävän puuston koealamittaus, header-osiossa tähän viitataan MessageType = 'WorkingSiteQualityControlCutting'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Cutting quality control measurement, reference in header-part is MessageType = 'WorkingSiteQualityControlCutting'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteQualityControlFertilization" type="workingSiteQualityControlFertilization:WorkingSiteQualityControlFertilizationType">
      <xs:annotation>
        <xs:documentation xml:lang="fi"/>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en"/>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteQualityControlPlantManagement" type="workingSiteQualityControlPlantManagement:WorkingSiteQualityControlPlantManagementType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Taimikonhoidon koealatiedot, header-osiossa tähän viitataan MessageType = 'WorkingSiteQualityControlPlantManagement'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Plant management quality control, reference in header-part is MessageType = 'WorkingSiteQualityControlPlantManagement'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteQualityControlSilviculture" type="workingSiteQualityControlSilviculture:WorkingSiteQualityControlSilvicultureType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Metsänviljelyn koeala, header-osiossa tähän viitataan MessageType = 'WorkingSiteQualityControlSilviculture'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Silviculture quality control, reference in header-part is MessageType = 'WorkingSiteQualityControlSilviculture'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteQualityControlSoilConditioning" type="workingSiteQualityControlSoilConditioning:WorkingSiteQualityControlSoilConditioningType">
      <xs:annotation>
        <xs:documentation xml:lang="fi"/>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en"/>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteQualityNotification" type="workingSiteQualityNotification:WorkingSiteQualityNotificationType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Tehtaiden laatupalaute, header-osiossa tähän viitataan MessageType = 'WorkingSiteQualityNotification'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Factory quality feedback, reference in header-part is MessageType = 'WorkingSiteQualityNotification'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteStatus" type="workingSiteStatus:WorkingSiteStatusType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Lohkon tila, header-osiossa tähän viitataan MessageType = 'WorkingSiteStatus'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Working site status, reference in header-part is MessageType = 'WorkingSiteStatus'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteTravelNotification" type="workingSiteTravelNotification:WorkingSiteTravelNotificationType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Kilometri-ilmoitus, header-osiossa tähän viitataan MessageType = 'WorkingSiteTravelNotification'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Travel notification, reference in header-part is MessageType = 'WorkingSiteTravelNotification'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteWorkLoad" type="workingSiteWorkLoad:WorkingSiteWorkLoadType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Työmääräilmoitus, header-osiossa tähän viitataan MessageType = 'WorkingSiteWorkLoad'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Workload information, reference in header-part is MessageType = 'WorkingSiteWorkLoad'</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteWorkTime" type="workingSiteWorkTime:WorkingSiteWorkTimeType">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Työaikailmoitus, header-osiossa tähän viitataan MessageType = 'WorkingSiteWorkTime'</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Worktime information, reference in header-part is MessageType = 'WorkingSiteWorkTime'</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:choice>
</xs:complexType>
