Imported schema WorkingSiteHarvestedProduction.xsd
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Properties
attribute form default: unqualified
element form default: qualified
version: V16.02

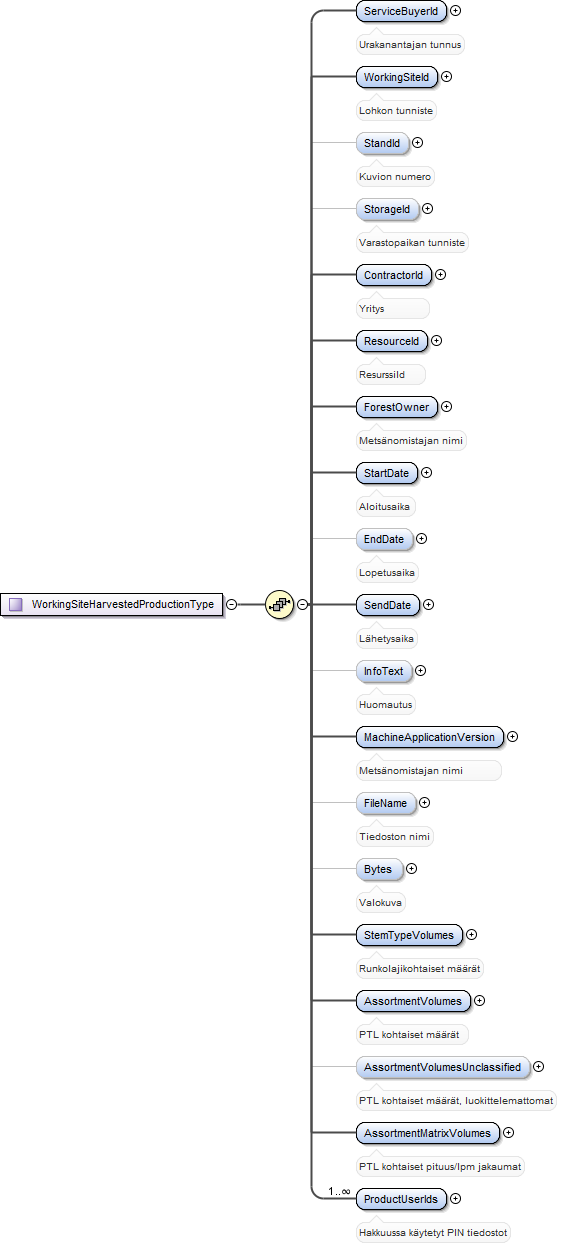

Element WorkingSiteHarvestedProductionType / ServiceBuyerId
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Urakanantajan tunnus
Diagram
Diagram index0.tmp#id135
Type String20Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 20
Source

<xs:element name="ServiceBuyerId" type="bdt:String20Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Urakanantajan tunnus</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestedProductionType / WorkingSiteId
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Lohkon tunniste
Diagram
Diagram index0.tmp#id135
Type String20Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 20
Source

<xs:element name="WorkingSiteId" type="bdt:String20Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Lohkon tunniste</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestedProductionType / StandId
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Kuvion numero
Diagram
Diagram index0.tmp#id135
Type String20Type
Properties
content: simple
minOccurs: 0
Facets
maxLength 20
Source

<xs:element name="StandId" type="bdt:String20Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Kuvion numero</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestedProductionType / StorageId
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Varastopaikan tunniste
Diagram
Diagram index0.tmp#id121
Type String50Type
Properties
content: simple
minOccurs: 0
Facets
maxLength 50
Source

<xs:element name="StorageId" type="bdt:String50Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Varastopaikan tunniste</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestedProductionType / ContractorId
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Yritys
Diagram
Diagram index0.tmp#id135
Type String20Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 20
Source

<xs:element name="ContractorId" type="bdt:String20Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Yritys</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestedProductionType / ResourceId
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
ResurssiId
Diagram
Diagram index0.tmp#id135
Type String20Type
Properties
content: simple
Facets
maxLength 20
Source

<xs:element name="ResourceId" type="bdt:String20Type">
  <xs:annotation>
    <xs:documentation>ResurssiId</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestedProductionType / ForestOwner
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Metsänomistajan nimi
Diagram
Diagram index0.tmp#id137
Type String100Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 100
Source

<xs:element name="ForestOwner" type="bdt:String100Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Metsänomistajan nimi</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestedProductionType / StartDate
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Aloitusaika
Diagram
Diagram index0.tmp#id342
Type TimeStampType
Properties
content: simple
minOccurs: 1
Facets
minInclusive 1900-01-01T00:00:00
Source

<xs:element name="StartDate" type="bdt:TimeStampType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Aloitusaika</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestedProductionType / EndDate
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Lopetusaika
Diagram
Diagram index0.tmp#id342
Type TimeStampType
Properties
content: simple
minOccurs: 0
Facets
minInclusive 1900-01-01T00:00:00
Source

<xs:element name="EndDate" type="bdt:TimeStampType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Lopetusaika</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestedProductionType / SendDate
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Lähetysaika
Diagram
Diagram index0.tmp#id342
Type TimeStampType
Properties
content: simple
minOccurs: 1
Facets
minInclusive 1900-01-01T00:00:00
Source

<xs:element name="SendDate" type="bdt:TimeStampType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Lähetysaika</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestedProductionType / InfoText
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Huomautus
Diagram
Diagram index0.tmp#id125
Type String1000Type
Properties
content: simple
minOccurs: 0
Facets
maxLength 1000
Source

<xs:element name="InfoText" type="bdt:String1000Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Huomautus</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestedProductionType / MachineApplicationVersion
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Metsänomistajan nimi
Diagram
Diagram index0.tmp#id137
Type String100Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 100
Source

<xs:element name="MachineApplicationVersion" type="bdt:String100Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Metsänomistajan nimi</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestedProductionType / FileName
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Tiedoston nimi
Diagram
Diagram index0.tmp#id137
Type String100Type
Properties
content: simple
minOccurs: 0
Facets
maxLength 100
Source

<xs:element name="FileName" type="bdt:String100Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Tiedoston nimi</xs:documentation>
  </xs:annotation>
</xs:element>
Element WorkingSiteHarvestedProductionType / Bytes
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Valokuva
Diagram
Diagram
Type xs:base64Binary
Properties
content: simple
minOccurs: 0
Source

<xs:element name="Bytes" type="xs:base64Binary" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Valokuva</xs:documentation>
  </xs:annotation>
</xs:element>

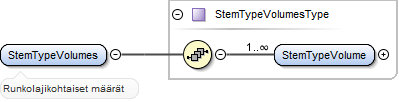

Element WorkingSiteHarvestedProductionType / StemTypeVolumes
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Runkolajikohtaiset määrät
Diagram
Diagram index56.tmp#id1695 index56.tmp#id1694
Type StemTypeVolumesType
Properties
content: complex
minOccurs: 1
Model StemTypeVolume+
Children StemTypeVolume
Instance

<StemTypeVolumes>
  <StemTypeVolume>{1,unbounded}</StemTypeVolume>
</StemTypeVolumes>
Source

<xs:element name="StemTypeVolumes" type="StemTypeVolumesType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Runkolajikohtaiset määrät</xs:documentation>
  </xs:annotation>
</xs:element>

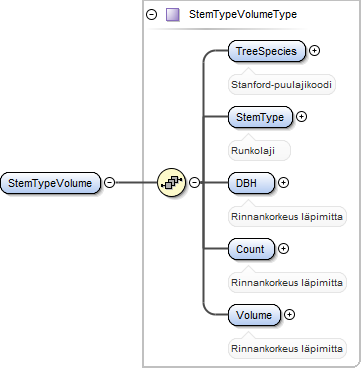

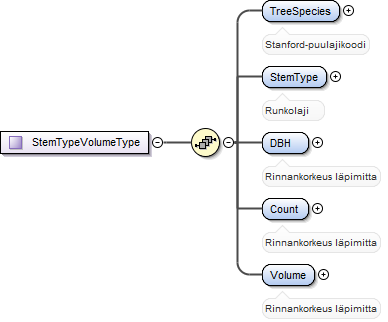

Element StemTypeVolumesType / StemTypeVolume
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Diagram
Diagram index56.tmp#id1697 index56.tmp#id1699 index56.tmp#id1701 index56.tmp#id1702 index56.tmp#id1703 index56.tmp#id1696
Type StemTypeVolumeType
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Model TreeSpecies , StemType , DBH , Count , Volume
Children Count, DBH, StemType, TreeSpecies, Volume
Instance

<StemTypeVolume>
  <TreeSpecies>{1,1}</TreeSpecies>
  <StemType>{1,1}</StemType>
  <DBH>{1,1}</DBH>
  <Count>{1,1}</Count>
  <Volume>{1,1}</Volume>
</StemTypeVolume>
Source

<xs:element name="StemTypeVolume" type="StemTypeVolumeType" minOccurs="1" maxOccurs="unbounded"/>
Element StemTypeVolumeType / TreeSpecies
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Stanford-puulajikoodi
Diagram
Diagram index30.tmp#id1698
Type StanfordTreeSpeciesType
Properties
content: simple
minOccurs: 1
Facets
enumeration 1
Mänty
enumeration 2
Kuusi
enumeration 3
Koivu
enumeration 4
Muu lehtipuu
Source

<xs:element name="TreeSpecies" type="wct:StanfordTreeSpeciesType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Stanford-puulajikoodi</xs:documentation>
  </xs:annotation>
</xs:element>
Element StemTypeVolumeType / StemType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Runkolaji
Diagram
Diagram index2.tmp#id1700
Type HarvestingStemTypeType
Properties
content: simple
minOccurs: 1
Facets
enumeration 11
Mäntytukki
enumeration 12
Mäntykuitu
enumeration 13
Mäntyenergia
enumeration 21
Kuusitukki
enumeration 22
Kuusikuitu
enumeration 23
Kuusienergia
enumeration 31
Koivutukki
enumeration 32
Koivukuitu
enumeration 33
Koivuenergia
enumeration 41
Lehtitukki
enumeration 42
Lehtikuitu
enumeration 43
Lehtienergia
Source

<xs:element name="StemType" type="bdt:HarvestingStemTypeType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Runkolaji</xs:documentation>
  </xs:annotation>
</xs:element>
Element StemTypeVolumeType / DBH
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Rinnankorkeus läpimitta
Diagram
Diagram index0.tmp#id123
Type PositiveInteger3digitsType
Properties
content: simple
minOccurs: 1
Facets
maxInclusive 999
minInclusive 0
Source

<xs:element name="DBH" type="bdt:PositiveInteger3digitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Rinnankorkeus läpimitta</xs:documentation>
  </xs:annotation>
</xs:element>
Element StemTypeVolumeType / Count
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Rinnankorkeus läpimitta
Diagram
Diagram index0.tmp#id808
Type PositiveInteger6digitsType
Properties
content: simple
minOccurs: 1
Facets
maxInclusive 999999
minInclusive 0
Source

<xs:element name="Count" type="bdt:PositiveInteger6digitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Rinnankorkeus läpimitta</xs:documentation>
  </xs:annotation>
</xs:element>
Element StemTypeVolumeType / Volume
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Rinnankorkeus läpimitta
Diagram
Diagram index0.tmp#id375
Type Decimal3FractionDigitsType
Properties
content: simple
minOccurs: 1
Facets
fractionDigits 3
Source

<xs:element name="Volume" type="bdt:Decimal3FractionDigitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Rinnankorkeus läpimitta</xs:documentation>
  </xs:annotation>
</xs:element>

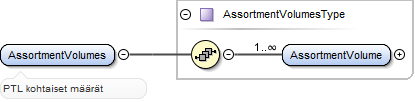

Element WorkingSiteHarvestedProductionType / AssortmentVolumes
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
PTL kohtaiset määrät
Diagram
Diagram index56.tmp#id1706 index56.tmp#id1705
Type AssortmentVolumesType
Properties
content: complex
minOccurs: 1
Model AssortmentVolume+
Children AssortmentVolume
Instance

<AssortmentVolumes>
  <AssortmentVolume>{1,unbounded}</AssortmentVolume>
</AssortmentVolumes>
Source

<xs:element name="AssortmentVolumes" type="AssortmentVolumesType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>PTL kohtaiset määrät</xs:documentation>
  </xs:annotation>
</xs:element>

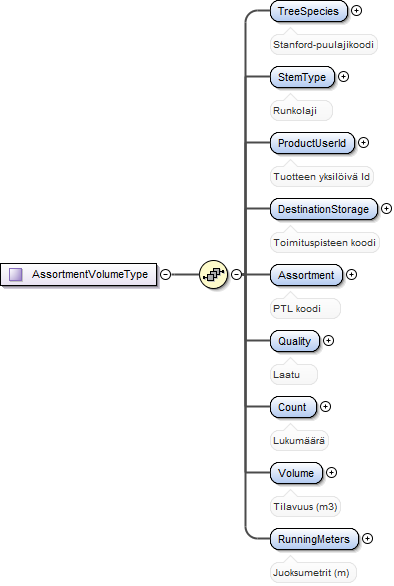

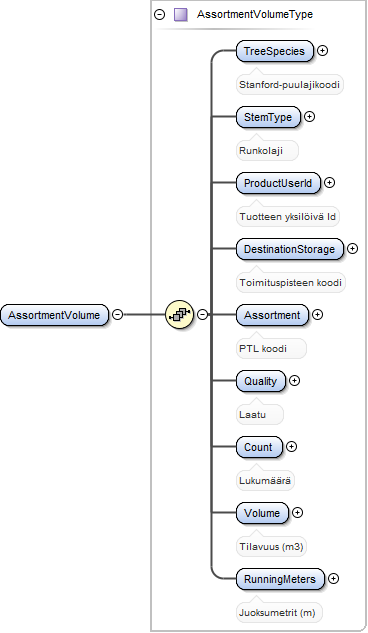

Element AssortmentVolumesType / AssortmentVolume
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Diagram
Diagram index56.tmp#id1708 index56.tmp#id1709 index56.tmp#id1710 index56.tmp#id1711 index56.tmp#id1712 index56.tmp#id1713 index56.tmp#id1714 index56.tmp#id1715 index56.tmp#id1716 index56.tmp#id1707
Type AssortmentVolumeType
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Model TreeSpecies , StemType , ProductUserId , DestinationStorage , Assortment , Quality , Count , Volume , RunningMeters
Children Assortment, Count, DestinationStorage, ProductUserId, Quality, RunningMeters, StemType, TreeSpecies, Volume
Instance

<AssortmentVolume>
  <TreeSpecies>{1,1}</TreeSpecies>
  <StemType>{1,1}</StemType>
  <ProductUserId>{1,1}</ProductUserId>
  <DestinationStorage>{1,1}</DestinationStorage>
  <Assortment>{1,1}</Assortment>
  <Quality>{1,1}</Quality>
  <Count>{1,1}</Count>
  <Volume>{1,1}</Volume>
  <RunningMeters>{1,1}</RunningMeters>
</AssortmentVolume>
Source

<xs:element name="AssortmentVolume" type="AssortmentVolumeType" minOccurs="1" maxOccurs="unbounded"/>
Element AssortmentVolumeType / TreeSpecies
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Stanford-puulajikoodi
Diagram
Diagram index30.tmp#id1698
Type StanfordTreeSpeciesType
Properties
content: simple
minOccurs: 1
Facets
enumeration 1
Mänty
enumeration 2
Kuusi
enumeration 3
Koivu
enumeration 4
Muu lehtipuu
Source

<xs:element name="TreeSpecies" type="wct:StanfordTreeSpeciesType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Stanford-puulajikoodi</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentVolumeType / StemType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Runkolaji
Diagram
Diagram index2.tmp#id1700
Type HarvestingStemTypeType
Properties
content: simple
minOccurs: 1
Facets
enumeration 11
Mäntytukki
enumeration 12
Mäntykuitu
enumeration 13
Mäntyenergia
enumeration 21
Kuusitukki
enumeration 22
Kuusikuitu
enumeration 23
Kuusienergia
enumeration 31
Koivutukki
enumeration 32
Koivukuitu
enumeration 33
Koivuenergia
enumeration 41
Lehtitukki
enumeration 42
Lehtikuitu
enumeration 43
Lehtienergia
Source

<xs:element name="StemType" type="bdt:HarvestingStemTypeType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Runkolaji</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentVolumeType / ProductUserId
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Tuotteen yksilöivä Id
Diagram
Diagram index0.tmp#id137
Type String100Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 100
Source

<xs:element name="ProductUserId" type="bdt:String100Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Tuotteen yksilöivä Id</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentVolumeType / DestinationStorage
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Toimituspisteen koodi
Diagram
Diagram index0.tmp#id135
Type String20Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 20
Source

<xs:element name="DestinationStorage" type="bdt:String20Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Toimituspisteen koodi</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentVolumeType / Assortment
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
PTL koodi
Diagram
Diagram index0.tmp#id121
Type String50Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 50
Source

<xs:element name="Assortment" type="bdt:String50Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>PTL koodi</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentVolumeType / Quality
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Laatu
Diagram
Diagram index0.tmp#id332
Type String5Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 5
Source

<xs:element name="Quality" type="bdt:String5Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Laatu</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentVolumeType / Count
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Lukumäärä
Diagram
Diagram index0.tmp#id808
Type PositiveInteger6digitsType
Properties
content: simple
minOccurs: 1
Facets
maxInclusive 999999
minInclusive 0
Source

<xs:element name="Count" type="bdt:PositiveInteger6digitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Lukumäärä</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentVolumeType / Volume
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Tilavuus (m3)
Diagram
Diagram index0.tmp#id375
Type Decimal3FractionDigitsType
Properties
content: simple
minOccurs: 1
Facets
fractionDigits 3
Source

<xs:element name="Volume" type="bdt:Decimal3FractionDigitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Tilavuus (m3)</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentVolumeType / RunningMeters
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Juoksumetrit (m)
Diagram
Diagram index0.tmp#id375
Type Decimal3FractionDigitsType
Properties
content: simple
minOccurs: 1
Facets
fractionDigits 3
Source

<xs:element name="RunningMeters" type="bdt:Decimal3FractionDigitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Juoksumetrit (m)</xs:documentation>
  </xs:annotation>
</xs:element>

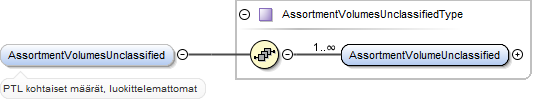

Element WorkingSiteHarvestedProductionType / AssortmentVolumesUnclassified
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
PTL kohtaiset määrät, luokittelemattomat
Diagram
Diagram index56.tmp#id1719 index56.tmp#id1718
Type AssortmentVolumesUnclassifiedType
Properties
content: complex
minOccurs: 0
Model AssortmentVolumeUnclassified+
Children AssortmentVolumeUnclassified
Instance

<AssortmentVolumesUnclassified>
  <AssortmentVolumeUnclassified>{1,unbounded}</AssortmentVolumeUnclassified>
</AssortmentVolumesUnclassified>
Source

<xs:element name="AssortmentVolumesUnclassified" type="AssortmentVolumesUnclassifiedType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>PTL kohtaiset määrät, luokittelemattomat</xs:documentation>
  </xs:annotation>
</xs:element>

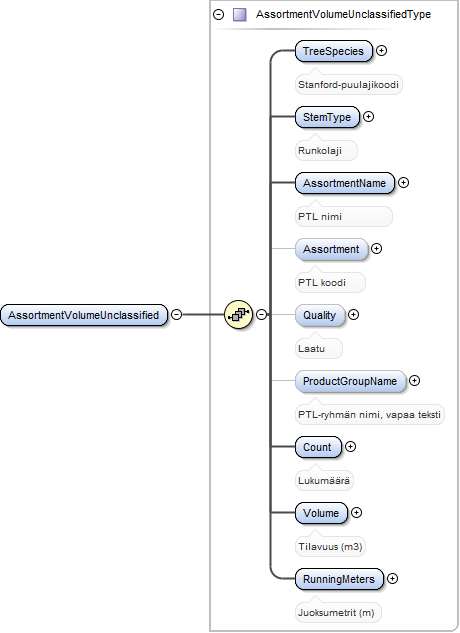

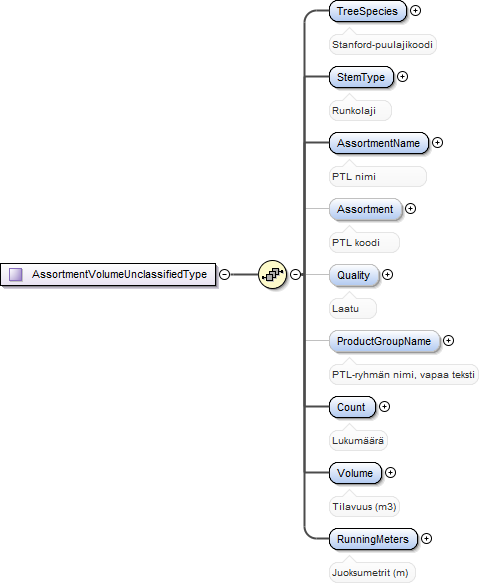

Element AssortmentVolumesUnclassifiedType / AssortmentVolumeUnclassified
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Diagram
Diagram index56.tmp#id1721 index56.tmp#id1722 index56.tmp#id1723 index56.tmp#id1724 index56.tmp#id1725 index56.tmp#id1726 index56.tmp#id1727 index56.tmp#id1728 index56.tmp#id1729 index56.tmp#id1720
Type AssortmentVolumeUnclassifiedType
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Model TreeSpecies , StemType , AssortmentName , Assortment{0,1} , Quality{0,1} , ProductGroupName{0,1} , Count , Volume , RunningMeters
Children Assortment, AssortmentName, Count, ProductGroupName, Quality, RunningMeters, StemType, TreeSpecies, Volume
Instance

<AssortmentVolumeUnclassified>
  <TreeSpecies>{1,1}</TreeSpecies>
  <StemType>{1,1}</StemType>
  <AssortmentName>{1,1}</AssortmentName>
  <Assortment>{0,1}</Assortment>
  <Quality>{0,1}</Quality>
  <ProductGroupName>{0,1}</ProductGroupName>
  <Count>{1,1}</Count>
  <Volume>{1,1}</Volume>
  <RunningMeters>{1,1}</RunningMeters>
</AssortmentVolumeUnclassified>
Source

<xs:element name="AssortmentVolumeUnclassified" type="AssortmentVolumeUnclassifiedType" minOccurs="1" maxOccurs="unbounded"/>
Element AssortmentVolumeUnclassifiedType / TreeSpecies
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Stanford-puulajikoodi
Diagram
Diagram index30.tmp#id1698
Type StanfordTreeSpeciesType
Properties
content: simple
minOccurs: 1
Facets
enumeration 1
Mänty
enumeration 2
Kuusi
enumeration 3
Koivu
enumeration 4
Muu lehtipuu
Source

<xs:element name="TreeSpecies" type="wct:StanfordTreeSpeciesType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Stanford-puulajikoodi</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentVolumeUnclassifiedType / StemType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Runkolaji
Diagram
Diagram index2.tmp#id1700
Type HarvestingStemTypeType
Properties
content: simple
minOccurs: 1
Facets
enumeration 11
Mäntytukki
enumeration 12
Mäntykuitu
enumeration 13
Mäntyenergia
enumeration 21
Kuusitukki
enumeration 22
Kuusikuitu
enumeration 23
Kuusienergia
enumeration 31
Koivutukki
enumeration 32
Koivukuitu
enumeration 33
Koivuenergia
enumeration 41
Lehtitukki
enumeration 42
Lehtikuitu
enumeration 43
Lehtienergia
Source

<xs:element name="StemType" type="bdt:HarvestingStemTypeType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Runkolaji</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentVolumeUnclassifiedType / AssortmentName
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
PTL nimi
Diagram
Diagram index0.tmp#id121
Type String50Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 50
Source

<xs:element name="AssortmentName" type="bdt:String50Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>PTL nimi</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentVolumeUnclassifiedType / Assortment
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
PTL koodi
Diagram
Diagram index0.tmp#id121
Type String50Type
Properties
content: simple
minOccurs: 0
Facets
maxLength 50
Source

<xs:element name="Assortment" type="bdt:String50Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>PTL koodi</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentVolumeUnclassifiedType / Quality
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Laatu
Diagram
Diagram index0.tmp#id332
Type String5Type
Properties
content: simple
minOccurs: 0
Facets
maxLength 5
Source

<xs:element name="Quality" type="bdt:String5Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Laatu</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentVolumeUnclassifiedType / ProductGroupName
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
PTL-ryhmän nimi, vapaa teksti
Diagram
Diagram index0.tmp#id121
Type String50Type
Properties
content: simple
minOccurs: 0
Facets
maxLength 50
Source

<xs:element name="ProductGroupName" type="bdt:String50Type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>PTL-ryhmän nimi, vapaa teksti</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentVolumeUnclassifiedType / Count
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Lukumäärä
Diagram
Diagram index0.tmp#id808
Type PositiveInteger6digitsType
Properties
content: simple
minOccurs: 1
Facets
maxInclusive 999999
minInclusive 0
Source

<xs:element name="Count" type="bdt:PositiveInteger6digitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Lukumäärä</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentVolumeUnclassifiedType / Volume
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Tilavuus (m3)
Diagram
Diagram index0.tmp#id375
Type Decimal3FractionDigitsType
Properties
content: simple
minOccurs: 1
Facets
fractionDigits 3
Source

<xs:element name="Volume" type="bdt:Decimal3FractionDigitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Tilavuus (m3)</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentVolumeUnclassifiedType / RunningMeters
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Juoksumetrit (m)
Diagram
Diagram index0.tmp#id375
Type Decimal3FractionDigitsType
Properties
content: simple
minOccurs: 1
Facets
fractionDigits 3
Source

<xs:element name="RunningMeters" type="bdt:Decimal3FractionDigitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Juoksumetrit (m)</xs:documentation>
  </xs:annotation>
</xs:element>

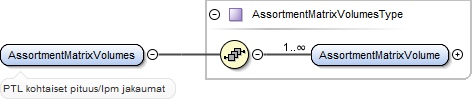

Element WorkingSiteHarvestedProductionType / AssortmentMatrixVolumes
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
PTL kohtaiset pituus/lpm jakaumat
Diagram
Diagram index56.tmp#id1732 index56.tmp#id1731
Type AssortmentMatrixVolumesType
Properties
content: complex
minOccurs: 1
Model AssortmentMatrixVolume+
Children AssortmentMatrixVolume
Instance

<AssortmentMatrixVolumes>
  <AssortmentMatrixVolume>{1,unbounded}</AssortmentMatrixVolume>
</AssortmentMatrixVolumes>
Source

<xs:element name="AssortmentMatrixVolumes" type="AssortmentMatrixVolumesType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>PTL kohtaiset pituus/lpm jakaumat</xs:documentation>
  </xs:annotation>
</xs:element>

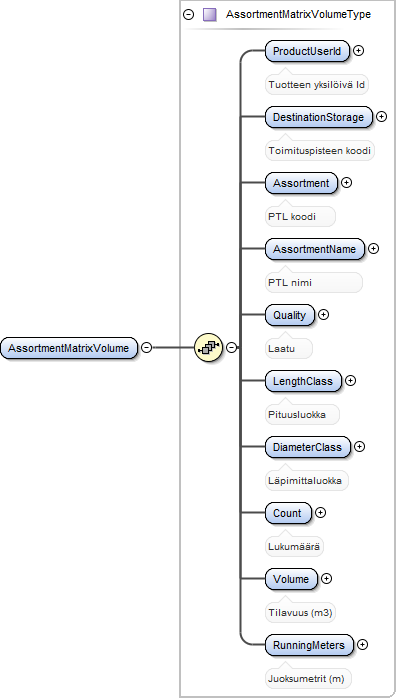

Element AssortmentMatrixVolumesType / AssortmentMatrixVolume
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Diagram
Diagram index56.tmp#id1734 index56.tmp#id1735 index56.tmp#id1736 index56.tmp#id1737 index56.tmp#id1738 index56.tmp#id1739 index56.tmp#id1740 index56.tmp#id1741 index56.tmp#id1742 index56.tmp#id1743 index56.tmp#id1733
Type AssortmentMatrixVolumeType
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded

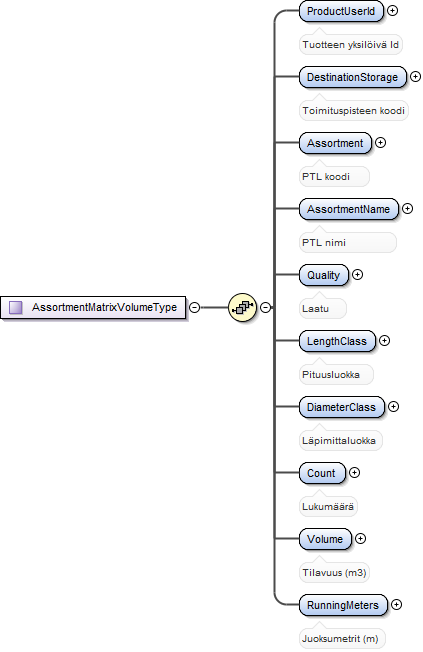

Model ProductUserId , DestinationStorage , Assortment , AssortmentName , Quality , LengthClass , DiameterClass , Count , Volume , RunningMeters
Children Assortment, AssortmentName, Count, DestinationStorage, DiameterClass, LengthClass, ProductUserId, Quality, RunningMeters, Volume
Instance

<AssortmentMatrixVolume>
  <ProductUserId>{1,1}</ProductUserId>
  <DestinationStorage>{1,1}</DestinationStorage>
  <Assortment>{1,1}</Assortment>
  <AssortmentName>{1,1}</AssortmentName>
  <Quality>{1,1}</Quality>
  <LengthClass>{1,1}</LengthClass>
  <DiameterClass>{1,1}</DiameterClass>
  <Count>{1,1}</Count>
  <Volume>{1,1}</Volume>
  <RunningMeters>{1,1}</RunningMeters>
</AssortmentMatrixVolume>
Source

<xs:element name="AssortmentMatrixVolume" type="AssortmentMatrixVolumeType" minOccurs="1" maxOccurs="unbounded"/>
Element AssortmentMatrixVolumeType / ProductUserId
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Tuotteen yksilöivä Id
Diagram
Diagram index0.tmp#id137
Type String100Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 100
Source

<xs:element name="ProductUserId" type="bdt:String100Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Tuotteen yksilöivä Id</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentMatrixVolumeType / DestinationStorage
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Toimituspisteen koodi
Diagram
Diagram index0.tmp#id135
Type String20Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 20
Source

<xs:element name="DestinationStorage" type="bdt:String20Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Toimituspisteen koodi</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentMatrixVolumeType / Assortment
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
PTL koodi
Diagram
Diagram index0.tmp#id121
Type String50Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 50
Source

<xs:element name="Assortment" type="bdt:String50Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>PTL koodi</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentMatrixVolumeType / AssortmentName
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
PTL nimi
Diagram
Diagram index0.tmp#id121
Type String50Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 50
Source

<xs:element name="AssortmentName" type="bdt:String50Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>PTL nimi</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentMatrixVolumeType / Quality
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Laatu
Diagram
Diagram index0.tmp#id332
Type String5Type
Properties
content: simple
minOccurs: 1
Facets
maxLength 5
Source

<xs:element name="Quality" type="bdt:String5Type" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Laatu</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentMatrixVolumeType / LengthClass
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Pituusluokka
Diagram
Diagram index0.tmp#id350
Type PositiveInteger4digitsType
Properties
content: simple
minOccurs: 1
Facets
maxInclusive 9999
minInclusive 0
Source

<xs:element name="LengthClass" type="bdt:PositiveInteger4digitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Pituusluokka</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentMatrixVolumeType / DiameterClass
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Läpimittaluokka
Diagram
Diagram index0.tmp#id350
Type PositiveInteger4digitsType
Properties
content: simple
minOccurs: 1
Facets
maxInclusive 9999
minInclusive 0
Source

<xs:element name="DiameterClass" type="bdt:PositiveInteger4digitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Läpimittaluokka</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentMatrixVolumeType / Count
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Lukumäärä
Diagram
Diagram index0.tmp#id808
Type PositiveInteger6digitsType
Properties
content: simple
minOccurs: 1
Facets
maxInclusive 999999
minInclusive 0
Source

<xs:element name="Count" type="bdt:PositiveInteger6digitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Lukumäärä</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentMatrixVolumeType / Volume
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Tilavuus (m3)
Diagram
Diagram index0.tmp#id375
Type Decimal3FractionDigitsType
Properties
content: simple
minOccurs: 1
Facets
fractionDigits 3
Source

<xs:element name="Volume" type="bdt:Decimal3FractionDigitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Tilavuus (m3)</xs:documentation>
  </xs:annotation>
</xs:element>
Element AssortmentMatrixVolumeType / RunningMeters
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Juoksumetrit (m)
Diagram
Diagram index0.tmp#id375
Type Decimal3FractionDigitsType
Properties
content: simple
minOccurs: 1
Facets
fractionDigits 3
Source

<xs:element name="RunningMeters" type="bdt:Decimal3FractionDigitsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>Juoksumetrit (m)</xs:documentation>
  </xs:annotation>
</xs:element>

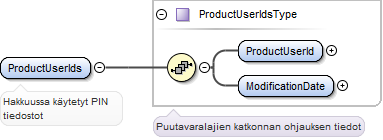

Element WorkingSiteHarvestedProductionType / ProductUserIds
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Hakkuussa käytetyt PIN tiedostot
Diagram
Diagram index56.tmp#id1746 index56.tmp#id1747 index56.tmp#id1745
Type ProductUserIdsType
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Model ProductUserId , ModificationDate
Children ModificationDate, ProductUserId
Instance

<ProductUserIds>
  <ProductUserId>{1,1}</ProductUserId>
  <ModificationDate>{1,1}</ModificationDate>
</ProductUserIds>
Source

<xs:element name="ProductUserIds" type="ProductUserIdsType" minOccurs="1" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Hakkuussa käytetyt PIN tiedostot</xs:documentation>
  </xs:annotation>
</xs:element>
Element ProductUserIdsType / ProductUserId
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Diagram
Diagram index0.tmp#id137
Type String100Type
Properties
content: simple
minOccurs: 1
maxOccurs: 1
Facets
maxLength 100
Source

<xs:element name="ProductUserId" type="bdt:String100Type" minOccurs="1" maxOccurs="1"/>
Element ProductUserIdsType / ModificationDate
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Diagram
Diagram index0.tmp#id342
Type TimeStampType
Properties
content: simple
minOccurs: 1
maxOccurs: 1
Facets
minInclusive 1900-01-01T00:00:00
Source

<xs:element name="ModificationDate" type="bdt:TimeStampType" minOccurs="1" maxOccurs="1"/>

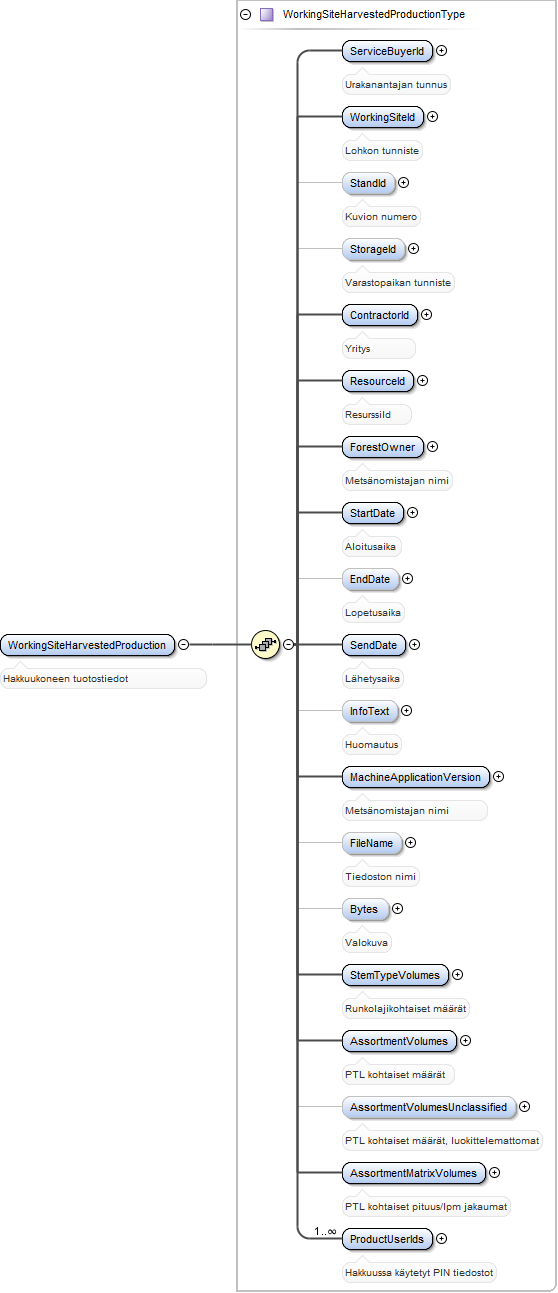

Element WorkingSiteHarvestedProduction
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Hakkuukoneen tuotostiedot
Diagram
Diagram index56.tmp#id1679 index56.tmp#id1680 index56.tmp#id1681 index56.tmp#id1682 index56.tmp#id1683 index56.tmp#id1684 index56.tmp#id1685 index56.tmp#id1686 index56.tmp#id1687 index56.tmp#id1688 index56.tmp#id1689 index56.tmp#id1690 index56.tmp#id1691 index56.tmp#id1692 index56.tmp#id1693 index56.tmp#id1704 index56.tmp#id1717 index56.tmp#id1730 index56.tmp#id1744 index56.tmp#id1678
Type WorkingSiteHarvestedProductionType
Properties
content: complex
Model ServiceBuyerId , WorkingSiteId , StandId{0,1} , StorageId{0,1} , ContractorId , ResourceId , ForestOwner , StartDate , EndDate{0,1} , SendDate , InfoText{0,1} , MachineApplicationVersion , FileName{0,1} , Bytes{0,1} , StemTypeVolumes , AssortmentVolumes , AssortmentVolumesUnclassified{0,1} , AssortmentMatrixVolumes , ProductUserIds+
Children AssortmentMatrixVolumes, AssortmentVolumes, AssortmentVolumesUnclassified, Bytes, ContractorId, EndDate, FileName, ForestOwner, InfoText, MachineApplicationVersion, ProductUserIds, ResourceId, SendDate, ServiceBuyerId, StandId, StartDate, StemTypeVolumes, StorageId, WorkingSiteId
Instance

<WorkingSiteHarvestedProduction>
  <ServiceBuyerId>{1,1}</ServiceBuyerId>
  <WorkingSiteId>{1,1}</WorkingSiteId>
  <StandId>{0,1}</StandId>
  <StorageId>{0,1}</StorageId>
  <ContractorId>{1,1}</ContractorId>
  <ResourceId>{1,1}</ResourceId>
  <ForestOwner>{1,1}</ForestOwner>
  <StartDate>{1,1}</StartDate>
  <EndDate>{0,1}</EndDate>
  <SendDate>{1,1}</SendDate>
  <InfoText>{0,1}</InfoText>
  <MachineApplicationVersion>{1,1}</MachineApplicationVersion>
  <FileName>{0,1}</FileName>
  <Bytes>{0,1}</Bytes>
  <StemTypeVolumes>{1,1}</StemTypeVolumes>
  <AssortmentVolumes>{1,1}</AssortmentVolumes>
  <AssortmentVolumesUnclassified>{0,1}</AssortmentVolumesUnclassified>
  <AssortmentMatrixVolumes>{1,1}</AssortmentMatrixVolumes>
  <ProductUserIds>{1,unbounded}</ProductUserIds>
</WorkingSiteHarvestedProduction>
Source

<xs:element name="WorkingSiteHarvestedProduction" type="WorkingSiteHarvestedProductionType">
  <xs:annotation>
    <xs:documentation>Hakkuukoneen tuotostiedot</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type WorkingSiteHarvestedProductionType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Diagram
Diagram index56.tmp#id1679 index56.tmp#id1680 index56.tmp#id1681 index56.tmp#id1682 index56.tmp#id1683 index56.tmp#id1684 index56.tmp#id1685 index56.tmp#id1686 index56.tmp#id1687 index56.tmp#id1688 index56.tmp#id1689 index56.tmp#id1690 index56.tmp#id1691 index56.tmp#id1692 index56.tmp#id1693 index56.tmp#id1704 index56.tmp#id1717 index56.tmp#id1730 index56.tmp#id1744
Used by
Model ServiceBuyerId , WorkingSiteId , StandId{0,1} , StorageId{0,1} , ContractorId , ResourceId , ForestOwner , StartDate , EndDate{0,1} , SendDate , InfoText{0,1} , MachineApplicationVersion , FileName{0,1} , Bytes{0,1} , StemTypeVolumes , AssortmentVolumes , AssortmentVolumesUnclassified{0,1} , AssortmentMatrixVolumes , ProductUserIds+
Children AssortmentMatrixVolumes, AssortmentVolumes, AssortmentVolumesUnclassified, Bytes, ContractorId, EndDate, FileName, ForestOwner, InfoText, MachineApplicationVersion, ProductUserIds, ResourceId, SendDate, ServiceBuyerId, StandId, StartDate, StemTypeVolumes, StorageId, WorkingSiteId
Source

<xs:complexType name="WorkingSiteHarvestedProductionType">
  <xs:sequence>
    <xs:element name="ServiceBuyerId" type="bdt:String20Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Urakanantajan tunnus</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WorkingSiteId" type="bdt:String20Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Lohkon tunniste</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="StandId" type="bdt:String20Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Kuvion numero</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="StorageId" type="bdt:String50Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Varastopaikan tunniste</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ContractorId" type="bdt:String20Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Yritys</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ResourceId" type="bdt:String20Type">
      <xs:annotation>
        <xs:documentation>ResurssiId</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ForestOwner" type="bdt:String100Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Metsänomistajan nimi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="StartDate" type="bdt:TimeStampType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Aloitusaika</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="EndDate" type="bdt:TimeStampType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Lopetusaika</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SendDate" type="bdt:TimeStampType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Lähetysaika</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="InfoText" type="bdt:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Huomautus</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MachineApplicationVersion" type="bdt:String100Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Metsänomistajan nimi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="FileName" type="bdt:String100Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Tiedoston nimi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Bytes" type="xs:base64Binary" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Valokuva</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="StemTypeVolumes" type="StemTypeVolumesType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Runkolajikohtaiset määrät</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AssortmentVolumes" type="AssortmentVolumesType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>PTL kohtaiset määrät</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AssortmentVolumesUnclassified" type="AssortmentVolumesUnclassifiedType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>PTL kohtaiset määrät, luokittelemattomat</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AssortmentMatrixVolumes" type="AssortmentMatrixVolumesType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>PTL kohtaiset pituus/lpm jakaumat</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ProductUserIds" type="ProductUserIdsType" minOccurs="1" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Hakkuussa käytetyt PIN tiedostot</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type StemTypeVolumesType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Diagram
Diagram index56.tmp#id1695
Used by
Model StemTypeVolume+
Children StemTypeVolume
Source

<xs:complexType name="StemTypeVolumesType">
  <xs:sequence>
    <xs:element name="StemTypeVolume" type="StemTypeVolumeType" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Complex Type StemTypeVolumeType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Diagram
Diagram index56.tmp#id1697 index56.tmp#id1699 index56.tmp#id1701 index56.tmp#id1702 index56.tmp#id1703
Used by
Model TreeSpecies , StemType , DBH , Count , Volume
Children Count, DBH, StemType, TreeSpecies, Volume
Source

<xs:complexType name="StemTypeVolumeType">
  <xs:sequence>
    <xs:element name="TreeSpecies" type="wct:StanfordTreeSpeciesType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Stanford-puulajikoodi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="StemType" type="bdt:HarvestingStemTypeType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Runkolaji</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DBH" type="bdt:PositiveInteger3digitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Rinnankorkeus läpimitta</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Count" type="bdt:PositiveInteger6digitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Rinnankorkeus läpimitta</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Volume" type="bdt:Decimal3FractionDigitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Rinnankorkeus läpimitta</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type AssortmentVolumesType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Diagram
Diagram index56.tmp#id1706
Used by
Model AssortmentVolume+
Children AssortmentVolume
Source

<xs:complexType name="AssortmentVolumesType">
  <xs:sequence>
    <xs:element name="AssortmentVolume" type="AssortmentVolumeType" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Complex Type AssortmentVolumeType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Diagram
Diagram index56.tmp#id1708 index56.tmp#id1709 index56.tmp#id1710 index56.tmp#id1711 index56.tmp#id1712 index56.tmp#id1713 index56.tmp#id1714 index56.tmp#id1715 index56.tmp#id1716
Used by
Model TreeSpecies , StemType , ProductUserId , DestinationStorage , Assortment , Quality , Count , Volume , RunningMeters
Children Assortment, Count, DestinationStorage, ProductUserId, Quality, RunningMeters, StemType, TreeSpecies, Volume
Source

<xs:complexType name="AssortmentVolumeType">
  <xs:sequence>
    <xs:element name="TreeSpecies" type="wct:StanfordTreeSpeciesType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Stanford-puulajikoodi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="StemType" type="bdt:HarvestingStemTypeType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Runkolaji</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ProductUserId" type="bdt:String100Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Tuotteen yksilöivä Id</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DestinationStorage" type="bdt:String20Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Toimituspisteen koodi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Assortment" type="bdt:String50Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>PTL koodi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Quality" type="bdt:String5Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Laatu</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Count" type="bdt:PositiveInteger6digitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Lukumäärä</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Volume" type="bdt:Decimal3FractionDigitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Tilavuus (m3)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="RunningMeters" type="bdt:Decimal3FractionDigitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Juoksumetrit (m)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type AssortmentVolumesUnclassifiedType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Diagram
Diagram index56.tmp#id1719
Used by
Model AssortmentVolumeUnclassified+
Children AssortmentVolumeUnclassified
Source

<xs:complexType name="AssortmentVolumesUnclassifiedType">
  <xs:sequence>
    <xs:element name="AssortmentVolumeUnclassified" type="AssortmentVolumeUnclassifiedType" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Complex Type AssortmentVolumeUnclassifiedType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Diagram
Diagram index56.tmp#id1721 index56.tmp#id1722 index56.tmp#id1723 index56.tmp#id1724 index56.tmp#id1725 index56.tmp#id1726 index56.tmp#id1727 index56.tmp#id1728 index56.tmp#id1729
Used by
Model TreeSpecies , StemType , AssortmentName , Assortment{0,1} , Quality{0,1} , ProductGroupName{0,1} , Count , Volume , RunningMeters
Children Assortment, AssortmentName, Count, ProductGroupName, Quality, RunningMeters, StemType, TreeSpecies, Volume
Source

<xs:complexType name="AssortmentVolumeUnclassifiedType">
  <xs:sequence>
    <xs:element name="TreeSpecies" type="wct:StanfordTreeSpeciesType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Stanford-puulajikoodi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="StemType" type="bdt:HarvestingStemTypeType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Runkolaji</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AssortmentName" type="bdt:String50Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>PTL nimi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Assortment" type="bdt:String50Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>PTL koodi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Quality" type="bdt:String5Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Laatu</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ProductGroupName" type="bdt:String50Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>PTL-ryhmän nimi, vapaa teksti</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Count" type="bdt:PositiveInteger6digitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Lukumäärä</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Volume" type="bdt:Decimal3FractionDigitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Tilavuus (m3)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="RunningMeters" type="bdt:Decimal3FractionDigitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Juoksumetrit (m)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type AssortmentMatrixVolumesType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Diagram
Diagram index56.tmp#id1732
Used by
Model AssortmentMatrixVolume+
Children AssortmentMatrixVolume
Source

<xs:complexType name="AssortmentMatrixVolumesType">
  <xs:sequence>
    <xs:element name="AssortmentMatrixVolume" type="AssortmentMatrixVolumeType" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Complex Type AssortmentMatrixVolumeType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Diagram
Diagram index56.tmp#id1734 index56.tmp#id1735 index56.tmp#id1736 index56.tmp#id1737 index56.tmp#id1738 index56.tmp#id1739 index56.tmp#id1740 index56.tmp#id1741 index56.tmp#id1742 index56.tmp#id1743
Used by
Model ProductUserId , DestinationStorage , Assortment , AssortmentName , Quality , LengthClass , DiameterClass , Count , Volume , RunningMeters
Children Assortment, AssortmentName, Count, DestinationStorage, DiameterClass, LengthClass, ProductUserId, Quality, RunningMeters, Volume
Source

<xs:complexType name="AssortmentMatrixVolumeType">
  <xs:sequence>
    <xs:element name="ProductUserId" type="bdt:String100Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Tuotteen yksilöivä Id</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DestinationStorage" type="bdt:String20Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Toimituspisteen koodi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Assortment" type="bdt:String50Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>PTL koodi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AssortmentName" type="bdt:String50Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>PTL nimi</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Quality" type="bdt:String5Type" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Laatu</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LengthClass" type="bdt:PositiveInteger4digitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Pituusluokka</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DiameterClass" type="bdt:PositiveInteger4digitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Läpimittaluokka</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Count" type="bdt:PositiveInteger6digitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Lukumäärä</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Volume" type="bdt:Decimal3FractionDigitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Tilavuus (m3)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="RunningMeters" type="bdt:Decimal3FractionDigitsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>Juoksumetrit (m)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type ProductUserIdsType
Namespace http://standardit.tapio.fi/schemas/forestData/WorkingSiteHarvestedProduction
Annotations
Puutavaralajien katkonnan ohjauksen tiedot
Diagram
Diagram index56.tmp#id1746 index56.tmp#id1747
Used by
Model ProductUserId , ModificationDate
Children ModificationDate, ProductUserId
Source

<xs:complexType name="ProductUserIdsType">
  <xs:annotation>
    <xs:documentation>Puutavaralajien katkonnan ohjauksen tiedot</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="ProductUserId" type="bdt:String100Type" minOccurs="1" maxOccurs="1"/>
    <xs:element name="ModificationDate" type="bdt:TimeStampType" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
