Schema documentation for

Showing:

Annotations

Attributes

Diagrams

Facets

Instances

Properties

Source

Used by

Included schema StandBasicData.xsd

Namespace

http://kuutio.fi/schemas/callForOfferWithPublicity

Properties

attribute form default:	unqualified
element form default:	qualified
version:	V17.02

Element StandBasicDataType / CompleteState

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Diagram

Type

CompleteStateType

Type hierarchy

xs:string
- YesNoType
  - CompleteStateType

Properties

content:	simple
minOccurs:	0
maxOccurs:	1

Facets

enumeration	0	Ei
enumeration	1	Kyllä

Source

<xs:element name="CompleteState" type="co:CompleteStateType" minOccurs="0" maxOccurs="1"/>

Element Identifiers

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Diagram

Type

IdentifiersType

Properties

content:

complex

Used by

Complex Types

BaseCompactStandBasicDataType, CompactStandBasicDataType, StandBasicDataType, StandBasicDataWithGeometryType

Model

Identifier+

Children

Identifier

Instance

<Identifiers>
  <Identifier>{1,unbounded}</Identifier>
</Identifiers>

Source

<xs:element name="Identifiers" type="IdentifiersType"/>

Element Identifier

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Diagram

Type

IdentifierType

Properties

content:

complex

Used by

Complex Type

IdentifiersType

Model

IdentifierType , IdentifierValue

Children

IdentifierType, IdentifierValue

Instance

<Identifier>
  <IdentifierType>{1,1}</IdentifierType>
  <IdentifierValue>{1,1}</IdentifierValue>
</Identifier>

Source

<xs:element name="Identifier" type="co:IdentifierType"/>

Element StandNumber

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Kuvionumero.

Stand number.

Diagram

Type

StandNumberType

Properties

content:

simple

Facets

pattern

[0-9]{1,5}

Used by

Complex Types

BaseCompactStandBasicDataType, CompactStandBasicDataType, StandBasicDataType, StandBasicDataWithGeometryType

Source

<xs:element name="StandNumber" type="stb:StandNumberType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvionumero.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stand number.</xs:documentation>
  </xs:annotation>
</xs:element>

Element StandNumberExtension

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Kuvion alanumero (lisämerkki).

Stand number extension (extra character, normally number).

Diagram

Type

StandNumberExtensionType

Properties

content:

simple

Facets

maxLength

Used by

Complex Types

BaseCompactStandBasicDataType, CompactStandBasicDataType, StandBasicDataType, StandBasicDataWithGeometryType

Source

<xs:element name="StandNumberExtension" type="stb:StandNumberExtensionType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvion alanumero (lisämerkki).</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stand number extension (extra character, normally number).</xs:documentation>
  </xs:annotation>
</xs:element>

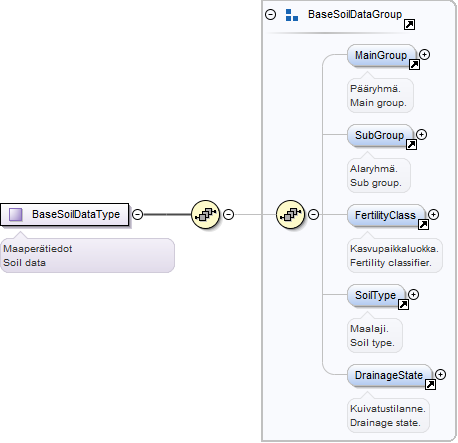

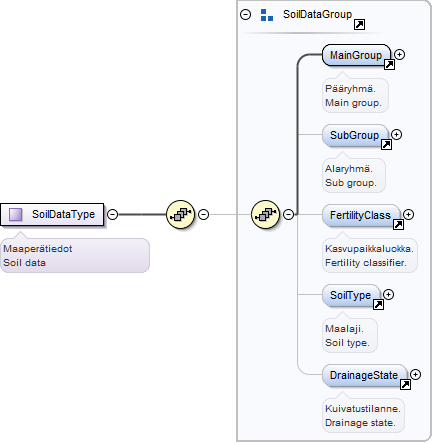

Element MainGroup

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Pääryhmä.

Main group.

Diagram

Type

ExtendedMainGroupType

Properties

content:

simple

Used by

Element Groups

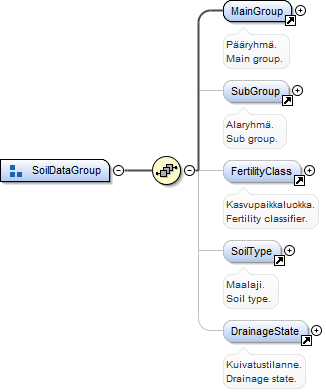

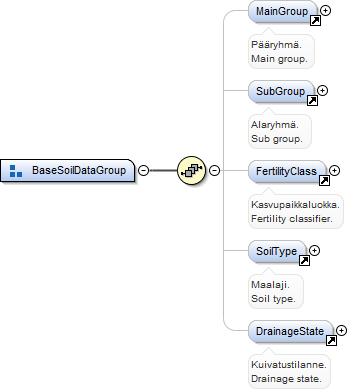

BaseSoilDataGroup, SoilDataGroup

Source

<xs:element name="MainGroup" type="co:ExtendedMainGroupType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Pääryhmä.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Main group.</xs:documentation>
  </xs:annotation>
</xs:element>

Element SubGroup

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Alaryhmä.

Sub group.

Diagram

Type

SubGroupType

Properties

content:

simple

Facets

enumeration	1	Kangas
enumeration	2	Korpi
enumeration	3	Räme
enumeration	4	Neva
enumeration	5	Letto

Used by

Element Groups

BaseSoilDataGroup, SoilDataGroup

Source

<xs:element name="SubGroup" type="co:SubGroupType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Alaryhmä.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Sub group.</xs:documentation>
  </xs:annotation>
</xs:element>

Element FertilityClass

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Kasvupaikkaluokka.

Fertility classifier.

Diagram

Type

FertilityClassType

Properties

content:

simple

Facets

enumeration	1	Lehto, letto ja lehtomainen suo (ja ruohoturvekangas)
enumeration	2	Lehtomainen kangas, vastaava suo ja ruohoturvekangas
enumeration	3	Tuore kangas, vastaava suo ja mustikkaturvekangas
enumeration	4	Kuivahko kangas, vastaava suo ja puolukkaturvekangas
enumeration	5	Kuiva kangas, vastaava suo ja varputurvekangas
enumeration	6	Karukkokangas, vastaava suo (ja jäkäläturvekangas)
enumeration	7	Kalliomaa ja hietikko
enumeration	8	Lakimetsä ja tunturi

Used by

Element Groups

BaseSoilDataGroup, SoilDataGroup

Source

<xs:element name="FertilityClass" type="co:FertilityClassType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kasvupaikkaluokka.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Fertility classifier.</xs:documentation>
  </xs:annotation>
</xs:element>

Element SoilType

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Maalaji.

Soil type.

Diagram

Type

SoilTypeType

Properties

content:

simple

Facets

enumeration	10	Keskikarkea tai karkea kangasmaa
enumeration	11	Karkea moreeni
enumeration	12	Karkea lajittunut maalaji
enumeration	20	Hienojakoinen kangasmaa
enumeration	21	Hienoainesmoreeni
enumeration	22	Hienojakoinen lajittunut maalaji
enumeration	23	Silttipitoinen maalaji
enumeration	24	Savimaa
enumeration	30	Kivinen keskikarkea tai karkea kangasmaa
enumeration	31	Kivinen karkea moreeni
enumeration	32	Kivinen karkea lajittunut maalaji
enumeration	40	Kivinen hienojakoinen kangasmaa
enumeration	50	Kallio tai kivikko
enumeration	60	Turvemaa
enumeration	61	Saraturve
enumeration	62	Rahkaturve
enumeration	63	Puuvaltainen turve
enumeration	64	Eroosioherkkä saraturve (von Post luokka yli 5)
enumeration	65	Eroosioherkkä rahkaturve (von Post luokka yli 5)
enumeration	66	Maatumaton saraturve (von Post luokka enintään 5)
enumeration	67	Maatumaton rahkaturve (von Post luokka enintään 5)
enumeration	70	Multamaa
enumeration	80	Liejumaa

Used by

Element Groups

BaseSoilDataGroup, SoilDataGroup

Source

<xs:element name="SoilType" type="co:SoilTypeType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Maalaji.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Soil type.</xs:documentation>
  </xs:annotation>
</xs:element>

Element DrainageState

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Kuivatustilanne.

Drainage state.

Diagram

Type

DrainageStateType

Properties

content:

simple

Facets

enumeration	1	Ojittamaton kangas
enumeration	2	Soistunut kangas
enumeration	3	Ojitettu kangas
enumeration	6	Luonnontilainen suo
enumeration	7	Ojikko
enumeration	8	Muuttuma
enumeration	9	Turvekangas

Used by

Element Groups

BaseSoilDataGroup, SoilDataGroup

Source

<xs:element name="DrainageState" type="co:DrainageStateType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuivatustilanne.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Drainage state.</xs:documentation>
  </xs:annotation>
</xs:element>

Element DitchingYear

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Ojitusvuosi.

Ditching year.

Diagram

Type

YearType

Properties

content:

simple

Facets

minInclusive

1900

Used by

Complex Types

BaseCompactStandBasicDataType, CompactStandBasicDataType, StandBasicDataType, StandBasicDataWithGeometryType

Source

<xs:element name="DitchingYear" type="co:YearType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Ojitusvuosi.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Ditching year.</xs:documentation>
  </xs:annotation>
</xs:element>

Element ThinningYear

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Viimeisimmän harvennuksen ajankohta.

Diagram

Type

YearType

Properties

content:

simple

Facets

minInclusive

1900

Used by

Complex Types

BaseCompactStandBasicDataType, CompactStandBasicDataType, StandBasicDataType, StandBasicDataWithGeometryType

Source

<xs:element name="ThinningYear" type="co:YearType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Viimeisimmän harvennuksen ajankohta.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>

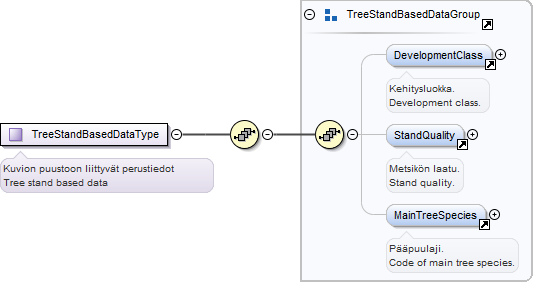

Element DevelopmentClass

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Kehitysluokka.

Development class.

Diagram

Type

DevelopmentClassType

Properties

content:

simple

Facets

enumeration	02	Nuori kasvatusmetsikkö
enumeration	03	Varttunut kasvatusmetsikkö
enumeration	04	Uudistuskypsä metsikkö
enumeration	05	Suojuspuumetsikkö
enumeration	A0	Aukea
enumeration	ER	Eri-ikäisrakenteinen metsikkö
enumeration	S0	Siemenpuumetsikkö
enumeration	T1	Taimikko alle 1,3 m
enumeration	T2	Taimikko yli 1,3 m
enumeration	Y1	Ylispuustoinen taimikko

Used by

Element Group

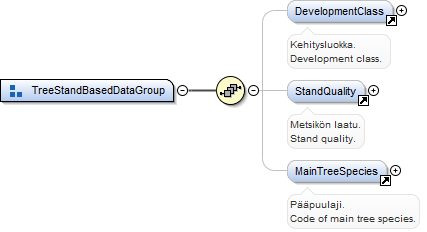

TreeStandBasedDataGroup

Source

<xs:element name="DevelopmentClass" type="co:DevelopmentClassType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kehitysluokka.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Development class.</xs:documentation>
  </xs:annotation>
</xs:element>

Element StandQuality

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Metsikön laatu.

Stand quality.

Diagram

Type

StandQualityType

Properties

content:

simple

Facets

enumeration	0	Ei määritelty
enumeration	10	Hyvä
enumeration	11	Kehityskelpoinen, hyvä
enumeration	20	Tyydyttävä
enumeration	21	Kehityskelpoinen, tyydyttävä: aukkoinen, harva, vähäpuustoinen
enumeration	22	Kehityskelpoinen, tyydyttävä: ylitiheä, hoitamaton
enumeration	23	Kehityskelpoinen tyydyttävä/välttävä: vajaalaatuinen
enumeration	30	Välttävä
enumeration	31	Kehityskelvoton: aukkoinen, harva, vähäpuustoinen
enumeration	32	Kehityskelvoton: ylitiheä, hoitamaton
enumeration	33	Kehityskelvoton: kasvupaikalle metsänhoidollisesti sopimaton puulaji
enumeration	34	Kehityskelvoton: yli-ikäinen
enumeration	35	Kehityskelvoton: huonokasvuinen, harsittu, jätemetsikkö
enumeration	36	Kehityskelvoton: tuhometsikkö

Used by

Element Group

TreeStandBasedDataGroup

Source

<xs:element name="StandQuality" type="co:StandQualityType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Metsikön laatu.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stand quality.</xs:documentation>
  </xs:annotation>
</xs:element>

Element MainTreeSpecies

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Pääpuulaji.

Code of main tree species.

Diagram

Type

TreeSpeciesType

Properties

content:

simple

Facets

enumeration	1	Mänty
enumeration	2	Kuusi
enumeration	3	Rauduskoivu
enumeration	4	Hieskoivu
enumeration	5	Haapa
enumeration	6	Harmaaleppä
enumeration	7	Tervaleppä
enumeration	8	Muu havupuu
enumeration	9	Muu lehtipuu
enumeration	10	Douglaskuusi
enumeration	11	Kataja
enumeration	12	Kontortamänty
enumeration	13	Kynäjalava
enumeration	14	Lehtikuusi
enumeration	15	Metsälehmus
enumeration	16	Mustakuusi
enumeration	17	Paju
enumeration	18	Pihlaja
enumeration	19	Pihta
enumeration	20	Raita
enumeration	21	Saarni
enumeration	22	Sembramänty
enumeration	23	Serbiankuusi
enumeration	24	Tammi
enumeration	25	Tuomi
enumeration	26	Vaahtera
enumeration	27	Visakoivu
enumeration	28	Vuorijalava
enumeration	29	Lehtipuu
enumeration	30	Havupuu

Used by

Element Group

TreeStandBasedDataGroup

Source

<xs:element name="MainTreeSpecies" type="co:TreeSpeciesType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Pääpuulaji.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Code of main tree species.</xs:documentation>
  </xs:annotation>
</xs:element>

Element Accessibility

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Saavutettavuus

Accessibility classifier.

Diagram

Type

AccessibilityType

Properties

content:

simple

Facets

enumeration	1	Ympärivuotinen
enumeration	2	Myös sulan maan, mutta ei kelirikon aikana
enumeration	3	Myös sulan maan aikana kuivana kautena
enumeration	4	Vain kun maa on jäässä
enumeration	5	Ei määritelty

Used by

Complex Types

BaseCompactStandBasicDataType, CompactStandBasicDataType, StandBasicDataType, StandBasicDataWithGeometryType

Source

<xs:element name="Accessibility" type="co:AccessibilityType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Saavutettavuus</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Accessibility classifier.</xs:documentation>
  </xs:annotation>
</xs:element>

Element CuttingRestriction

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Hakkuurajoitus.

Cutting restriction.

Diagram

Type

CuttingRestrictionType

Properties

content:

simple

Facets

enumeration	0	Ei rajoituksia
enumeration	1	Ei ylispuidenpoistoa
enumeration	2	Ei ensiharvennuksia
enumeration	3	Ei harvennushakkuita
enumeration	4	Ei kasvatushakkuita
enumeration	5	Ei avohakkuuta
enumeration	6	Ei suojuspuuhakkuuta
enumeration	7	Ei siemenpuuhakkuuta
enumeration	8	Ei uudistushakkuuta
enumeration	9	Ei hakkuita

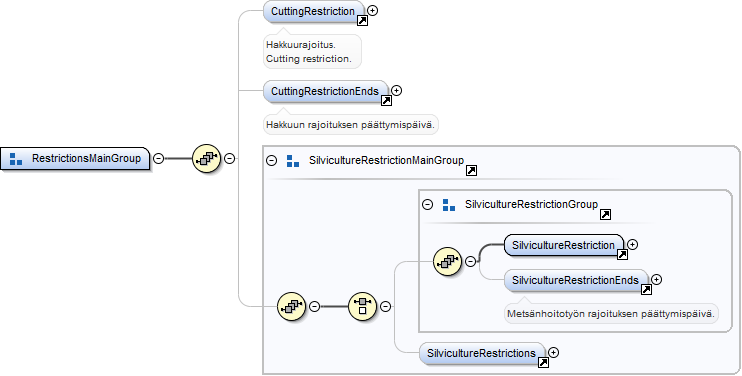

Used by

Element Group

RestrictionsMainGroup

Source

<xs:element name="CuttingRestriction" type="co:CuttingRestrictionType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Hakkuurajoitus.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Cutting restriction.</xs:documentation>
  </xs:annotation>
</xs:element>

Element CuttingRestrictionEnds

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Hakkuun rajoituksen päättymispäivä.

Diagram

Type

DateType

Properties

content:

simple

Facets

minInclusive

1900-01-01

Used by

Element Group

RestrictionsMainGroup

Source

<xs:element name="CuttingRestrictionEnds" type="co:DateType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Hakkuun rajoituksen päättymispäivä.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>

Element SilvicultureRestriction

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Diagram

Type

SilvicultureRestrictionType

Properties

content:

simple

Facets

enumeration	0	Ei rajoituksia
enumeration	3	Ei viljelyä
enumeration	5	Ei maanmuokkausta
enumeration	6	Ei ojitusta
enumeration	7	Ei maa-ainestenottoa
enumeration	9	Ei metsänhoitotöitä
enumeration	10	Ei kannonnostoa

Used by

Element Group

SilvicultureRestrictionGroup

Source

<xs:element name="SilvicultureRestriction" type="co:SilvicultureRestrictionType"/>

Element SilvicultureRestrictionEnds

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Metsänhoitotyön rajoituksen päättymispäivä.

Diagram

Type

DateType

Properties

content:

simple

Facets

minInclusive

1900-01-01

Used by

Element Group

SilvicultureRestrictionGroup

Source

<xs:element name="SilvicultureRestrictionEnds" type="co:DateType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Metsänhoitotyön rajoituksen päättymispäivä.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>

Element SilvicultureRestrictions

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Diagram

Type

SilvicultureRestrictionsType

Properties

content:

complex

Used by

Element Group

SilvicultureRestrictionMainGroup

Model

SilvicultureRestrictionDetails+

Children

SilvicultureRestrictionDetails

Instance

<SilvicultureRestrictions>
  <SilvicultureRestrictionDetails>{1,unbounded}</SilvicultureRestrictionDetails>
</SilvicultureRestrictions>

Source

<xs:element name="SilvicultureRestrictions" type="SilvicultureRestrictionsType"/>

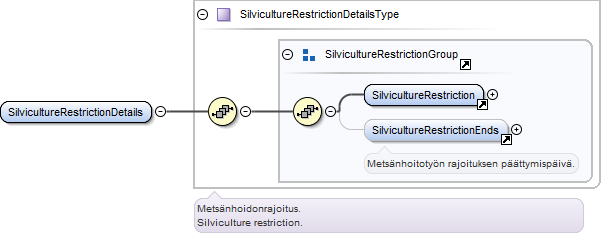

Element SilvicultureRestrictionDetails

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Diagram

Type

SilvicultureRestrictionDetailsType

Properties

content:

complex

Used by

Complex Type

SilvicultureRestrictionsType

Model

SilvicultureRestriction , SilvicultureRestrictionEnds{0,1}

Children

SilvicultureRestriction, SilvicultureRestrictionEnds

Instance

<SilvicultureRestrictionDetails>
  <SilvicultureRestriction>{1,1}</SilvicultureRestriction>
  <SilvicultureRestrictionEnds>{0,1}</SilvicultureRestrictionEnds>
</SilvicultureRestrictionDetails>

Source

<xs:element name="SilvicultureRestrictionDetails" type="SilvicultureRestrictionDetailsType"/>

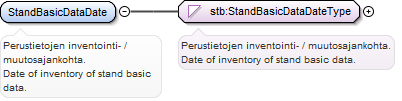

Element StandBasicDataDate

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Perustietojen inventointi- / muutosajankohta.

Date of inventory of stand basic data.

Diagram

Type

StandBasicDataDateType

Type hierarchy

xs:date
- DateType
  - StandBasicDataDateType

Properties

content:

simple

Facets

minInclusive

1900-01-01

Used by

Complex Types

BaseCompactStandBasicDataType, CompactStandBasicDataType, StandBasicDataType, StandBasicDataWithGeometryType

Source

<xs:element name="StandBasicDataDate" type="stb:StandBasicDataDateType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Perustietojen inventointi- / muutosajankohta.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Date of inventory of stand basic data.</xs:documentation>
  </xs:annotation>
</xs:element>

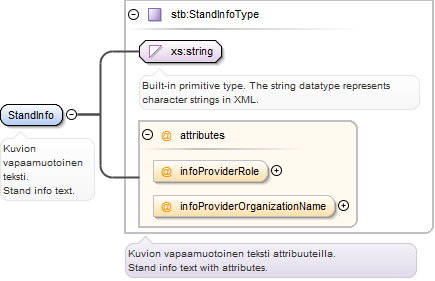

Element StandInfo

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Kuvion vapaamuotoinen teksti.

Stand info text.

Diagram

Type

StandInfoType

Properties

content:

complex

Used by

Complex Types

BaseCompactStandBasicDataType, CompactStandBasicDataType, StandBasicDataType, StandBasicDataWithGeometryType

Attributes

QName	Type	Fixed	Default	Use	Annotation
infoProviderOrganizationName	OrganizationNameType			optional
infoProviderRole	InfoProviderRoleType			optional

Source

<xs:element name="StandInfo" type="stb:StandInfoType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvion vapaamuotoinen teksti.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stand info text.</xs:documentation>
  </xs:annotation>
</xs:element>

Element GrowthPlaceDataSource

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Metsikkökuvion kasvupaikkatietojen tietolähde.

Diagram

Type

DataSourceType

Properties

content:

simple

Facets

pattern

[0-9]{0,4}

Used by

Complex Types

BaseCompactStandBasicDataType, CompactStandBasicDataType, StandBasicDataType, StandBasicDataWithGeometryType

Source

<xs:element name="GrowthPlaceDataSource" type="co:DataSourceType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Metsikkökuvion kasvupaikkatietojen tietolähde.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>

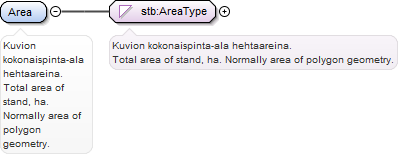

Element Area

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Kuvion kokonaispinta-ala hehtaareina.

Total area of stand, ha. Normally area of polygon geometry.

Diagram

Type

AreaType

Type hierarchy

xs:decimal
- Decimal4FractionDigitsType
  - AreaType
    - AreaType

Properties

content:

simple

Facets

fractionDigits

Used by

Complex Type

StandBasicDataWithGeometryType

Source

<xs:element name="Area" type="stb:AreaType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvion kokonaispinta-ala hehtaareina.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Total area of stand, ha. Normally area of polygon geometry.</xs:documentation>
  </xs:annotation>
</xs:element>

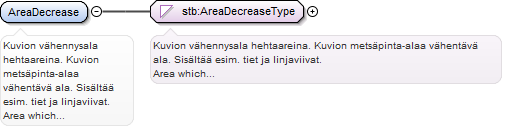

Element AreaDecrease

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Kuvion vähennysala hehtaareina. Kuvion metsäpinta-alaa vähentävä ala. Sisältää esim. tiet ja linjaviivat.

Area which decrease total area of stand, ha. E.g. power lines, roads... Area - AreaDecrease = effective forest land area for forestry purposes.

Diagram

Type

AreaDecreaseType

Type hierarchy

xs:decimal
- Decimal4FractionDigitsType
  - AreaType
    - AreaDecreaseType

Properties

content:

simple

Facets

fractionDigits

Used by

Complex Type

StandBasicDataWithGeometryType

Source

<xs:element name="AreaDecrease" type="stb:AreaDecreaseType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvion vähennysala hehtaareina. Kuvion metsäpinta-alaa vähentävä ala. Sisältää esim. tiet ja linjaviivat.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Area which decrease total area of stand, ha. E.g. power lines, roads... Area - AreaDecrease = effective forest land area for forestry purposes.</xs:documentation>
  </xs:annotation>
</xs:element>

Element CompleteState

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Diagram

Type

CompleteStateType

Type hierarchy

xs:string
- YesNoType
  - CompleteStateType

Properties

content:

simple

Facets

enumeration	0	Ei
enumeration	1	Kyllä

Used by

Complex Types

BaseCompactStandBasicDataType, CompactStandBasicDataType

Source

<xs:element name="CompleteState" type="co:CompleteStateType"/>

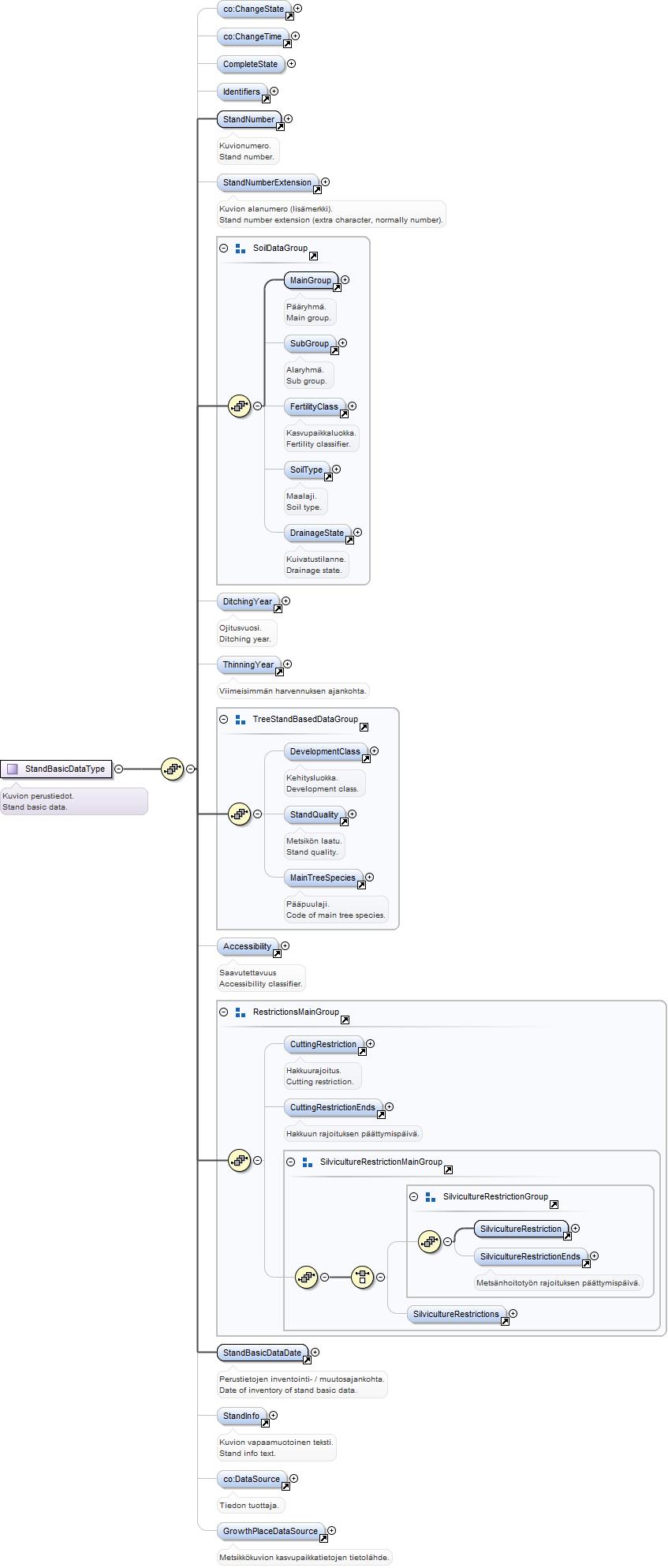

Complex Type StandBasicDataType

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Kuvion perustiedot.

Stand basic data.

Diagram

Used by

Complex Type

StandBasicDataWithGeometryType

Model

ChangeState{0,1} , ChangeTime{0,1} , CompleteState{0,1} , Identifiers{0,1} , StandNumber , StandNumberExtension{0,1} , MainGroup , SubGroup{0,1} , FertilityClass{0,1} , SoilType{0,1} , DrainageState{0,1} , DitchingYear{0,1} , ThinningYear{0,1} , DevelopmentClass{0,1} , StandQuality{0,1} , MainTreeSpecies{0,1} , Accessibility{0,1} , CuttingRestriction{0,1} , CuttingRestrictionEnds{0,1} , ((SilvicultureRestriction , SilvicultureRestrictionEnds{0,1}) | SilvicultureRestrictions{0,1}) , StandBasicDataDate , StandInfo{0,1} , DataSource{0,1} , GrowthPlaceDataSource{0,1}

Children

Accessibility, ChangeState, ChangeTime, CompleteState, CuttingRestriction, CuttingRestrictionEnds, DataSource, DevelopmentClass, DitchingYear, DrainageState, FertilityClass, GrowthPlaceDataSource, Identifiers, MainGroup, MainTreeSpecies, SilvicultureRestriction, SilvicultureRestrictionEnds, SilvicultureRestrictions, SoilType, StandBasicDataDate, StandInfo, StandNumber, StandNumberExtension, StandQuality, SubGroup, ThinningYear

Source

<xs:complexType name="StandBasicDataType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvion perustiedot.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stand basic data.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="co:ChangeState" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="co:ChangeTime" minOccurs="0" maxOccurs="1"/>
    <xs:element name="CompleteState" type="co:CompleteStateType" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="Identifiers" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="StandNumber" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="StandNumberExtension" minOccurs="0" maxOccurs="1"/>
    <xs:group ref="SoilDataGroup" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="DitchingYear" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="ThinningYear" minOccurs="0" maxOccurs="1"/>
    <xs:group ref="TreeStandBasedDataGroup" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="Accessibility" minOccurs="0" maxOccurs="1"/>
    <xs:group ref="RestrictionsMainGroup" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="StandBasicDataDate" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="StandInfo" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="co:DataSource" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="GrowthPlaceDataSource" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

Complex Type IdentifiersType

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Kuvion tunnisteet.

Identifiers of stand.

Diagram

Used by

Element

Identifiers

Model

Identifier+

Children

Identifier

Source

<xs:complexType name="IdentifiersType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvion tunnisteet.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Identifiers of stand.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="Identifier" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Complex Type SilvicultureRestrictionsType

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Diagram

Used by

Element

SilvicultureRestrictions

Model

SilvicultureRestrictionDetails+

Children

SilvicultureRestrictionDetails

Source

<xs:complexType name="SilvicultureRestrictionsType">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="SilvicultureRestrictionDetails" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

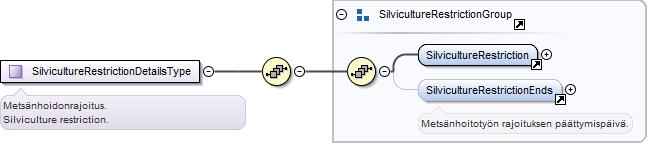

Complex Type SilvicultureRestrictionDetailsType

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Metsänhoidonrajoitus.

Silviculture restriction.

Diagram

Used by

Element

SilvicultureRestrictionDetails

Model

SilvicultureRestriction , SilvicultureRestrictionEnds{0,1}

Children

SilvicultureRestriction, SilvicultureRestrictionEnds

Source

<xs:complexType name="SilvicultureRestrictionDetailsType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Metsänhoidonrajoitus.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Silviculture restriction.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:group ref="SilvicultureRestrictionGroup"/>
  </xs:sequence>
</xs:complexType>

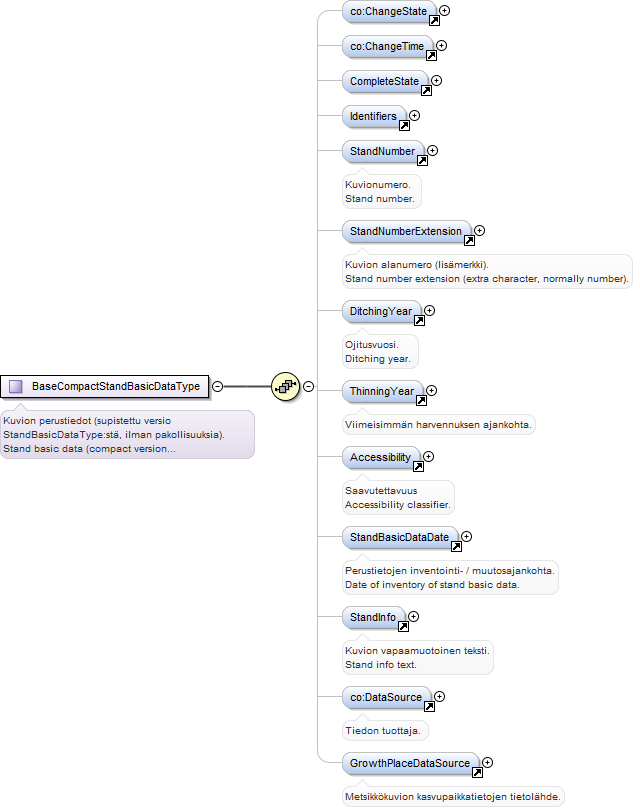

Complex Type BaseCompactStandBasicDataType

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Kuvion perustiedot (supistettu versio StandBasicDataType:stä, ilman pakollisuuksia).

Stand basic data (compact version of StandBasicDataType).

Diagram

Model

ChangeState{0,1} , ChangeTime{0,1} , CompleteState{0,1} , Identifiers{0,1} , StandNumber{0,1} , StandNumberExtension{0,1} , DitchingYear{0,1} , ThinningYear{0,1} , Accessibility{0,1} , StandBasicDataDate{0,1} , StandInfo{0,1} , DataSource{0,1} , GrowthPlaceDataSource{0,1}

Children

Accessibility, ChangeState, ChangeTime, CompleteState, DataSource, DitchingYear, GrowthPlaceDataSource, Identifiers, StandBasicDataDate, StandInfo, StandNumber, StandNumberExtension, ThinningYear

Source

<xs:complexType name="BaseCompactStandBasicDataType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvion perustiedot (supistettu versio StandBasicDataType:stä, ilman pakollisuuksia).</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stand basic data (compact version of StandBasicDataType).</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="co:ChangeState" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="co:ChangeTime" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="CompleteState" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="Identifiers" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="StandNumber" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="StandNumberExtension" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="DitchingYear" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="ThinningYear" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="Accessibility" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="StandBasicDataDate" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="StandInfo" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="co:DataSource" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="GrowthPlaceDataSource" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

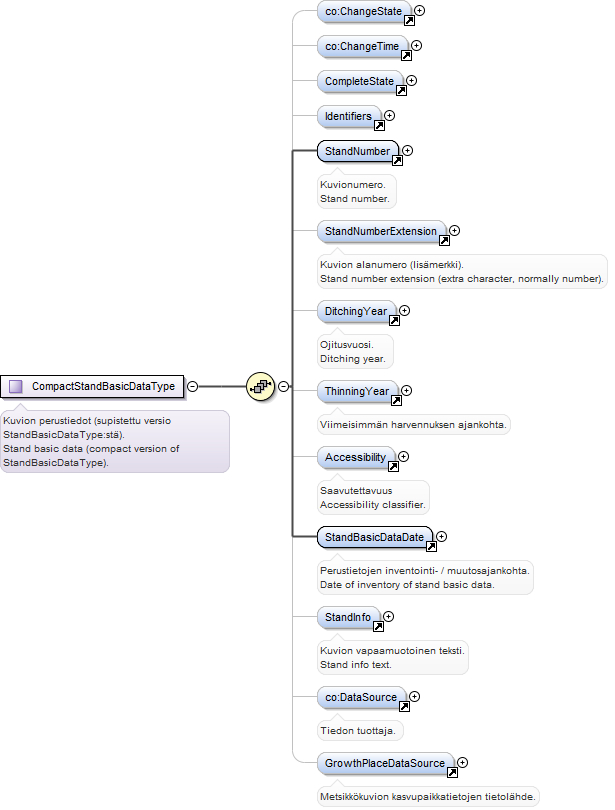

Complex Type CompactStandBasicDataType

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Kuvion perustiedot (supistettu versio StandBasicDataType:stä).

Stand basic data (compact version of StandBasicDataType).

Diagram

Model

ChangeState{0,1} , ChangeTime{0,1} , CompleteState{0,1} , Identifiers{0,1} , StandNumber , StandNumberExtension{0,1} , DitchingYear{0,1} , ThinningYear{0,1} , Accessibility{0,1} , StandBasicDataDate , StandInfo{0,1} , DataSource{0,1} , GrowthPlaceDataSource{0,1}

Children

Source

<xs:complexType name="CompactStandBasicDataType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvion perustiedot (supistettu versio StandBasicDataType:stä).</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stand basic data (compact version of StandBasicDataType).</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="co:ChangeState" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="co:ChangeTime" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="CompleteState" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="Identifiers" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="StandNumber" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="StandNumberExtension" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="DitchingYear" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="ThinningYear" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="Accessibility" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="StandBasicDataDate" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="StandInfo" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="co:DataSource" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="GrowthPlaceDataSource" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

Complex Type BaseSoilDataType

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Maaperätiedot

Soil data

Diagram

Model

MainGroup{0,1} , SubGroup{0,1} , FertilityClass{0,1} , SoilType{0,1} , DrainageState{0,1}

Children

DrainageState, FertilityClass, MainGroup, SoilType, SubGroup

Source

<xs:complexType name="BaseSoilDataType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Maaperätiedot</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Soil data</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:group ref="BaseSoilDataGroup" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>

Complex Type SoilDataType

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Maaperätiedot

Soil data

Diagram

Model

MainGroup , SubGroup{0,1} , FertilityClass{0,1} , SoilType{0,1} , DrainageState{0,1}

Children

DrainageState, FertilityClass, MainGroup, SoilType, SubGroup

Source

<xs:complexType name="SoilDataType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Maaperätiedot</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Soil data</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:group ref="SoilDataGroup" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>

Complex Type TreeStandBasedDataType

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Kuvion puustoon liittyvät perustiedot

Tree stand based data

Diagram

Model

DevelopmentClass{0,1} , StandQuality{0,1} , MainTreeSpecies{0,1}

Children

DevelopmentClass, MainTreeSpecies, StandQuality

Source

<xs:complexType name="TreeStandBasedDataType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvion puustoon liittyvät perustiedot</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Tree stand based data</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:group ref="TreeStandBasedDataGroup"/>
  </xs:sequence>
</xs:complexType>

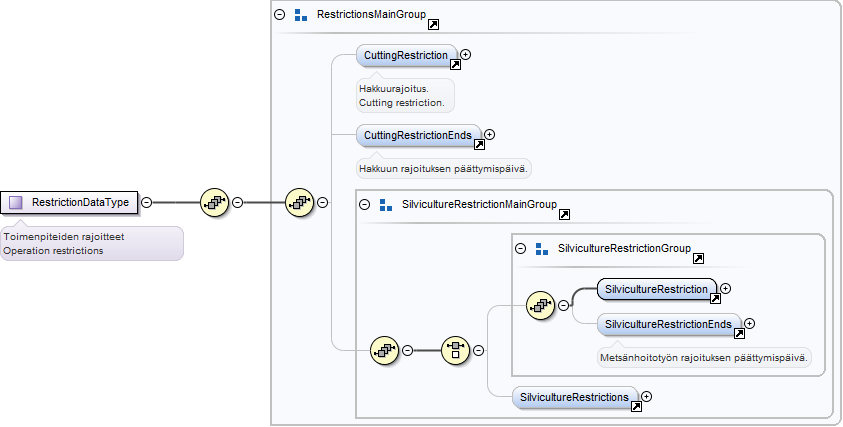

Complex Type RestrictionDataType

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Toimenpiteiden rajoitteet

Operation restrictions

Diagram

Model

CuttingRestriction{0,1} , CuttingRestrictionEnds{0,1} , ((SilvicultureRestriction , SilvicultureRestrictionEnds{0,1}) | SilvicultureRestrictions{0,1})

Children

CuttingRestriction, CuttingRestrictionEnds, SilvicultureRestriction, SilvicultureRestrictionEnds, SilvicultureRestrictions

Source

<xs:complexType name="RestrictionDataType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Toimenpiteiden rajoitteet</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Operation restrictions</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:group ref="RestrictionsMainGroup"/>
  </xs:sequence>
</xs:complexType>

Element Group SoilDataGroup

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Diagram

Used by

Complex Types

SoilDataType, StandBasicDataType, StandBasicDataWithGeometryType

Model

MainGroup , SubGroup{0,1} , FertilityClass{0,1} , SoilType{0,1} , DrainageState{0,1}

Children

DrainageState, FertilityClass, MainGroup, SoilType, SubGroup

Source

<xs:group name="SoilDataGroup">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="MainGroup" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="SubGroup" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="FertilityClass" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="SoilType" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="DrainageState" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:group>

Element Group TreeStandBasedDataGroup

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Diagram

Used by

Complex Types

StandBasicDataType, StandBasicDataWithGeometryType, TreeStandBasedDataType

Model

DevelopmentClass{0,1} , StandQuality{0,1} , MainTreeSpecies{0,1}

Children

DevelopmentClass, MainTreeSpecies, StandQuality

Source

<xs:group name="TreeStandBasedDataGroup">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="DevelopmentClass" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="StandQuality" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="MainTreeSpecies" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:group>

Element Group RestrictionsMainGroup

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Diagram

Used by

Complex Types

RestrictionDataType, StandBasicDataType, StandBasicDataWithGeometryType

Model

CuttingRestriction{0,1} , CuttingRestrictionEnds{0,1} , ((SilvicultureRestriction , SilvicultureRestrictionEnds{0,1}) | SilvicultureRestrictions{0,1})

Children

CuttingRestriction, CuttingRestrictionEnds, SilvicultureRestriction, SilvicultureRestrictionEnds, SilvicultureRestrictions

Source

<xs:group name="RestrictionsMainGroup">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="CuttingRestriction" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="CuttingRestrictionEnds" minOccurs="0" maxOccurs="1"/>
    <xs:group ref="SilvicultureRestrictionMainGroup" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:group>

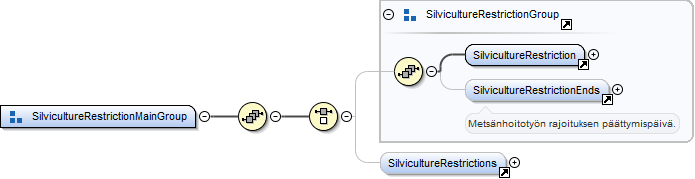

Element Group SilvicultureRestrictionMainGroup

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Diagram

Used by

Element Group

RestrictionsMainGroup

Model

((SilvicultureRestriction , SilvicultureRestrictionEnds{0,1}) | SilvicultureRestrictions{0,1})

Children

SilvicultureRestriction, SilvicultureRestrictionEnds, SilvicultureRestrictions

Source

<xs:group name="SilvicultureRestrictionMainGroup">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:choice>
      <xs:group ref="SilvicultureRestrictionGroup" minOccurs="0" maxOccurs="1"/>
      <xs:element ref="SilvicultureRestrictions" minOccurs="0" maxOccurs="1"/>
    </xs:choice>
  </xs:sequence>
</xs:group>

Element Group SilvicultureRestrictionGroup

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Diagram

Used by

Element Group	SilvicultureRestrictionMainGroup
Complex Type	SilvicultureRestrictionDetailsType

Model

SilvicultureRestriction , SilvicultureRestrictionEnds{0,1}

Children

SilvicultureRestriction, SilvicultureRestrictionEnds

Source

<xs:group name="SilvicultureRestrictionGroup">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="SilvicultureRestriction" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="SilvicultureRestrictionEnds" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:group>

Element Group BaseSoilDataGroup

Namespace

http://standardit.tapio.fi/schemas/forestData/Stand

Annotations

Diagram

Used by

Complex Type

BaseSoilDataType

Model

MainGroup{0,1} , SubGroup{0,1} , FertilityClass{0,1} , SoilType{0,1} , DrainageState{0,1}

Children

DrainageState, FertilityClass, MainGroup, SoilType, SubGroup

Source

<xs:group name="BaseSoilDataGroup">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="MainGroup" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="SubGroup" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="FertilityClass" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="SoilType" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="DrainageState" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:group>
