Imported schema Stand.xsd
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Properties
attribute form default: unqualified
element form default: qualified
version: V17.02

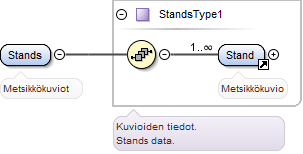

Element Stands
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Metsikkökuviot
Diagram
Diagram index56.tmp#id3225 index56.tmp#id3224
Type StandsType1
Properties
content: complex
Used by
Complex Type ParcelType
Model Stand+
Children Stand
Instance

<Stands>
  <Stand id="" parcelId="" realEstateId="">{1,unbounded}</Stand>
</Stands>
Source

<xs:element name="Stands" type="StandsType1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Metsikkökuviot</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>

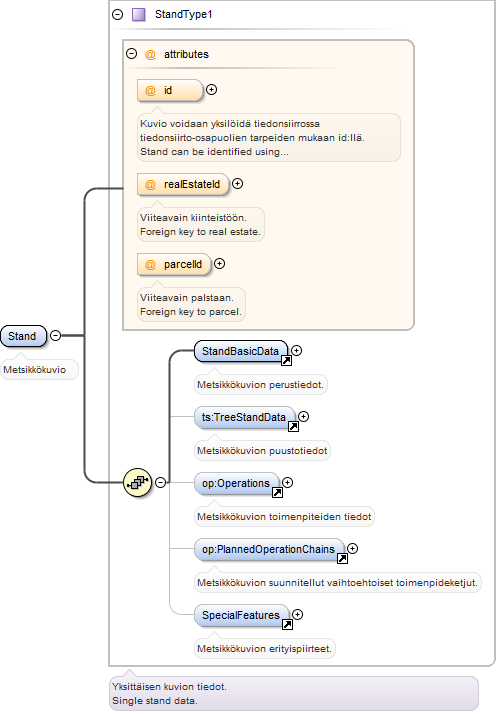

Element Stand
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Metsikkökuvio
Diagram
Diagram index56.tmp#id3268 index56.tmp#id3269 index56.tmp#id3270 index56.tmp#id3227 index40.tmp#id537 index25.tmp#id763 index25.tmp#id3166 index56.tmp#id3265 index56.tmp#id3226
Type StandType1
Properties
content: complex
Used by
Complex Type StandsType1
Model StandBasicData , TreeStandData{0,1} , Operations{0,1} , PlannedOperationChains{0,1} , SpecialFeatures{0,1}
Children Operations, PlannedOperationChains, SpecialFeatures, StandBasicData, TreeStandData
Instance

<Stand id="" parcelId="" realEstateId="">
  <StandBasicData>{1,1}</StandBasicData>
  <TreeStandData>{0,1}</TreeStandData>
  <Operations>{0,1}</Operations>
  <PlannedOperationChains>{0,1}</PlannedOperationChains>
  <SpecialFeatures>{0,1}</SpecialFeatures>
</Stand>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Kuvio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Stand can be identified using string id.
parcelId xs:string optional
Viiteavain palstaan.Foreign key to parcel.
realEstateId xs:string optional
Viiteavain kiinteistöön.Foreign key to real estate.
Source

<xs:element name="Stand" type="StandType1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Metsikkökuvio</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>

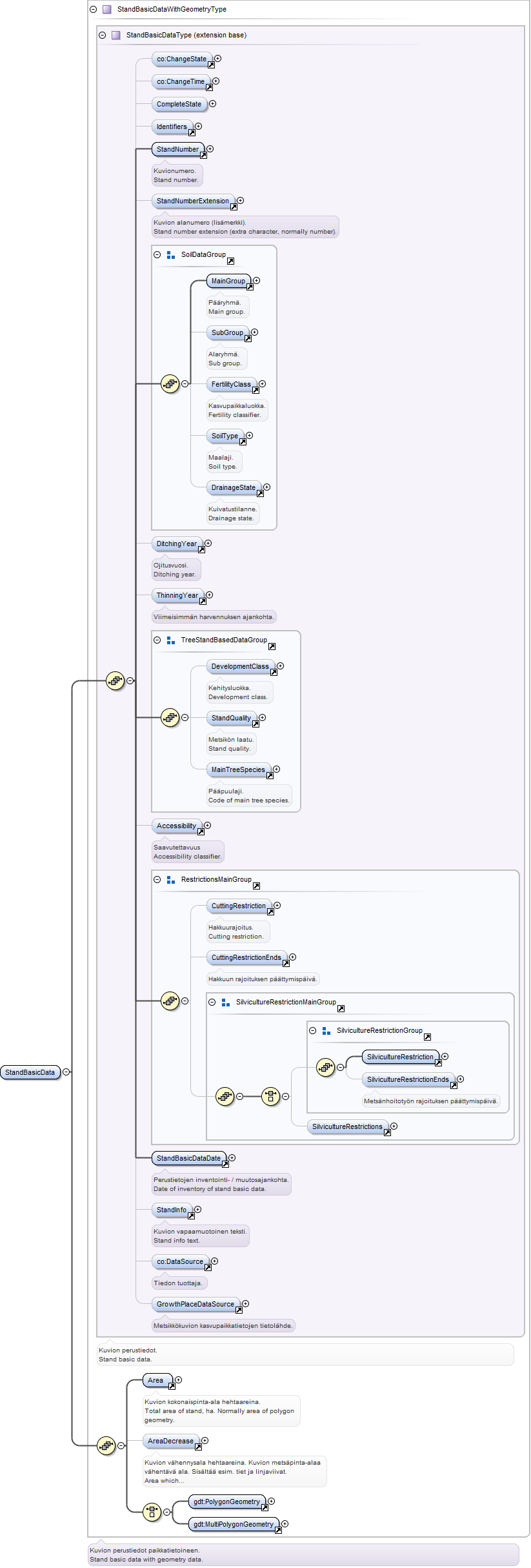

Element StandBasicData
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Diagram
Diagram index12.tmp#id547 index12.tmp#id549 index38.tmp#id3230 index38.tmp#id3231 index38.tmp#id3234 index38.tmp#id3235 index38.tmp#id3237 index38.tmp#id3238 index38.tmp#id3239 index38.tmp#id3240 index38.tmp#id3241 index38.tmp#id3236 index38.tmp#id3242 index38.tmp#id3243 index38.tmp#id3245 index38.tmp#id3246 index38.tmp#id3247 index38.tmp#id3244 index38.tmp#id3248 index38.tmp#id3250 index38.tmp#id3251 index38.tmp#id3254 index38.tmp#id3255 index38.tmp#id3253 index38.tmp#id3256 index38.tmp#id3252 index38.tmp#id3249 index38.tmp#id3260 index38.tmp#id3261 index12.tmp#id436 index38.tmp#id3262 index38.tmp#id3229 index38.tmp#id3263 index38.tmp#id3264 index49.tmp#id446 index49.tmp#id530 index56.tmp#id3228
Type StandBasicDataWithGeometryType
Type hierarchy
Properties
content: complex
Used by
Complex Type StandType1
Model ChangeState{0,1} , ChangeTime{0,1} , CompleteState{0,1} , Identifiers{0,1} , StandNumber , StandNumberExtension{0,1} , MainGroup , SubGroup{0,1} , FertilityClass{0,1} , SoilType{0,1} , DrainageState{0,1} , DitchingYear{0,1} , ThinningYear{0,1} , DevelopmentClass{0,1} , StandQuality{0,1} , MainTreeSpecies{0,1} , Accessibility{0,1} , CuttingRestriction{0,1} , CuttingRestrictionEnds{0,1} , ((SilvicultureRestriction , SilvicultureRestrictionEnds{0,1}) | SilvicultureRestrictions{0,1}) , StandBasicDataDate , StandInfo{0,1} , DataSource{0,1} , GrowthPlaceDataSource{0,1} , Area , AreaDecrease{0,1} , (PolygonGeometry | MultiPolygonGeometry)
Children Accessibility, Area, AreaDecrease, ChangeState, ChangeTime, CompleteState, CuttingRestriction, CuttingRestrictionEnds, DataSource, DevelopmentClass, DitchingYear, DrainageState, FertilityClass, GrowthPlaceDataSource, Identifiers, MainGroup, MainTreeSpecies, MultiPolygonGeometry, PolygonGeometry, SilvicultureRestriction, SilvicultureRestrictionEnds, SilvicultureRestrictions, SoilType, StandBasicDataDate, StandInfo, StandNumber, StandNumberExtension, StandQuality, SubGroup, ThinningYear
Instance

<StandBasicData>
  <ChangeState>{0,1}</ChangeState>
  <ChangeTime>{0,1}</ChangeTime>
  <CompleteState>{0,1}</CompleteState>
  <Identifiers>{0,1}</Identifiers>
  <StandNumber>{1,1}</StandNumber>
  <StandNumberExtension>{0,1}</StandNumberExtension>
  <DitchingYear>{0,1}</DitchingYear>
  <ThinningYear>{0,1}</ThinningYear>
  <Accessibility>{0,1}</Accessibility>
  <StandBasicDataDate>{1,1}</StandBasicDataDate>
  <StandInfo infoProviderOrganizationName="" infoProviderRole="">{0,1}</StandInfo>
  <DataSource>{0,1}</DataSource>
  <GrowthPlaceDataSource>{0,1}</GrowthPlaceDataSource>
</StandBasicData>
Source

<xs:element name="StandBasicData" type="StandBasicDataWithGeometryType"/>

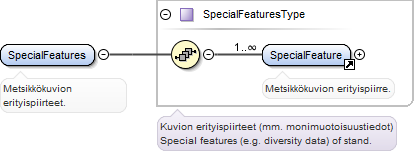

Element SpecialFeatures
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Metsikkökuvion erityispiirteet.
Diagram
Diagram index56.tmp#id3267 index56.tmp#id3266
Type SpecialFeaturesType
Properties
content: complex
Used by
Complex Type StandType1
Model SpecialFeature+
Children SpecialFeature
Instance

<SpecialFeatures>
  <SpecialFeature id="" infoProviderOrganizationName="" infoProviderRole="">{1,unbounded}</SpecialFeature>
</SpecialFeatures>
Source

<xs:element name="SpecialFeatures" type="SpecialFeaturesType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Metsikkökuvion erityispiirteet.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>

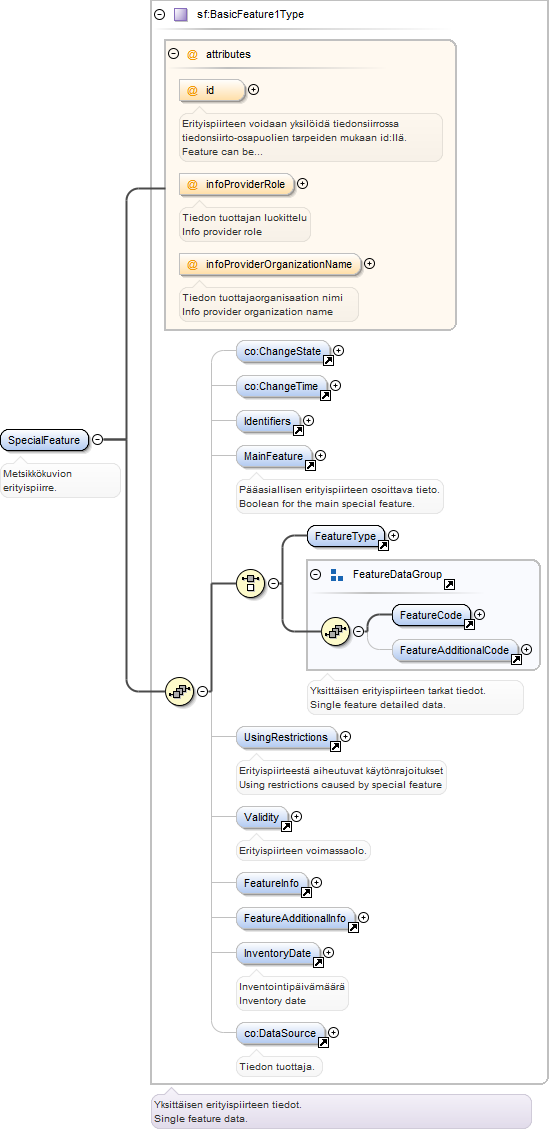

Element SpecialFeature
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Metsikkökuvion erityispiirre.
Diagram
Diagram index34.tmp#id1543 index34.tmp#id1544 index34.tmp#id1545 index12.tmp#id547 index12.tmp#id549 index34.tmp#id887 index34.tmp#id1530 index34.tmp#id897 index34.tmp#id900 index34.tmp#id904 index34.tmp#id899 index34.tmp#id1533 index34.tmp#id906 index34.tmp#id915 index34.tmp#id917 index34.tmp#id1531 index12.tmp#id436 index34.tmp#id1542
Type BasicFeature1Type
Properties
content: complex
Used by
Complex Type SpecialFeaturesType
Model ChangeState{0,1} , ChangeTime{0,1} , Identifiers{0,1} , MainFeature{0,1} , (FeatureType | (FeatureCode , FeatureAdditionalCode{0,1})) , UsingRestrictions{0,1} , Validity{0,1} , FeatureInfo{0,1} , FeatureAdditionalInfo{0,1} , InventoryDate{0,1} , DataSource{0,1}
Children ChangeState, ChangeTime, DataSource, FeatureAdditionalCode, FeatureAdditionalInfo, FeatureCode, FeatureInfo, FeatureType, Identifiers, InventoryDate, MainFeature, UsingRestrictions, Validity
Instance

<SpecialFeature id="" infoProviderOrganizationName="" infoProviderRole="">
  <ChangeState>{0,1}</ChangeState>
  <ChangeTime>{0,1}</ChangeTime>
  <Identifiers>{0,1}</Identifiers>
  <MainFeature>{0,1}</MainFeature>
  <UsingRestrictions>{0,1}</UsingRestrictions>
  <Validity>{0,1}</Validity>
  <FeatureInfo>{0,1}</FeatureInfo>
  <FeatureAdditionalInfo>{0,1}</FeatureAdditionalInfo>
  <InventoryDate>{0,1}</InventoryDate>
  <DataSource>{0,1}</DataSource>
</SpecialFeature>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Erityispiirteen voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Feature can be identified using string id.
infoProviderOrganizationName OrganizationNameType optional
Tiedon tuottajaorganisaation nimiInfo provider organization name
infoProviderRole InfoProviderRoleType optional
Tiedon tuottajan luokitteluInfo provider role
Source

<xs:element name="SpecialFeature" type="sf:BasicFeature1Type">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Metsikkökuvion erityispiirre.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>
Complex Type StandsType1
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Kuvioiden tiedot.
Stands data.
Diagram
Diagram index56.tmp#id3225
Used by
Element Stands
Model Stand+
Children Stand
Source

<xs:complexType name="StandsType1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvioiden tiedot.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stands data.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="Stand" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

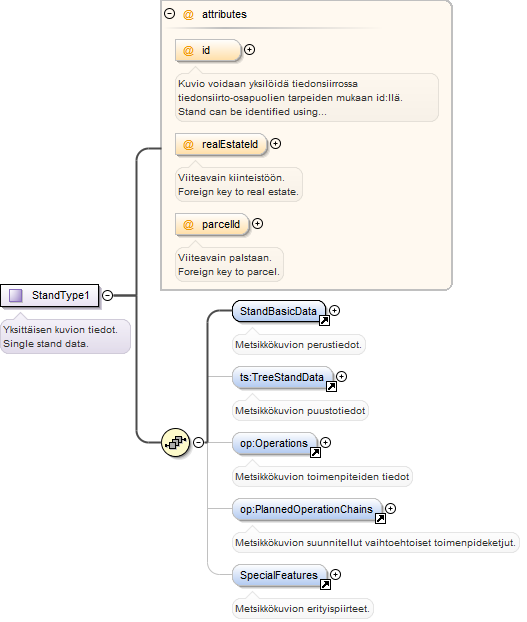

Complex Type StandType1
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Yksittäisen kuvion tiedot.
Single stand data.
Diagram
Diagram index56.tmp#id3268 index56.tmp#id3269 index56.tmp#id3270 index56.tmp#id3227 index40.tmp#id537 index25.tmp#id763 index25.tmp#id3166 index56.tmp#id3265
Used by
Element Stand
Model StandBasicData , TreeStandData{0,1} , Operations{0,1} , PlannedOperationChains{0,1} , SpecialFeatures{0,1}
Children Operations, PlannedOperationChains, SpecialFeatures, StandBasicData, TreeStandData
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Kuvio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Stand can be identified using string id.
parcelId xs:string optional
Viiteavain palstaan.Foreign key to parcel.
realEstateId xs:string optional
Viiteavain kiinteistöön.Foreign key to real estate.
Source

<xs:complexType name="StandType1">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Yksittäisen kuvion tiedot.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Single stand data.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="StandBasicData" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Metsikkökuvion perustiedot.</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en"/>
      </xs:annotation>
    </xs:element>
    <xs:element ref="ts:TreeStandData" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="op:Operations" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="op:PlannedOperationChains" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="SpecialFeatures" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
  <xs:attribute name="id" type="xs:string">
    <xs:annotation>
      <xs:documentation xml:lang="fi">Kuvio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.</xs:documentation>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en">Stand can be identified using string id.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="realEstateId" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation xml:lang="fi">Viiteavain kiinteistöön.</xs:documentation>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en">Foreign key to real estate.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="parcelId" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation xml:lang="fi">Viiteavain palstaan.</xs:documentation>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en">Foreign key to parcel.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>

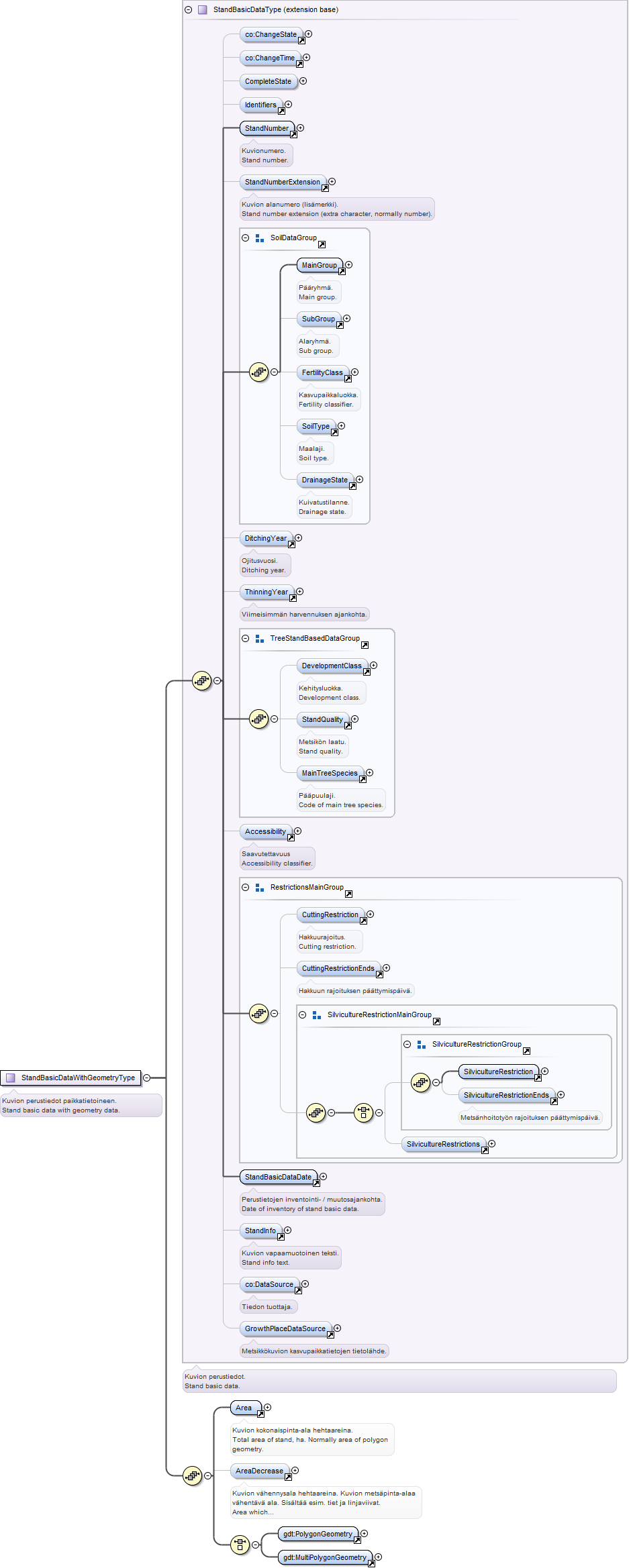

Complex Type StandBasicDataWithGeometryType
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Kuvion perustiedot paikkatietoineen.
Stand basic data with geometry data.
Diagram
Diagram index12.tmp#id547 index12.tmp#id549 index38.tmp#id3230 index38.tmp#id3231 index38.tmp#id3234 index38.tmp#id3235 index38.tmp#id3237 index38.tmp#id3238 index38.tmp#id3239 index38.tmp#id3240 index38.tmp#id3241 index38.tmp#id3236 index38.tmp#id3242 index38.tmp#id3243 index38.tmp#id3245 index38.tmp#id3246 index38.tmp#id3247 index38.tmp#id3244 index38.tmp#id3248 index38.tmp#id3250 index38.tmp#id3251 index38.tmp#id3254 index38.tmp#id3255 index38.tmp#id3253 index38.tmp#id3256 index38.tmp#id3252 index38.tmp#id3249 index38.tmp#id3260 index38.tmp#id3261 index12.tmp#id436 index38.tmp#id3262 index38.tmp#id3229 index38.tmp#id3263 index38.tmp#id3264 index49.tmp#id446 index49.tmp#id530
Type extension of StandBasicDataType
Type hierarchy
Used by
Element StandBasicData
Model ChangeState{0,1} , ChangeTime{0,1} , CompleteState{0,1} , Identifiers{0,1} , StandNumber , StandNumberExtension{0,1} , MainGroup , SubGroup{0,1} , FertilityClass{0,1} , SoilType{0,1} , DrainageState{0,1} , DitchingYear{0,1} , ThinningYear{0,1} , DevelopmentClass{0,1} , StandQuality{0,1} , MainTreeSpecies{0,1} , Accessibility{0,1} , CuttingRestriction{0,1} , CuttingRestrictionEnds{0,1} , ((SilvicultureRestriction , SilvicultureRestrictionEnds{0,1}) | SilvicultureRestrictions{0,1}) , StandBasicDataDate , StandInfo{0,1} , DataSource{0,1} , GrowthPlaceDataSource{0,1} , Area , AreaDecrease{0,1} , (PolygonGeometry | MultiPolygonGeometry)
Children Accessibility, Area, AreaDecrease, ChangeState, ChangeTime, CompleteState, CuttingRestriction, CuttingRestrictionEnds, DataSource, DevelopmentClass, DitchingYear, DrainageState, FertilityClass, GrowthPlaceDataSource, Identifiers, MainGroup, MainTreeSpecies, MultiPolygonGeometry, PolygonGeometry, SilvicultureRestriction, SilvicultureRestrictionEnds, SilvicultureRestrictions, SoilType, StandBasicDataDate, StandInfo, StandNumber, StandNumberExtension, StandQuality, SubGroup, ThinningYear
Source

<xs:complexType name="StandBasicDataWithGeometryType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvion perustiedot paikkatietoineen.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stand basic data with geometry data.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="StandBasicDataType">
      <xs:sequence>
        <xs:element ref="Area" minOccurs="1" maxOccurs="1"/>
        <xs:element ref="AreaDecrease" minOccurs="0" maxOccurs="1"/>
        <xs:choice>
          <xs:element ref="gdt:PolygonGeometry"/>
          <xs:element ref="gdt:MultiPolygonGeometry"/>
        </xs:choice>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

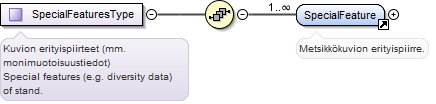

Complex Type SpecialFeaturesType
Namespace http://standardit.tapio.fi/schemas/forestData/Stand
Annotations
Kuvion erityispiirteet (mm. monimuotoisuustiedot)
Special features (e.g. diversity data) of stand.
Diagram
Diagram index56.tmp#id3267
Used by
Element SpecialFeatures
Model SpecialFeature+
Children SpecialFeature
Source

<xs:complexType name="SpecialFeaturesType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvion erityispiirteet (mm. monimuotoisuustiedot)</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Special features (e.g. diversity data) of stand.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="SpecialFeature" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Attribute StandType1 / @id
Namespace No namespace
Annotations
Kuvio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.
Stand can be identified using string id.
Type xs:string
Properties
content: simple
Used by
Complex Type StandType1
Source

<xs:attribute name="id" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kuvio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Stand can be identified using string id.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute StandType1 / @realEstateId
Namespace No namespace
Annotations
Viiteavain kiinteistöön.
Foreign key to real estate.
Type xs:string
Properties
use: optional
Used by
Complex Type StandType1
Source

<xs:attribute name="realEstateId" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Viiteavain kiinteistöön.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Foreign key to real estate.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute StandType1 / @parcelId
Namespace No namespace
Annotations
Viiteavain palstaan.
Foreign key to parcel.
Type xs:string
Properties
use: optional
Used by
Complex Type StandType1
Source

<xs:attribute name="parcelId" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Viiteavain palstaan.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Foreign key to parcel.</xs:documentation>
  </xs:annotation>
</xs:attribute>
XML Schema documentation generated by ® XML Editor.
