Main schema ForestObjectPropertyData.xsd
Namespace http://standardit.tapio.fi/schemas/forestobjectpropertydata
Properties
attribute form default: qualified
element form default: qualified
version: 1.0

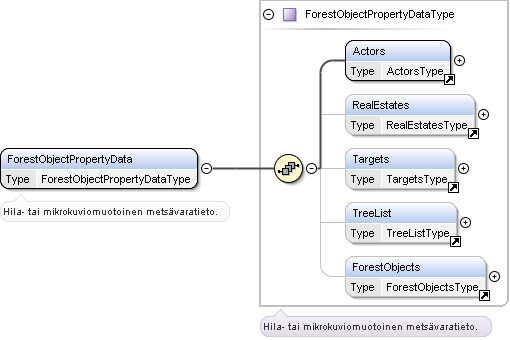

Element ForestObjectPropertyData
Namespace http://standardit.tapio.fi/schemas/forestobjectpropertydata
Annotations

Hila- tai mikrokuviomuotoinen metsävaratieto.
Diagram
Diagram index15.tmp#id23 index15.tmp#id69 index15.tmp#id91 index15.tmp#id98 index15.tmp#id139 index15.tmp#id22
Type ForestObjectPropertyDataType
Properties
content: complex
Model Actors , RealEstates{0,1} , Targets{0,1} , TreeList{0,1} , ForestObjects{0,1}
Children Actors, ForestObjects, RealEstates, Targets, TreeList
Instance

<ForestObjectPropertyData>
  <Actors>{1,1}</Actors>
  <RealEstates>{0,1}</RealEstates>
  <Targets>{0,1}</Targets>
  <TreeList>{0,1}</TreeList>
  <ForestObjects>{0,1}</ForestObjects>
</ForestObjectPropertyData>
Source

<xs:element name="ForestObjectPropertyData" type="ForestObjectPropertyDataType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Hila- tai mikrokuviomuotoinen metsävaratieto.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>

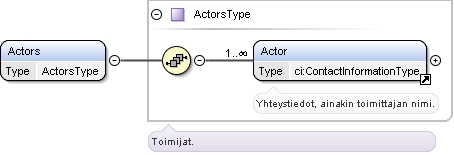

Element Actors
Namespace http://standardit.tapio.fi/schemas/forestobjectpropertydata
Diagram
Diagram index15.tmp#id25 index15.tmp#id24
Type ActorsType
Properties
content: complex
Used by
Model Actor+
Children Actor
Instance

<Actors>
  <Actor id="" language="">{1,unbounded}</Actor>
</Actors>
Source

<xs:element name="Actors" type="ActorsType"/>

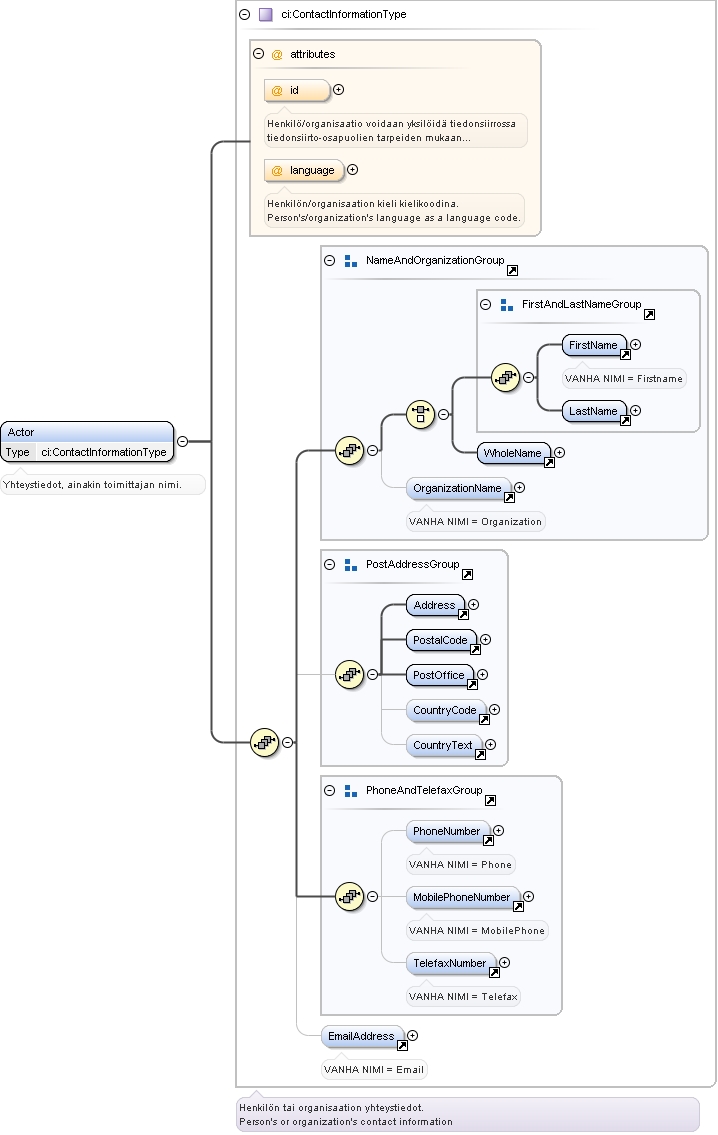

Element Actor
Namespace http://standardit.tapio.fi/schemas/forestobjectpropertydata
Annotations

Yhteystiedot, ainakin toimittajan nimi.
Diagram
Diagram index14.tmp#id65 index14.tmp#id66 index14.tmp#id29 index14.tmp#id32 index14.tmp#id28 index14.tmp#id35 index14.tmp#id38 index14.tmp#id27 index14.tmp#id41 index14.tmp#id43 index14.tmp#id46 index14.tmp#id49 index14.tmp#id52 index14.tmp#id40 index14.tmp#id55 index14.tmp#id58 index14.tmp#id60 index14.tmp#id54 index14.tmp#id62 index14.tmp#id26
Type ContactInformationType
Properties
content: complex
Used by
Complex Type ActorsType
Model ((FirstName , LastName) | WholeName) , OrganizationName{0,1} , Address , PostalCode , PostOffice , CountryCode{0,1} , CountryText{0,1} , PhoneNumber{0,1} , MobilePhoneNumber{0,1} , TelefaxNumber{0,1} , EmailAddress{0,1}
Children Address, CountryCode, CountryText, EmailAddress, FirstName, LastName, MobilePhoneNumber, OrganizationName, PhoneNumber, PostOffice, PostalCode, TelefaxNumber, WholeName
Instance

<Actor id="" language="">
  <FirstName>{1,1}</FirstName>
  <LastName>{1,1}</LastName>
  <WholeName>{1,1}</WholeName>
  <OrganizationName>{0,1}</OrganizationName>
  <EmailAddress>{0,1}</EmailAddress>
</Actor>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Henkilö/organisaatio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.

Person/organization can be identified using string id.
language LanguageCode1Type optional
Henkilön/organisaation kieli kielikoodina.

Person's/organization's language as a language code.
Source

<xs:element name="Actor" type="ci:ContactInformationType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Yhteystiedot, ainakin toimittajan nimi.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>

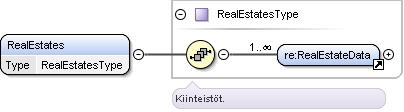

Element RealEstates
Namespace http://standardit.tapio.fi/schemas/forestobjectpropertydata
Diagram
Diagram index18.tmp#id71 index15.tmp#id70
Type RealEstatesType
Properties
content: complex
Used by
Model RealEstateData+
Children RealEstateData
Instance

<RealEstates>
  <RealEstateData id="">{1,unbounded}</RealEstateData>
</RealEstates>
Source

<xs:element name="RealEstates" type="RealEstatesType"/>

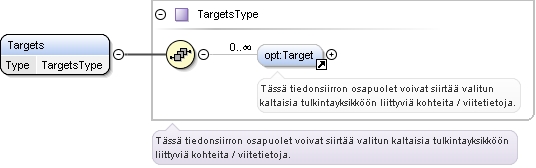

Element Targets
Namespace http://standardit.tapio.fi/schemas/forestobjectpropertydata
Diagram
Diagram index20.tmp#id93 index15.tmp#id92
Type TargetsType
Properties
content: complex
Used by
Model Target*
Children Target
Instance

<Targets>
  <Target id="">{0,unbounded}</Target>
</Targets>
Source

<xs:element name="Targets" type="TargetsType"/>

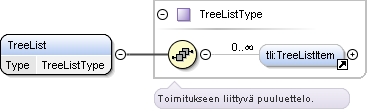

Element TreeList
Namespace http://standardit.tapio.fi/schemas/forestobjectpropertydata
Diagram
Diagram index1.tmp#id100 index15.tmp#id99
Type TreeListType
Properties
content: complex
Used by
Model TreeListItem*
Children TreeListItem
Instance

<TreeList>
  <TreeListItem id="">{0,unbounded}</TreeListItem>
</TreeList>
Source

<xs:element name="TreeList" type="TreeListType"/>

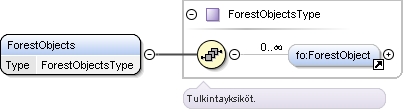

Element ForestObjects
Namespace http://standardit.tapio.fi/schemas/forestobjectpropertydata
Diagram
Diagram index2.tmp#id141 index15.tmp#id140
Type ForestObjectsType
Properties
content: complex
Used by
Model ForestObject*
Children ForestObject
Instance

<ForestObjects>
  <ForestObject id="" inventor="" realestate="" target="" type="">{0,unbounded}</ForestObject>
</ForestObjects>
Source

<xs:element name="ForestObjects" type="ForestObjectsType"/>

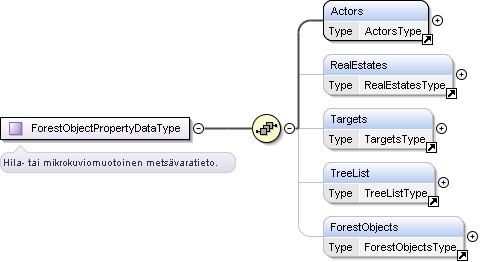

Complex Type ForestObjectPropertyDataType
Namespace http://standardit.tapio.fi/schemas/forestobjectpropertydata
Annotations

Hila- tai mikrokuviomuotoinen metsävaratieto.
Diagram
Diagram index15.tmp#id23 index15.tmp#id69 index15.tmp#id91 index15.tmp#id98 index15.tmp#id139
Used by
Model Actors , RealEstates{0,1} , Targets{0,1} , TreeList{0,1} , ForestObjects{0,1}
Children Actors, ForestObjects, RealEstates, Targets, TreeList
Source

<xs:complexType name="ForestObjectPropertyDataType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Hila- tai mikrokuviomuotoinen metsävaratieto.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="Actors" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="RealEstates" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="Targets" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="TreeList" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="ForestObjects" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
Complex Type ActorsType
Namespace http://standardit.tapio.fi/schemas/forestobjectpropertydata
Annotations

Toimijat.
Diagram
Diagram index15.tmp#id25
Used by
Element Actors
Model Actor+
Children Actor
Source

<xs:complexType name="ActorsType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Toimijat.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="Actor" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Complex Type RealEstatesType
Namespace http://standardit.tapio.fi/schemas/forestobjectpropertydata
Annotations

Kiinteistöt.
Diagram
Diagram index18.tmp#id71
Used by
Element RealEstates
Model RealEstateData+
Children RealEstateData
Source

<xs:complexType name="RealEstatesType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Kiinteistöt.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="re:RealEstateData" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

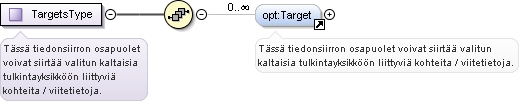

Complex Type TargetsType
Namespace http://standardit.tapio.fi/schemas/forestobjectpropertydata
Annotations

Tässä tiedonsiirron osapuolet voivat siirtää valitun kaltaisia tulkintayksikköön liittyviä kohteita / viitetietoja.
Diagram
Diagram index20.tmp#id93
Used by
Element Targets
Model Target*
Children Target
Source

<xs:complexType name="TargetsType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Tässä tiedonsiirron osapuolet voivat siirtää valitun kaltaisia tulkintayksikköön liittyviä kohteita / viitetietoja.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="opt:Target" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Complex Type TreeListType
Namespace http://standardit.tapio.fi/schemas/forestobjectpropertydata
Annotations

Toimitukseen liittyvä puuluettelo.
Diagram
Diagram index1.tmp#id100
Used by
Element TreeList
Model TreeListItem*
Children TreeListItem
Source

<xs:complexType name="TreeListType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Toimitukseen liittyvä puuluettelo.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="tli:TreeListItem" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Complex Type ForestObjectsType
Namespace http://standardit.tapio.fi/schemas/forestobjectpropertydata
Annotations

Tulkintayksiköt.
Diagram
Diagram index2.tmp#id141
Used by
Element ForestObjects
Model ForestObject*
Children ForestObject
Source

<xs:complexType name="ForestObjectsType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Tulkintayksiköt.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="fo:ForestObject" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
