Schema documentation for

Showing:

Annotations

Attributes

Diagrams

Facets

Instances

Properties

Source

Used by

Imported schema ForestObject.xsd

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Properties

attribute form default:	qualified
element form default:	qualified
version:	1.0

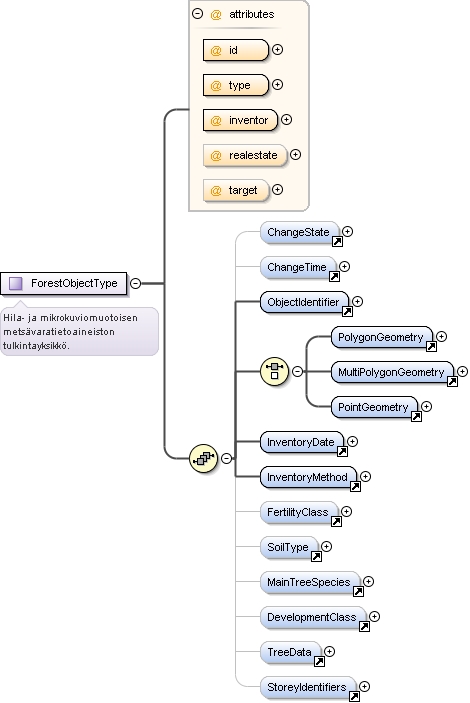

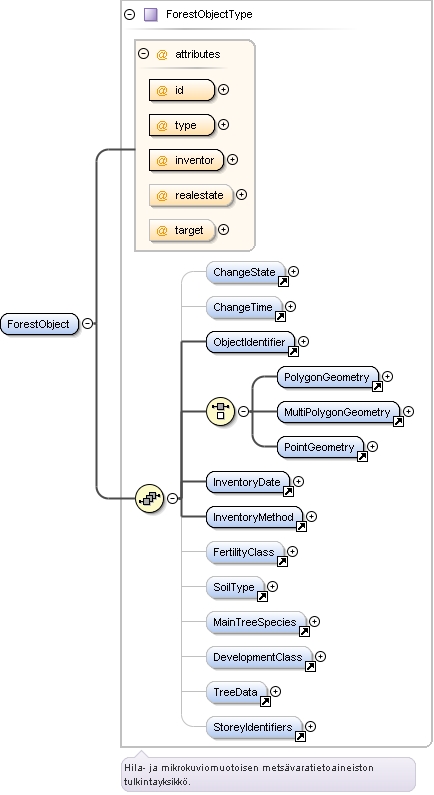

Element ForestObject

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Diagram

Type

ForestObjectType

Properties

content:

complex

Used by

Complex Type

ForestObjectsType

Model

ChangeState{0,1} , ChangeTime{0,1} , ObjectIdentifier , (PolygonGeometry | MultiPolygonGeometry | PointGeometry) , InventoryDate , InventoryMethod , FertilityClass{0,1} , SoilType{0,1} , MainTreeSpecies{0,1} , DevelopmentClass{0,1} , TreeData{0,1} , StoreyIdentifiers{0,1}

Children

ChangeState, ChangeTime, DevelopmentClass, FertilityClass, InventoryDate, InventoryMethod, MainTreeSpecies, MultiPolygonGeometry, ObjectIdentifier, PointGeometry, PolygonGeometry, SoilType, StoreyIdentifiers, TreeData

Instance

<ForestObject id="" inventor="" realestate="" target="" type="">
  <ChangeState>{0,1}</ChangeState>
  <ChangeTime>{0,1}</ChangeTime>
  <ObjectIdentifier>{1,1}</ObjectIdentifier>
  <InventoryDate>{1,1}</InventoryDate>
  <InventoryMethod>{1,1}</InventoryMethod>
  <FertilityClass>{0,1}</FertilityClass>
  <SoilType>{0,1}</SoilType>
  <MainTreeSpecies>{0,1}</MainTreeSpecies>
  <DevelopmentClass>{0,1}</DevelopmentClass>
  <TreeData>{0,1}</TreeData>

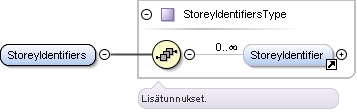

  <StoreyIdentifiers>{0,1}</StoreyIdentifiers>
</ForestObject>

Attributes

QName	Type	Use
id	xs:string	required
inventor	xs:string	required
realestate	xs:string	optional
target	xs:string	optional
type	TypeOfForestObjectType	required

Source

<xs:element name="ForestObject" type="ForestObjectType">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:element>

Element ChangeState

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

ChangeStateType

Properties

content:

simple

Facets

enumeration

Ei muutoksia

enumeration

Poistettu

enumeration

Lisätty

enumeration

Päivitetty

enumeration

Ei saa muokata

Used by

Complex Type

ForestObjectType

Source

<xs:element name="ChangeState" type="co:ChangeStateType"/>

Element ChangeTime

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

ChangeTimeType

Type hierarchy

xs:dateTime
- TimeStampType
  - ChangeTimeType

Properties

content:

simple

Facets

minInclusive

1970-01-01T00:00:00

Used by

Complex Type

ForestObjectType

Source

<xs:element name="ChangeTime" type="co:ChangeTimeType"/>

Element ObjectIdentifier

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

xs:string

Properties

content:

simple

Used by

Complex Type

ForestObjectType

Source

<xs:element name="ObjectIdentifier" type="xs:string"/>

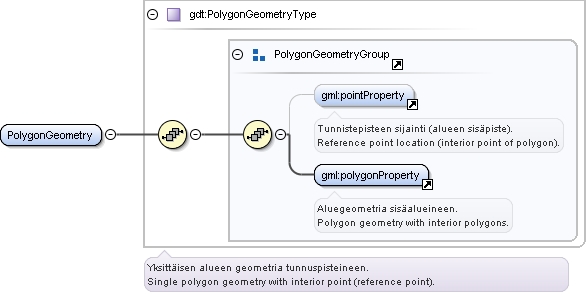

Element PolygonGeometry

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

PolygonGeometryType

Properties

content:

complex

Used by

Complex Type

ForestObjectType

Model

pointProperty{0,1} , polygonProperty

Children

pointProperty, polygonProperty

Instance

<PolygonGeometry>
  <pointProperty>{0,1}</pointProperty>
  <polygonProperty>{1,1}</polygonProperty>
</PolygonGeometry>

Source

<xs:element name="PolygonGeometry" type="gdt:PolygonGeometryType"/>

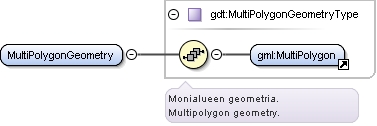

Element MultiPolygonGeometry

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

MultiPolygonGeometryType

Properties

content:

complex

Used by

Complex Type

ForestObjectType

Model

MultiPolygon

Children

MultiPolygon

Instance

<MultiPolygonGeometry>
  <MultiPolygon>{1,1}</MultiPolygon>
</MultiPolygonGeometry>

Source

<xs:element name="MultiPolygonGeometry" type="gdt:MultiPolygonGeometryType"/>

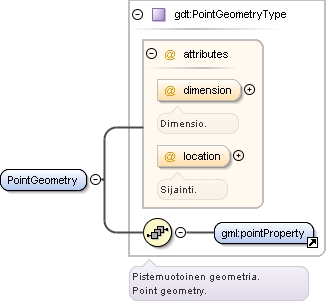

Element PointGeometry

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

PointGeometryType

Properties

content:

complex

Used by

Complex Type

ForestObjectType

Model

pointProperty

Children

pointProperty

Instance

<PointGeometry dimension="" location="">
  <pointProperty>{1,1}</pointProperty>
</PointGeometry>

Attributes

QName

Type

Fixed

Default

Use

Annotation

dimension

xs:decimal

optional

Dimensio.

location

PointLocationType

optional

Sijainti.

Source

<xs:element name="PointGeometry" type="gdt:PointGeometryType"/>

Element InventoryDate

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

xs:string

Properties

content:

simple

Used by

Complex Type

ForestObjectType

Source

<xs:element name="InventoryDate" type="xs:string"/>

Element InventoryMethod

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

InventoryMethodType

Properties

content:

simple

Facets

enumeration

Kaukokartoitus

enumeration

Maastoinventointi

enumeration

Laskettu

enumeration

Tulkittu

Used by

Complex Type

ForestObjectType

Source

<xs:element name="InventoryMethod" type="InventoryMethodType"/>

Element FertilityClass

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

FertilityClassType

Properties

content:

simple

Facets

enumeration

Lehto, letto ja lehtomainen suo (ja ruohoturvekangas)

enumeration

Lehtomainen kangas, vastaava suo ja ruohoturvekangas

enumeration

Tuore kangas, vastaava suo ja mustikkaturvekangas

enumeration

Kuivahko kangas, vastaava suo ja puolukkaturvekangas

enumeration

Kuiva kangas, vastaava suo ja varputurvekangas

enumeration

Karukkokangas, vastaava suo (ja jäkäläturvekangas)

enumeration

Kalliomaa ja hietikko

enumeration

Lakimetsä ja tunturi

Used by

Complex Type

ForestObjectType

Source

<xs:element name="FertilityClass" type="stb:FertilityClassType"/>

Element SoilType

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

SoilTypeType

Properties

content:

simple

Facets

enumeration

Keskikarkea tai karkea kangasmaa

enumeration

Karkea moreeni

enumeration

Karkea lajittunut maalaji

enumeration

Hienojakoinen kangasmaa

enumeration

Hienoainesmoreeni

enumeration

Hienojakoinen lajittunut maalaji

enumeration

Kivinen keskikarkea tai karkea kangasmaa

enumeration

Kivinen karkea moreeni

enumeration

Kivinen karkea lajittunut maalaji

enumeration

Kivinen hienojakoinen kangasmaa

enumeration

Kallio tai kivikko

enumeration

Turvemaa

enumeration

Saraturve

enumeration

Rahkaturve

enumeration

Puuvaltainen turve

enumeration

Eroosioherkkä saraturve (von Post luokka yli 5)

enumeration

Eroosioherkkä rahkaturve (von Post luokka yli 5)

enumeration

Maatumaton saraturve (von Post luokka enintään 5)

enumeration

Maatumaton rahkaturve (von Post luokka enintään 5)

enumeration

Multamaa

enumeration

Liejumaa

Used by

Complex Type

ForestObjectType

Source

<xs:element name="SoilType" type="stb:SoilTypeType"/>

Element MainTreeSpecies

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

TreeSpeciesType

Properties

content:

simple

Facets

enumeration

Mänty

enumeration

Kuusi

enumeration

Rauduskoivu

enumeration

Hieskoivu

enumeration

Haapa

enumeration

Harmaaleppä

enumeration

Tervaleppä

enumeration

Muu havupuu

enumeration

Muu lehtipuu

enumeration

Douglaskuusi

enumeration

Kataja

enumeration

Kontortamänty

enumeration

Kynäjalava

enumeration

Lehtikuusi

enumeration

Metsälehmus

enumeration

Mustakuusi

enumeration

Paju

enumeration

Pihlaja

enumeration

Pihta

enumeration

Raita

enumeration

Saarni

enumeration

Sembramänty

enumeration

Serbiankuusi

enumeration

Tammi

enumeration

Tuomi

enumeration

Vaahtera

enumeration

Visakoivu

enumeration

Vuorijalava

enumeration

Lehtipuu

enumeration

Havupuu

Used by

Complex Type

ForestObjectType

Source

<xs:element name="MainTreeSpecies" type="co:TreeSpeciesType"/>

Element DevelopmentClass

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

DevelopmentClassType

Properties

content:

simple

Facets

enumeration

Aukea

enumeration

Siemenpuumetsikkö

enumeration

Taimikko alle 1,3 m

enumeration

Taimikko yli 1,3 m

enumeration

Ylispuustoinen taimikko

enumeration

Nuori kasvatusmetsikkö

enumeration

Varttunut kasvatusmetsikkö

enumeration

Uudistuskypsä metsikkö

enumeration

Suojuspuumetsikkö

Used by

Complex Type

ForestObjectType

Source

<xs:element name="DevelopmentClass" type="stb:DevelopmentClassType"/>

Element TreeData

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

TreeDataType

Properties

content:

complex

Used by

Complex Type

ForestObjectType

Model

Storeys{0,1} , TreeSummary{0,1}

Children

Storeys, TreeSummary

Instance

<TreeData>
  <Storeys>{0,1}</Storeys>

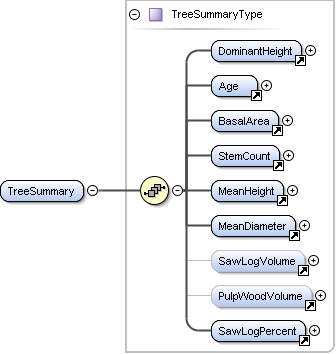

  <TreeSummary>{0,1}</TreeSummary>
</TreeData>

Source

<xs:element name="TreeData" type="TreeDataType"/>

Element Storeys

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

StoreysType

Properties

content:

complex

Used by

Complex Type

TreeDataType

Model

Storey*

Children

Storey

Instance

<Storeys>
  <Storey>{0,unbounded}</Storey>
</Storeys>

Source

<xs:element name="Storeys" type="StoreysType"/>

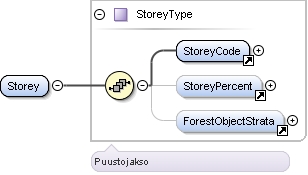

Element Storey

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

StoreyType

Properties

content:

complex

Used by

Complex Type

StoreysType

Model

StoreyCode , StoreyPercent{0,1} , ForestObjectStrata{0,1}

Children

ForestObjectStrata, StoreyCode, StoreyPercent

Instance

<Storey>
  <StoreyCode>{1,1}</StoreyCode>
  <StoreyPercent>{0,1}</StoreyPercent>
  <ForestObjectStrata>{0,1}</ForestObjectStrata>
</Storey>

Source

<xs:element name="Storey" type="StoreyType"/>

Element StoreyCode

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

StoreyType

Type hierarchy

xs:string
- StoreyType
  - StoreyType

Properties

content:

simple

Facets

enumeration

Vallitseva jakso

enumeration

Alempi jakso

enumeration

Ylempi jakso

enumeration

Säästöpuusto

enumeration

Kaukokartoitus

enumeration

Poistettava puusto

Used by

Complex Type

StoreyType

Source

<xs:element name="StoreyCode" type="tst:StoreyType"/>

Element StoreyPercent

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

PercentType

Properties

content:

simple

Facets

maxInclusive	100
minInclusive	0

Used by

Complex Type

StoreyType

Source

<xs:element name="StoreyPercent" type="bdt:PercentType"/>

Element ForestObjectStrata

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

ForestObjectStrataType

Properties

content:

complex

Used by

Complex Type

StoreyType

Model

ForestObjectStratum{0,1}

Children

ForestObjectStratum

Instance

<ForestObjectStrata>
  <ForestObjectStratum>{0,1}</ForestObjectStratum>
</ForestObjectStrata>

Source

<xs:element name="ForestObjectStrata" type="ForestObjectStrataType"/>

Element ForestObjectStratum

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

ForestObjectStratumType

Properties

content:

complex

Used by

Complex Type

ForestObjectStrataType

Model

TreeSpecies{0,1} , Age{0,1} , BasalArea{0,1} , StemCount{0,1} , Diameter{0,1} , Height{0,1} , Volume{0,1} , SawLogPercent{0,1} , SawLogVolume{0,1} , PulpWoodVolume{0,1} , Trees{0,1} , Distribution{0,1}

Children

Age, BasalArea, Diameter, Distribution, Height, PulpWoodVolume, SawLogPercent, SawLogVolume, StemCount, TreeSpecies, Trees, Volume

Instance

<ForestObjectStratum>
  <TreeSpecies>{0,1}</TreeSpecies>
  <Age>{0,1}</Age>
  <BasalArea>{0,1}</BasalArea>
  <StemCount>{0,1}</StemCount>
  <Diameter>{0,1}</Diameter>
  <Height>{0,1}</Height>
  <Volume>{0,1}</Volume>
  <SawLogPercent>{0,1}</SawLogPercent>
  <SawLogVolume>{0,1}</SawLogVolume>
  <PulpWoodVolume>{0,1}</PulpWoodVolume>
  <Trees>{0,1}</Trees>
  <Distribution>{0,1}</Distribution>
</ForestObjectStratum>

Source

<xs:element name="ForestObjectStratum" type="ForestObjectStratumType"/>

Element TreeSpecies

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

TreeSpeciesType

Properties

content:

simple

Facets

enumeration

Mänty

enumeration

Kuusi

enumeration

Rauduskoivu

enumeration

Hieskoivu

enumeration

Haapa

enumeration

Harmaaleppä

enumeration

Tervaleppä

enumeration

Muu havupuu

enumeration

Muu lehtipuu

enumeration

Douglaskuusi

enumeration

Kataja

enumeration

Kontortamänty

enumeration

Kynäjalava

enumeration

Lehtikuusi

enumeration

Metsälehmus

enumeration

Mustakuusi

enumeration

Paju

enumeration

Pihlaja

enumeration

Pihta

enumeration

Raita

enumeration

Saarni

enumeration

Sembramänty

enumeration

Serbiankuusi

enumeration

Tammi

enumeration

Tuomi

enumeration

Vaahtera

enumeration

Visakoivu

enumeration

Vuorijalava

enumeration

Lehtipuu

enumeration

Havupuu

Used by

Complex Type

ForestObjectStratumType

Source

<xs:element name="TreeSpecies" type="co:TreeSpeciesType"/>

Element Age

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

AgeType

Properties

content:

simple

Facets

pattern

[0-9]{1,3}

Used by

Complex Types

ForestObjectStratumType, TreeSummaryType

Source

<xs:element name="Age" type="co:AgeType"/>

Element BasalArea

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

xs:decimal

Properties

content:

simple

Used by

Complex Types

ForestObjectStratumType, TreeSummaryType

Source

<xs:element name="BasalArea" type="xs:decimal"/>

Element StemCount

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

StemCountType

Properties

content:

simple

Facets

pattern

[0-9]{0,5}

Used by

Complex Types

ForestObjectStratumType, TreeSummaryType

Source

<xs:element name="StemCount" type="co:StemCountType"/>

Element Diameter

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

DiameterType

Properties

content:

simple

Used by

Complex Type

ForestObjectStratumType

Source

<xs:element name="Diameter" type="co:DiameterType"/>

Element Height

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

MeanHeightType

Properties

content:

simple

Used by

Complex Type

ForestObjectStratumType

Source

<xs:element name="Height" type="co:MeanHeightType"/>

Element Volume

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

VolumeType

Properties

content:

simple

Used by

Complex Type

ForestObjectStratumType

Source

<xs:element name="Volume" type="co:VolumeType"/>

Element SawLogPercent

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

SawLogPercentType

Properties

content:

simple

Used by

Complex Types

ForestObjectStratumType, TreeSummaryType

Source

<xs:element name="SawLogPercent" type="co:SawLogPercentType"/>

Element SawLogVolume

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

SawLogVolumeType

Properties

content:

simple

Used by

Complex Types

ForestObjectStratumType, TreeSummaryType

Source

<xs:element name="SawLogVolume" type="co:SawLogVolumeType"/>

Element PulpWoodVolume

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

PulpWoodVolumeType

Properties

content:

simple

Used by

Complex Types

ForestObjectStratumType, TreeSummaryType

Source

<xs:element name="PulpWoodVolume" type="co:PulpWoodVolumeType"/>

Element Trees

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

ForestObjectTreesType

Properties

content:

complex

Used by

Complex Type

ForestObjectStratumType

Model

Tree

Children

Tree

Instance

<Trees>
  <Tree id="">{1,1}</Tree>
</Trees>

Source

<xs:element name="Trees" type="ForestObjectTreesType"/>

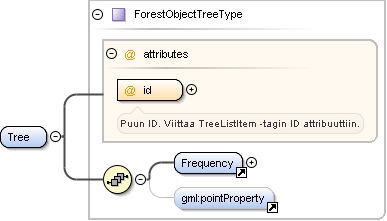

Element Tree

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

ForestObjectTreeType

Properties

content:

complex

Used by

Complex Type

ForestObjectTreesType

Model

Frequency , pointProperty{0,1}

Children

Frequency, pointProperty

Instance

<Tree id="">
  <Frequency>{1,1}</Frequency>
  <pointProperty>{0,1}</pointProperty>
</Tree>

Attributes

QName

Type

Fixed

Default

Use

Annotation

xs:string

required

Puun ID. Viittaa TreeListItem -tagin ID attribuuttiin.

Source

<xs:element name="Tree" type="ForestObjectTreeType"/>

Element Frequency

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

xs:decimal

Properties

content:

simple

Used by

Complex Type

ForestObjectTreeType

Source

<xs:element name="Frequency" type="xs:decimal"/>

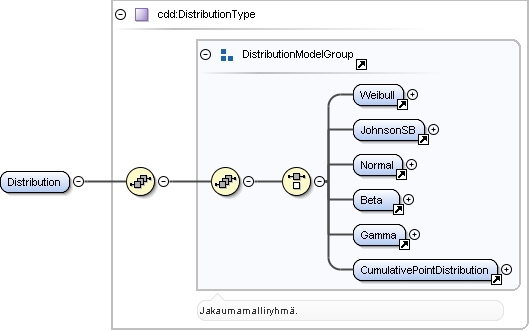

Element Distribution

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

DistributionType

Properties

content:

complex

Used by

Complex Type

ForestObjectStratumType

Model

Children

Beta, CumulativePointDistribution, Gamma, JohnsonSB, Normal, Weibull

Instance

<Distribution>
  <Weibull>{1,1}</Weibull>
  <JohnsonSB>{1,1}</JohnsonSB>
  <Normal>{1,1}</Normal>
  <Beta>{1,1}</Beta>
  <Gamma>{1,1}</Gamma>
  <CumulativePointDistribution>{1,1}</CumulativePointDistribution>
</Distribution>

Source

<xs:element name="Distribution" type="cdd:DistributionType"/>

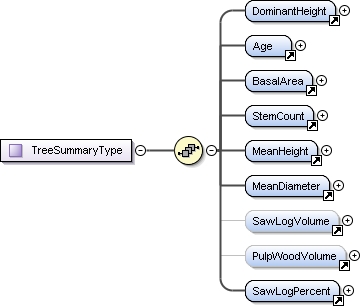

Element TreeSummary

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

TreeSummaryType

Properties

content:

complex

Used by

Complex Type

TreeDataType

Model

DominantHeight , Age , BasalArea , StemCount , MeanHeight , MeanDiameter , SawLogVolume{0,1} , PulpWoodVolume{0,1} , SawLogPercent

Children

Age, BasalArea, DominantHeight, MeanDiameter, MeanHeight, PulpWoodVolume, SawLogPercent, SawLogVolume, StemCount

Instance

<TreeSummary>
  <DominantHeight>{1,1}</DominantHeight>
  <Age>{1,1}</Age>
  <BasalArea>{1,1}</BasalArea>
  <StemCount>{1,1}</StemCount>
  <MeanHeight>{1,1}</MeanHeight>
  <MeanDiameter>{1,1}</MeanDiameter>
  <SawLogVolume>{0,1}</SawLogVolume>
  <PulpWoodVolume>{0,1}</PulpWoodVolume>
  <SawLogPercent>{1,1}</SawLogPercent>
</TreeSummary>

Source

<xs:element name="TreeSummary" type="TreeSummaryType"/>

Element DominantHeight

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

xs:decimal

Properties

content:

simple

Used by

Complex Type

TreeSummaryType

Source

<xs:element name="DominantHeight" type="xs:decimal"/>

Element MeanHeight

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

xs:decimal

Properties

content:

simple

Used by

Complex Type

TreeSummaryType

Source

<xs:element name="MeanHeight" type="xs:decimal"/>

Element MeanDiameter

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

xs:decimal

Properties

content:

simple

Used by

Complex Type

TreeSummaryType

Source

<xs:element name="MeanDiameter" type="xs:decimal"/>

Element StoreyIdentifiers

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

StoreyIdentifiersType

Properties

content:

complex

Used by

Complex Type

ForestObjectType

Model

StoreyIdentifier*

Children

StoreyIdentifier

Instance

<StoreyIdentifiers>
  <StoreyIdentifier>{0,unbounded}</StoreyIdentifier>
</StoreyIdentifiers>

Source

<xs:element name="StoreyIdentifiers" type="StoreyIdentifiersType"/>

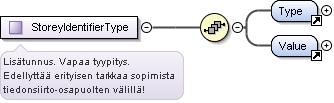

Element StoreyIdentifier

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

StoreyIdentifierType

Properties

content:

complex

Used by

Complex Type

StoreyIdentifiersType

Model

Type , Value

Children

Type, Value

Instance

<StoreyIdentifier>
  <Type>{1,1}</Type>
  <Value>{1,1}</Value>
</StoreyIdentifier>

Source

<xs:element name="StoreyIdentifier" type="StoreyIdentifierType"/>

Element Type

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

xs:string

Properties

content:

simple

Used by

Complex Type

StoreyIdentifierType

Source

<xs:element name="Type" type="xs:string"/>

Element Value

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

xs:string

Properties

content:

simple

Used by

Complex Type

StoreyIdentifierType

Source

<xs:element name="Value" type="xs:string"/>

Element ForestObjectTrees

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

ForestObjectTreesType

Properties

content:

complex

Model

Tree

Children

Tree

Instance

<ForestObjectTrees>
  <Tree id="">{1,1}</Tree>
</ForestObjectTrees>

Source

<xs:element name="ForestObjectTrees" type="ForestObjectTreesType"/>

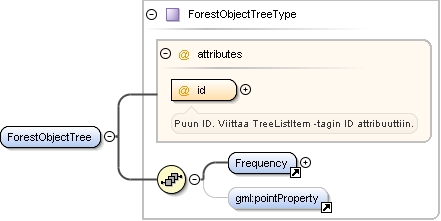

Element ForestObjectTree

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Diagram

Type

ForestObjectTreeType

Properties

content:

complex

Model

Frequency , pointProperty{0,1}

Children

Frequency, pointProperty

Instance

<ForestObjectTree id="">
  <Frequency>{1,1}</Frequency>
  <pointProperty>{0,1}</pointProperty>
</ForestObjectTree>

Attributes

QName

Type

Fixed

Default

Use

Annotation

xs:string

required

Puun ID. Viittaa TreeListItem -tagin ID attribuuttiin.

Source

<xs:element name="ForestObjectTree" type="ForestObjectTreeType"/>

Complex Type ForestObjectType

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Hila- ja mikrokuviomuotoisen metsävaratietoaineiston tulkintayksikkö.

Diagram

Used by

Element

ForestObject

Model

Children

Attributes

QName	Type	Use
id	xs:string	required
inventor	xs:string	required
realestate	xs:string	optional
target	xs:string	optional
type	TypeOfForestObjectType	required

Source

<xs:complexType name="ForestObjectType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Hila- ja mikrokuviomuotoisen metsävaratietoaineiston tulkintayksikkö.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="ChangeState" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="ChangeTime" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="ObjectIdentifier"/>
    <xs:choice>
      <xs:element ref="PolygonGeometry"/>
      <xs:element ref="MultiPolygonGeometry"/>
      <xs:element ref="PointGeometry"/>
    </xs:choice>
    <xs:element ref="InventoryDate"/>
    <xs:element ref="InventoryMethod"/>
    <xs:element ref="FertilityClass" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="SoilType" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="MainTreeSpecies" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="DevelopmentClass" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="TreeData" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="StoreyIdentifiers" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
  <xs:attribute name="id" type="xs:string" use="required">
    <xs:annotation>
      <xs:documentation xml:lang="fi"/>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en"/>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="type" type="TypeOfForestObjectType" use="required">
    <xs:annotation>
      <xs:documentation xml:lang="fi"/>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en"/>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="inventor" type="xs:string" use="required">
    <xs:annotation>
      <xs:documentation xml:lang="fi"/>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en"/>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="realestate" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation xml:lang="fi"/>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en"/>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="target" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation xml:lang="fi"/>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en"/>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>

Simple Type InventoryMethodType

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Diagram

Type

restriction of xs:string

Facets

enumeration

Kaukokartoitus

enumeration

Maastoinventointi

enumeration

Laskettu

enumeration

Tulkittu

Used by

Element

InventoryMethod

Source

<xs:simpleType name="InventoryMethodType">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Kaukokartoitus</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en"/>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Maastoinventointi</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en"/>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Laskettu</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en"/>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Tulkittu</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en"/>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Complex Type TreeDataType

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Puustotiedot

Diagram

Used by

Element

TreeData

Model

Storeys{0,1} , TreeSummary{0,1}

Children

Storeys, TreeSummary

Source

<xs:complexType name="TreeDataType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Puustotiedot</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="Storeys" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="TreeSummary" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>

Complex Type StoreysType

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Puustotiedot

Diagram

Used by

Element

Storeys

Model

Storey*

Children

Storey

Source

<xs:complexType name="StoreysType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Puustotiedot</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="Storey" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Complex Type StoreyType

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Puustojakso

Diagram

Used by

Element

Storey

Model

StoreyCode , StoreyPercent{0,1} , ForestObjectStrata{0,1}

Children

ForestObjectStrata, StoreyCode, StoreyPercent

Source

<xs:complexType name="StoreyType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Puustojakso</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="StoreyCode" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="StoreyPercent" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="ForestObjectStrata" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>

Complex Type ForestObjectStrataType

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Diagram

Used by

Element

ForestObjectStrata

Model

ForestObjectStratum{0,1}

Children

ForestObjectStratum

Source

<xs:complexType name="ForestObjectStrataType">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="ForestObjectStratum" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>

Complex Type ForestObjectStratumType

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Diagram

Used by

Element

ForestObjectStratum

Model

Children

Age, BasalArea, Diameter, Distribution, Height, PulpWoodVolume, SawLogPercent, SawLogVolume, StemCount, TreeSpecies, Trees, Volume

Source

<xs:complexType name="ForestObjectStratumType">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="TreeSpecies" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="Age" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="BasalArea" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="StemCount" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="Diameter" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="Height" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="Volume" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="SawLogPercent" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="SawLogVolume" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="PulpWoodVolume" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="Trees" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="Distribution" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>

Complex Type ForestObjectTreesType

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Diagram

Used by

Elements

ForestObjectTrees, Trees

Model

Tree

Children

Tree

Source

<xs:complexType name="ForestObjectTreesType">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="Tree"/>
  </xs:sequence>
</xs:complexType>

Complex Type ForestObjectTreeType

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Diagram

Used by

Elements

ForestObjectTree, Tree

Model

Frequency , pointProperty{0,1}

Children

Frequency, pointProperty

Attributes

QName

Type

Fixed

Default

Use

Annotation

xs:string

required

Puun ID. Viittaa TreeListItem -tagin ID attribuuttiin.

Source

<xs:complexType name="ForestObjectTreeType">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="Frequency" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="gml:pointProperty" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
  <xs:attribute name="id" type="xs:string" use="required">
    <xs:annotation>
      <xs:documentation xml:lang="fi">Puun ID. Viittaa TreeListItem -tagin ID attribuuttiin.</xs:documentation>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en"/>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>

Complex Type TreeSummaryType

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Diagram

Used by

Element

TreeSummary

Model

DominantHeight , Age , BasalArea , StemCount , MeanHeight , MeanDiameter , SawLogVolume{0,1} , PulpWoodVolume{0,1} , SawLogPercent

Children

Age, BasalArea, DominantHeight, MeanDiameter, MeanHeight, PulpWoodVolume, SawLogPercent, SawLogVolume, StemCount

Source

<xs:complexType name="TreeSummaryType">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="DominantHeight"/>
    <xs:element ref="Age"/>
    <xs:element ref="BasalArea"/>
    <xs:element ref="StemCount"/>
    <xs:element ref="MeanHeight"/>
    <xs:element ref="MeanDiameter"/>
    <xs:element ref="SawLogVolume" minOccurs="0"/>
    <xs:element ref="PulpWoodVolume" minOccurs="0"/>
    <xs:element ref="SawLogPercent"/>
  </xs:sequence>
</xs:complexType>

Complex Type StoreyIdentifiersType

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Lisätunnukset.

Diagram

Used by

Element

StoreyIdentifiers

Model

StoreyIdentifier*

Children

StoreyIdentifier

Source

<xs:complexType name="StoreyIdentifiersType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Lisätunnukset.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="StoreyIdentifier" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Complex Type StoreyIdentifierType

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Lisätunnus. Vapaa tyypitys. Edellyttää erityisen tarkkaa sopimista tiedonsiirto-osapuolten välillä!

Diagram

Used by

Element

StoreyIdentifier

Model

Type , Value

Children

Type, Value

Source

<xs:complexType name="StoreyIdentifierType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Lisätunnus. Vapaa tyypitys. Edellyttää erityisen tarkkaa sopimista tiedonsiirto-osapuolten välillä!</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="Type" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="Value" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>

Simple Type TypeOfForestObjectType

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Tulkintayksikön tyyppi

Diagram

Type

restriction of xs:string

Facets

enumeration

Hila

enumeration

Mikrokuvio/puustokuvio

enumeration

Kuvio

Used by

Attribute

ForestObjectType/@type

Source

<xs:simpleType name="TypeOfForestObjectType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Tulkintayksikön tyyppi</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Hila</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en"/>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Mikrokuvio/puustokuvio</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en"/>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3">
      <xs:annotation>
        <xs:documentation xml:lang="fi">Kuvio</xs:documentation>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en"/>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Attribute ForestObjectTreeType / @id

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Puun ID. Viittaa TreeListItem -tagin ID attribuuttiin.

Type

xs:string

Properties

use:	required

Used by

Complex Type

ForestObjectTreeType

Source

<xs:attribute name="id" type="xs:string" use="required">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Puun ID. Viittaa TreeListItem -tagin ID attribuuttiin.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:attribute>

Attribute ForestObjectType / @id

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Type

xs:string

Properties

use:	required

Used by

Complex Type

ForestObjectType

Source

<xs:attribute name="id" type="xs:string" use="required">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:attribute>

Attribute ForestObjectType / @type

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Type

TypeOfForestObjectType

Properties

use:	required

Facets

enumeration

Hila

enumeration

Mikrokuvio/puustokuvio

enumeration

Kuvio

Used by

Complex Type

ForestObjectType

Source

<xs:attribute name="type" type="TypeOfForestObjectType" use="required">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:attribute>

Attribute ForestObjectType / @inventor

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Type

xs:string

Properties

use:	required

Used by

Complex Type

ForestObjectType

Source

<xs:attribute name="inventor" type="xs:string" use="required">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:attribute>

Attribute ForestObjectType / @realestate

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Type

xs:string

Properties

use:	optional

Used by

Complex Type

ForestObjectType

Source

<xs:attribute name="realestate" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:attribute>

Attribute ForestObjectType / @target

Namespace

http://standardit.tapio.fi/schemas/forestData/forestobject

Annotations

Type

xs:string

Properties

use:	optional

Used by

Complex Type

ForestObjectType

Source

<xs:attribute name="target" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:attribute>
