Imported schema ContactRequest.xsd
Namespace http://standardit.tapio.fi/schemas/contactRequest
Properties
attribute form default: qualified
element form default: qualified
version: 1.3

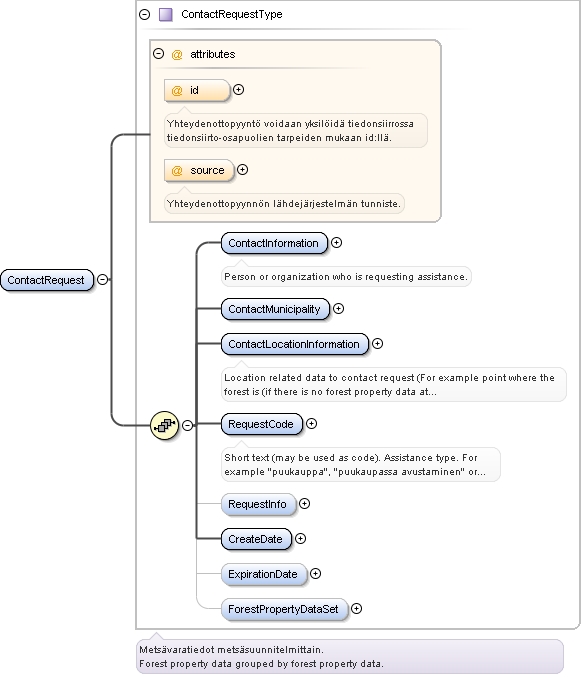

Element ContactRequest
Namespace http://standardit.tapio.fi/schemas/contactRequest
Diagram
Diagram index57.tmp#id1236 index57.tmp#id1237 index57.tmp#id1144 index57.tmp#id1145 index57.tmp#id1146 index57.tmp#id1148 index57.tmp#id1150 index57.tmp#id1152 index57.tmp#id1153 index57.tmp#id1154 index57.tmp#id1143
Type ContactRequestType
Properties
content: complex
Used by
Model ContactInformation , ContactMunicipality , ContactLocationInformation , RequestCode , RequestInfo{0,1} , CreateDate , ExpirationDate{0,1} , ForestPropertyDataSet{0,1}
Children ContactInformation, ContactLocationInformation, ContactMunicipality, CreateDate, ExpirationDate, ForestPropertyDataSet, RequestCode, RequestInfo
Instance

<ContactRequest id="" source="">
  <ContactInformation id="" language="">{1,1}</ContactInformation>
  <ContactMunicipality>{1,1}</ContactMunicipality>
  <ContactLocationInformation>{1,1}</ContactLocationInformation>
  <RequestCode>{1,1}</RequestCode>
  <RequestInfo>{0,1}</RequestInfo>
  <CreateDate>{1,1}</CreateDate>
  <ExpirationDate>{0,1}</ExpirationDate>
  <ForestPropertyDataSet>{0,1}</ForestPropertyDataSet>
</ContactRequest>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Yhteydenottopyyntö voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.
source xs:string optional
Yhteydenottopyynnön lähdejärjestelmän tunniste.
Source

<xs:element name="ContactRequest" type="ContactRequestType"/>

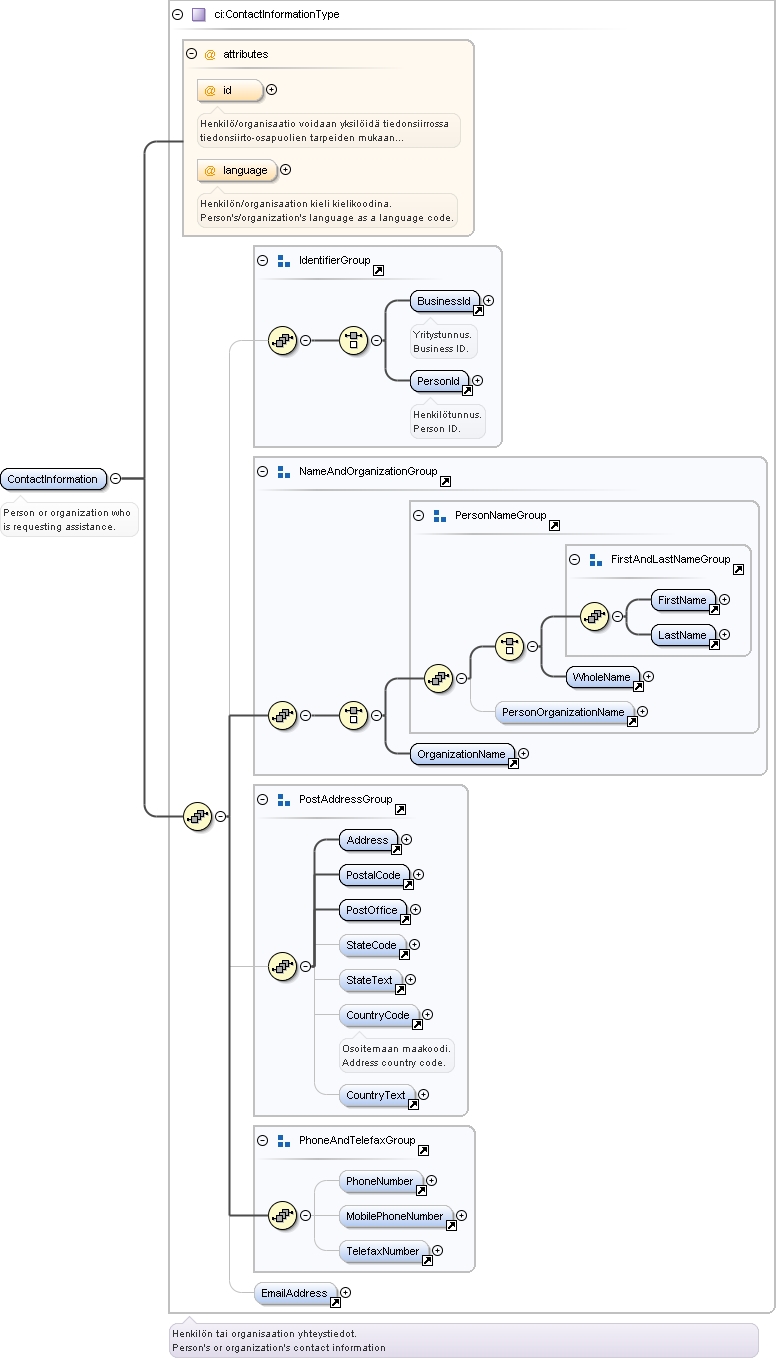

Element ContactRequestType / ContactInformation
Namespace http://standardit.tapio.fi/schemas/contactRequest
Annotations
Person or organization who is requesting assistance.
Diagram
Diagram index24.tmp#id181 index24.tmp#id182 index24.tmp#id132 index24.tmp#id134 index24.tmp#id131 index24.tmp#id139 index24.tmp#id142 index24.tmp#id138 index24.tmp#id145 index24.tmp#id148 index24.tmp#id137 index24.tmp#id151 index24.tmp#id136 index24.tmp#id154 index24.tmp#id156 index24.tmp#id159 index24.tmp#id162 index24.tmp#id164 index24.tmp#id166 index24.tmp#id168 index24.tmp#id153 index24.tmp#id171 index24.tmp#id174 index24.tmp#id176 index24.tmp#id170 index24.tmp#id178 index24.tmp#id130
Type ContactInformationType
Properties
content: complex
minOccurs: 1
maxOccurs: 1
Model (BusinessId | PersonId) , ((((FirstName , LastName) | WholeName) , PersonOrganizationName{0,1}) | OrganizationName) , Address , PostalCode , PostOffice , StateCode{0,1} , StateText{0,1} , CountryCode{0,1} , CountryText{0,1} , PhoneNumber{0,1} , MobilePhoneNumber{0,1} , TelefaxNumber{0,1} , EmailAddress{0,1}
Children Address, BusinessId, CountryCode, CountryText, EmailAddress, FirstName, LastName, MobilePhoneNumber, OrganizationName, PersonId, PersonOrganizationName, PhoneNumber, PostOffice, PostalCode, StateCode, StateText, TelefaxNumber, WholeName
Instance

<ContactInformation id="" language="">
  <BusinessId>{1,1}</BusinessId>
  <PersonId>{1,1}</PersonId>
  <EmailAddress>{0,1}</EmailAddress>
</ContactInformation>
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Henkilö/organisaatio voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.Person/organization can be identified using string id.
language ISO639char2LanguageType optional
Henkilön/organisaation kieli kielikoodina.Person's/organization's language as a language code.
Source

<xs:element name="ContactInformation" type="ci:ContactInformationType" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Person or organization who is requesting assistance.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ContactRequestType / ContactMunicipality
Namespace http://standardit.tapio.fi/schemas/contactRequest
Diagram
Diagram index0.tmp#id258
Type MunicipalityNumberType
Type hierarchy
Properties
content: simple
minOccurs: 1
maxOccurs: 1
Facets
pattern [0-9]{1,3}
Source

<xs:element name="ContactMunicipality" type="co:MunicipalityNumberType" minOccurs="1" maxOccurs="1"/>

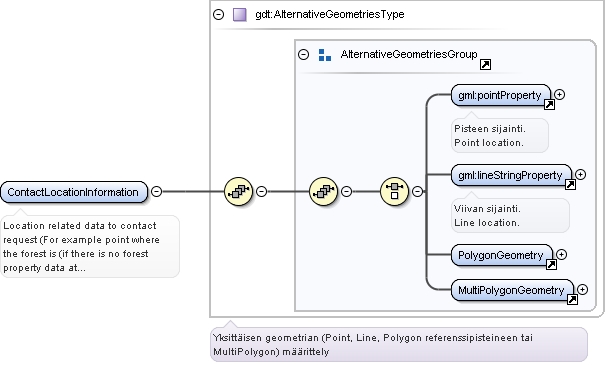

Element ContactRequestType / ContactLocationInformation
Namespace http://standardit.tapio.fi/schemas/contactRequest
Annotations
Location related data to contact request (For example point where the forest is (if there is no forest property data at all).
Diagram
Diagram index13.tmp#id474 index13.tmp#id925 index70.tmp#id471 index70.tmp#id555 index70.tmp#id924 index70.tmp#id1147
Type AlternativeGeometriesType
Properties
content: complex
minOccurs: 1
maxOccurs: 1
Model (gml:pointProperty | gml:lineStringProperty | PolygonGeometry | MultiPolygonGeometry)
Children MultiPolygonGeometry, PolygonGeometry, gml:lineStringProperty, gml:pointProperty
Instance

<ContactLocationInformation>
  <gml:pointProperty xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:pointProperty>
  <gml:lineStringProperty xlink:actuate="" xlink:arcrole="" xlink:href="" gml:remoteSchema="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:lineStringProperty>
  <PolygonGeometry>{1,1}</PolygonGeometry>
  <MultiPolygonGeometry>{1,1}</MultiPolygonGeometry>
</ContactLocationInformation>
Source

<xs:element name="ContactLocationInformation" type="gdt:AlternativeGeometriesType" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Location related data to contact request (For example point where the forest is (if there is no forest property data at all).</xs:documentation>
  </xs:annotation>
</xs:element>
Element ContactRequestType / RequestCode
Namespace http://standardit.tapio.fi/schemas/contactRequest
Annotations
Short text (may be used as code). Assistance type. For example "puukauppa", "puukaupassa avustaminen" or "maastokartoitus"
Diagram
Diagram index57.tmp#id1149
Type RequestCodeType
Properties
content: simple
minOccurs: 1
maxOccurs: 1
Facets
maxLength 50
Source

<xs:element name="RequestCode" type="RequestCodeType" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Short text (may be used as code). Assistance type. For example "puukauppa", "puukaupassa avustaminen" or "maastokartoitus"</xs:documentation>
  </xs:annotation>
</xs:element>
Element ContactRequestType / RequestInfo
Namespace http://standardit.tapio.fi/schemas/contactRequest
Diagram
Diagram index0.tmp#id1151
Type String2000Type
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxLength 2000
Source

<xs:element name="RequestInfo" type="co:String2000Type" minOccurs="0" maxOccurs="1"/>
Element ContactRequestType / CreateDate
Namespace http://standardit.tapio.fi/schemas/contactRequest
Diagram
Diagram index0.tmp#id112
Type DateType
Properties
content: simple
minOccurs: 1
maxOccurs: 1
Facets
minInclusive 1900-01-01
Source

<xs:element name="CreateDate" type="co:DateType" minOccurs="1" maxOccurs="1"/>
Element ContactRequestType / ExpirationDate
Namespace http://standardit.tapio.fi/schemas/contactRequest
Diagram
Diagram index0.tmp#id112
Type DateType
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
minInclusive 1900-01-01
Source

<xs:element name="ExpirationDate" type="co:DateType" minOccurs="0" maxOccurs="1"/>
Element ContactRequestType / ForestPropertyDataSet
Namespace http://standardit.tapio.fi/schemas/contactRequest
Diagram
Diagram index57.tmp#id1156 index57.tmp#id1155
Type ForestPropertyDataSetType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model ForestPropertyData+
Children ForestPropertyData
Instance

<ForestPropertyDataSet>
  <ForestPropertyData>{1,unbounded}</ForestPropertyData>
</ForestPropertyDataSet>
Source

<xs:element name="ForestPropertyDataSet" type="ForestPropertyDataSetType" minOccurs="0" maxOccurs="1"/>

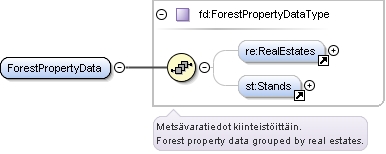

Element ForestPropertyDataSetType / ForestPropertyData
Namespace http://standardit.tapio.fi/schemas/contactRequest
Diagram
Diagram index38.tmp#id1158 index29.tmp#id1171 index89.tmp#id1157
Type ForestPropertyDataType
Properties
content: complex
minOccurs: 1
maxOccurs: unbounded
Model RealEstates{0,1} , Stands{0,1}
Children RealEstates, Stands
Instance

<ForestPropertyData>
  <RealEstates>{0,1}</RealEstates>
  <Stands>{0,1}</Stands>
</ForestPropertyData>
Source

<xs:element name="ForestPropertyData" type="fd:ForestPropertyDataType" minOccurs="1" maxOccurs="unbounded"/>

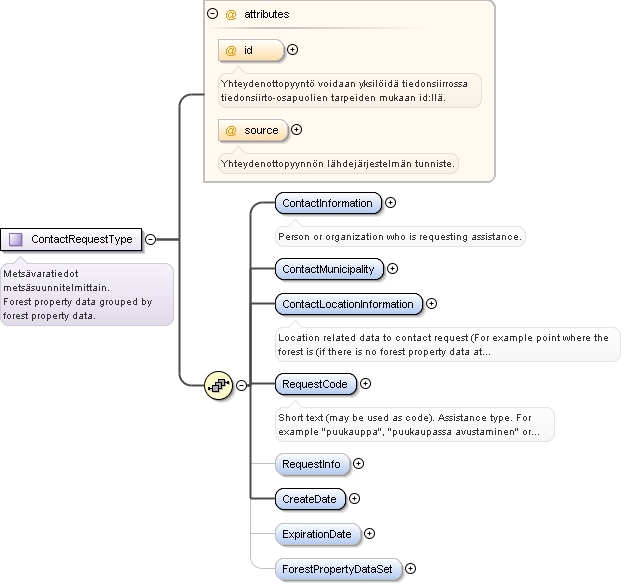

Complex Type ContactRequestType
Namespace http://standardit.tapio.fi/schemas/contactRequest
Annotations
Metsävaratiedot metsäsuunnitelmittain.
Forest property data grouped by forest property data.
Diagram
Diagram index57.tmp#id1236 index57.tmp#id1237 index57.tmp#id1144 index57.tmp#id1145 index57.tmp#id1146 index57.tmp#id1148 index57.tmp#id1150 index57.tmp#id1152 index57.tmp#id1153 index57.tmp#id1154
Used by
Element ContactRequest
Model ContactInformation , ContactMunicipality , ContactLocationInformation , RequestCode , RequestInfo{0,1} , CreateDate , ExpirationDate{0,1} , ForestPropertyDataSet{0,1}
Children ContactInformation, ContactLocationInformation, ContactMunicipality, CreateDate, ExpirationDate, ForestPropertyDataSet, RequestCode, RequestInfo
Attributes
QName Type Fixed Default Use Annotation
id xs:string optional
Yhteydenottopyyntö voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.
source xs:string optional
Yhteydenottopyynnön lähdejärjestelmän tunniste.
Source

<xs:complexType name="ContactRequestType">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Metsävaratiedot metsäsuunnitelmittain.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en">Forest property data grouped by forest property data.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="ContactInformation" type="ci:ContactInformationType" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi"/>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Person or organization who is requesting assistance.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ContactMunicipality" type="co:MunicipalityNumberType" minOccurs="1" maxOccurs="1"/>
    <xs:element name="ContactLocationInformation" type="gdt:AlternativeGeometriesType" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi"/>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Location related data to contact request (For example point where the forest is (if there is no forest property data at all).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="RequestCode" type="RequestCodeType" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation xml:lang="fi"/>
        <xs:documentation xml:lang="sv"/>
        <xs:documentation xml:lang="en">Short text (may be used as code). Assistance type. For example "puukauppa", "puukaupassa avustaminen" or "maastokartoitus"</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="RequestInfo" type="co:String2000Type" minOccurs="0" maxOccurs="1"/>
    <xs:element name="CreateDate" type="co:DateType" minOccurs="1" maxOccurs="1"/>
    <xs:element name="ExpirationDate" type="co:DateType" minOccurs="0" maxOccurs="1"/>
    <xs:element name="ForestPropertyDataSet" type="ForestPropertyDataSetType" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
  <xs:attribute name="id" type="xs:string">
    <xs:annotation>
      <xs:documentation xml:lang="fi">Yhteydenottopyyntö voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.</xs:documentation>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en"/>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="source" type="xs:string">
    <xs:annotation>
      <xs:documentation xml:lang="fi">Yhteydenottopyynnön lähdejärjestelmän tunniste.</xs:documentation>
      <xs:documentation xml:lang="sv"/>
      <xs:documentation xml:lang="en"/>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
Simple Type RequestCodeType
Namespace http://standardit.tapio.fi/schemas/contactRequest
Annotations
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 50
Used by
Source

<xs:simpleType name="RequestCodeType">
  <xs:annotation>
    <xs:documentation xml:lang="fi"/>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>
Complex Type ForestPropertyDataSetType
Namespace http://standardit.tapio.fi/schemas/contactRequest
Diagram
Diagram index57.tmp#id1156
Used by
Model ForestPropertyData+
Children ForestPropertyData
Source

<xs:complexType name="ForestPropertyDataSetType">
  <xs:sequence>
    <xs:element name="ForestPropertyData" type="fd:ForestPropertyDataType" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Attribute ContactRequestType / @id
Namespace http://standardit.tapio.fi/schemas/contactRequest
Annotations
Yhteydenottopyyntö voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.
Type xs:string
Properties
content: simple
Used by
Complex Type ContactRequestType
Source

<xs:attribute name="id" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Yhteydenottopyyntö voidaan yksilöidä tiedonsiirrossa tiedonsiirto-osapuolien tarpeiden mukaan id:llä.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:attribute>
Attribute ContactRequestType / @source
Namespace http://standardit.tapio.fi/schemas/contactRequest
Annotations
Yhteydenottopyynnön lähdejärjestelmän tunniste.
Type xs:string
Properties
content: simple
Used by
Complex Type ContactRequestType
Source

<xs:attribute name="source" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="fi">Yhteydenottopyynnön lähdejärjestelmän tunniste.</xs:documentation>
    <xs:documentation xml:lang="sv"/>
    <xs:documentation xml:lang="en"/>
  </xs:annotation>
</xs:attribute>
XML Schema documentation generated by ® XML Editor.
